solar panel pv aluminum roll forming machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Warranty:12 Months

Delivery Time:30 Days

Type:Steel Frame & Purlin Machine

Material:GI, PPGI, Aluminum Coils

Way Of Driven:Chain Or Gear Box

Cutting Mode:Hydraulic

Material Of Cutting Blade:Cr12

Forming Speed:25-30m/min(excluding Punching)

Voltage:380V/3Phase/50Hz Or At Your Request

After Service:Engineers Available To Service Machinery Overseas

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin Xingang

Product Description

solar panel pv aluminum roll forming machine

Solar Pv Panel Mounting Brackets Roll forming machine with 60tons punching machine bello lin main product of Widely used in roof and wall, Has the advantages of convenient operation, high accuracy and high performance.if you are intrested in our product please let me know.



Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Matching material Galvanized, PPGI, Aluminum
Material thickness range 1.5-2.0mm
Feeding width 300mm(can change according to buyer’s request)
Roller 24 rollers
Material of roller Gcr15
Main motor power 30KW
Forming speed 8-15m/min
Shaft material and diameter 80mm, 45# steel with chromed
Way of driven Chain transmission or gear box
Material of blade Cr12 mould steel with quenched treatment 58-62℃
Voltage 380V/3Phase/50Hz
Controlling system PLC

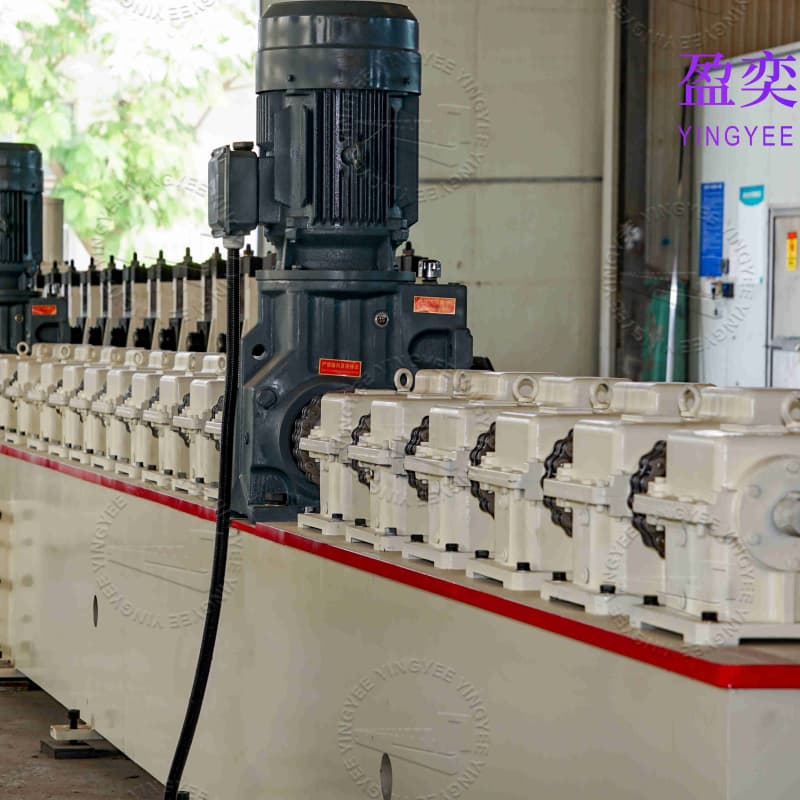

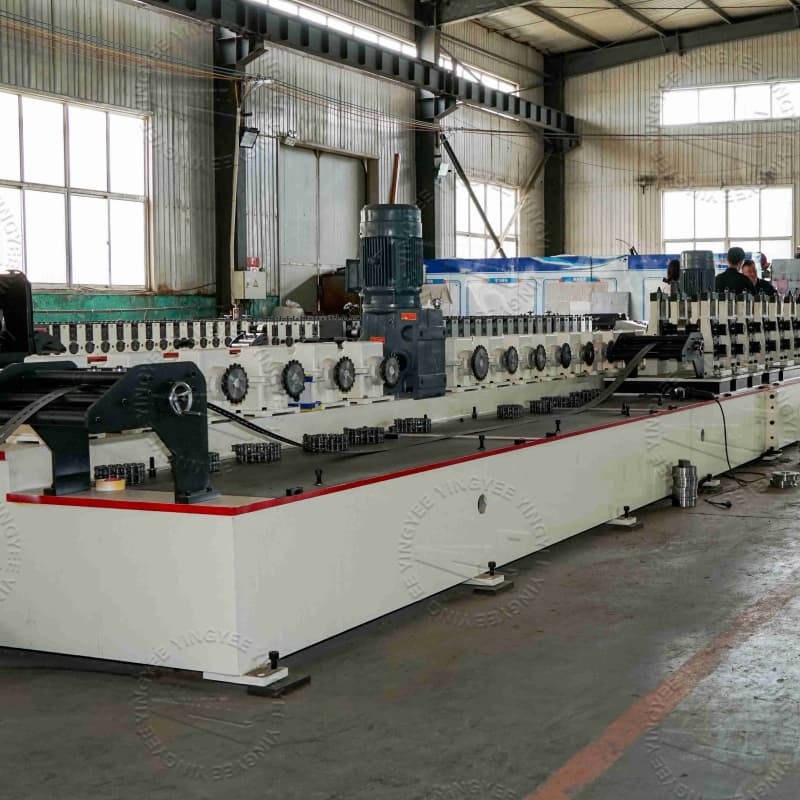

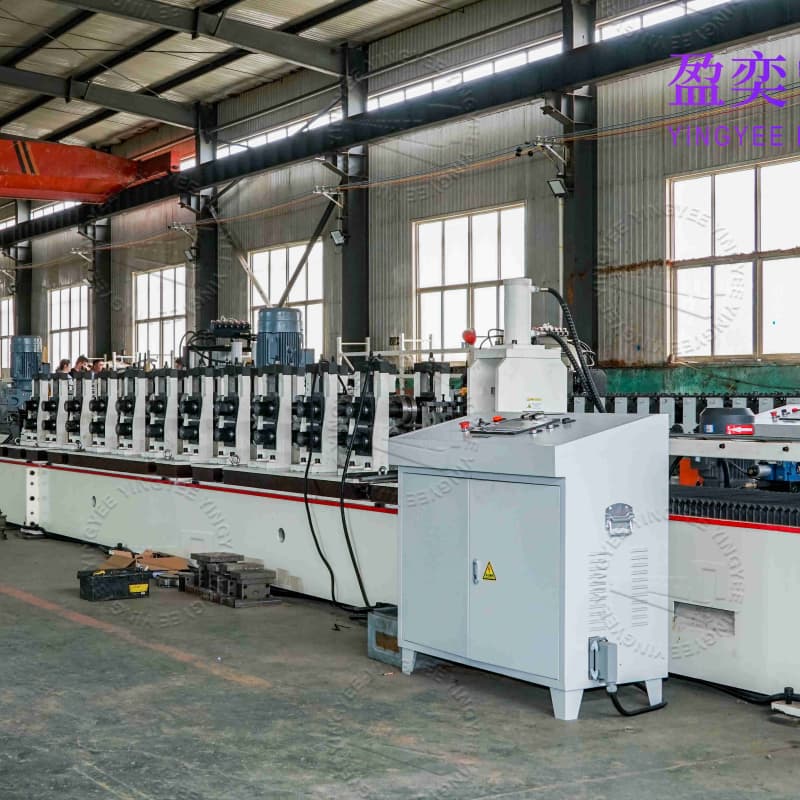

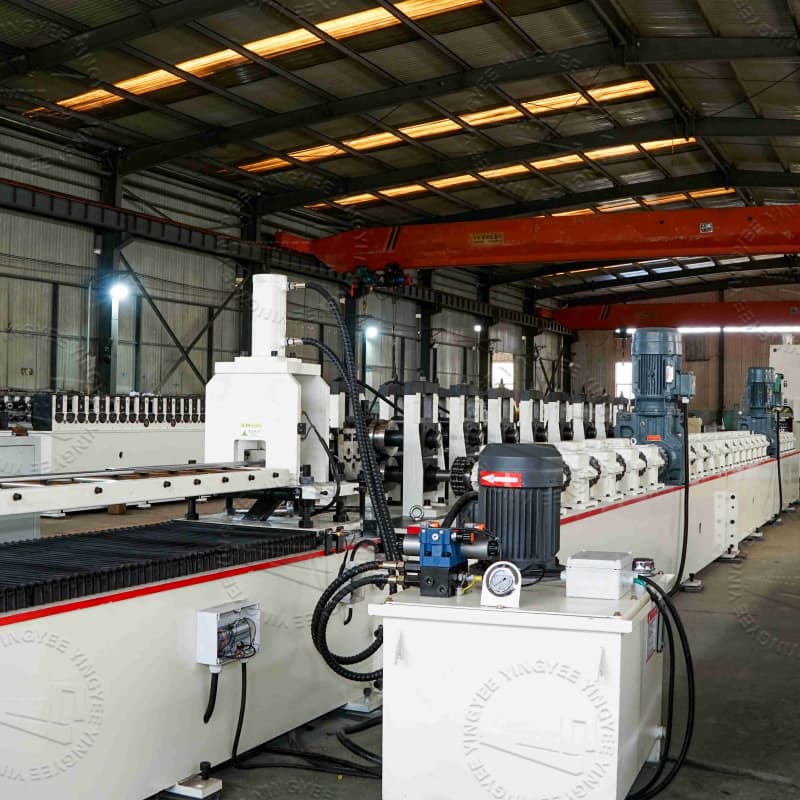

Pictures of machine:



solar PV bracket

solar PV bracket

solar PV bracket

solar PV bracket

solar PV bracket



Our advantage:
1. Short delivery period

2. Effective communication

3. Interface customized.

Looking for ideal Solar PV Bracket Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Solar PV Mounting Bracket Machine are quality guaranteed. We are China Origin Factory of Automatic Solar PV Panel Machine. If you have any question, please feel free to contact us.

Product Categories : Solar PV Bracket Roll Forming Machine
