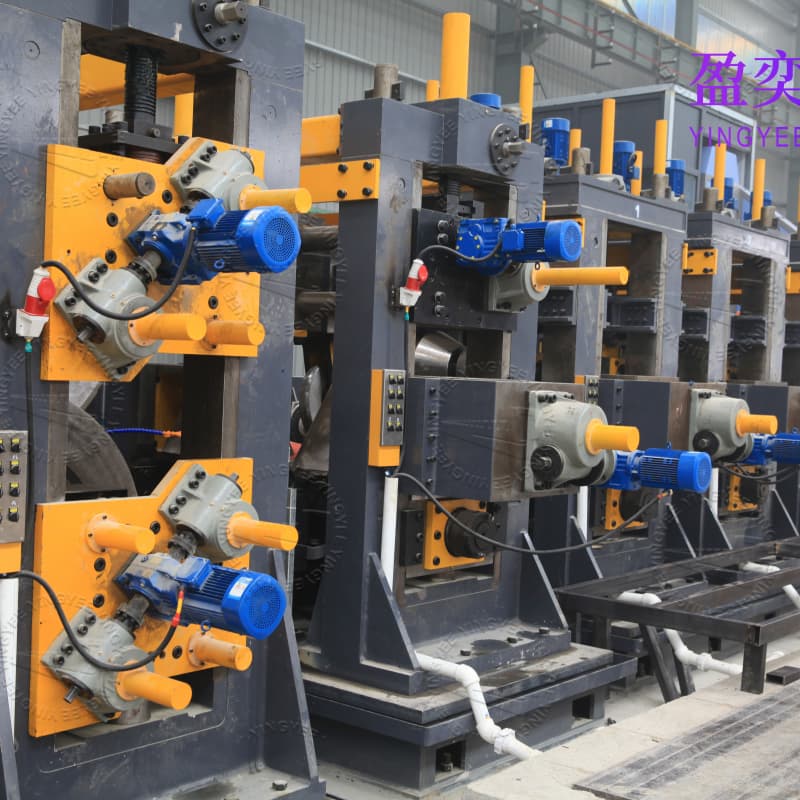

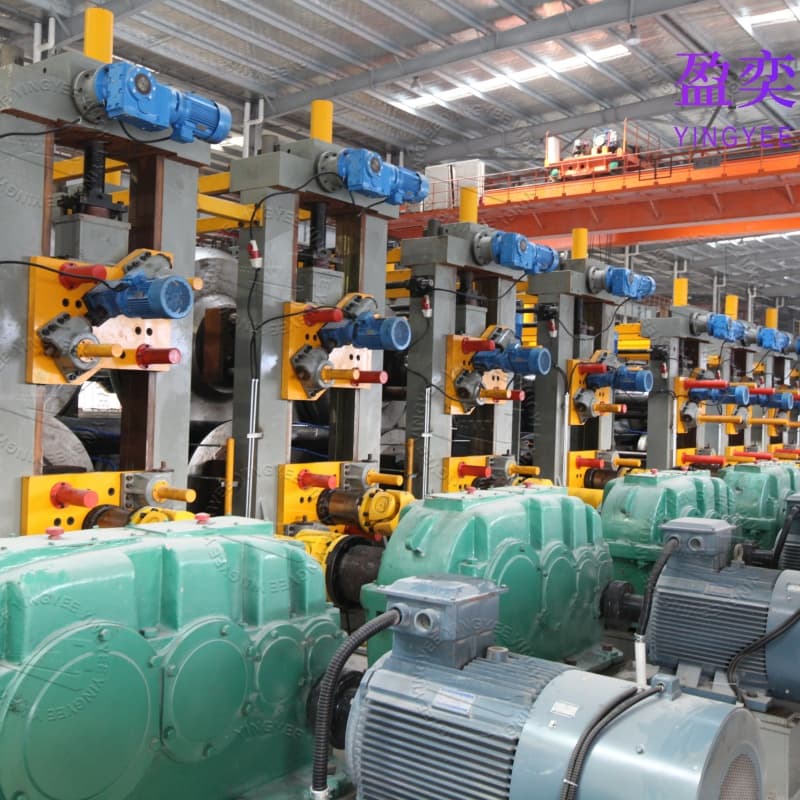

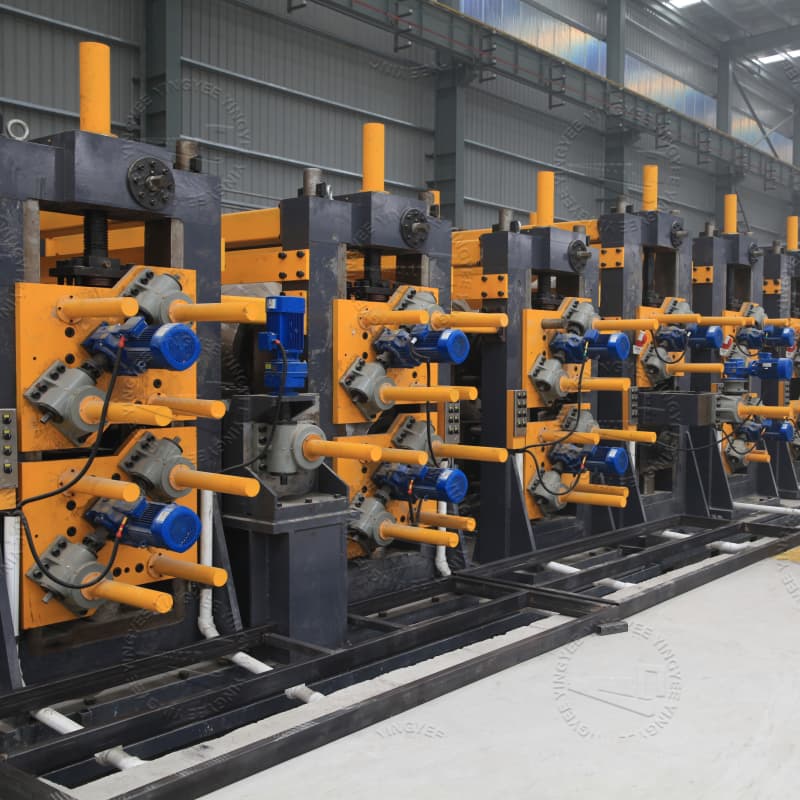

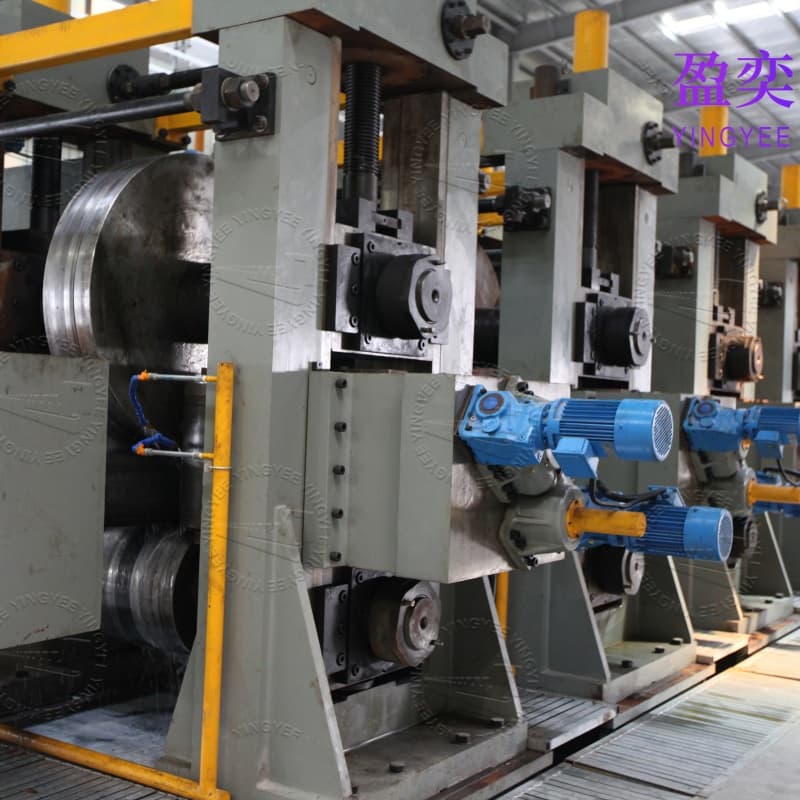

Automatic stainless steel tube production line tube mill in China
Short Description:
Basic Infomation
Model No.:WW01-YY
Warranty:12 Months
Delivery Time:60 working Days
After Service:Engineers Available To Service Machinery Overseas
Voltage:380V/3Phase/50Hz Or At Your Request
Cutting Mode:Hydraulic
Control System:PLC
Speed:80-100m/min
Daily Production:6000 Tubes
Additional Infomation
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin,Shanghai,Qingdao
Product Description
| SpecificationofHighSquaretubemillweldingmachine | |||||
| Model | TubeO.D.(mm) | WallThickness(mm) | Speed(m/min) | H.F.power(Kw) | Mainmotor(Kw) |
| TZG-12 | φ7-16 | 0.2-0.5 | 30-100 | 60 | 15 |
| TZG-16 | φ8-25 | 0.3-1.0 | 30-90 | 60 | 22 |
| TZG-25 | φ8-30 | 0.4-1.3 | 30-90 | 100 | 37 |
| TZG-28 | φ10-38 | 0.5-1.5 | 30-80 | 100 | 45 |
| TZG-32 | φ13-50.8 | 0.6-2.0 | 20-90 | 100 | 75 |
