Automatic Metal Steel Framing Structure Building C/Z Purlin Cold Roll Forming Making Machine

Short Description:

High speed C Z purlin roll forming machine.
Automatic changing szie with servo motor
Universial cutter to cut c and z purlin.
Big and heavy machine body.


Product Detail

FAQ

Product Tags



Automatic Metal Steel Framing Structure Building C/Z Purlin Cold Roll Forming Making Machine

One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.

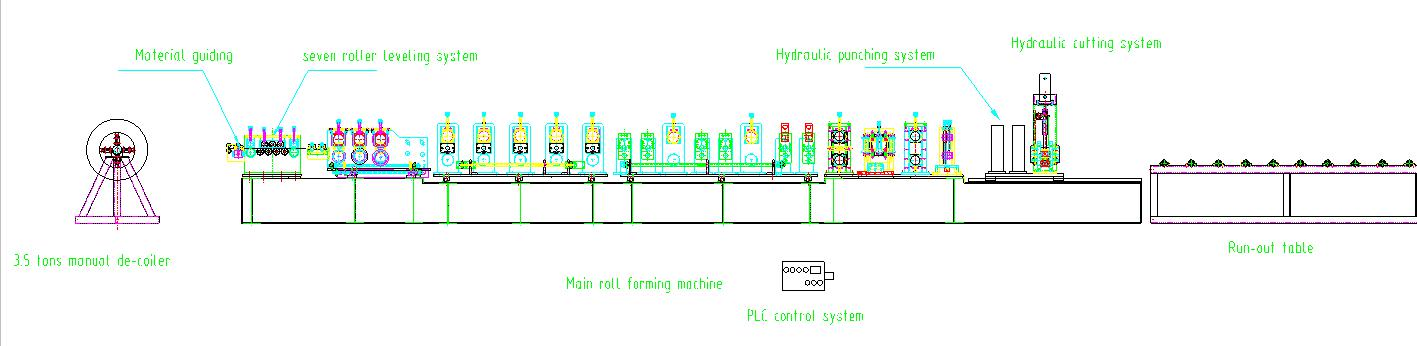

Working Flow:  Decoiler – leveling – punching — Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table

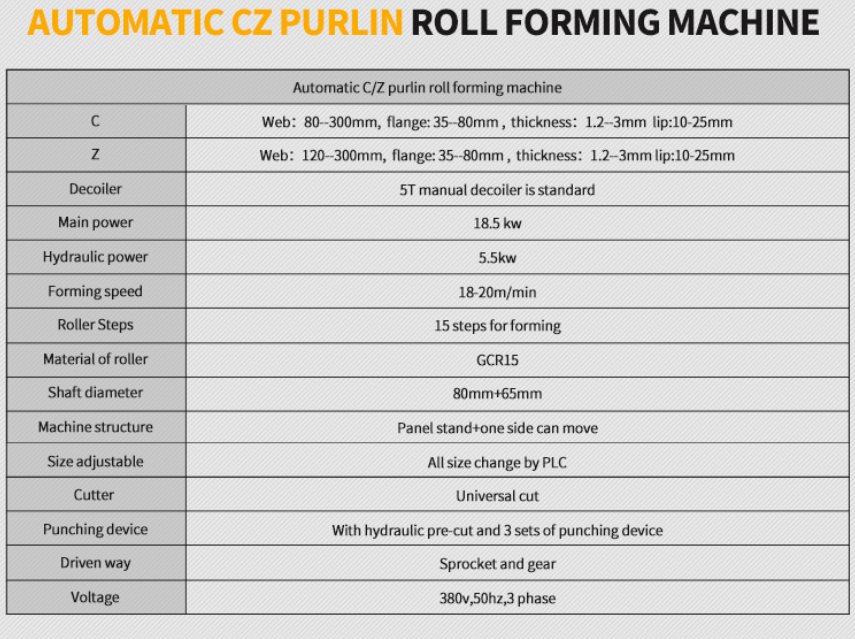

Specification:
