Electric Cabinet Frame 9/16 Fold Profiles Metal Forming Machine
Short Description:

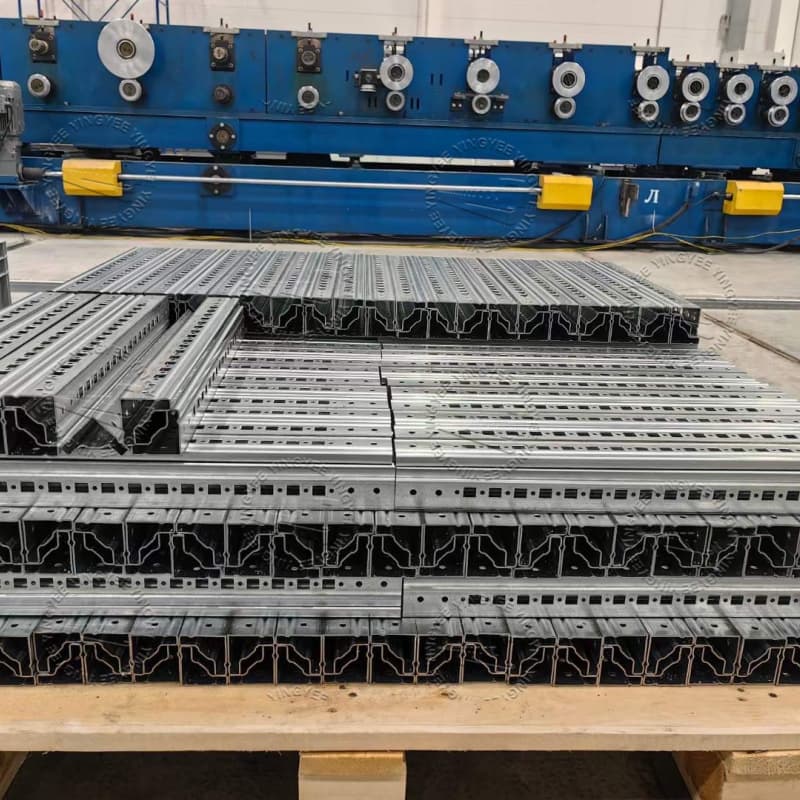

Electrical cabinet frame roll forming machine
Automaitc electric factory using cabinet frame roll forming machine, electronic box pole,

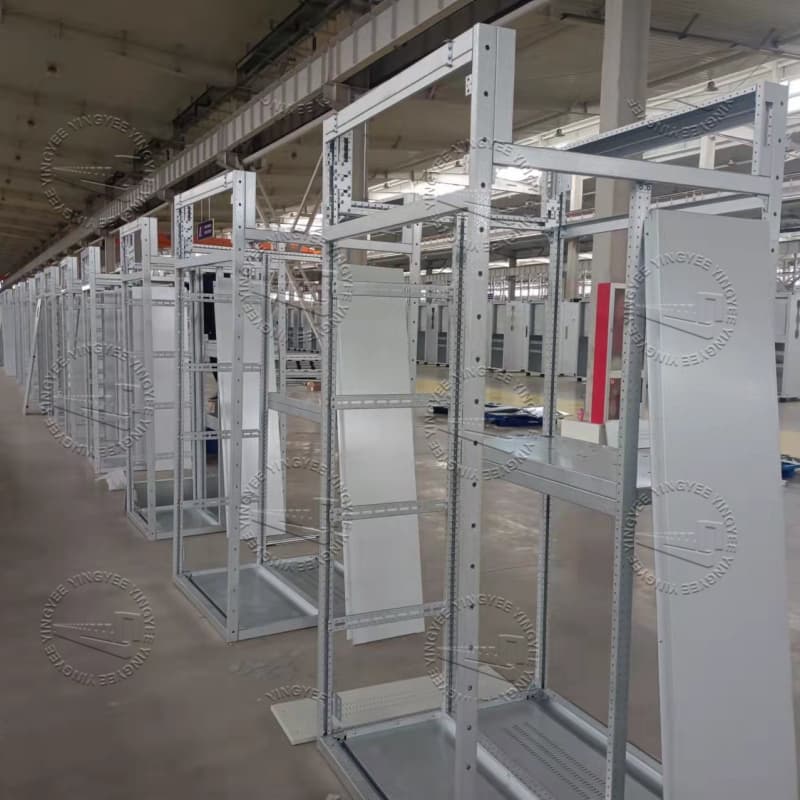

metal case frame which using in switchgear system, server case, low voltage panel building, control cabinet electrical instruments etc.
Ggd Distribution Cabinet Profile Steel Roll Forming Machine Electrical Cabinet Column Manufacturing Equipment
1,Technical parameters
| No. | ITEM | PARAMETER | REMARK | |
| 1 | MATERIAL | Type | Cold-rolled strip steel, galvanized sheet | |
| T.(mm) | 1.5mm | |||
| Yield Strength (Mpa) | Q235 | |||
| 2 | Forming product Width | 43.5mm | ||
| 3 | Forming speed (m/min) | 2-6m | Including welding | |
| 4 | Forming main power (KW) | 11 KW*2 pcs | FYR | |
| 5 | Hydraulic power (KW) | 18.5 KW | FYR | |
| 6 | Voltage | AC380V，50Hz，3P | ||
Devices completed 16 fold cabinet frame prodution line
| No. | Machine name | QTY | REMARK |
| 1 | Uncoiler straightener | 1 | |
| 2 | Servo Feeder | 1 | |

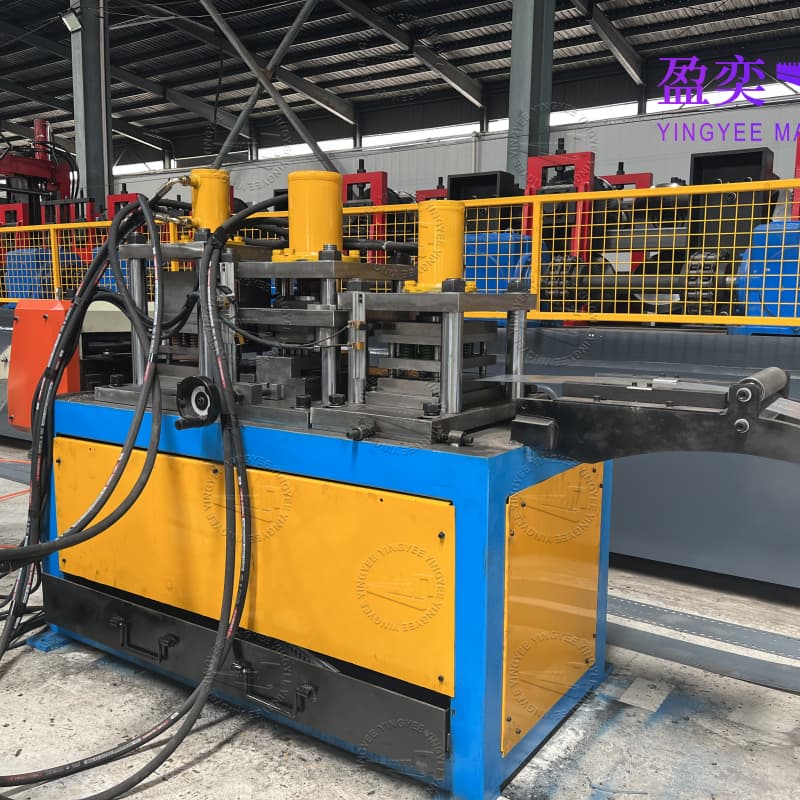

| 3 | Hydraulic machine/Punch machine | 1 | With mould |
| 4 | Guide device | 1 | |
| 5 | Forming machine | 1 | |
| 6 | Roller welding | 1 | |

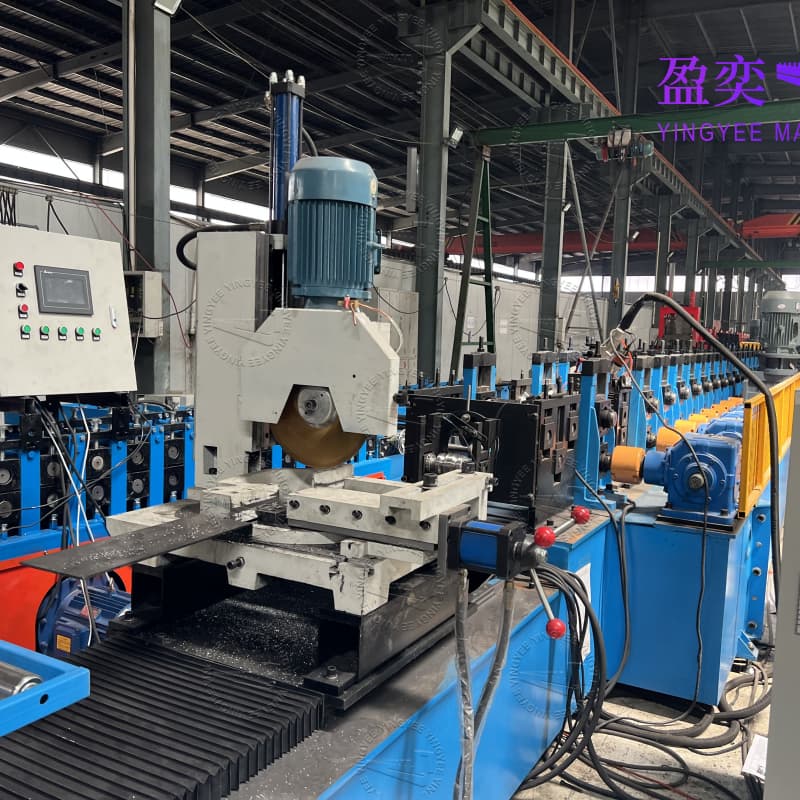

| 7 | Follow Shear | 1 | Including knife |
| 8 | Collect rack | 1 | |
| 9 | Control system | 1 |
