Octagonal steel tube roll forming machine
Short Description:
Octagonal steel tube roll forming machine.
with straightening parts,high straighteness.
independent punching machine,high speed.
fly saw cutting,no deformation
Octagonal steel tube roll forming machine

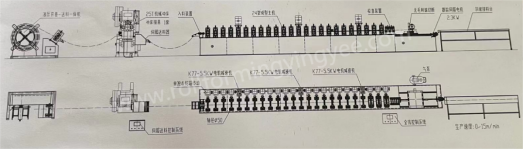

drawings
PRODUCT DESCRIPTION
Uncoiler—Hydraulic punching—Feeding guide—Roll forming—Fly saw cutting with servo motor—Run out table
TECHNICAL DETAILS
Frame: One-piece steel frame
Uncoiler: 2 Tons
Forming station: 20
Driving type: gear transmission
Main motor power: 5.5KW*2,220/380V,50/60HZ,3 Phase,OMT
Hydraulic system: 7.5KW,1 stations
Electrical system: Delta control system, external electric cabinet
Cutting type: Fly saw cutting with servo motor, 1.5KW Delta servo motor
Punching system: Hydraulic punching
Material thickness: 0.4-0.6mm，DX51D galvanized sheet
Material width: 143mm
Forming speed: 12-15m/min
Run out: 6m
