metal steel Roll shutter door roll forming machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Type:Steel Frame & Purlin Machine

Control System:PLC

Delivery Time:30 Days

Warranty:12 Months

Material Of Cutting Blade:Cr12

Cutting Mode:Hydraulic

After Service:Engineers Available To Service Machinery Overseas

Forming Speed:10-15m/min(excluding Punching)

Voltage:380V/3Phase/50Hz Or At Your Request

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Product Description

Roller Shutter Roll Forming Machine

This making metal steel Roll shutter door roll forming machine is widely used for the work plants and shops doors because of durable use, space saving, low cost and low noise. The complete roll forming machine of shutter door includes decoiler, main roll forming machine, PLC controlling system and run-out tables. all the batches and pieces with length we need only can be setted in the PLC then the metal steel Roll shutter door produces it automatically, easy to operate, saving persons.



Shutter Door Machine Working Flow:

Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Raw material Pre-painted coils, Galvanized coils, Aluminum coils
Material thickness range 0.3-1.0mm
Rollers 10+5 groups
Material of rollers 45# steel with chromed
Shaft material and diameter 40mm, material is 40Cr
Forming speed 10-15m/min
Main motor power 5.5KW
Hydraulic power 3.0KW
Cutting type Hydraulic flying saw
Controlling system PLC
Voltage 380V/3Phase/50Hz
Way of driven 1.0 inch single chain transmission
Total weight 2 tons
Size of the machine L*W*H 6*0.8*1m

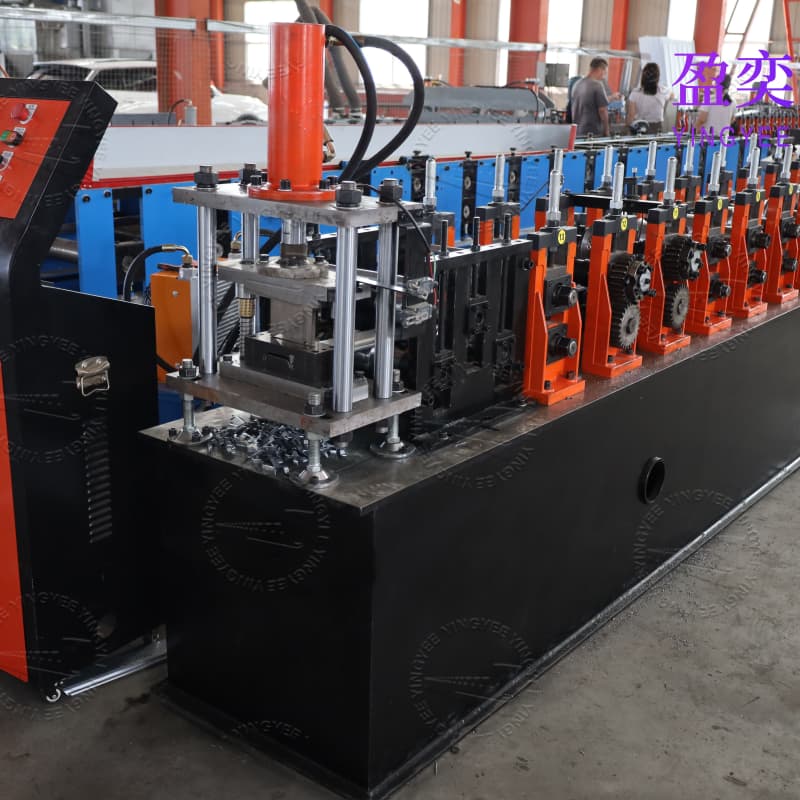

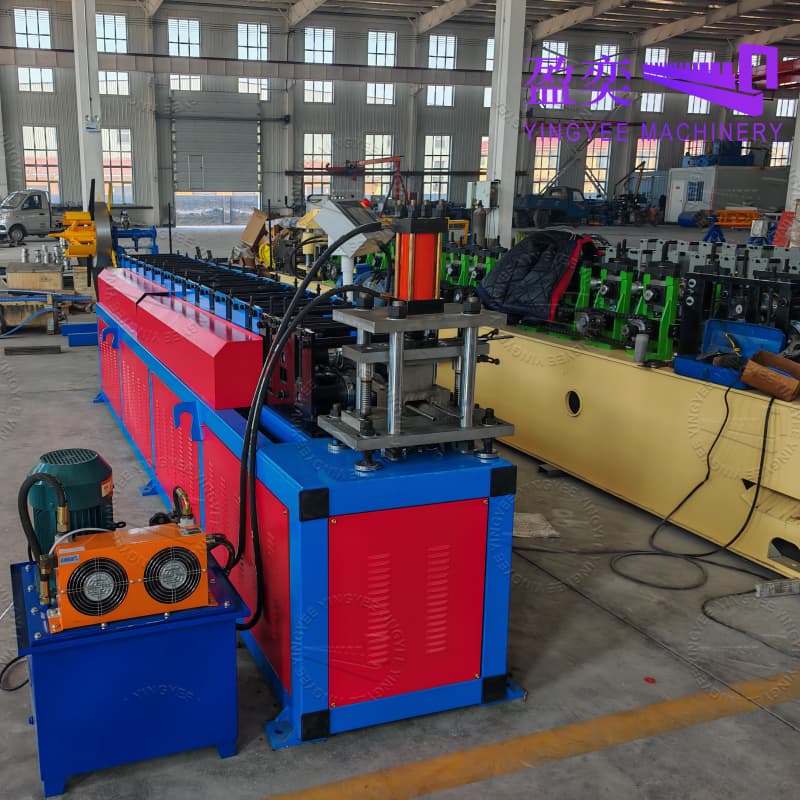

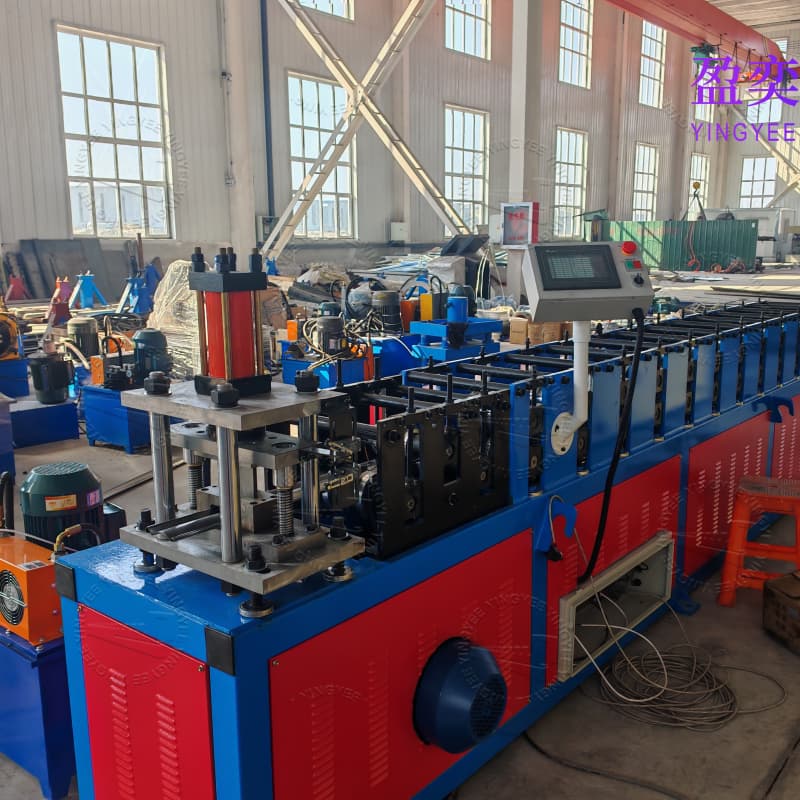

Pictures of machine:

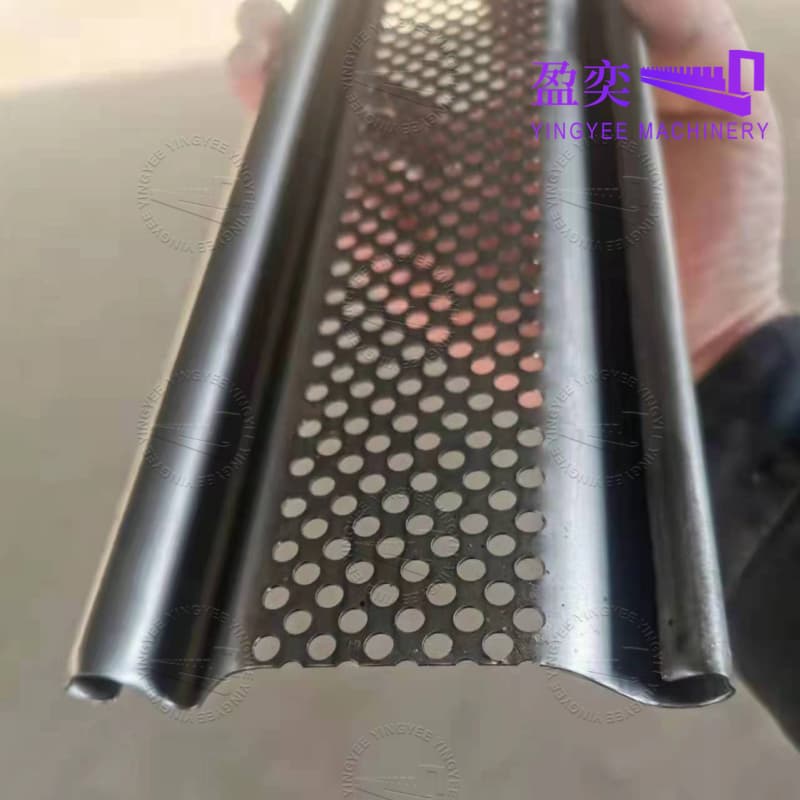

Shutter door Roller shutter



Roller shutter door roll forming machine Roller shutter door



shutter door

roller shutter door roll forming machine

roll-up door

roller shutter door roll forming machine

roller shutter door roll forming machine

roller shutter door roll forming machine

roller shutter door roll forming machine

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.



This metal steel Roll shutter door roll forming machine making is widely used for the work plants and shops doors because of durable use, space saving, low cost and low noise. The complete roll forming machine of shutter door includes decoiler, main roll forming machine, PLC controlling system and run-out tables. all the batches and pieces with length we need only can be setted in the PLC then the metal steel Roll shutter door produces it automatically, easy to operate, saving persons.



Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period.

2. Effective communication

3. Interface customized.



Looking for ideal Metal Steel Roll Shutter Door Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roll Forming Machine of Shutter Door are quality guaranteed. We are China Origin Factory of Shutter Door Machine. If you have any question, please feel free to contact us.
