Full Automatic Rack Roll Forming Machine Steel Profile Storage Rack Roll Forming Machine
Short Description:
storage rack roll forming machine.
upright roll forming machine
high speed ：20m/min
big driven power. long lifespan
Full Automatic Rack / upright Roll Forming Machine Steel Profile Storage Rack Roll Forming Machine
- Basic Specification
|
No. |
Items |
Spec: |
|
1 |
Material |
Thickness:1.5-3 mm Effective width：According to drawing Material: GI/GL/HCR Coil/Carbon/Black steel |
|
2 |
Power supply |
380V, 60HZ, 3 Phase |
|
3 |
Capacity of power |
Motor power: 11kw*2 with K97 reducers Hydraulic station power: 11kw |
|
4 |
Speed |
0-20m/min |
|
5 |
Quantity of rollers |
18 rollers/ sets |
|
6 |
Control system |
PLC control system; Control panel: Button-type switch and touch screen; |
|
7 |
Floor Space |
Approx: 25m*2m*2m |

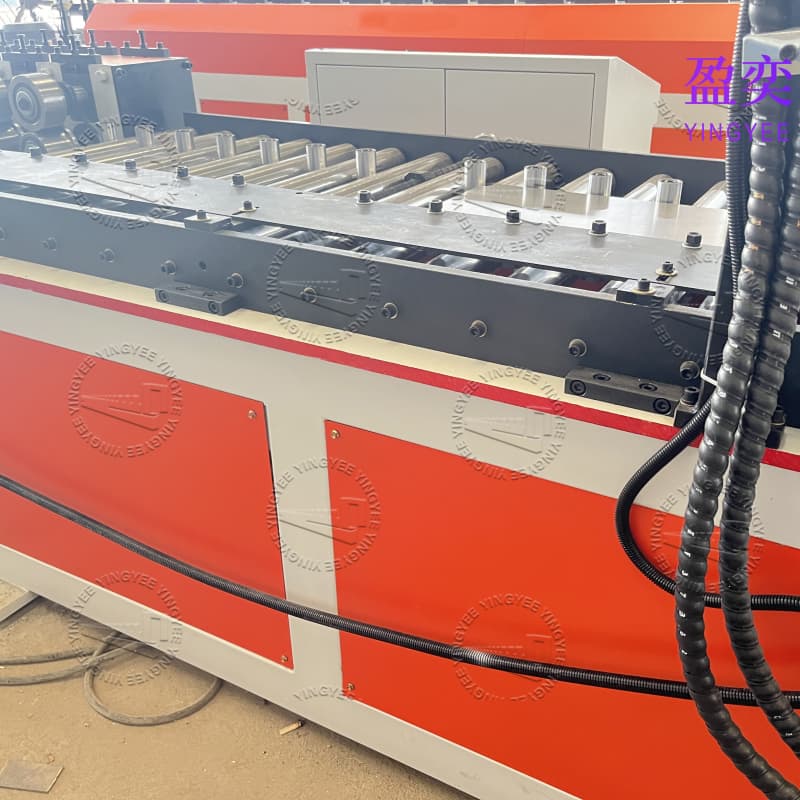

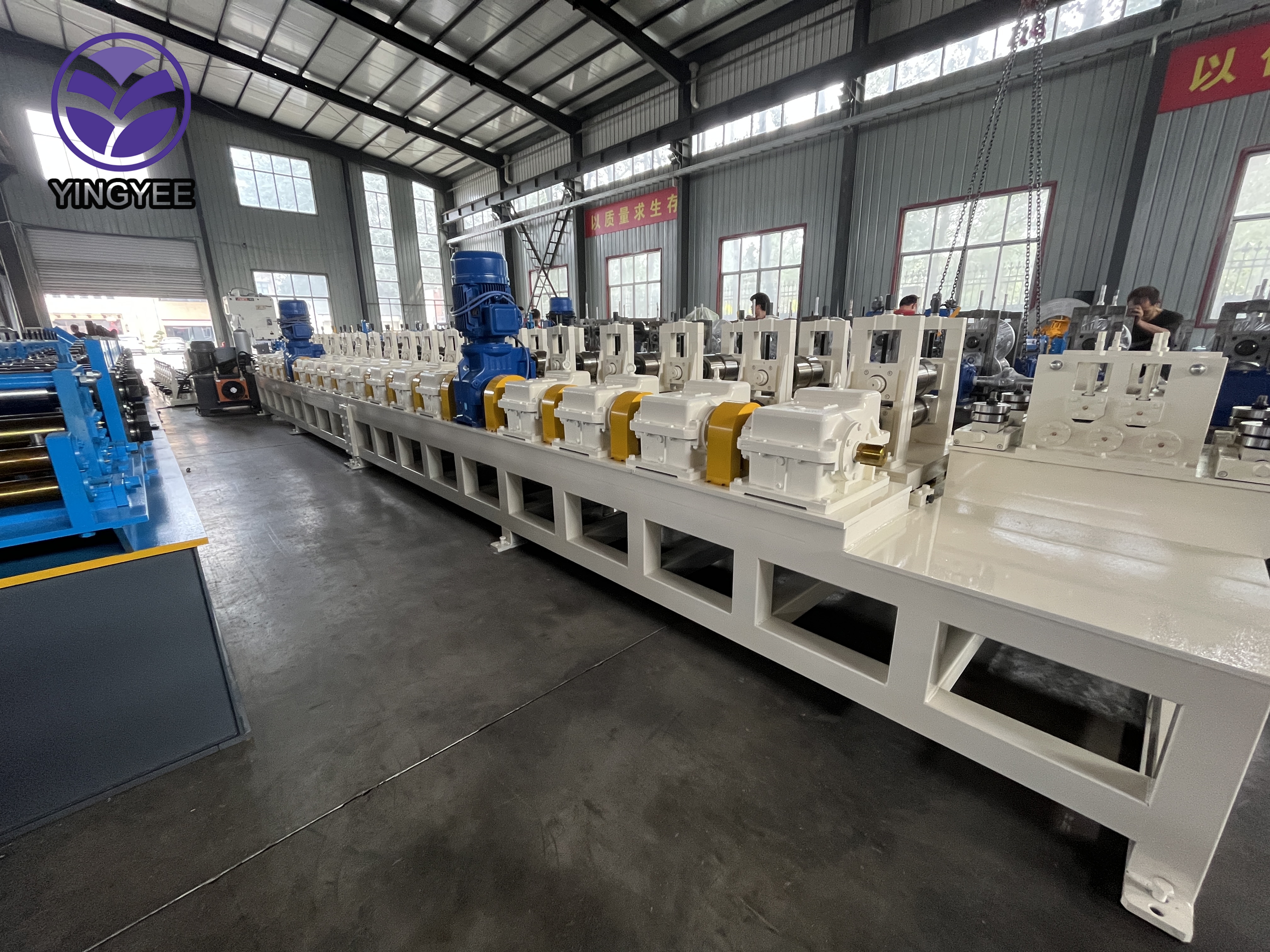

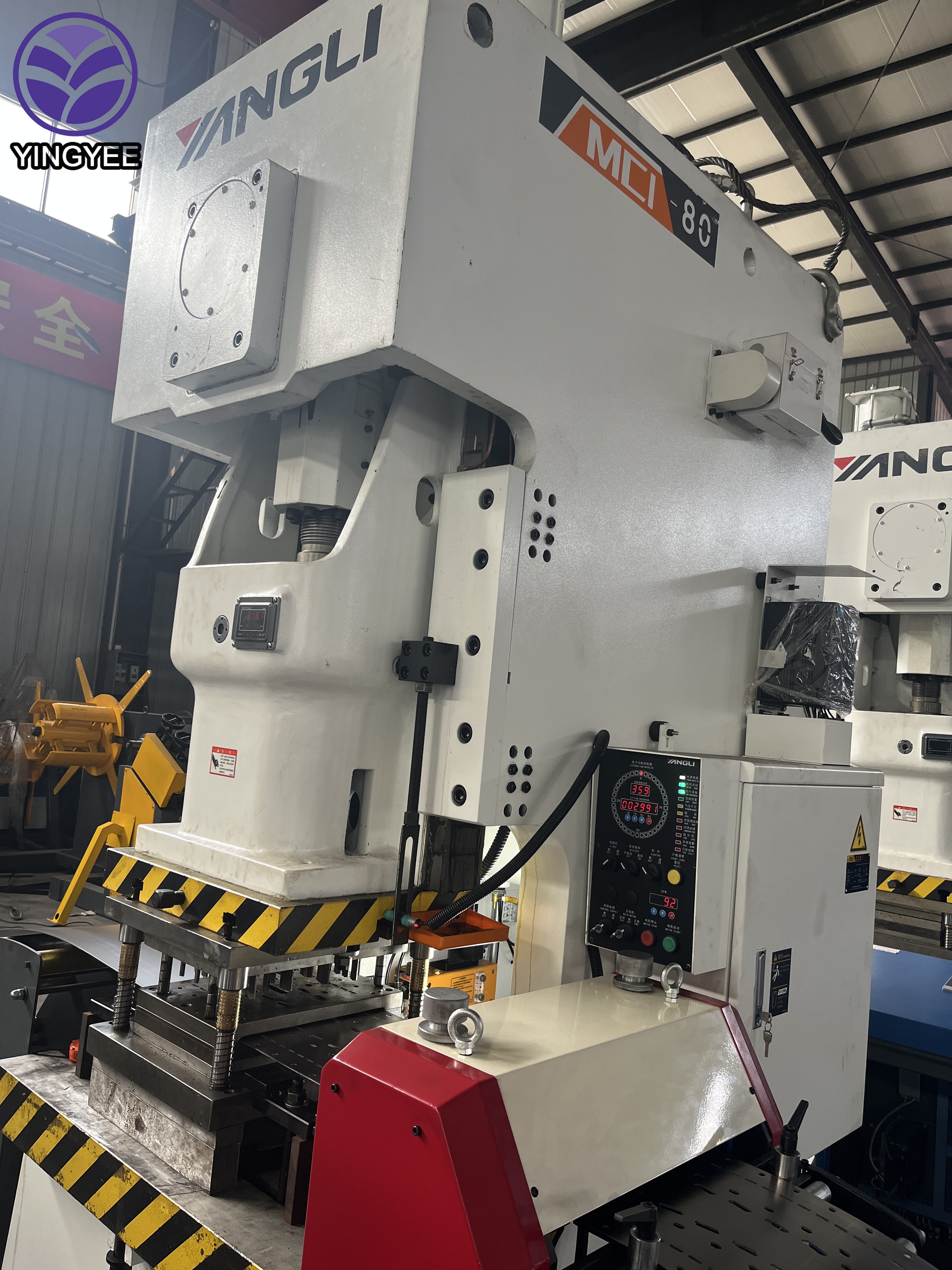

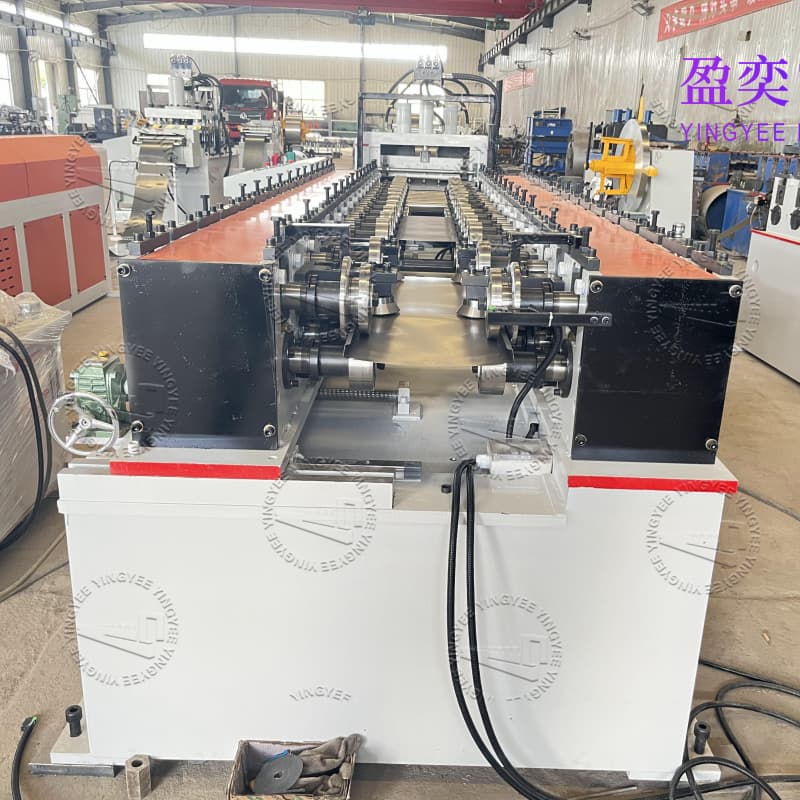

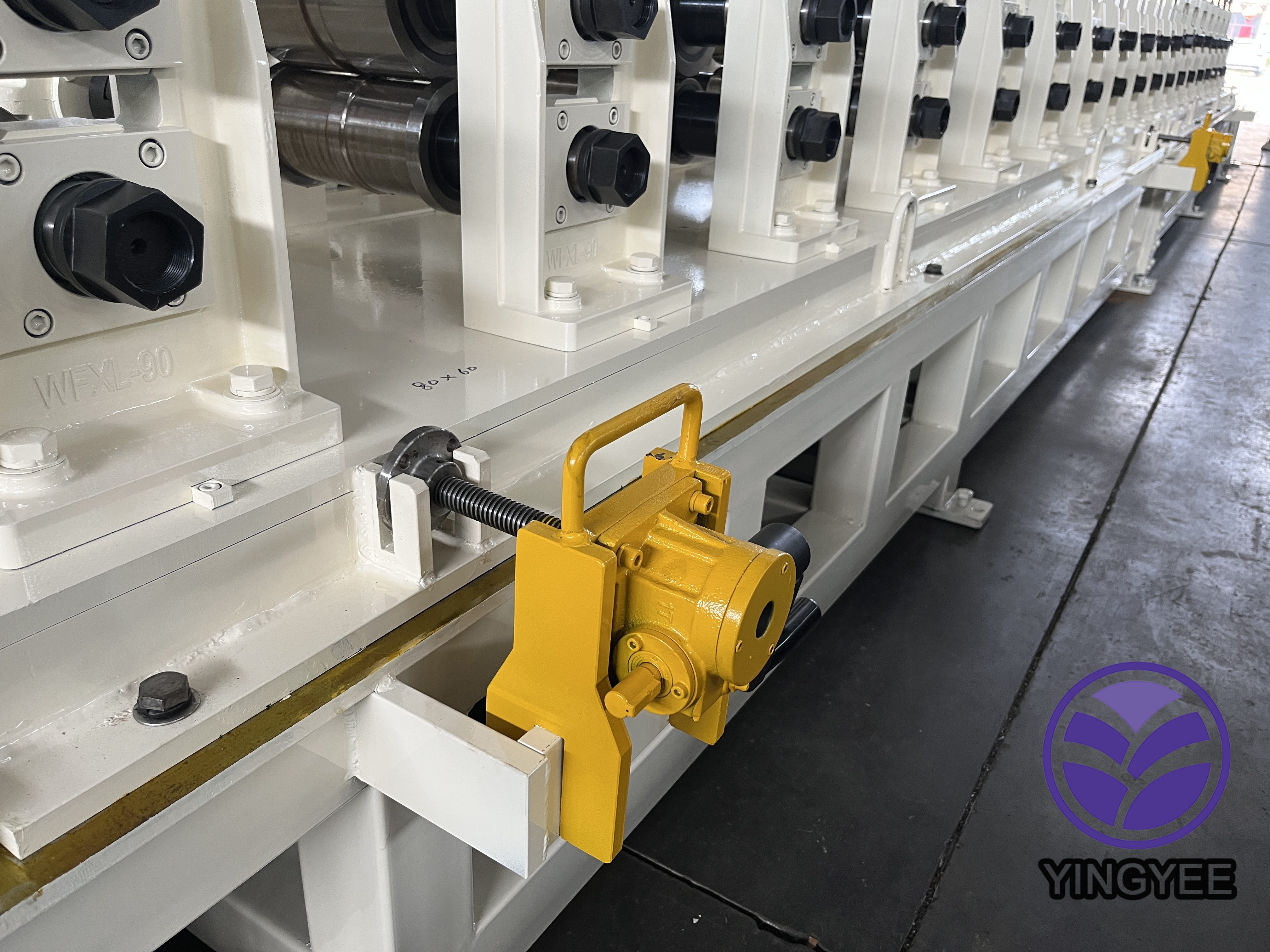

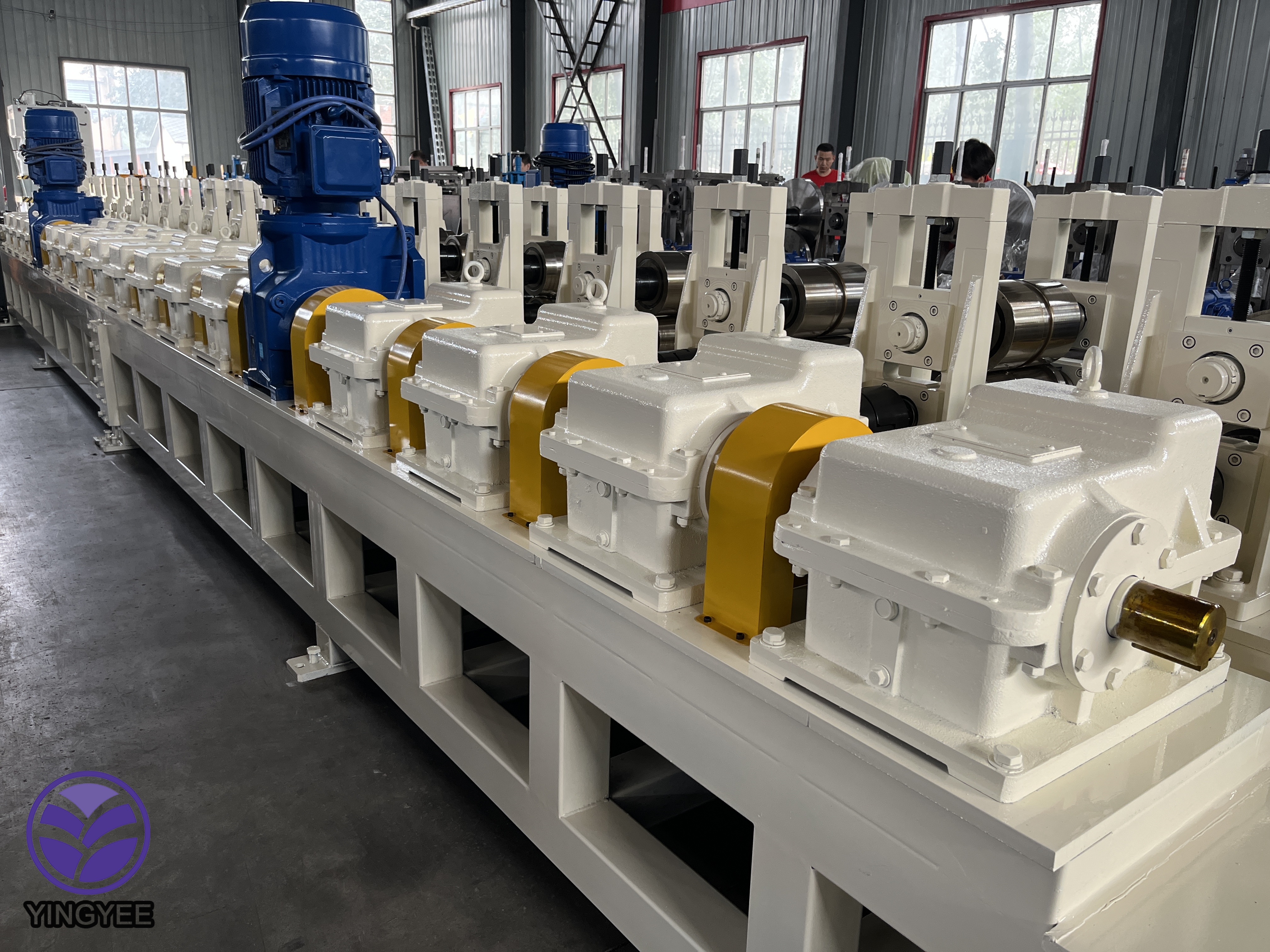

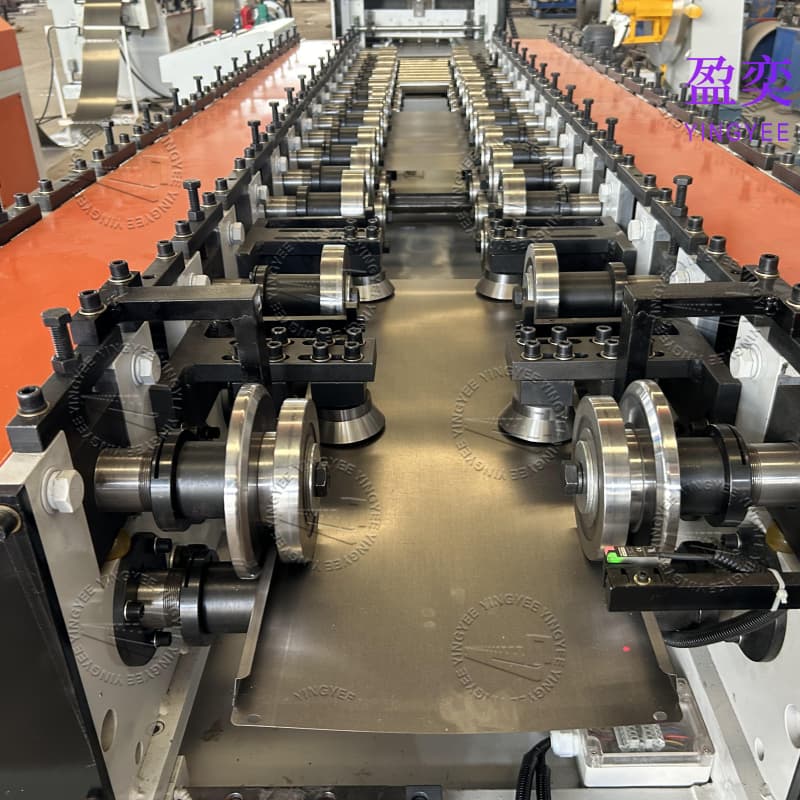

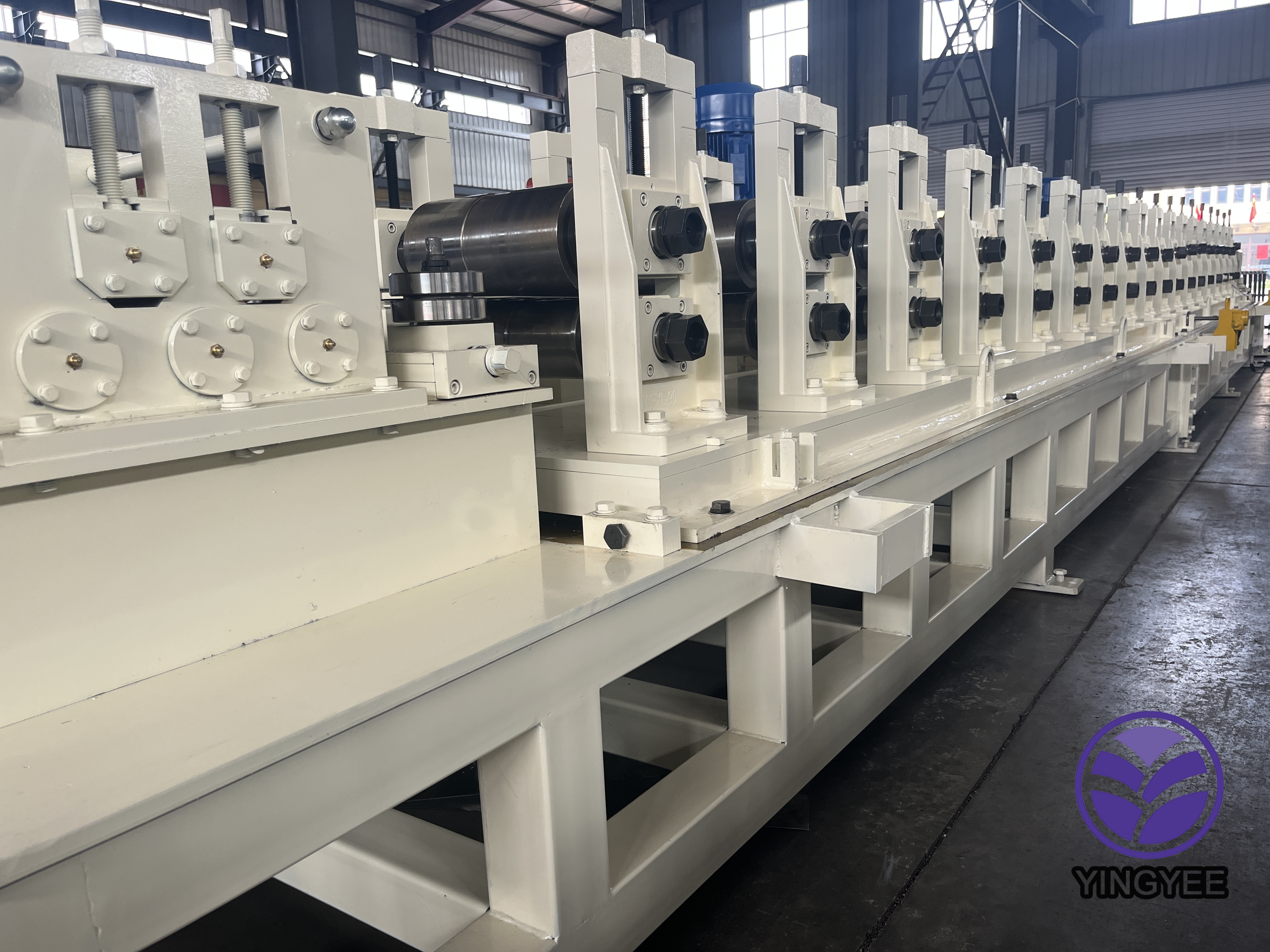

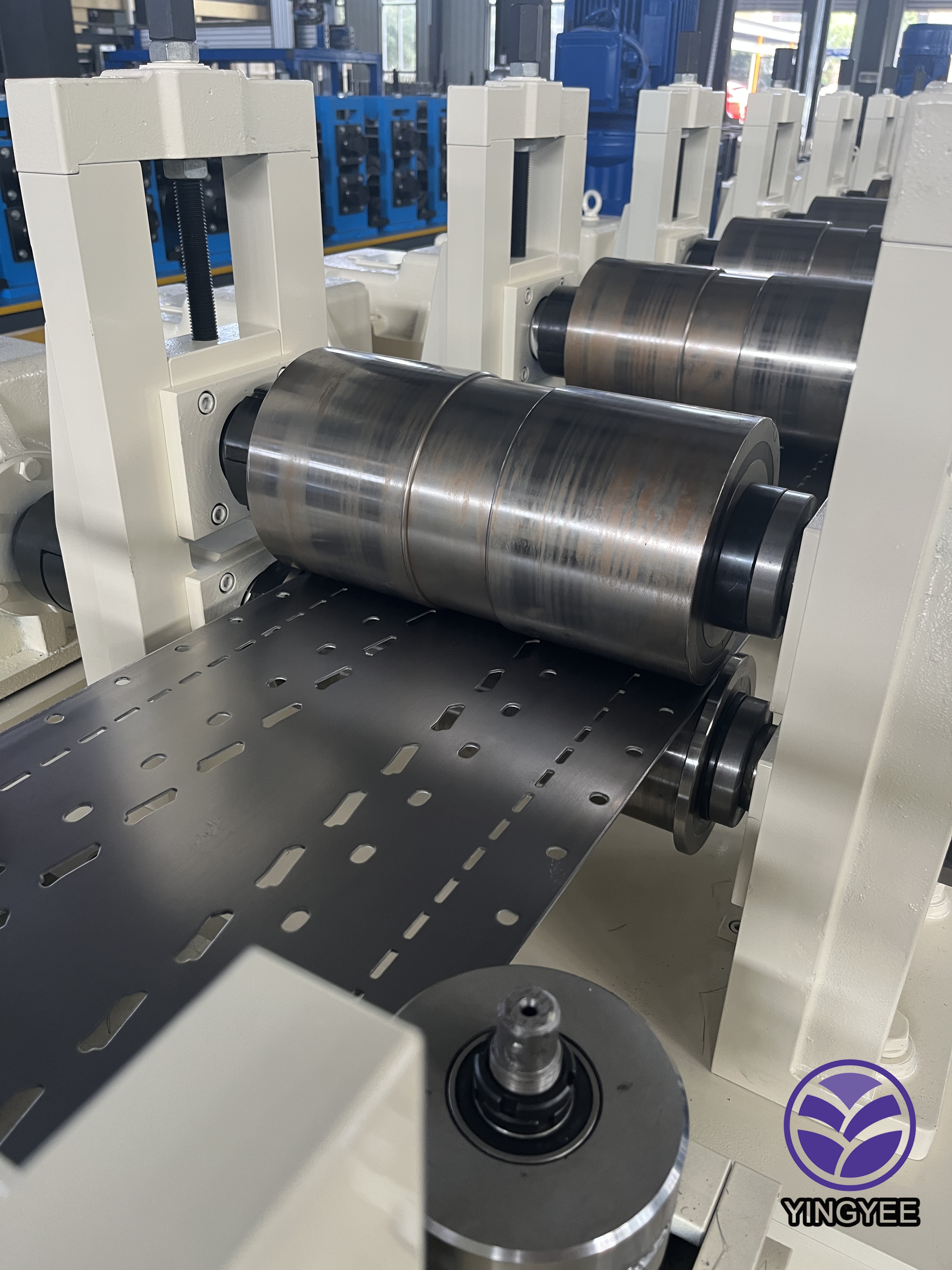

Machine pictures
