c purlin roll forming machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

    Delivery Time:30 Days

    Warranty:12 Months

    Material Of Cutting Blade:Cr12

    Type:Roof Sheet Roll Forming Machine

    Cutting Mode:Hydraulic

    Voltage:At Customer’s Request

    Way Of Driven:Chain Transmission

    Material:Steel Coil, Galvanized, PPGI, Aluminum

    Speed:6-8m/min(including Punching And Cutting Time)

    Control System:Panasonic/Mitsubishi PLC

Additional Info

    Packaging:NUDE

    Productivity:200 sets/year

    Brand:YY

    Transportation:Ocean

    Place of Origin:Hebei

    Supply Ability:200 sets/year

    Certificate:CE/ISO9001

Product Description

C/Z/U Purlin Roll Forming Machine

Hydraulic Cutting C/Z Purlin Making Machine, is a set of rollers to produce a variety of specifications, steel machine strengthens its firmness with an arch type, Products are widely applied in purline set-up of steel-structure houses.

Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table

Working process

Technical parameters:


Matching material Steel coil, Galvanized, PPGI, Aluminum
Material thickness range According to drawings
Main motor power 15KW
Forming speed 6-8m/min (include punching and cutting time)
Hydraulic power 5.5KW
Quantity of rollers About 18
Shaft diameter and material 70mm, material is 40Cr
Material of rollers 45# steel with chromed
Way of driven chain transmission
Controlling system PLC
Voltage 380V/30Phase/50Hz
Total weight About 10 tons
Size of the machine L*W*H 10m*1.2m*1.6m

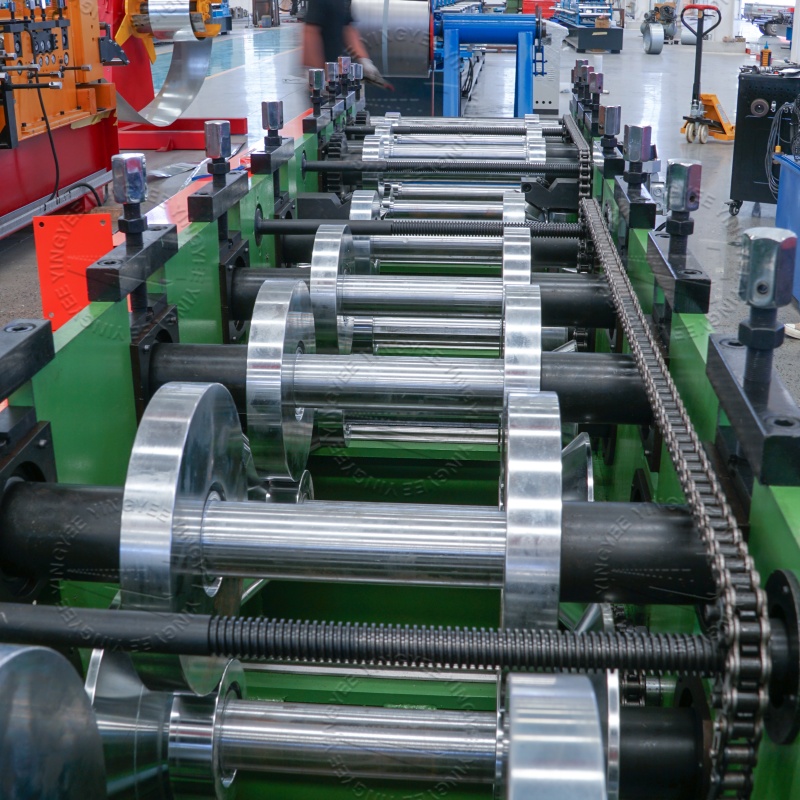

Pictures of machine:

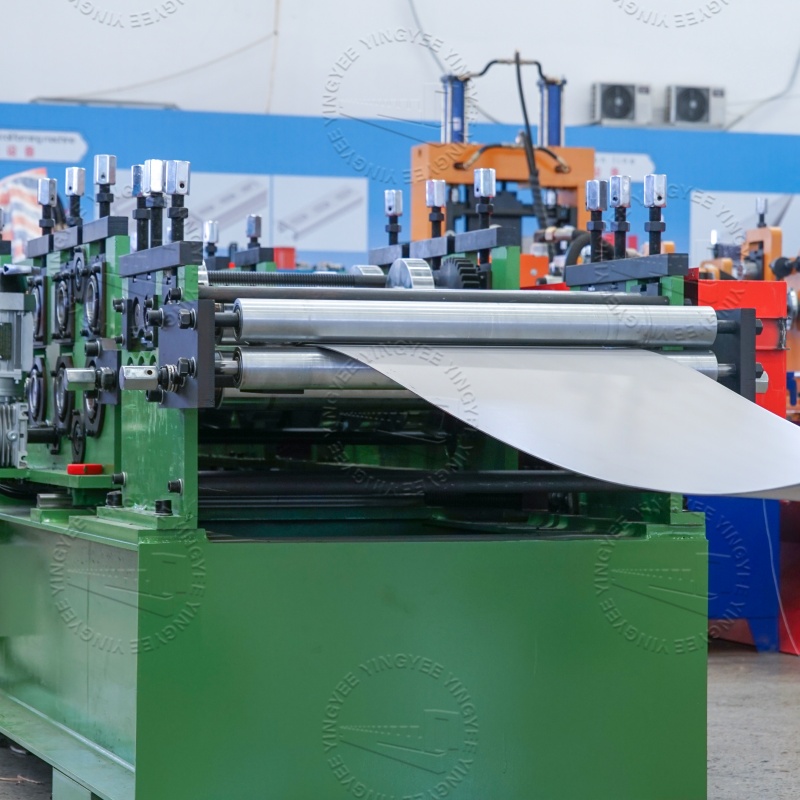

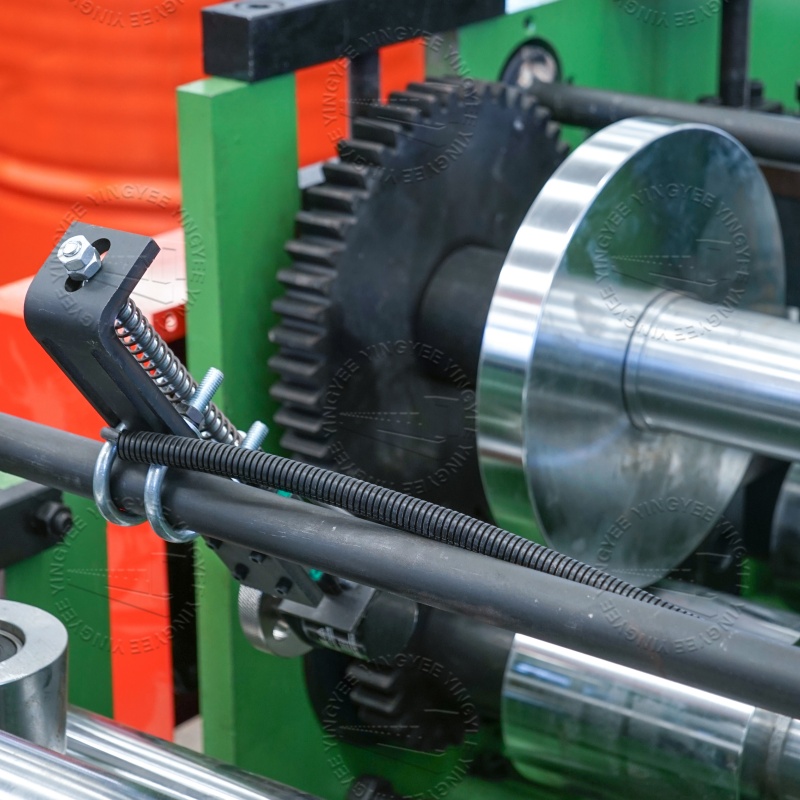

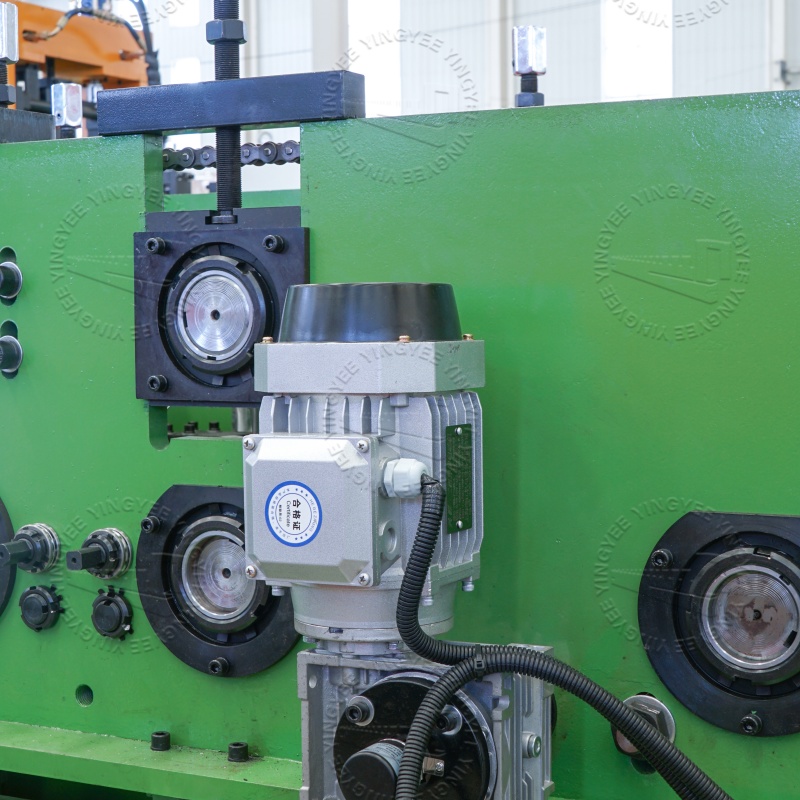

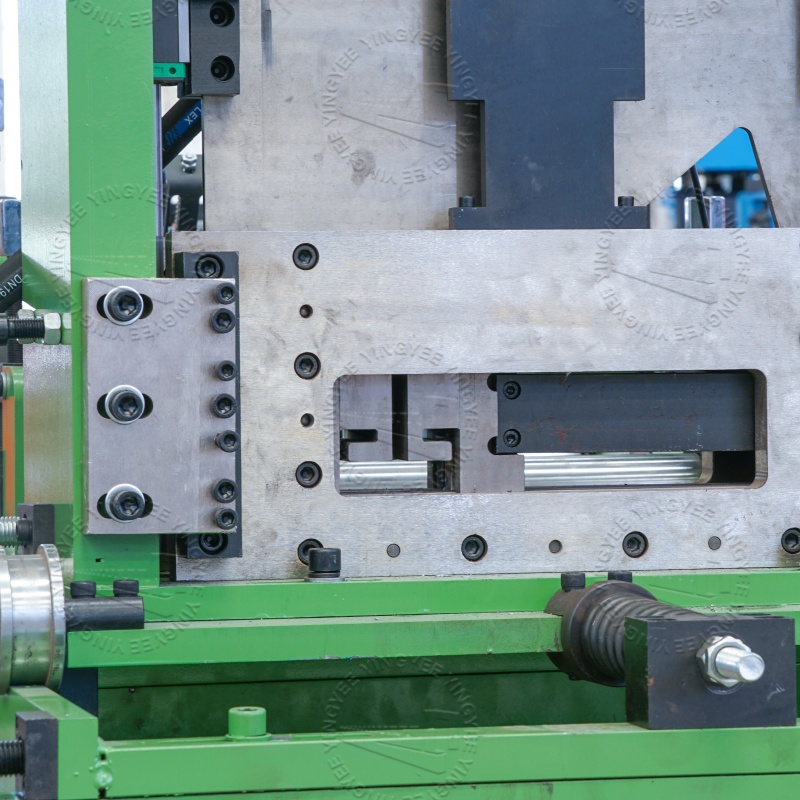

C/Z purlin roll forming machine C/Z purlin roll forming machine

C/Z purlin roll forming machine C/Z purlin roll forming machine

C/Z purlin roll forming machine C/Z purlin roll forming machine

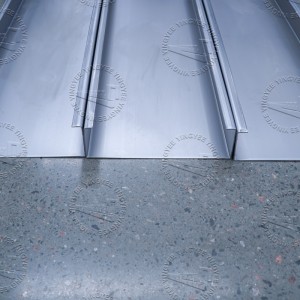

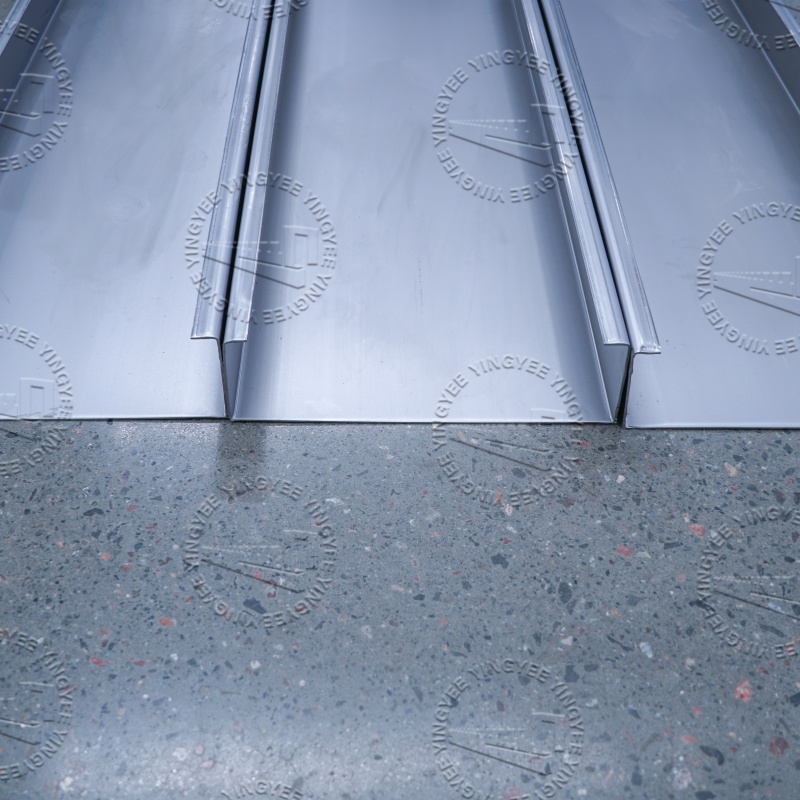

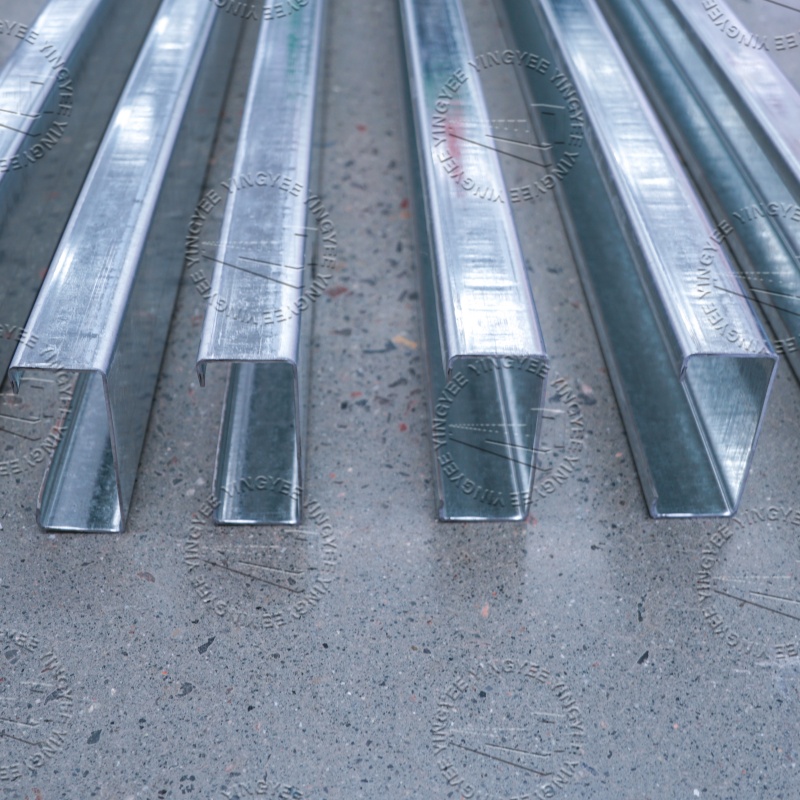

purlin purlin

purlin purlin

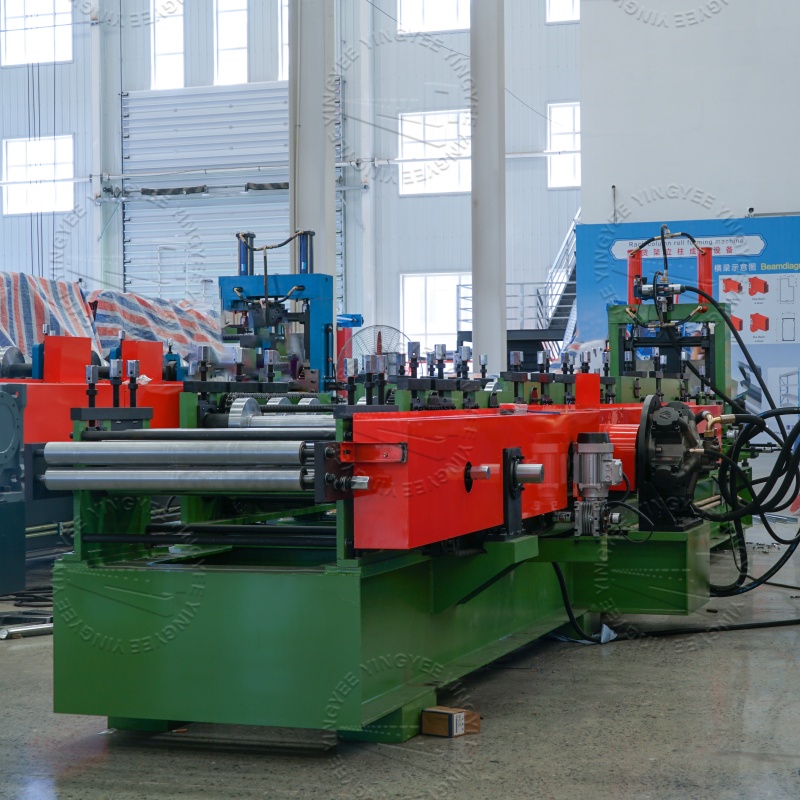

C/Z purlin roll forming machine

C/Z purlin roll forming machine

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period
2. Effective communication
3. Interface customized.

Looking for ideal Steel C Shape Purlin Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Metal C/Z Purlin Roll Forming Machine are quality guaranteed. We are China Origin Factory of Hydraulic Cutting C/Z Purlin Making Machine. If you have any question, please feel free to contact us.
