Cold Standing Seam Making Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Control System:PLC

Delivery Time:30 Days

Warranty:12 Months

Material Of Cutting Blade:Cr12

Using:Roof

Type:Roof Sheet Roll Forming Machine

Cutting Mode:Hydraulic

Material:Colored Steel, Galvanized Steel, Aluminum Steel

Forming Speed:15-20m/min

Voltage:At Customer’s Request

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin Xingang

Product Description

Cold Standing Seam Roll Forming Machine

What we can offer is a versatility and meanwhile quality assurance for any panel machines from economic basic production speed to fast panel lines up to 30m/min:

Working Flow:

Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Raw material Pre-painted coils, Galvanized coils, Aluminum coils
Material thickness range 0.2-1mm
Rollers 12-20 rows
Material of rollers 45# steel with chromed
Shaft diameter and material 70mm, material is 40 Cr
Forming speed 10-15m/min
Material of cutter blade Cr12 mould steel with quenched treatment 58-62℃
Main motor power 4KW
Hydraulic motor power 3KW
Voltage 380V/3Phase/5Hz
Total weight about 3 tons
Controlling system Omron PLC

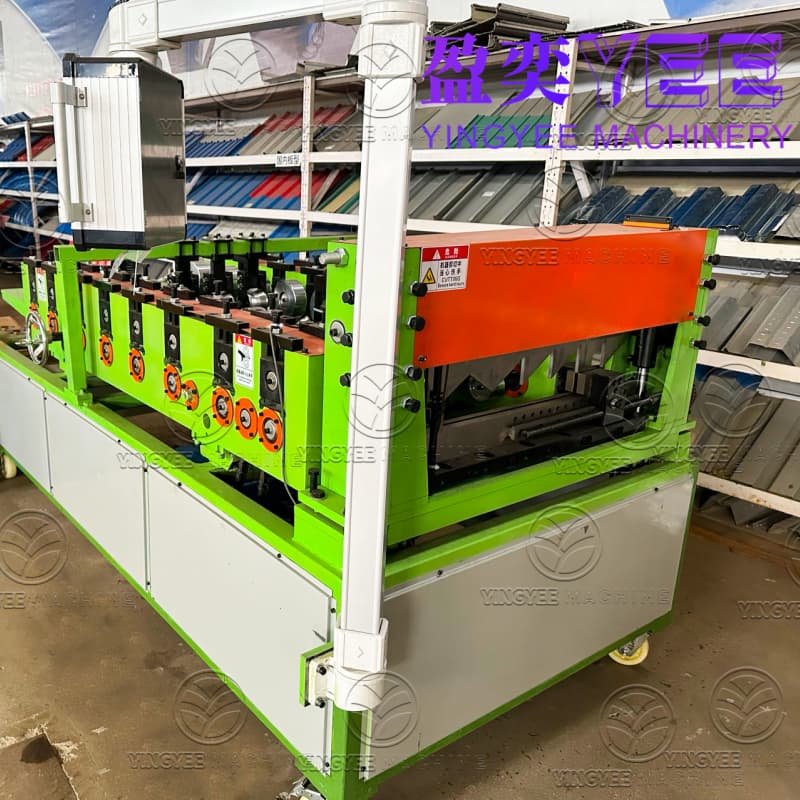

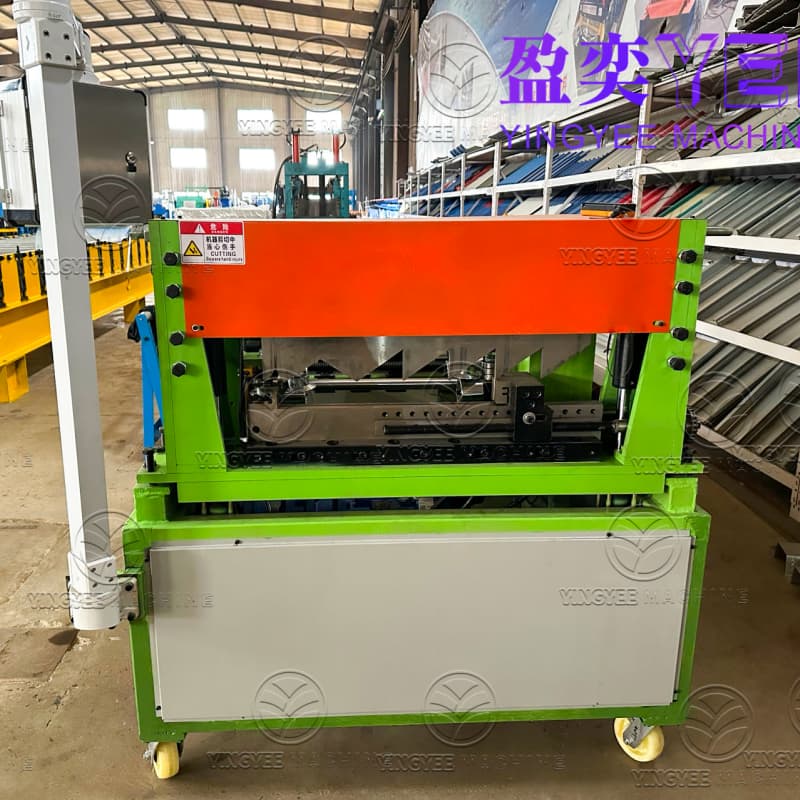

Pictures of machine:

Standing seam



Standing seamStanding seam

Standing seamStanding seam

Standing seamStanding seam





Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.

2. QT test is welcome and professional.

3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification

2. CE certification

3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period

2. Effective communication

3. Interface customized.

Looking for ideal Standing Seam Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Lock Seam Roll Forming Equipment are quality guaranteed. We are China Origin Factory of Lock Seam Roll Forming Equipment. If you have any question, please feel free to contact us.
