Storage rack machine used cold roll forming equipment

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Type:Steel Frame & Purlin Machine

Warranty:12 Months

Delivery Time:30 Days

After Service:Engineers Available To Service Machinery Overseas

Forming Speed:25-30m/min(excluding Punching And Cutting Time)

Cutting Mode:Hydraulic

Material Of Cutting Blade:Cr12

Control System:PLC

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin Xingang

Product Description

Storage Rack Roll Forming Machine

This machine use to produce storage rack ,such as column ,upright ,pillar ,post, from a coil to finished product only finished by one production line, the machine line has 3in1 equipment which has de-coiler for coil hold, leveling machine for making coil sheet flat, and then use servo feeder to feed sheet length to punching machine as PLC program setting, hydraulic or mechanical punching machine has several individual cyliner which could be seperately controlled by PLC, so it’s easy to achieve punching any hole or slot or notching at any length side of sheet. After finish holes punching on sheet, then Roll forming machine will forming the profile as the drawing requirement step by step. After profile forming there has straightening device for adjusting the straightness of finished product. And then using hydraulic cutting device to cut your length,finally stand tables ready for packing. It is full automatic machine line and quite easy to use it, only require 3 people for operation.

Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Matching material Color steel plate, Galvanized, PPGI, Aluminum
Material thickness range 1.5-3mm
Main motor power 15KW
Hydraulic power 11KW
Forming speed 6-8m/min(include punching)
Rollers 18-24 rows
Material of rollers 45# steel with chromed
Shaft material and diameter 80mm, material is 40Cr
Way of driven Chain transmission or Gear box
Controlling system Siemens PLC
Voltage 380V/3Phase/50Hz
Material of blade Cr12 mould steel with quenched treatment 58-62℃
Total weight about 15 tons
Size of the machine L*W*H 12m*2.0m*1.6m

Pictures of machine:

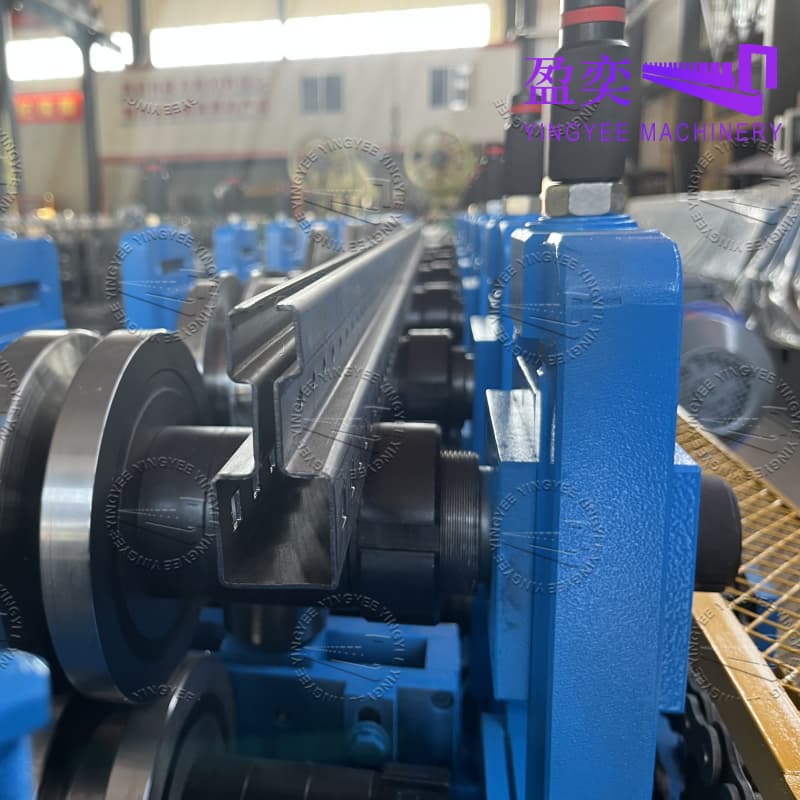

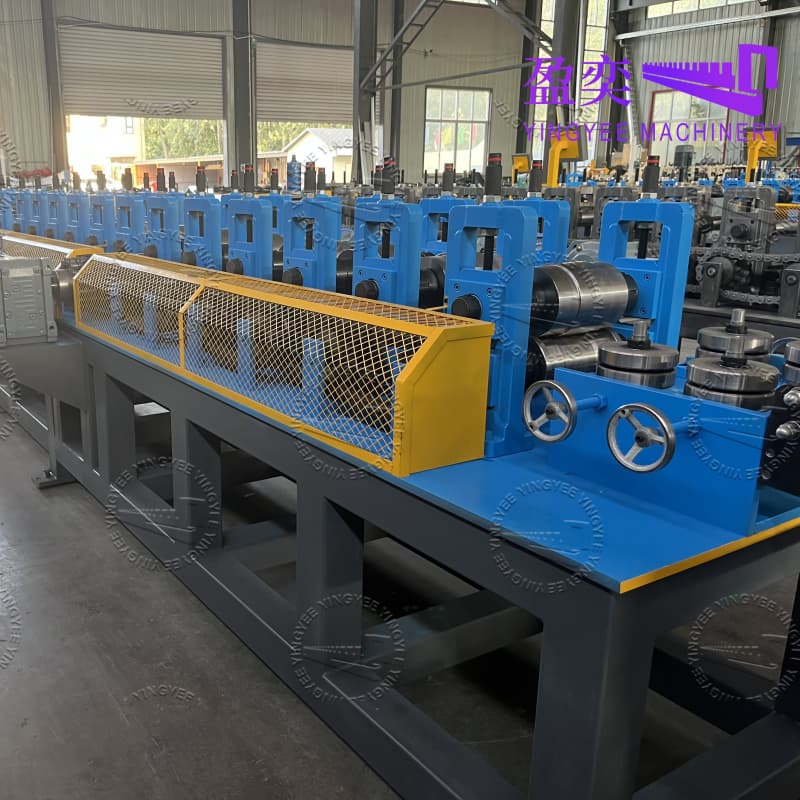

Storage rack roll forming machine

Upright roll forming machine

storage rack roll forming machine

Upright roll forming machine

Upright roll forming machine

Upright roll forming machine





Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.

2. QT test is welcome and professional.

3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification

2. CE certification

3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period

2. Effective communication

3. Interface customized.

Looking for ideal Storage Rack Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Used Cold Roll Forming Machine are quality guaranteed. We are China Origin Factory of Long Warranty Storage Racking Machine. If you have any question, please feel free to contact us.
