Roller Shutter Door Roll Forming Machine

Short Description:

This door frame machine is designed according to customer requirements. One machine can produce the same profile but different sizes. It saves lots of costs and gets customers great satisfaction.


Product Detail

FAQ

Product Tags

Basic Info

Type: Steel Frame & Purlin Machine

Control System: PLC

Delivery Time: 30 Days

Warranty: 12 Months

Material Of Cutting Blade: Cr12

Cutting Mode: Hydraulic

After Service: Engineers Available To Service Machinery Overseas

Forming Speed: 25-30m/min(excluding Punching)

Voltage: 380V/3Phase/50Hz Or At Your Request

Way Of Driven: Chain Or Gear Box

Additional Info

Packaging: NUDE

Productivity: 200 sets/year

Brand: YY

Transportation: Ocean

Place of Origin: Hebei

Supply Ability: 200 sets/year

Certificate: CE/ISO9001

HS Code: 84552210

Port: Tianjin Xingang

Product Description

Working Flow:

Decoiler - Feeding Guide - Main Roll Forming Machine - PLC Contol System - Hydraulic Cutting - Output Table

Working process



Technical parameters:

Raw material Pre-painted coils, Galvanized coils, Aluminum coils
Material thickness range 0.3-1.0mm
Rollers 10+5 groups
Material of rollers 45# steel with chromed
Shaft material and diameter 40mm, the material is 40Cr
Forming speed 10-15m/min
Main motor power 5.5KW
Hydraulic power 3.0KW
Cutting type Hydraulic flying saw
Controlling system PLC
Voltage 380V/3Phase/50Hz
Way of driven 1.0 inch single chain transmission
Total weight 2 tons
Size of the machine L*W*H 6*0.8*1m

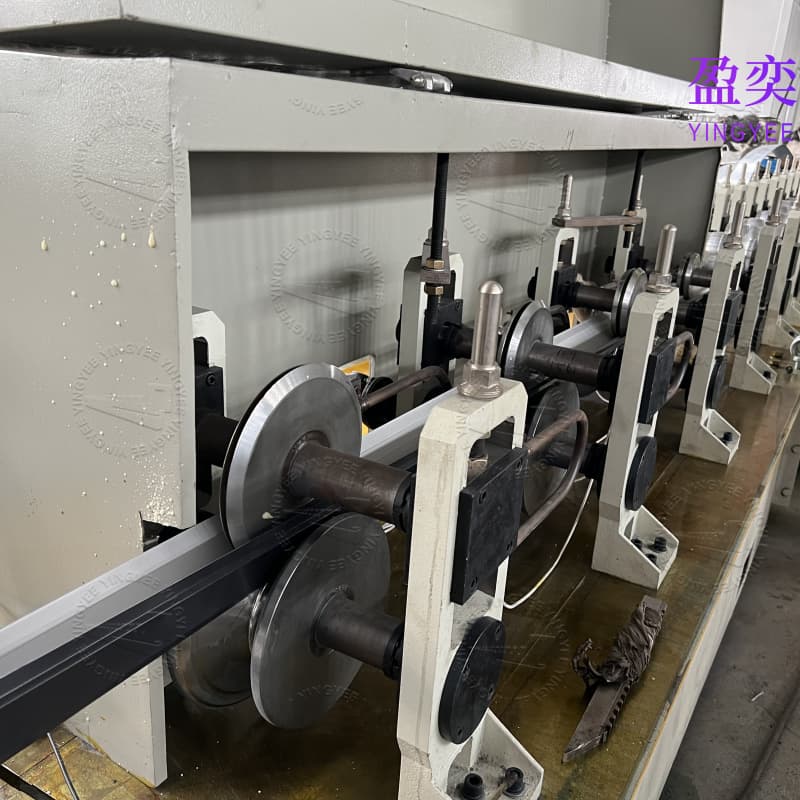

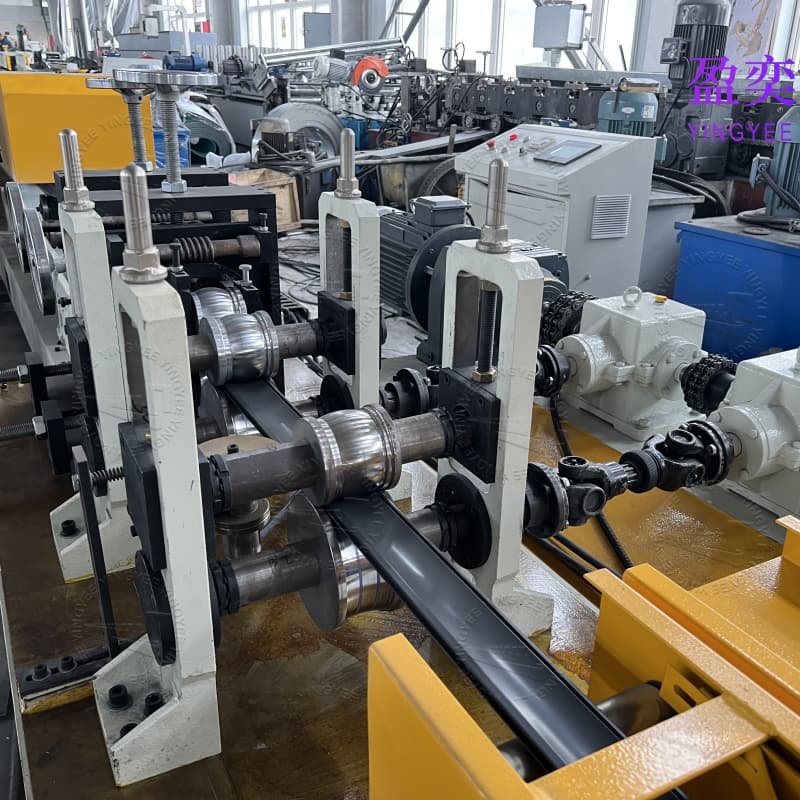

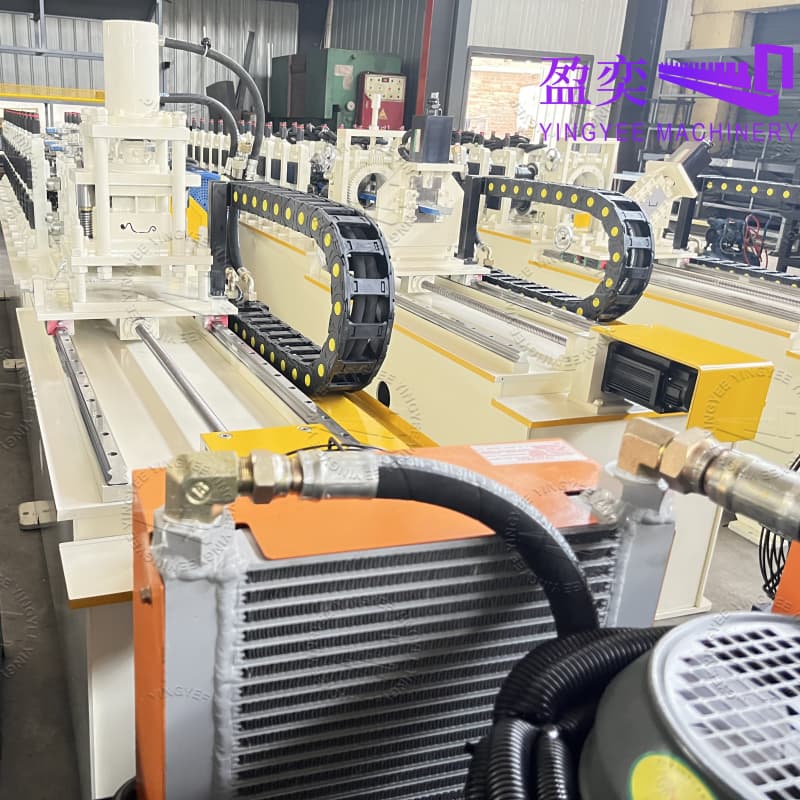

Pictures of  Machine:

Shutter door Roller shutter



Roller shutter door roll forming machineRoller shutter door



shutter door

roller shutter door roll forming machine

roll-up door

roller shutter door roll forming machine

Company Information

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO., LTD

YINGYEE is a manufacturer specializing in various cold-forming machinery and automatic production lines. We have a wonderful team with high technology and excellent sales, which offer professional products and related services. We paid attention to quantity and after-service, got great feedback, and honored the clients. We have a great team for after-service. We have sent several patches after the service team to overseas to finish the product installation and adjustment. Our products have been sold to more than 20 countries already. Also included US and Germany. Main product:

  • Roof Roll Forming Machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z Purlin Roll Forming Machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic Decoiler
  • Bending Machine
  • Slitting Machine
FAQ:
Training and Installation :
1. We offer installation service locally at paid, reasonable charge.
2. QT test is welcome and professional.
3. Manual and using the guide is optional if no visiting and no installation.

Certification and after-service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. On Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized

Looking for an ideal Roller Shutter Door Roll Forming Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the Door Frame Roll Forming Machines are quality guaranteed. We are a China Origin Factory of Roller Shutter Garage Doors Prices. If you have any questions, please feel free to contact us.
