CZU steel purlin frame roll forming machine

Short Description:

Product Detail


Product Tags

Basic Info

Delivery Time:30 Days

Warranty:12 Months

Material Of Cutting Blade:Cr12

Type:Roof Sheet Roll Forming Machine

Cutting Mode:Hydraulic

Voltage:At Customer’s Request

Way Of Driven:Chain Transmission

Material:Steel Coil, Galvanized, PPGI, Aluminum

Speed:6-8m/min(including Punching And Cutting Time)

Control System:Panasonic/Mitsubishi PLC

Additional Info


Productivity:200 sets/year



Place of Origin:Hebei

Supply Ability:200 sets/year


Product Description

C/Z/U Purlin Roll Forming Machine

One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.

Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table

Working process

Technical parameters:


Matching material Steel coil, Galvanized, PPGI, Aluminum
Material thickness range According to drawings
Main motor power 15KW
Forming speed 6-8m/min (include punching and cutting time)
Hydraulic power 5.5KW
Quantity of rollers About 18
Shaft diameter and material 70mm, material is 40Cr
Material of rollers 45# steel with chromed
Way of driven chain transmission
Controlling system PLC
Voltage 380V/30Phase/50Hz
Total weight About 10 tons
Size of the machine L*W*H 10m*1.2m*1.6m

Pictures of machine:

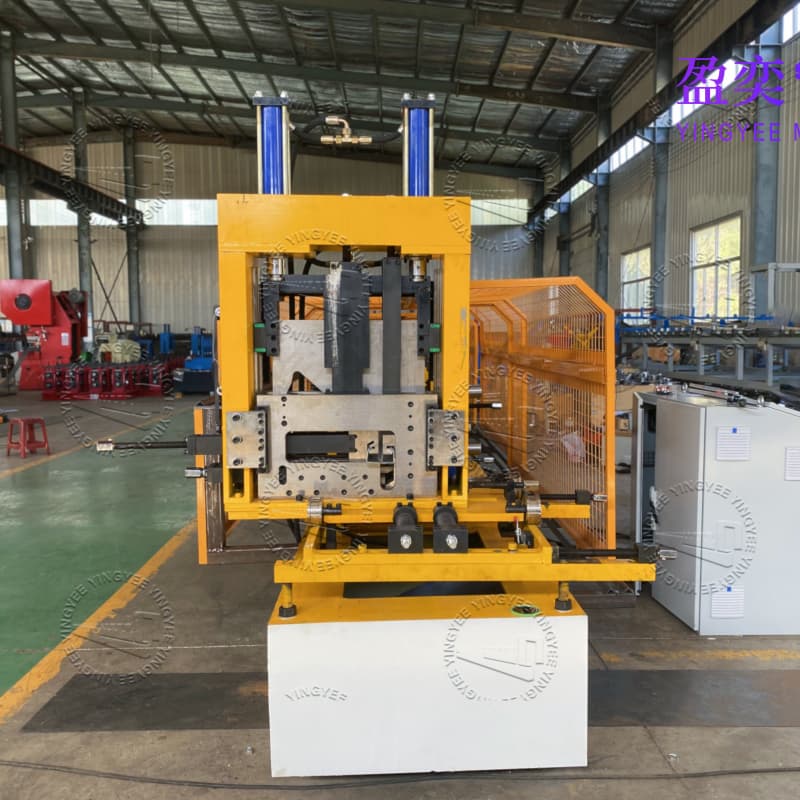

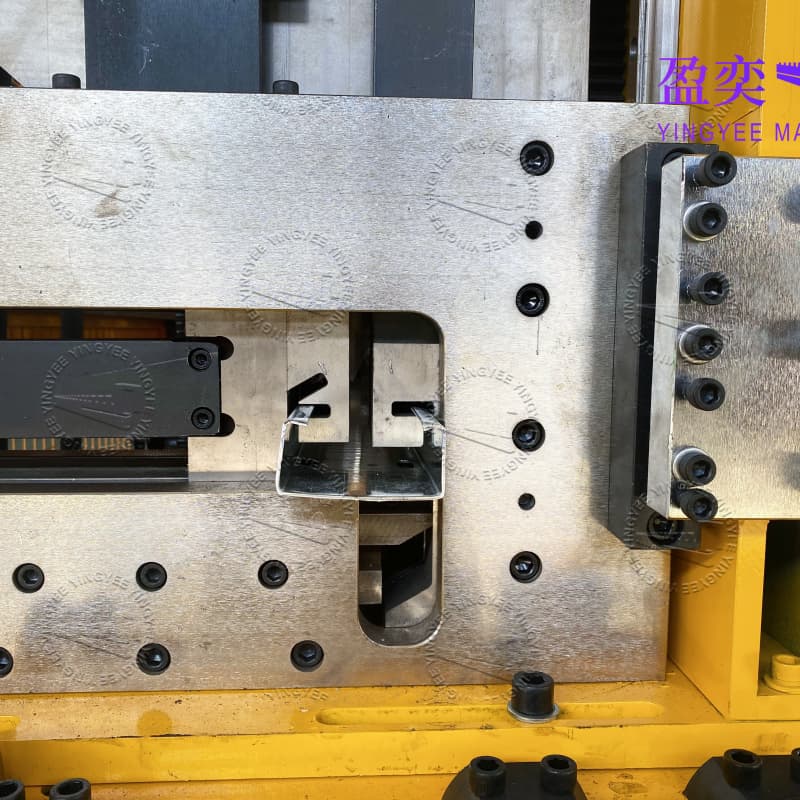

C/Z purlin roll forming machine C/Z purlin roll forming machine

C/Z purlin roll forming machine C/Z purlin roll forming machine

C/Z purlin roll forming machine C/Z purlin roll forming machine

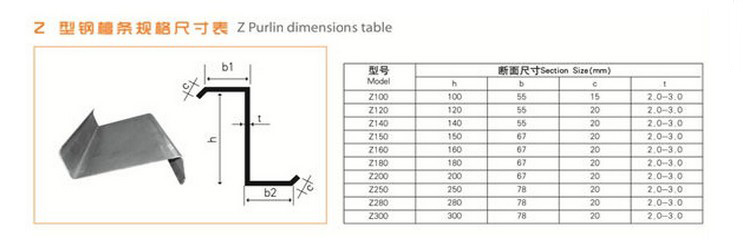

purlin purlin

purlin purlin

C/Z purlin roll forming machine

C/Z purlin roll forming machine



Company information:


YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine



Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:

1. Short delivery period
2. Effective communication
3. Interface customized.

Looking for ideal C/Z Purlin Frame Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the C/Z/U Purlin Making Machine are quality guaranteed. We are China Origin Factory of C/Z Light Gauge Purlin Making Machine. If you have any question, please feel free to contact us.
