Trapezoid Roofing Sheet Roll Forming Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Control System:PLC

Warranty:12 Months

Thickness:0.3-1mm

Using:Roof

Type:Roof Sheet Roll Forming Machine

Forming Speed:25-30m/min

Voltage:38oV/3Phase/50Hz Or At Customer’s Request

Material:GI, PPGI, Aluminum Coils

Cutting Mode:Hydraulic

Delivery:30 Days

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

Product Description

Metal galvanized IBR trapezoid Roof Sheet Roll Forming Machine

Trapezoid roof sheet roll forming machine is used cold roll forming technology, colored steel or galvanized steel as raw materials, used cold-formed principle manufacture, It has the feature of high stabilization, fully automatic and excellent performance.



Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Raw materials Galvanized coils, Pre-painted coils, Aluminum coils
Material thickness range 0.2-1mm
Forming speed 10-15m/min
Rollers 15 rows(according to drawings)
Material of rollers 45# steel with chromed
Shaft material and diameter 76mm, material is 40Cr
Material of body 400H steel
Wall panel 20mm Q195 steel(all with electrostatic spraying)
Controlling system PLC
Main power 5.5KW
Material of cutting blade Cr12 mould steel with quenched treatment
Voltage 380V/3Phase/50Hz
Total weight about 4 tons



Pictures of machine:

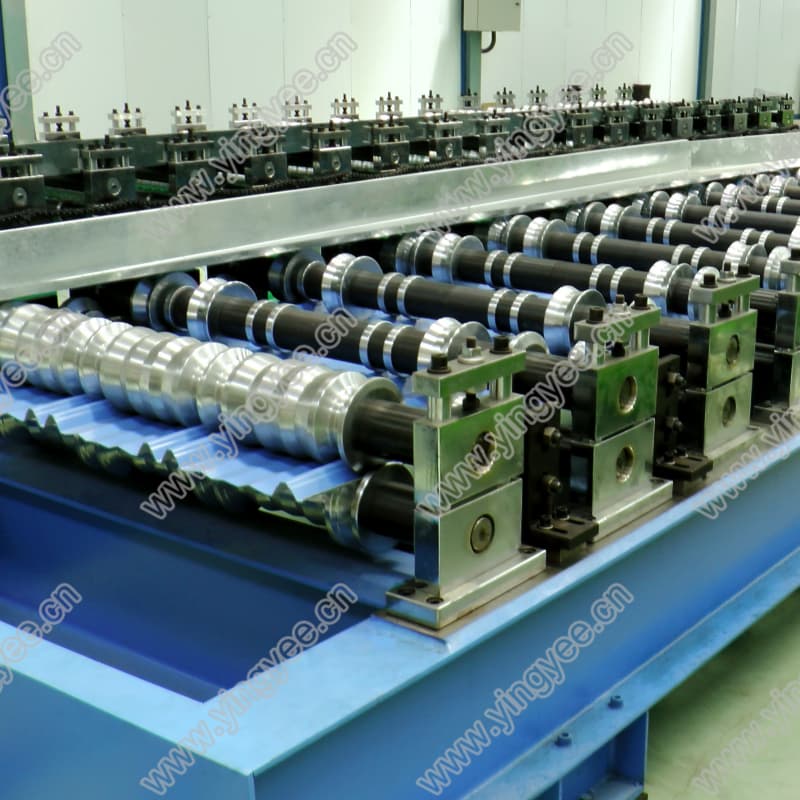

IBR trapezoid roof sheet roll forming machine

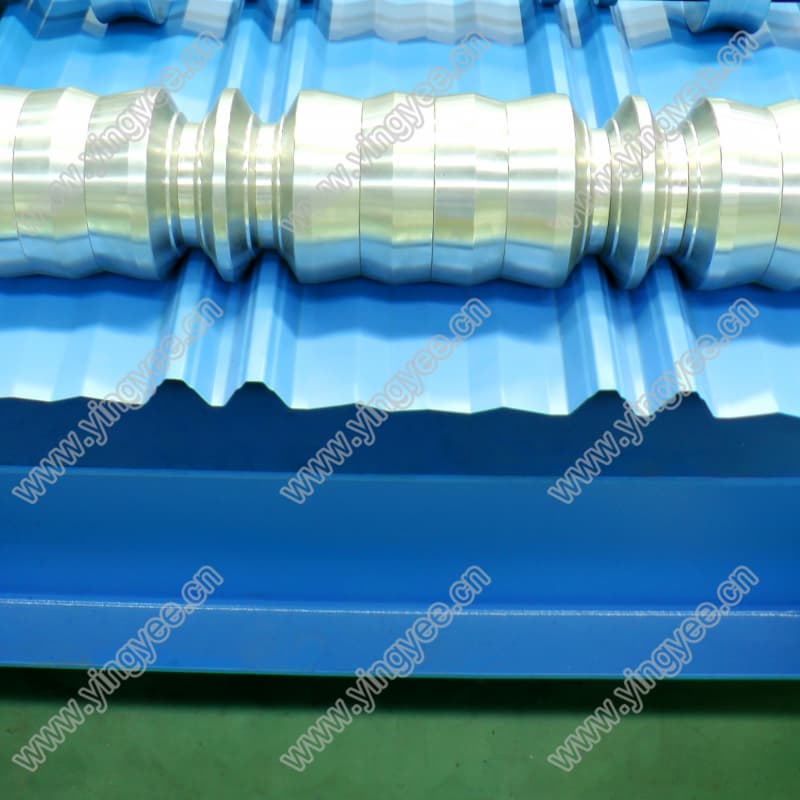

IBR trapezoid roof sheet roll forming machine

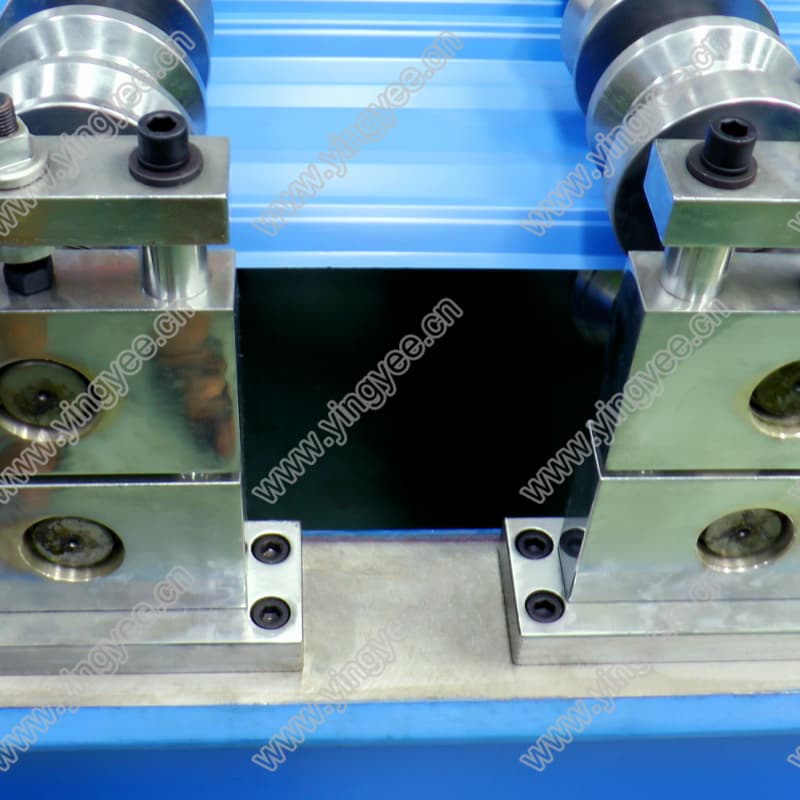

IBR roof sheet roll forming machine

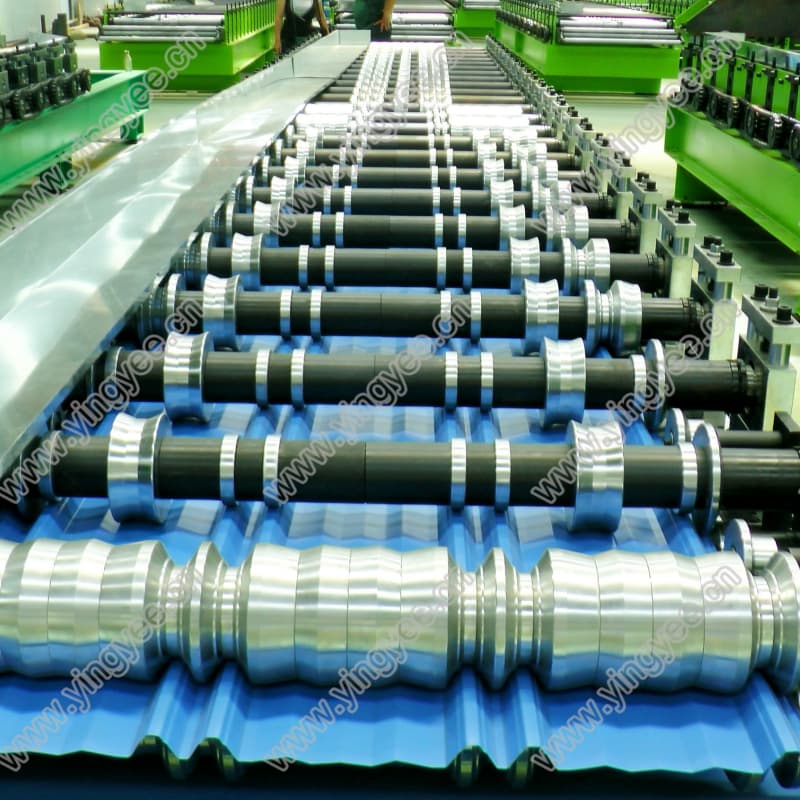

IBR trapezoid roof sheet roll forming machine

IBR trapezoid roof sheet roll forming machine

IBR trapezoid roof sheet roll forming machine

drawing

IBR roof sheet roll forming machine







FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period
2. Effective communication
3. Interface customized.

Looking for ideal Roof Sheet Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Metal Galvanized Trapezoid Roof Sheet Machine are quality guaranteed. We are China Origin Factory of Automatic Trapezoid Roll Forming Machine. If you have any question, please feel free to contact us.
