Roof Sheet Corrugated Making Machine
Short Description:
Basic Info
Control System:PLC
Speed:10-25m/min
Delivery Time:30 Days
Warranty:12 Months
Cutting Mode:Hydraulic Cutting
Production Time:30 Days
Products:Roof Sheet Roll Forming Machine
Using:Roof
Voltage:As Customer’s Requirement
Material:Pre-printed Coil,galvanized Coil,Aluminum Co
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Corrugated Roof Sheet Roll Forming Machine
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, hydraulic cutting Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | GI, PPGI, Aluminum coils |
| Material thickness range | 0.3-0.8mm |
| Rollers | 18 rows |
| Material of rollers | 45# steel with chromed |
| Forming speed | 25-30m/min(excluding cutting time) |
| Shaft material and diameter | 76mm, material is 40Cr |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Controlling system | Delta PLC computer control system with Chrizi inverter to ensure precision Program is made by English, working mode: automatic and manual |
| Way of driven | 1” chain transmission |
| Voltage | 380V/3Phase/50Hz or at your request |
| Main motor power | 3KW |
| Hydraulic station power | 3KW |

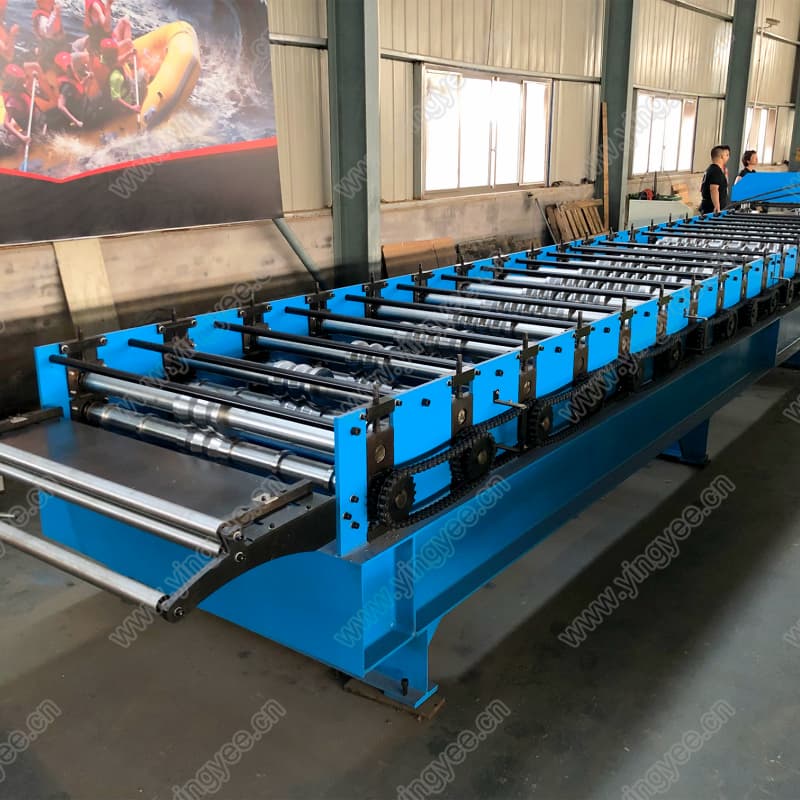

Pictures of machine:
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Looking for ideal Corrugated Sheet Roof Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Building Material Corrugated Roll Forming Machine are quality guaranteed. We are China Origin Factory of Iron Sheet Corrugated Roof Forming Machine. If you have any question, please feel free to contact us.
