Factory prices high precision IBR trapezoid roofing machine
Type:Roof Sheet Roll Forming Machine
Voltage:38oV/3Phase/50Hz Or At Customer’s Request
Material:GI, PPGI, Aluminum Coils
Place of Origin:Hebei
Supply Ability:200 sets/year
IBR trapezoid Roof Sheet Roll Forming Machine
The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacation lands, ancient architectures and modern villas.
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
|Raw materials||Galvanized coils, Pre-painted coils, Aluminum coils|
|Material thickness range||0.2-1mm|
|Rollers||15 rows(according to drawings)|
|Material of rollers||45# steel with chromed|
|Shaft material and diameter||76mm, material is 40Cr|
|Material of body||400H steel|
|Wall panel||20mm Q195 steel(all with electrostatic spraying)|
|Material of cutting blade||Cr12 mould steel with quenched treatment|
|Total weight||about 4 tons|

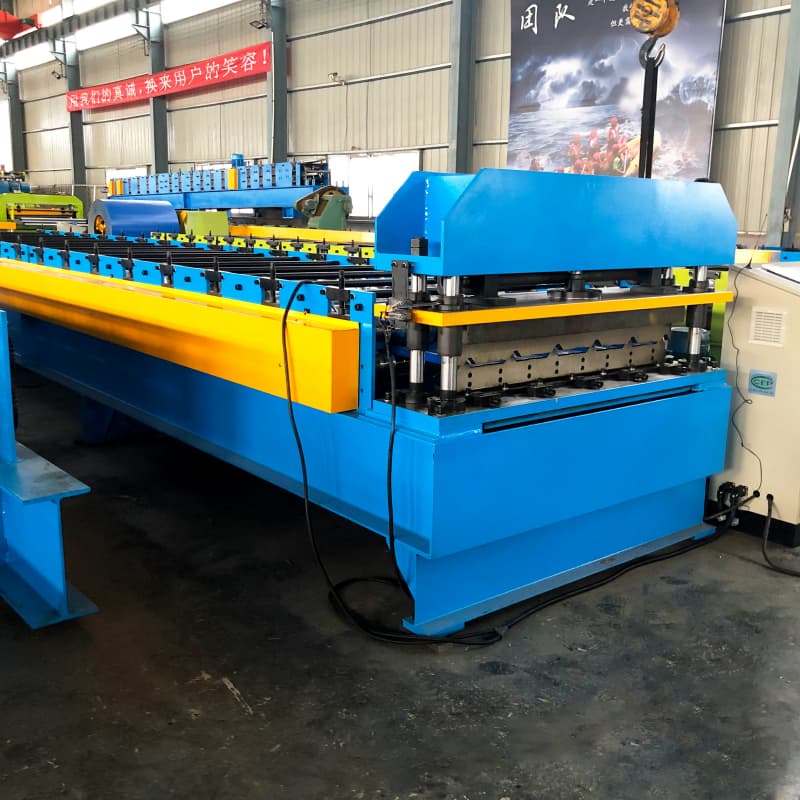

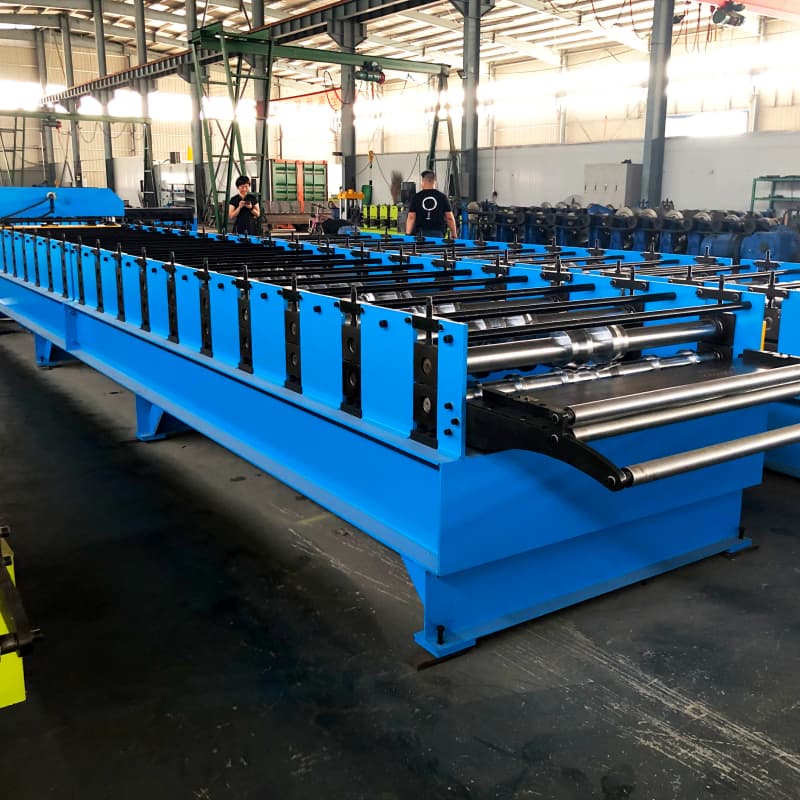

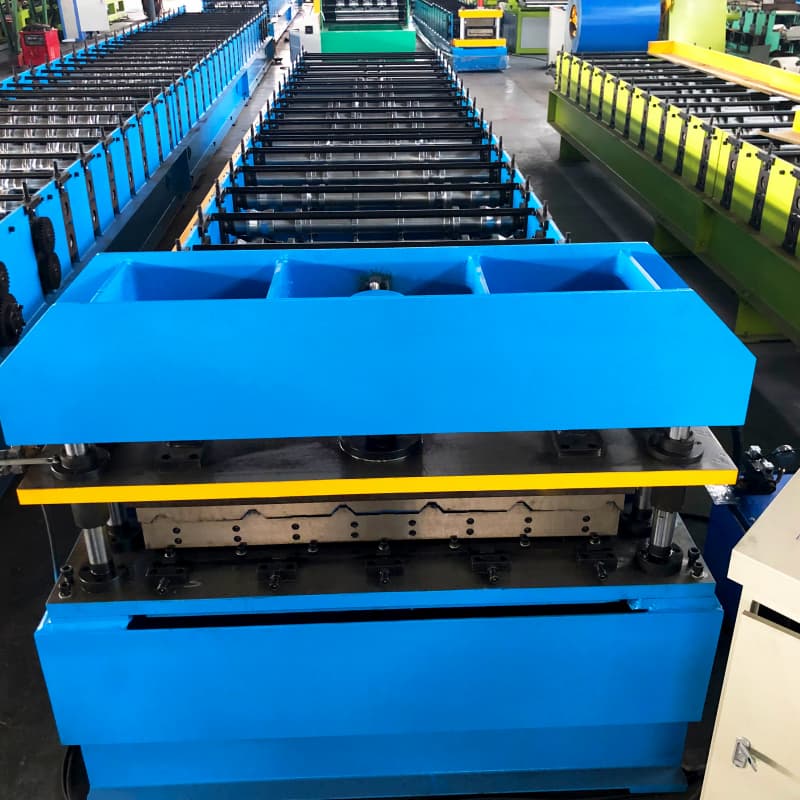

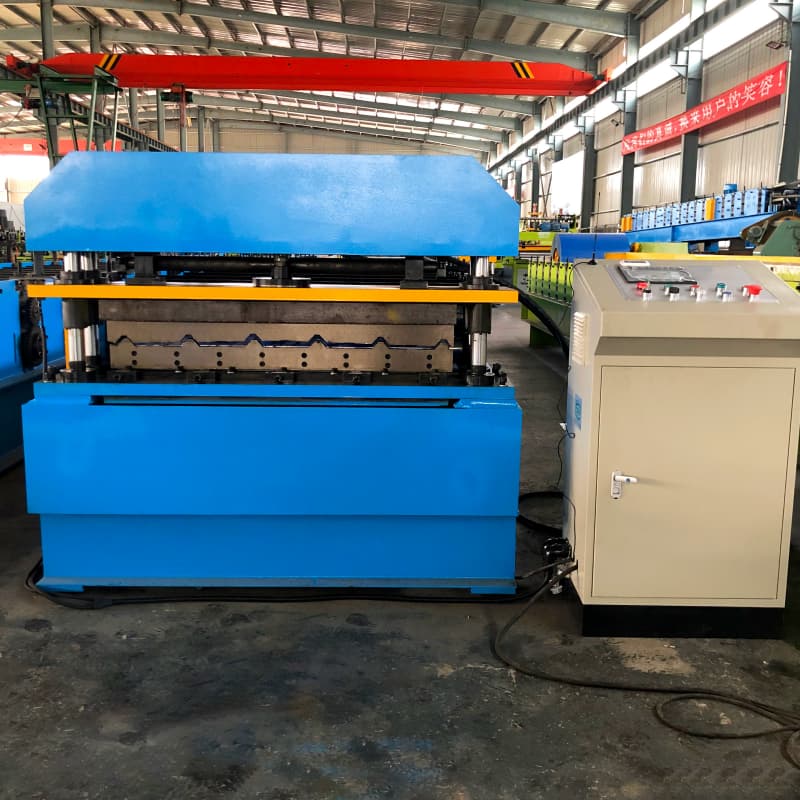

Pictures of machine:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal IBR Roofing Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Factory Prices Trapezoid Roof Sheet Machine are quality guaranteed. We are China Origin Factory of High Precision Trapezoid Roof Sheet Machine. If you have any question, please feel free to contact us.
Product Categories : Roof Sheet Roll Forming Machine > Trapezoid Roof Sheet Forming Machine
