KB-30A Thread rolling machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Model No.:YY- TM—001

Warranty:12 Months

Delivery Time:30 Days

After Service:Engineers Available To Service Machinery Overseas

Voltage:380V/3Phase/50Hz Or At Your Request

Cutting Mode:Hydraulic

Material Of Cutting Blade:Cr12

Control System:PLC

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin Xingang

Product Description

Thread Rolling Machine Model KB-30A

thread rolling machine Designed for tube type parts,Equilateral triangle supports.So that ensure that the workpiece roundness,concentricity and squareness Spondle is controlled by frequency conerter,the rolling speed can be adjusted,Adopt hydraulic circuit control for feed mso the feed is smoothly and easily to operate.



Technical parameters:

Screw Dimaeter ∮9-40mm

Roller Shaft Angle

±3°

Pitch Range 0.5P-2.5P

Rolling Amount

4-25

Roller Wheel Shaft Stroke Interval

90-55mm Rolling Length Fixed/ldler Wheel(length is unlimited)

Dual-ourpose

Roller Wheel Revolutions

350,600r.p.m Roller Wheel Shaft

Hoursepower

2HP(1.5KW)

Outer Diameter of roller

∮78mm(90mm)

Hydraulic Horsepower 2HP(1.5KW)

Inner Diameter of roller

∮35 Weight 600kg
Thickness of roller 20,40mm Dimensions 1300×1100×1500mm

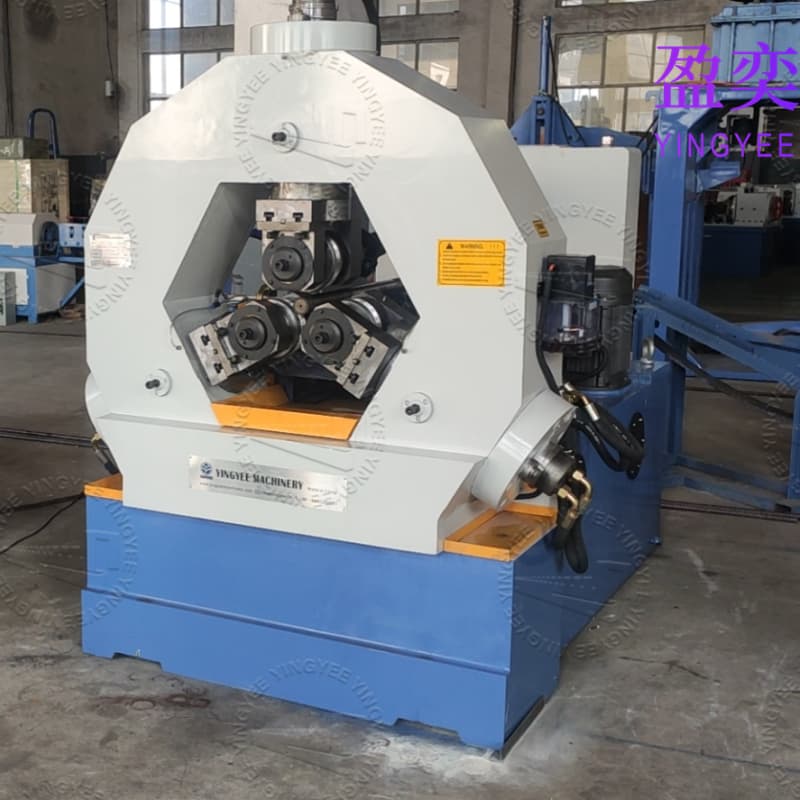

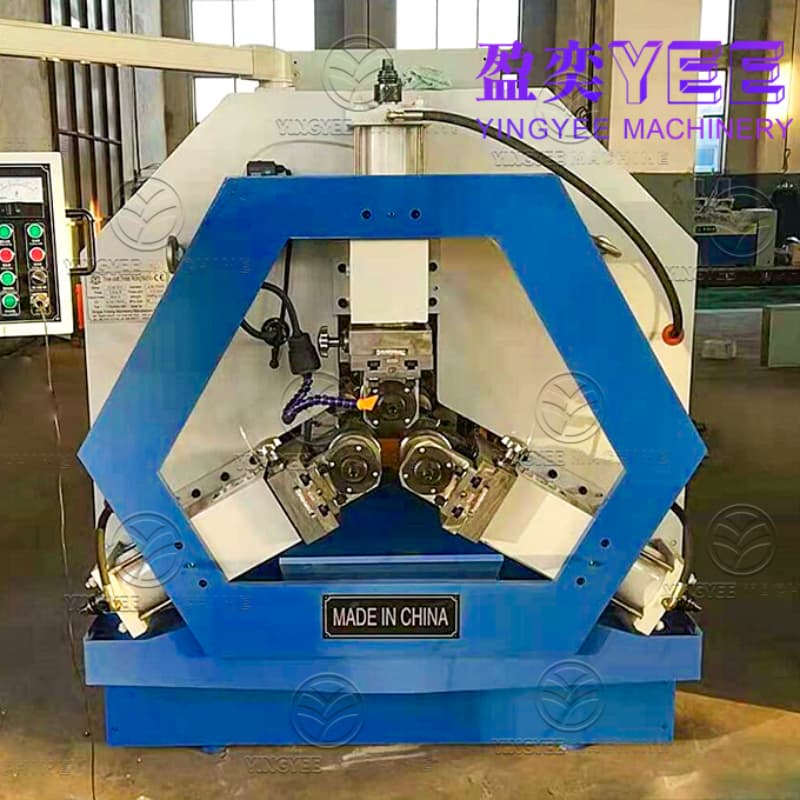

Pictures of machine:

Thread rolling machine

Thread rolling machine

thread rolling machine

thread rolling machine

thread rolling machine

Thread rolling machine

Thread rolling machine

Thread rolling machine

Thread rolling machine

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.

2. QT test is welcome and professional.

3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification

2. CE certification

3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period

2. Effective communication

3. Interface customized.

Looking for ideal Thread Rolling Dies for Sale Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Rolling Machine Specification are quality guaranteed. We are China Origin Factory of Bar Rolling Machine. If you have any question, please feel free to contact us.
