steel pipes thread rolling machine with three shaft

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Model No.:YINGYEE003

Warranty:12 Months

Delivery Time:30 Days

After Service:Engineers Available To Service Machinery Overseas

Voltage:380V/3Phase/50Hz Or At Your Request

Cutting Mode:Hydraulic

Material Of Cutting Blade:Cr12

Control System:PLC

Additional Info

Packaging:plastic film

Productivity:200 sets/year

Brand:YY

Transportation:Ocean,Land,Air

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin,Shanghai,Qingdao

Product Description

maximum pressure 250KN steel pipes Thread Rolling Machine with three shaft

Due to teeth of an internal roller brush wheel and an external roller brush wheel under the preset pressure of a spring, a steel pipe wall is bent and deformed and simultaneously is driven to rotate by the rotation of the internal roller brush wheel and the external roller brush wheel, the tube wall can generate heat due to the friction of the rotation line speed difference of the internal roller brush wheel and the external roller brush wheel, so that the strength of the material is lowered; the material can generate rebound fatigue due to continuous rolling brush of the internal roller brush wheel and the external roller brush wheel, so that along with gradual decreasing of the rebound deform performance of the tube wall material, the teeth of the roller brush wheel are gradually pressed into the tube wall under the preset pressure, the tube wall is molded and deformed according to the teeth of the internal roller brush wheel and the external roller brush wheel, so as to form cylinder tube threads or internal and external threads of a conic tube. The thread rolling machine has the characteristic that the molded thread is low in stress, so that the middle wall of the tube can be molded with threads, and the problem of stress corrosion of stainless steel in rolling threads can be solved, furthermore, the middle wall pipeline connected with the threads molded by the machine can be used for replacing the high pressure endured by the thickened tube wall of the molded threads through cutting, the defect that the source nipple loosens and leaks due to stress concentration formed by grooves of cutting threads can be overcome, so that the source nipple can be as rigid as the tube body, and ideal stainless steel thread connection pipelines are provided for tubes of high pressure and middle pressure, particularly the fire control high pressure water mist fire extinguishing system (with the pipeline work pressure of 16MPa).

Technical parameters:

Pressure of Roller max. 630KN Rotary Speed of Main Shaft 8,14,21,33(r/min)
Working Dia 120mm Feed Speed of Movable shaft 5mm/s
OD of Roller 260mm Thread Length (no limits)
BD of Roller 100mm Rolling Power 15kw
Roller Width max 200mm Hydraulic Power 7.5kw
Dip Angle of Main Shaft ±10° Weight 3000kg
Center Distance of Main shaft 210-380mm Size 2100×2270×2330mm

Pictures of machine:

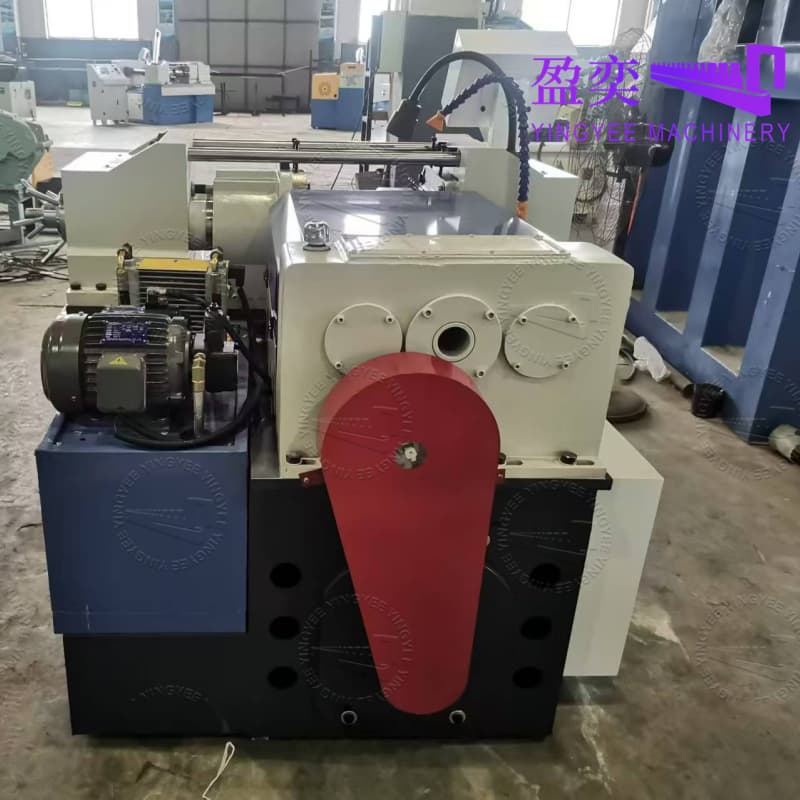

three shaft thread rolling machine (2)

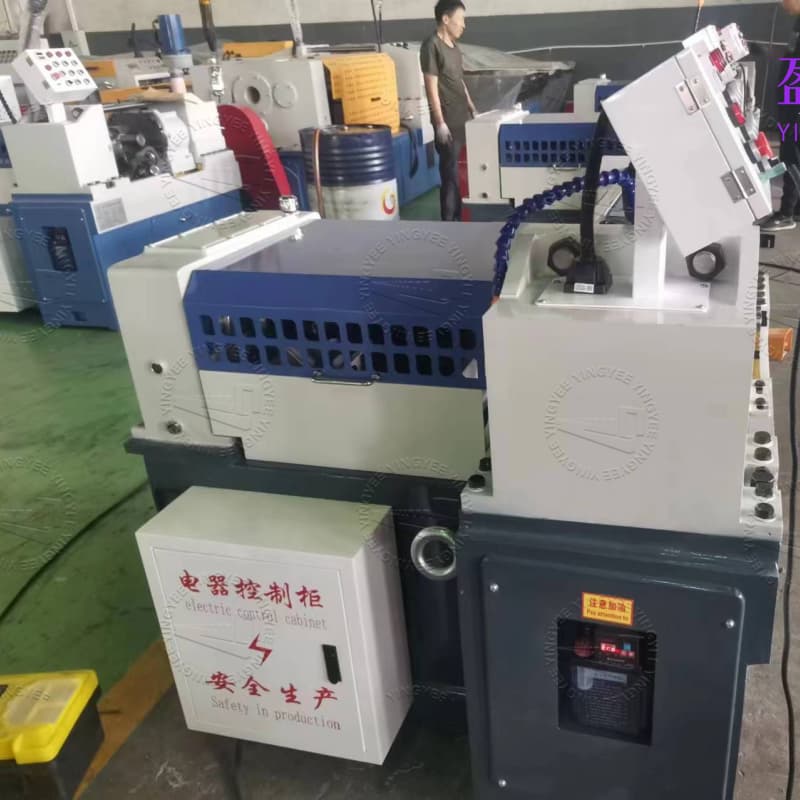

Thread rolling machine

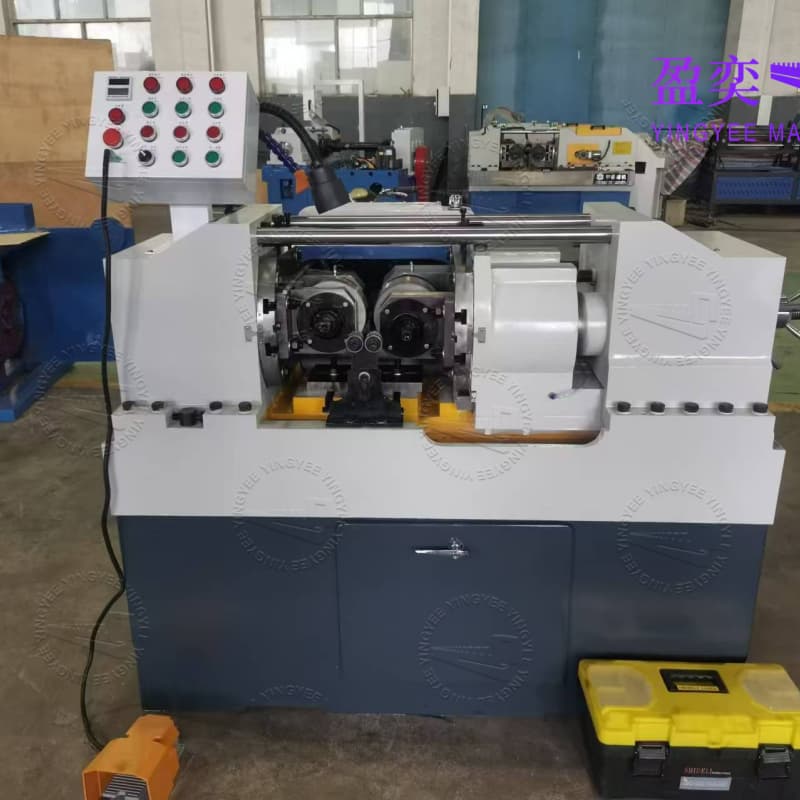

Thread rolling machine

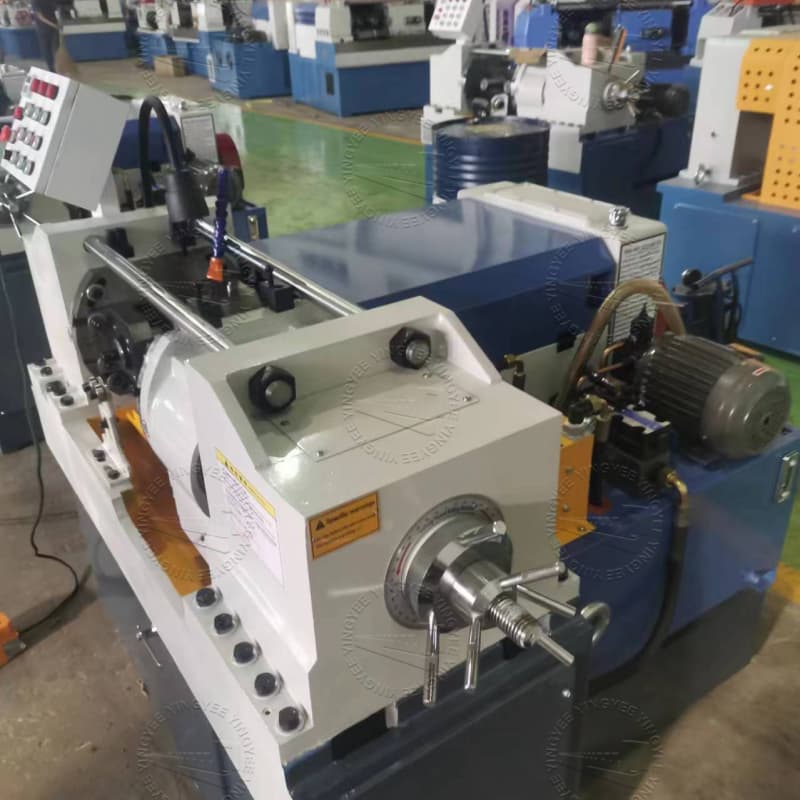

Thread rolling machine

Thread rolling machine

Thread rolling machine

Thread rolling machine
