Corrugated Roof Sheet Forming Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Products:Roof Sheet Roll Forming Machine

Using:Roof

Speed:10-25m/min

Cutting Mode:Hydraulic Cutting

Control System:PLC

Voltage:As Customer’s Requirement

Warranty:12 Months

Production Time:30 Days

Delivery Time:30 Days

Material:Pre-printed Coil,galvanized Coil,Aluminum Co

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin Xingang

Product Description

Corrugated Roof Sheet Roll Forming Machine

Corrugated roll forming machine can produce corrugated sheets with any kinds of thickness. They are widely used as roofing and wall sheets for factories, warehouses, exhibition centers, etc.

Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Raw material GI, PPGI, Aluminum coils
Material thickness range 0.3-0.8mm
Rollers 18 rows
Material of rollers 45# steel with chromed
Forming speed 25-30m/min(excluding cutting time)
Shaft material and diameter 76mm, material is 40Cr
Material of cutting blade Cr12 mould steel with quenched treatment
Controlling system Delta PLC computer control system with Chrizi inverter to ensure precision Program is made by English, working mode: automatic and manual
Way of driven 1” chain transmission
Voltage 380V/3Phase/50Hz or at your request
Main motor power 3KW
Hydraulic station power 3KW

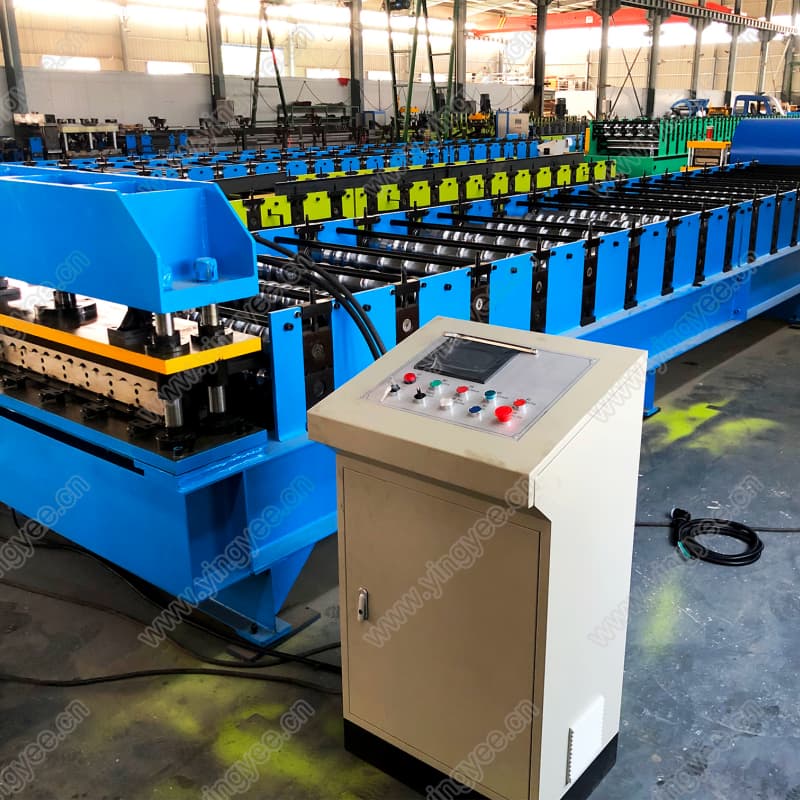

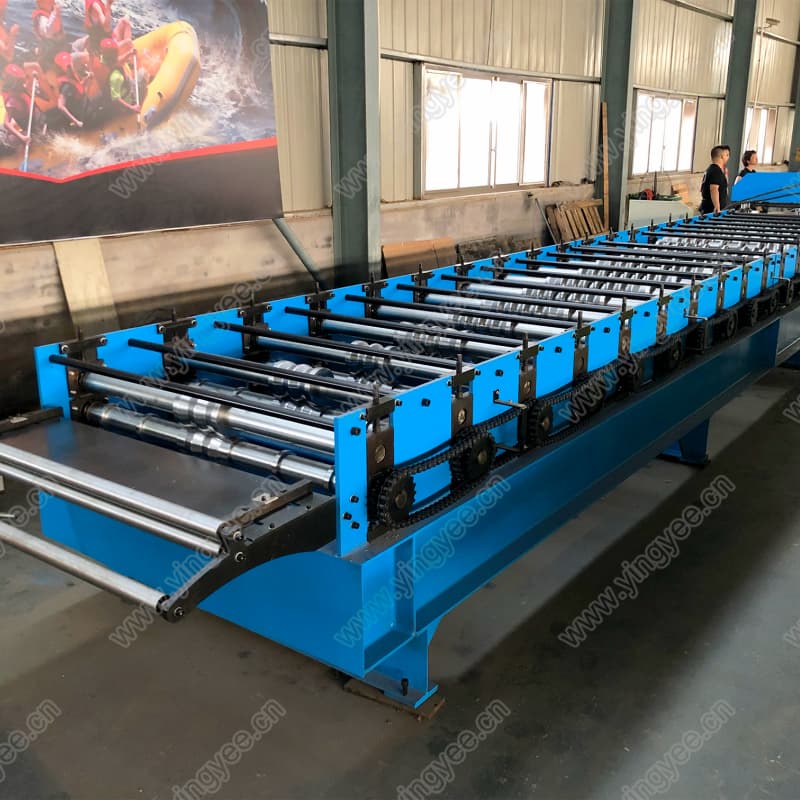

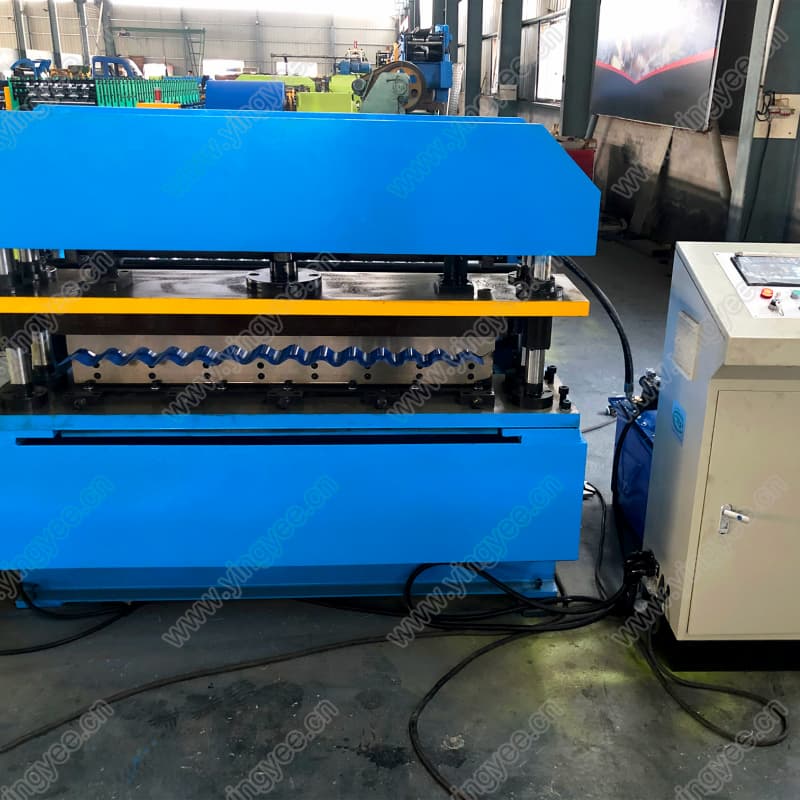

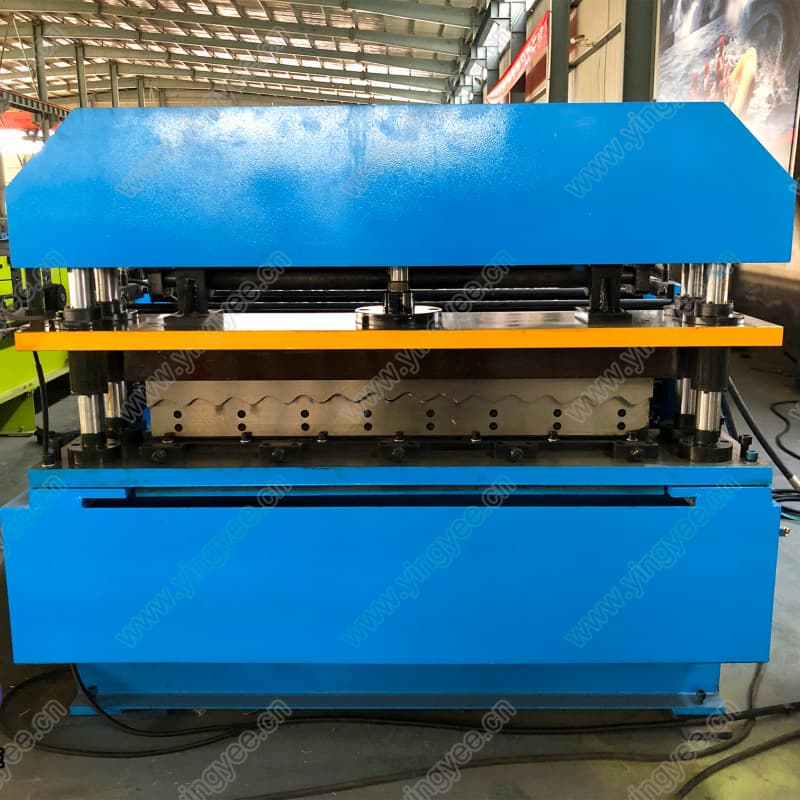

Pictures of machine:

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:

1. Short delivery period.
2. Effective communication
3. Interface customized.

Looking for ideal Metal Roofing Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the PLC Corrugated Roof Sheet are quality guaranteed. We are China Origin Factory of Full Automatic Corrugated Roof Sheet. If you have any question, please feel free to contact us.
