Long Span Roll Forming Machine

Short Description:

Product Detail


Product Tags

Basic Info

Model No.:yingyee011

Tile Type:Colored Steel

Certification:CE, ISO



Usage:Roof, Wall

Transmission Method:Machinery

Products:Big Span Roll Forming Machine

Material:Pre-printed Steel Coil,galvanized Coil,Aluminum Co

Material Of The Cutting Blade:CR12


Cutting Mode:Hydraulic

Control Mode:PLC

Voltage:As Customers Request

Additional Info

Packaging:plastic film, wooden case

Productivity:500 sets/year



Place of Origin:hebei, china

Supply Ability:5 SETS/WEEK


HS Code:84552210


Product Description

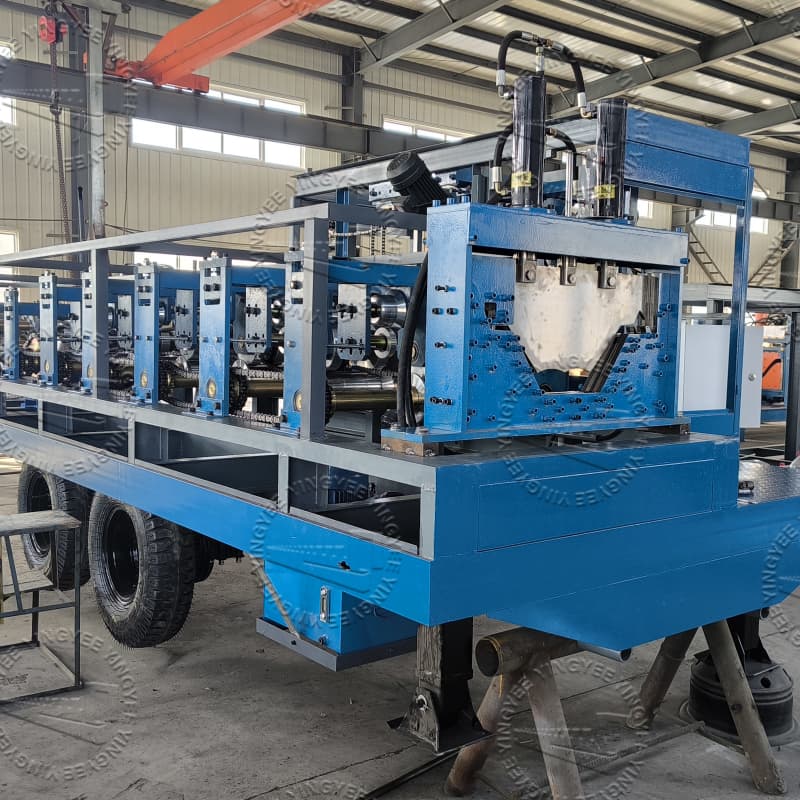

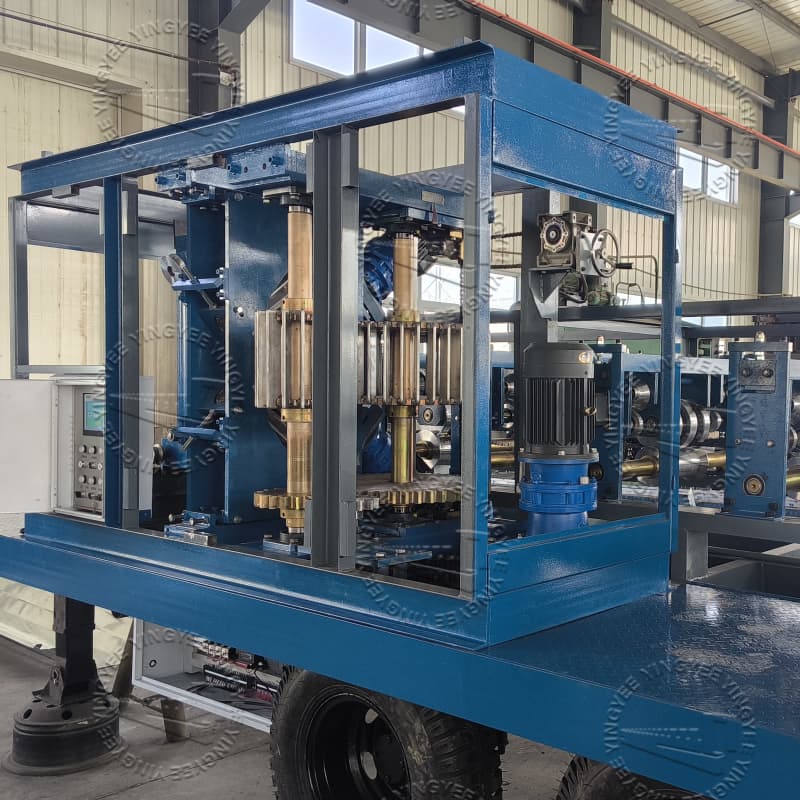

Long Span Roll Forming Machine for building

This Long Span Roll Forming Machine is an advanced metal roll former,Long Span Roll Forming Machine is manufacturing long-span roof sheets with a high speed. This Long Span Roll Forming Machine consists of decoiler, sheet guiding equipment, roll forming system, cutter, support table, hydraulic system, and control system. The Long Span Roll Forming Machine is really a new type of energy-saving and high-efficiency metal roof sheets rollformer. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.

Product Description


1) Main machine dimension: 9.65m*2.23m*2.4m

2) Bending machine dimension; 3.8m*2.23m*2.4m

3) Suitable material: galvanized steel, colored steel, etc

4) Coil thickness: 0.6 –1.5mm

5) Roller stands:16

6) Roller diameter:80mm

7) Totally power:18.5kw

8) Main Power:7.5kw; Hydraulic power:4.0kw; side bending power:1.5kw*2

Curving power:4.0kw

9) Roller material: 40Cr

10) Shaft material: high grade #45 steel

11) Cutting Blade material:Cr12 steel

12) Machine speed: forming speed 13m/min, Seaming speed:6m/min

13) Span : ≤38m

14) Power supply: AC380V±10%, 50Hz, or as per your requirement

span6long span machinelong span



Installation and training:

1. We offer installation service local in paid, reasonable charge.

2. QT test is welcome and professional.

3. manual and using guide is optional if no visiting and no installation.
Certification and after service
1. Match the technology standard, ISO producing certification

2. CE certification

3. 12 months warranty since the delivery. Board.

Our advantage:

1. Short delivery period.

2. Effective communication

3. Interface customized.

Looking for ideal K Span Steel Room Building Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Colorful Long Span Forming Machine are quality guaranteed. We are China Origin Factory of Color Long Span Forming Machine. If you have any question, please feel free to contact us.
