Color Metal Long Span Making Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Model No.:YY–KSM—0003

Tile Type:Colored Steel

Certification:CE, ISO

Condition:New

Customized:Customized

Usage:Roof, Wall

Transmission Method:Machinery

Products:Big Span Roll Forming Machine

Material:Pre-printed Steel Coil,galvanized Coil,Aluminum Co

Material Of The Cutting Blade:CR12

Speed:10-25m/min

Cutting Mode:Hydraulic

Control Mode:PLC

Voltage:As Customers Request

Additional Info

Packaging:NUDE

Productivity:CHINA

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200sets/years

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin

Product Description

Color Metal Large Span Making Machine

Long Span Roofing Sheet Production LineRoof Cold big span roll forming machine

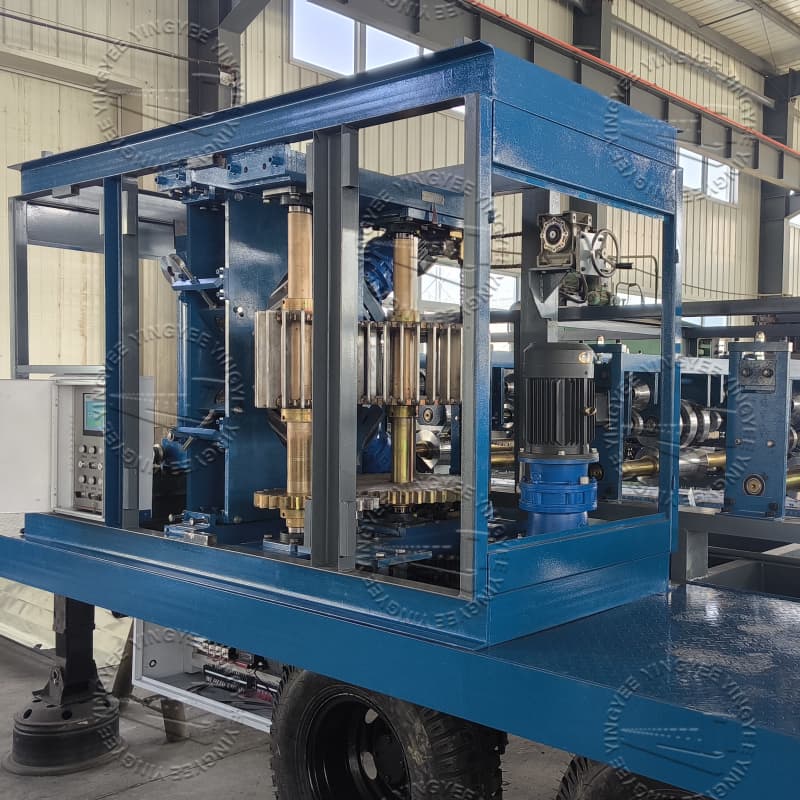

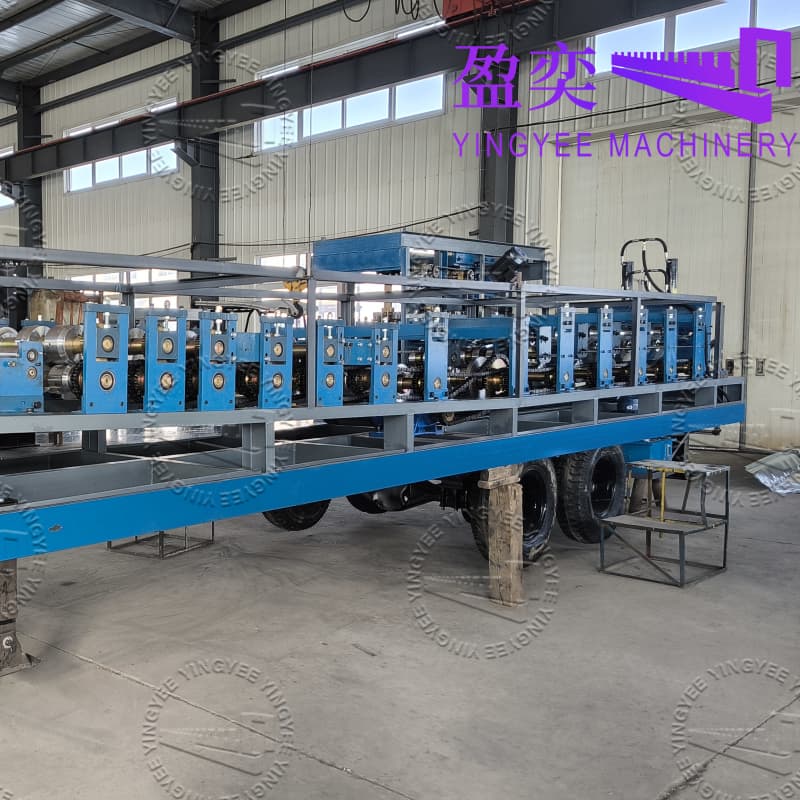

Color Metal Large Span is formed by trailer type roller system device can be transported to the construction site to make continuous arch steel buildings. Various manufacturing plate device driven by electric hand stitched together operation stitching machine connect the panel together.

Product Description

Specification:

1) Main machine dimension: 9.65m*2.23m*2.4m

2) Bending machine dimension; 3.8m*2.23m*2.4m

3) Suitable material: galvanized steel, colored steel, etc

4) Coil thickness: 0.6 –1.5mm

5) Roller stands:16

6) Roller diameter:80mm

7) Totally power:18.5kw

8) Main Power:7.5kw; Hydraulic power:4.0kw; side bending power:1.5kw*2

Curving power:4.0kw

9) Roller material: 40Cr

10) Shaft material: high grade #45 steel

11) Cutting Blade material:Cr12 steel

12) Machine speed: forming speed 13m/min, Seaming speed:6m/min

13) Span : ≤38m

14) Power supply: AC380V±10%, 50Hz, or as per your requirement

color span machine

bigspan

roofing machine

k SPAN

Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Guardrail Roll Forming Machine
  • Storage roll forming machine
  • Cable Tray Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • slitting machine

Installation and training:


1. We offer installation service local in paid, reasonable charge.

2. QT test is welcome and professional.

3. manual and using guide is optional if no visiting and no installation.
Certification and after service
1. Match the technology standard, ISO producing certification

2. CE certification

3. 12 months warranty since the delivery. Board.

Our advantage:

1. Short delivery period.

2. Effective communication

3. Interface customized.

Looking for ideal Color Long Span Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Large Span Panel Roof Forming Machine are quality guaranteed. We are China Origin Factory of Roof Big Span Roll Forming Machine. If you have any question, please feel free to contact us.
