IBR roof sheet cold roll forming machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Control System:PLC

Warranty:12 Months

Thickness:0.3-1mm

Using:Roof

Type:Roof Sheet Roll Forming Machine

Forming Speed:25-30m/min

Voltage:38oV/3Phase/50Hz Or At Customer’s Request

Material:GI, PPGI, Aluminum Coils

Cutting Mode:Hydraulic

Delivery:30 Days

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin Xingang

Product Description

IBR trapezoid Roof Sheet Roll Forming Machine

Full Automatic Trapezoid Roof Sheet Roll Forming Machine, Metal galvanized coils as raw material, PLC control, Chain transmission, has fast speed,feature of high stabilization

Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Raw materials Galvanized coils, Pre-painted coils, Aluminum coils
Material thickness range 0.2-1mm
Forming speed 10-15m/min
Rollers 15 rows(according to drawings)
Material of rollers 45# steel with chromed
Shaft material and diameter 76mm, material is 40Cr
Material of body 400H steel
Wall panel 20mm Q195 steel(all with electrostatic spraying)
Controlling system PLC
Main power 5.5KW
Material of cutting blade Cr12 mould steel with quenched treatment
Voltage 380V/3Phase/50Hz
Total weight about 4 tons

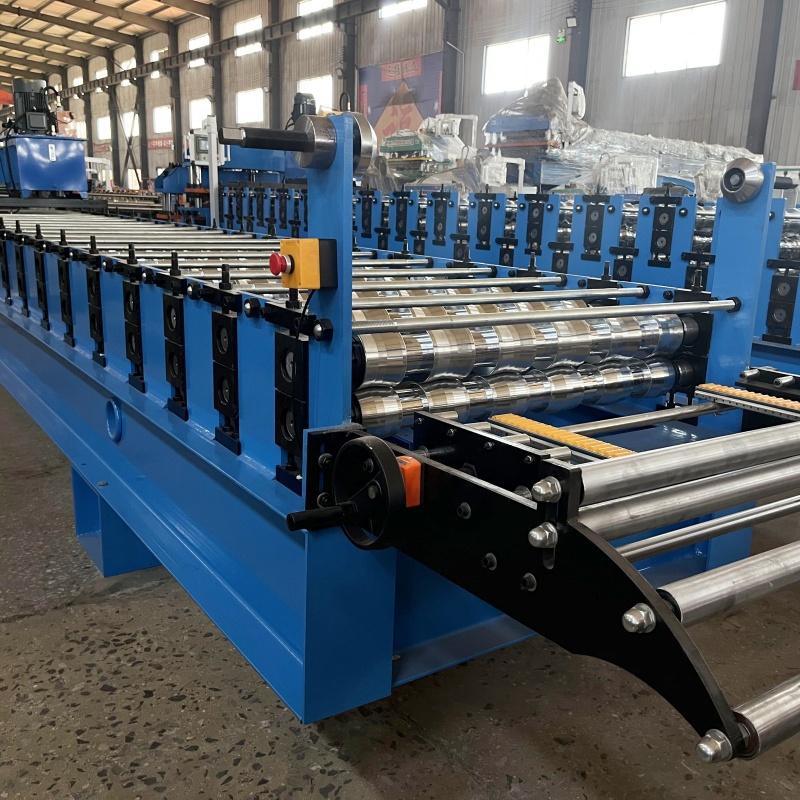

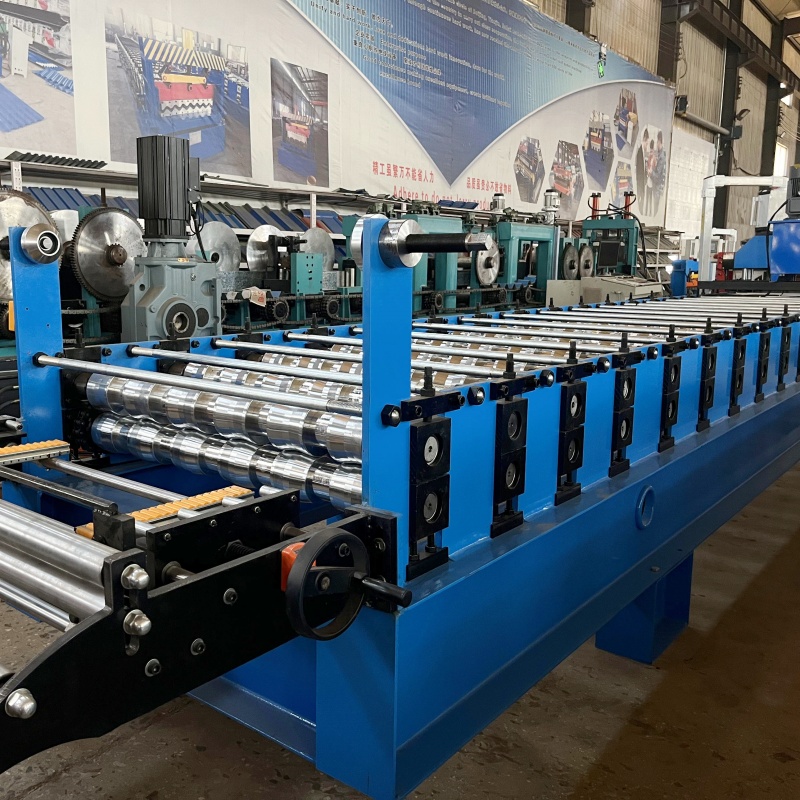

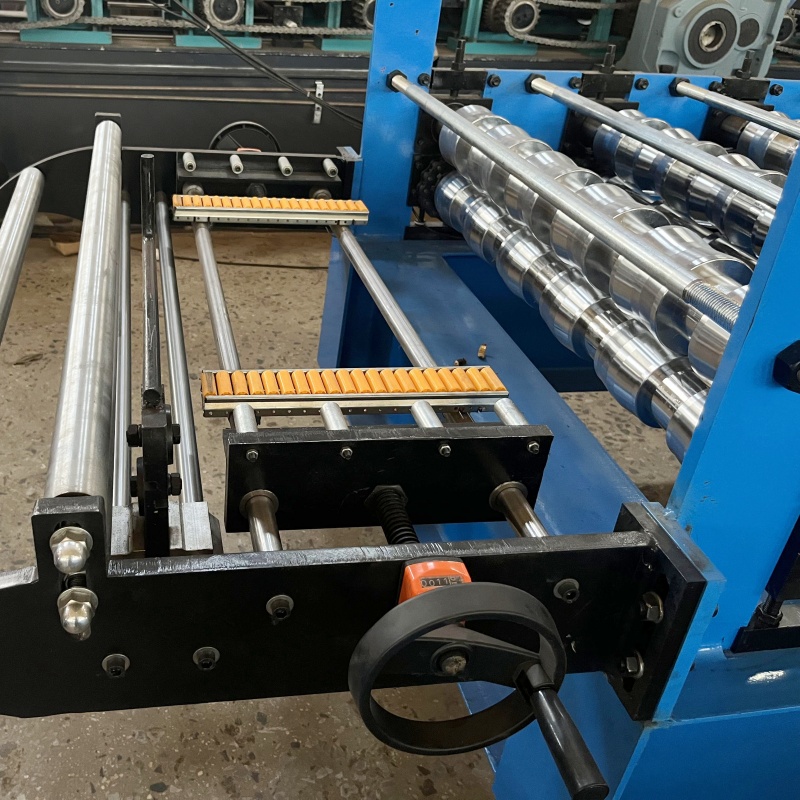

Pictures of machine:

IBR trapezoid roof sheet roll forming machine

IBR trapezoid roof sheet roll forming machine

IBR trapezoid roof sheet roll forming machine

IBR trapezoid roof sheet roll forming machine

IBR trapezoid roof sheet roll forming machine

IBR trapezoid roof sheet roll forming machine

IBR roof sheet roll forming machine

IBR trapezoid roof sheet roll forming machine

IBR trapezoid roof sheet roll forming machine

drawing

IBR roof sheet roll forming machine



Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine



FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period
2. Effective communication
3. Interface customized.

Looking for ideal Trapezoid Roof Sheet Rolling Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the IBR Roof Sheet Orming Machine are quality guaranteed. We are China Origin Factory of Full Automatic Trapezoid Roof Sheet Machine. If you have any question, please feel free to contact us.
