flexible cable tray roll forming machine

1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel

2. Working Speed: 12-15 meters / min

3. Forming Steps: according to different profiles, changing by 5 sets cassettes

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: *76mm), thermal refining

6. Driven system: Chain Driven 1.5 inches 20A

7. Main Power with reducer: 15KW WH Chinese Famous

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 11KW Wuxi Wanshen Famous Chinese Brand

11. The whole machine is controlled by industry computer-PLC.

12 PLC–Panasonic, Japan

13 Touch Screen–Panasonic Japan

14Encoder–Omron, Japan

15Electric parts–Schneider

Components

1. Decoiler

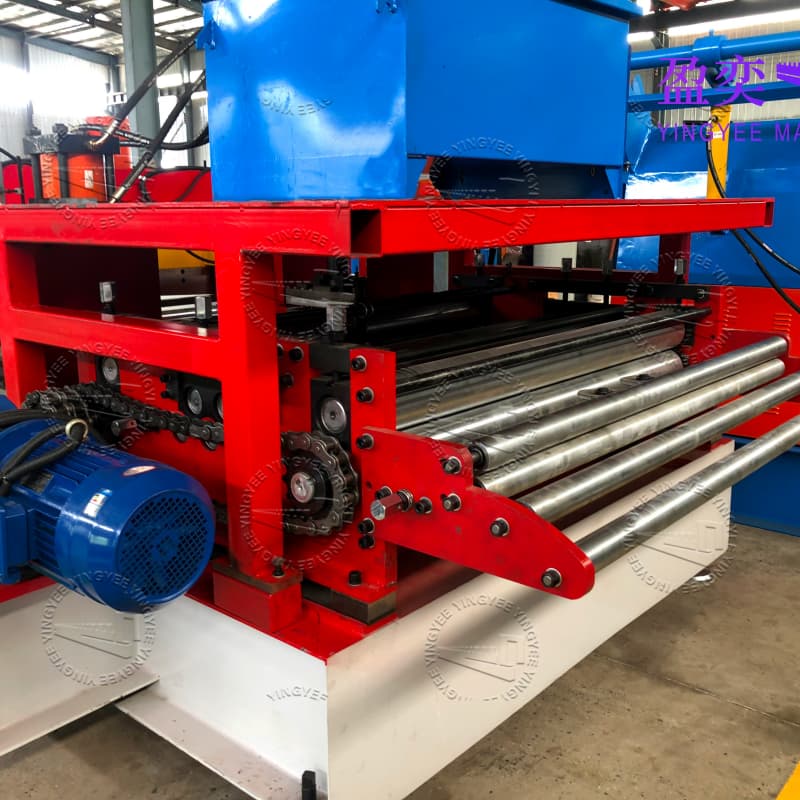

2. Leveling Device

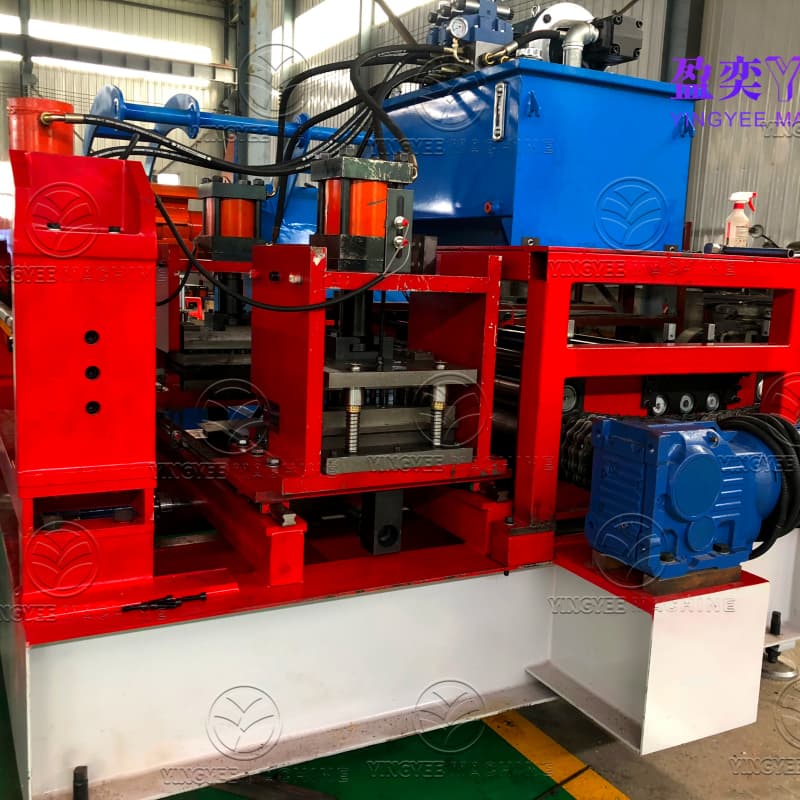

3. Punching

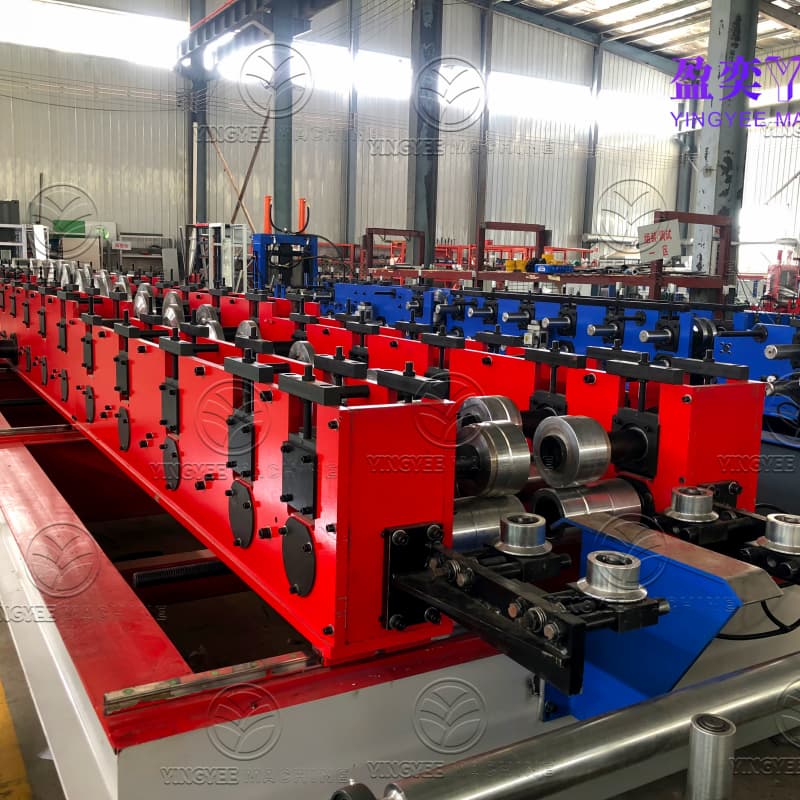

4. Main Roll Forming Machine
5. Cutting Device
6. PLC Control System
7. Hydraulic Station

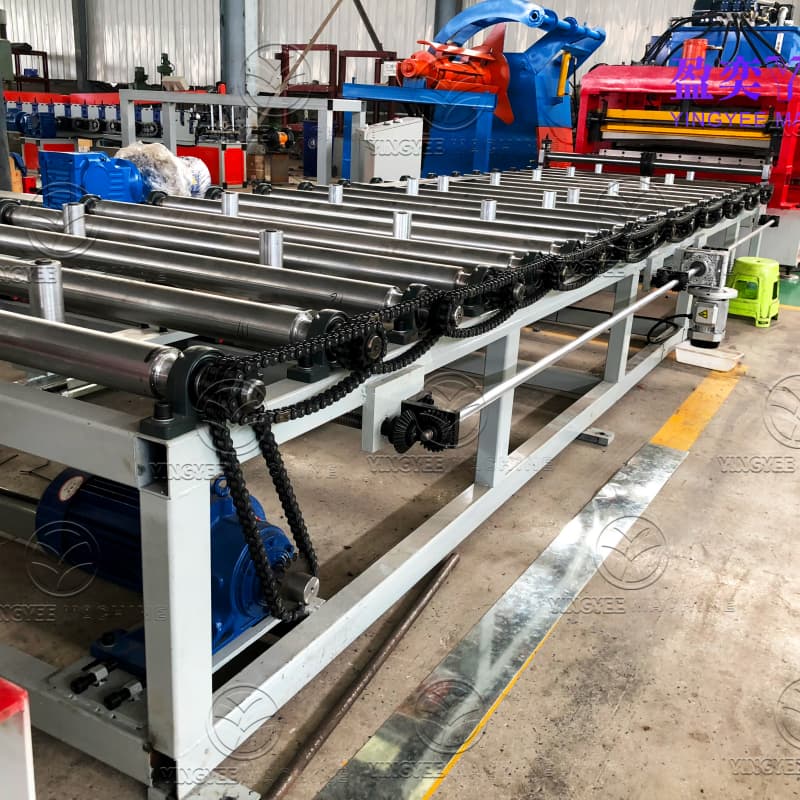

8. Run-out Table
9. Working Flow
