Galvanized Steel Cable Tray Roll Forming Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

    Warranty:12 Months

    Delivery Time:30 Days

    After Service:Engineers Available To Service Machinery Overseas

    Forming Speed:25-30m/min(excluding Punching)

    Cutting Mode:Hydraulic

    Material Of Cutting Blade:Cr12

    Type:Steel Frame & Purlin Machine

    Control System:PLC

    Voltage:380V/3Phase/50Hz Or At Your Request

    Way Of Driven:Chain Or Gear Box

Additional Info

    Packaging:NUDE

    Productivity:200 sets/year

    Brand:YY

    Transportation:Ocean

    Place of Origin:Hebei

    Supply Ability:200 sets/year

    Certificate:CE/ISO9001

Product Description

Galvanized Steel Cable Tray Roll Forming Machine

Galvanized Steel Cable Tray Roll Forming Machine is a kind of equipment for making cable tray by various material. In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe. For zhongtuo cable tray roll forming machine is a kind of machine for making cable tray by roll forming principle.

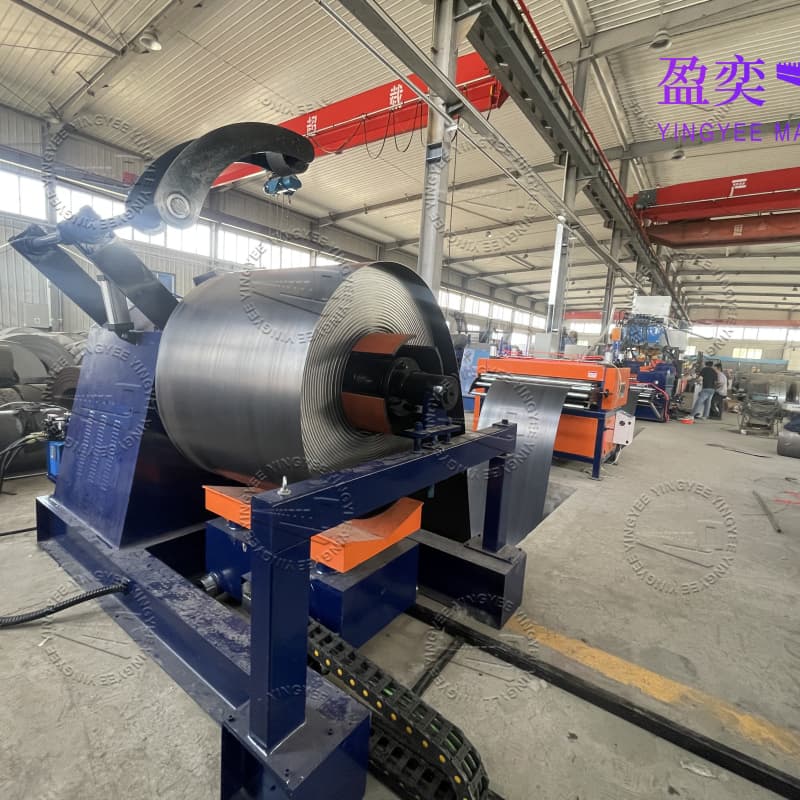

Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:


Matching material Galvanized or PPGI, Aluminum coils
Material thickness range 0.8mm-2.0mm
Forming speed 20-30m/min(excluding punching and cutting time)
Hydraulic station power 22KW
Rollers 20(according to drawings and size)
Shaft material and diameter 80mm, material is 40Cr
Material of the body 400H steel
Wall panel 20mm, Q195 steel(all with electrostatic spraying)
Controlling system PLC
Material of rollers 45# steel with chromed or Cr12(you can choose the material as your request)
Material of blade Cr12 mould steel with quenched treatment 58-62℃
Total weight About 5 tons

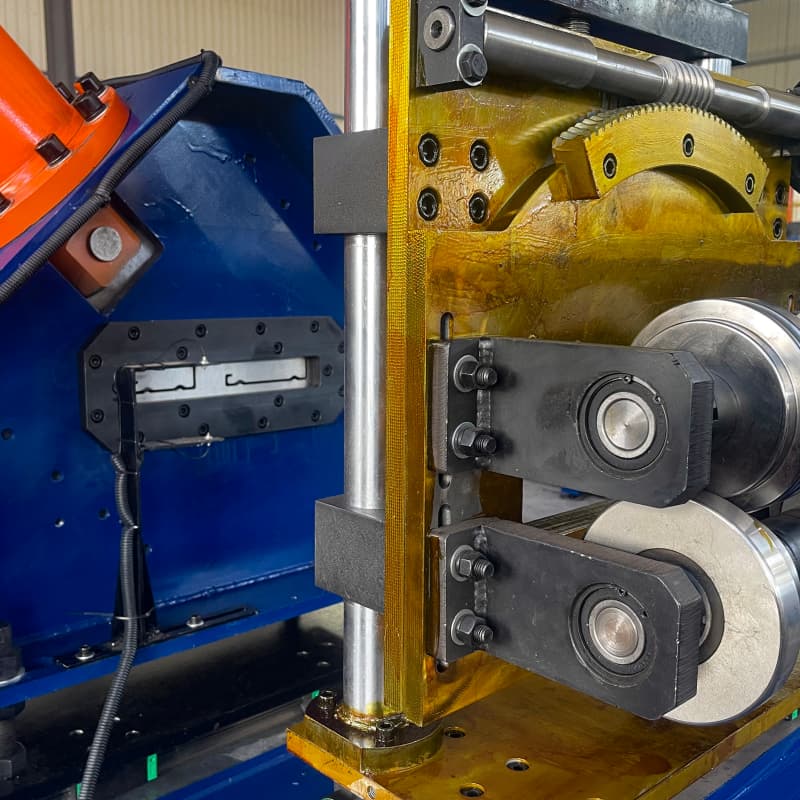

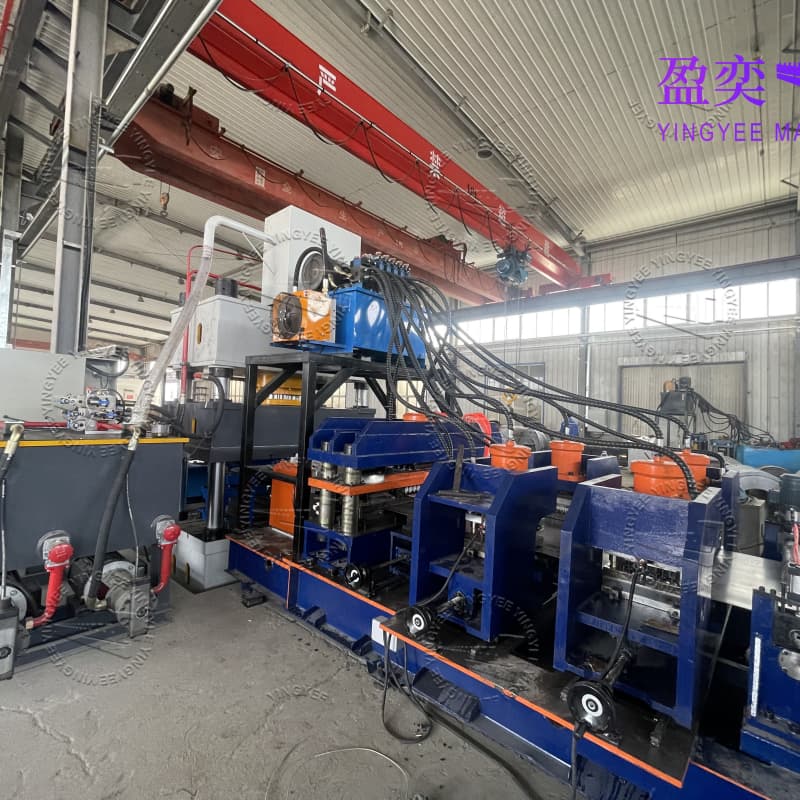

Pictures of machine:

Cable tray roll forming machine Cable tray roll forming machine

Cable tray roll forming machine

Cable tray roll forming machine

Cable tray roll forming machine

Cable tray roll forming machine
