Steel Cable Tray Making Roll Forming Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

    Warranty:12 Months

    Delivery Time:30 Days

    After Service:Engineers Available To Service Machinery Overseas

    Forming Speed:25-30m/min(excluding Punching)

    Cutting Mode:Hydraulic

    Material Of Cutting Blade:Cr12

    Type:Steel Frame & Purlin Machine

    Control System:PLC

    Voltage:380V/3Phase/50Hz Or At Your Request

    Way Of Driven:Chain Or Gear Box

Additional Info

    Packaging:NUDE

    Productivity:200 sets/year

    Brand:YY

    Transportation:Ocean

    Place of Origin:Hebei

    Supply Ability:200 sets/year

    Certificate:CE/ISO9001

Product Description

Galvanized Steel Cable Tray Roll Forming Machine

This roll forming machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:


Matching material Galvanized or PPGI, Aluminum coils
Material thickness range 0.8mm-2.0mm
Forming speed 20-30m/min(excluding punching and cutting time)
Hydraulic station power 22KW
Rollers 20(according to drawings and size)
Shaft material and diameter 80mm, material is 40Cr
Material of the body 400H steel
Wall panel 20mm, Q195 steel(all with electrostatic spraying)
Controlling system PLC
Material of rollers 45# steel with chromed or Cr12(you can choose the material as your request)
Material of blade Cr12 mould steel with quenched treatment 58-62℃
Total weight About 5 tons

Pictures of machine:

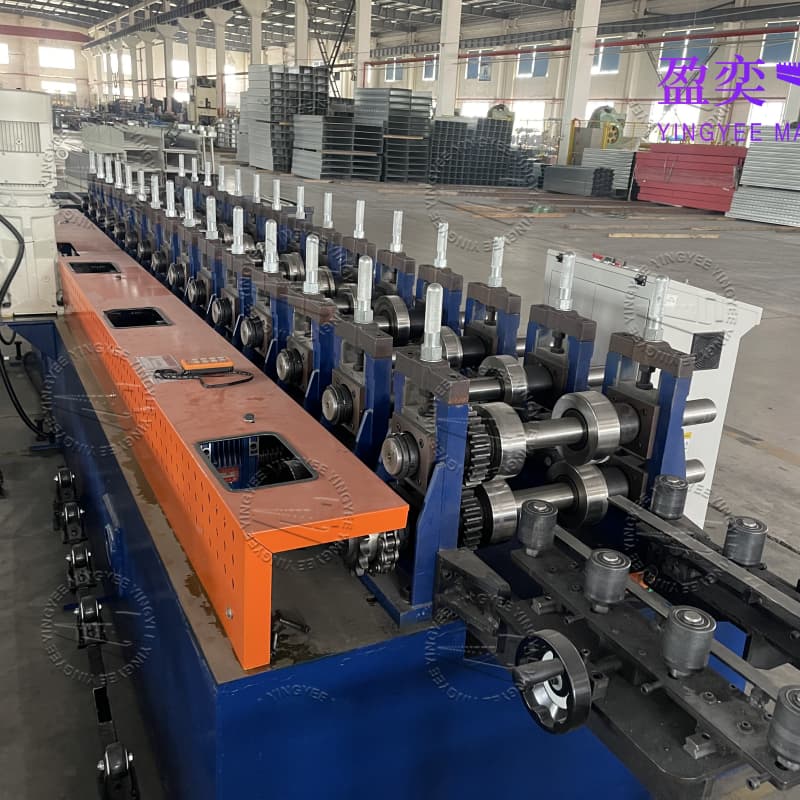

Cable tray roll forming machine Cable tray roll forming machine

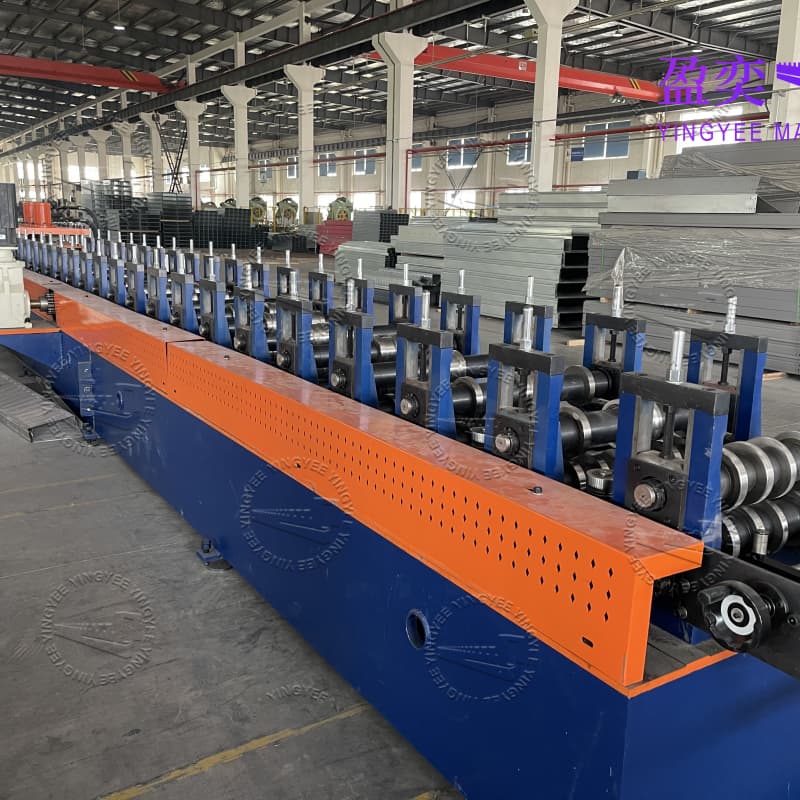

Cable tray roll forming machine

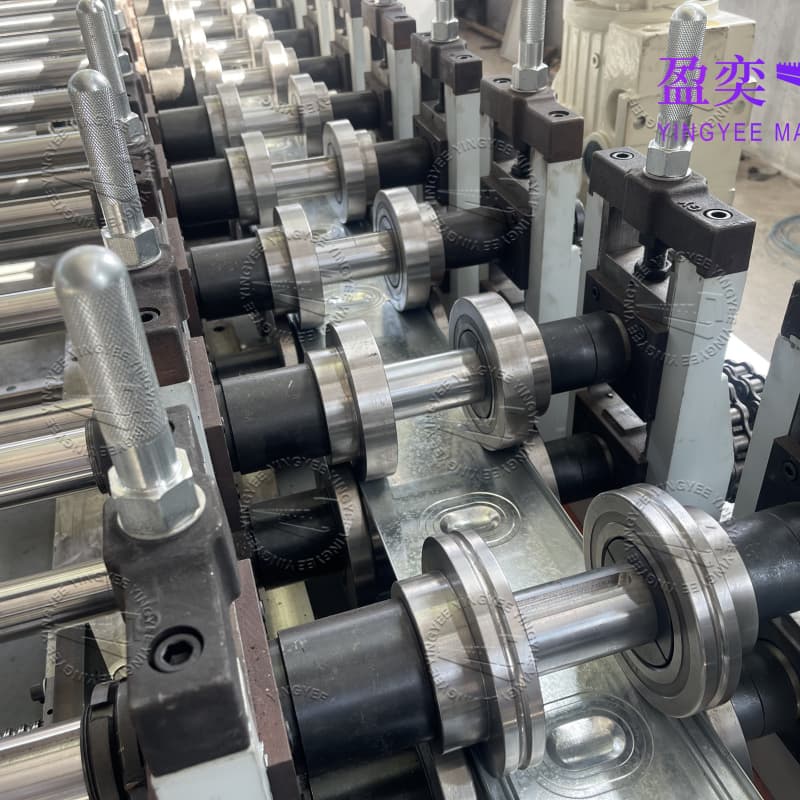

Cable tray roll forming machine

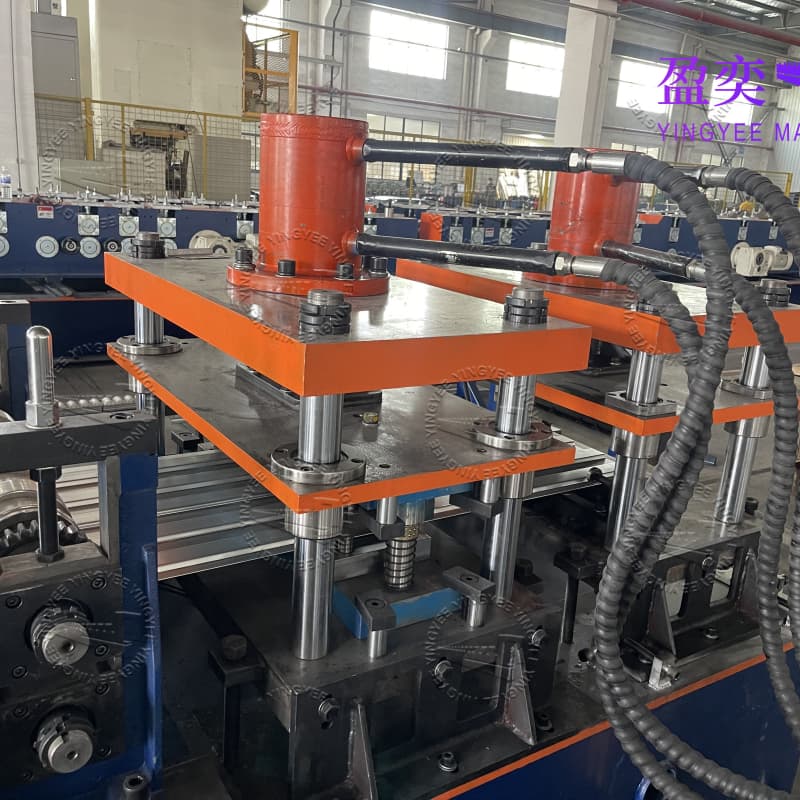

Cable tray roll forming machine

Cable tray roll forming machine

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period
2. Effective communication
3. Interface customized.

Looking for ideal Cold Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roll Forming Machine Manufacturers in Europe are quality guaranteed. We are China Origin Factory of Automatic Cable Tray Roll Forming Machine. If you have any question, please feel free to contact us.
