Tube mill for round tube/rectangle tube/square tube various

Short Description:

Product Detail


Product Tags

Basic Info

Model No.:YY–TML—001





Type:High Frequency Weld Pipe Mill Line

Round Pipe Size Range:Φ8–​Φ630​ Mm

Round Pipe Thickness Range:0.5-20.0 Mm

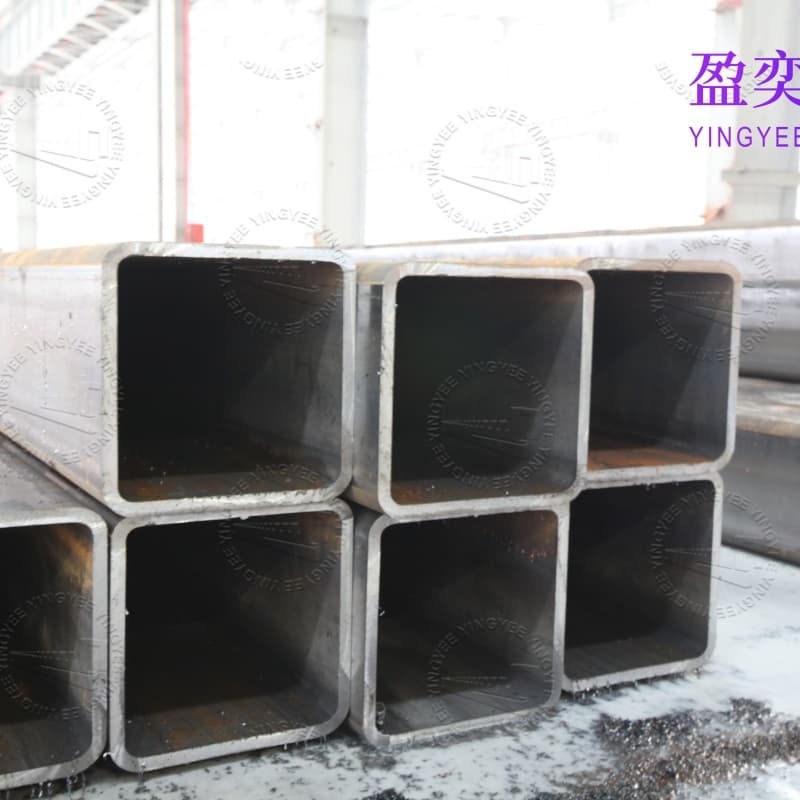

Square Pipe Size Range:10*10–500*500 Mm

Squre Pipe Thickness Range:0.5-20.0 Mm

Forming Speed:60-70M/min

Daily Production:6000 Tubes

Additional Info


Productivity:100 SETS/YEAR



Place of Origin:CHINA

Supply Ability:100 SET/YEAR


HS Code:84552210


Product Description

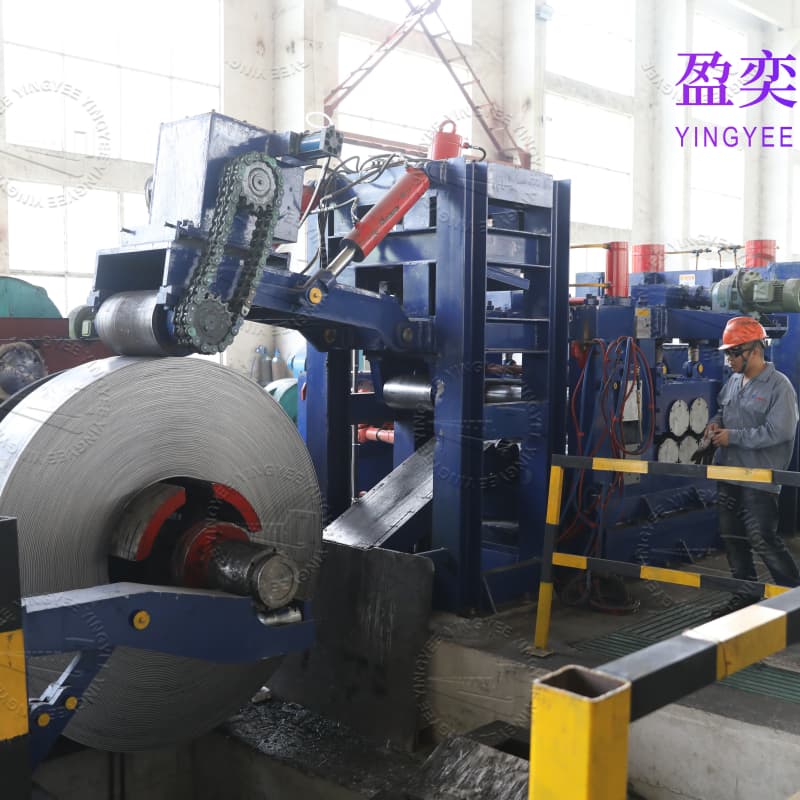

1. Decoiling Unrolling the winded skelp.
2. Butt welding Connecting the both ends of skelp for the continuous production.
3. Accumulator Stacking the connected skelp to decrease the material preparation time.

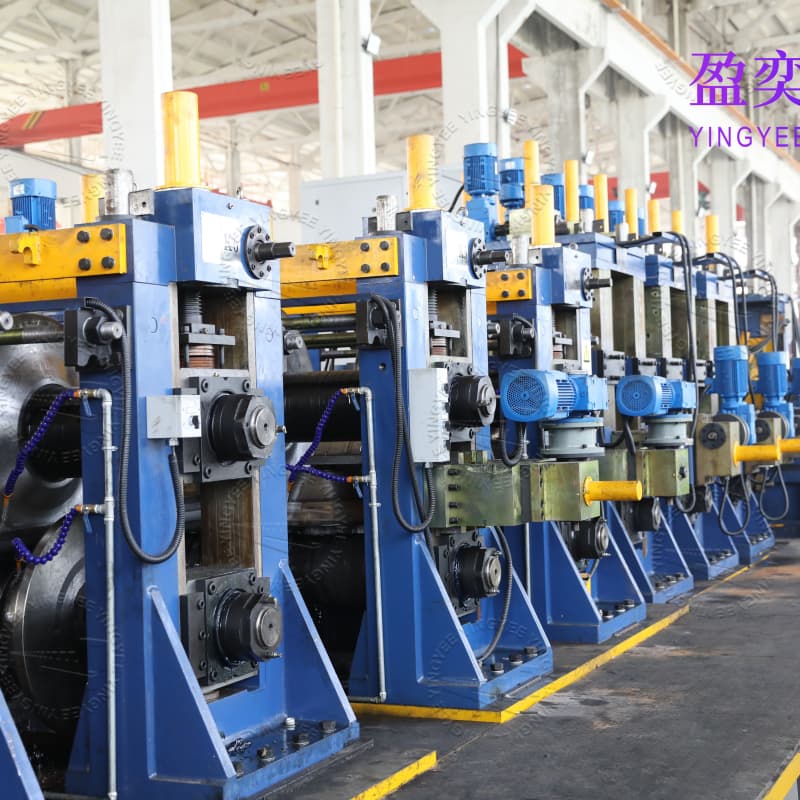

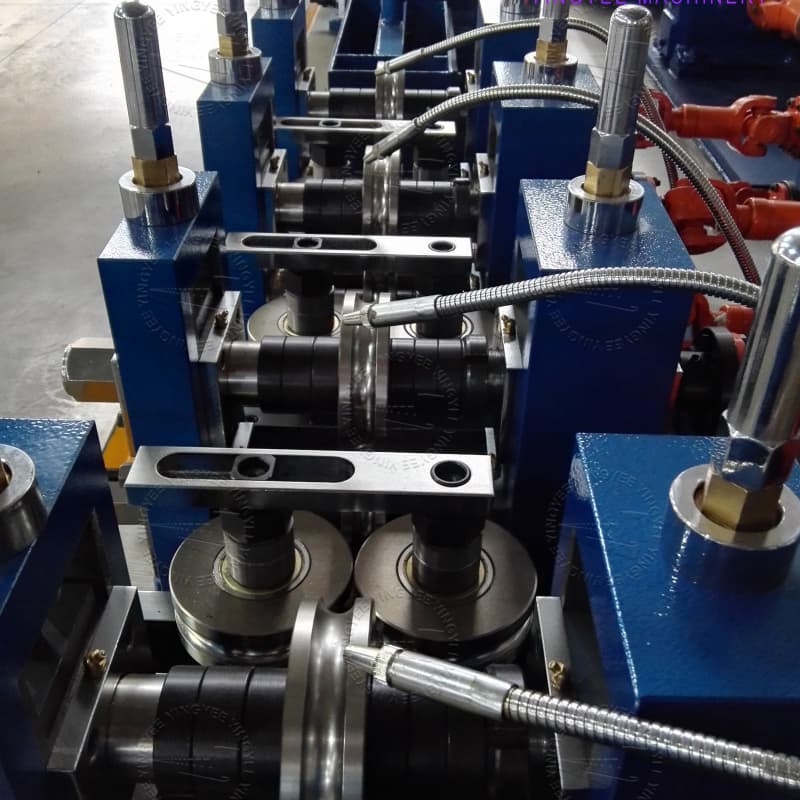

4. Forming Passing skelp through the roll forming tool.
5. Welding Welding process by electric resistance.
6. Cooling Air and water cooling to uniformalize the heated organization after high frequency heat treatment process.
7. Sizing To accurate the out diameter of pipe.
8. Cut-Off Cutting to ordered dimension.
9. Straightening Passing through the correction gap for the straightness.
10. End facing Chamfering & beveling the cut side according customer`s order.
11. Hydrostatic testing Checking the water leak and crack.
12. Packing Packing by ordered.












MODEL Round pipe diameter range (mm) Round pipe thickness range (mm) Square pipe diameter range (mm) Square pipe thickness range (mm) Forming speed (m/min)
YY20 Φ8–Φ20 0.5-1.2 10*10–20*20 0.5-1.0 20-100
YY32 Φ12–Φ32 0.6-2.0 10*10–25*25 0.6-1.8 20-100
YY50 Φ15–Φ50 0.8-3.0 15*15–40*40 0.8-2.5 20-80/120
YY63 Φ21–Φ63 0.8-3.5 15*15–50*50 0.8-3.0 20-80/120
YY76 Φ21–Φ76 1.0-4.0 20*20–60*60 1.0-3.5 20-80/120
YY89 Φ32–Φ89 1.5-4.5 25*25–70*70 1.5-4.0 20-70
YY114 Φ48–Φ114 1.5-5.0 40*40–90*90 1.5-4.5 20-60
YY140 Φ48–Φ140 1.5-5.5 40*40–110*110 1.5-5.0 20-60
YY165 Φ60–Φ165 2.0-6.0 50*50–130*130 2.0-5.5 10-45
YY219 Φ89–Φ219 3.0-8.0 70*70–180*180 3.0-7.0 10-35
YY273 Φ114–Φ273 5.0-10.0 100*100–200*200 4.0-8.0 10-35
YY325 Φ165–Φ325 6.0-12.0 120*120–250*250 6.0-10.0 10-30
YY426 Φ219–Φ426 8.0-14.0 150*150–300*300 8.0-12.0 10-30
YY508 Φ273–Φ508 10.0-16.0 200*200–400*400 10.0-16.0 10-20
YY630 Φ325–Φ630 12.0-20.0 250*250–500*500 12.0-20.0 10-20

Machine Picture

Tube Mill Line From Yingyee05Tube Mill Line From Yingyee10Tube Mill Line From Yingyee04Tube Mill Line From Yingyee45Tube Mill Line From Yingyee40Tube Mill Line From Yingyee39Tube Mill Line From Yingyee29Tube Mill Line From Yingyee50
