Standing Seam Roll Forming Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Model No.:yingyee008

Control System:PLC

Delivery Time:30 Days

Warranty:12 Months

Material Of Cutting Blade:Cr12

Using:Roof

Type:Roof Sheet Roll Forming Machine

Cutting Mode:Hydraulic

Material:Colored Steel, Galvanized Steel, Aluminum Steel

Forming Speed:15-20m/min

Voltage:At Customer’s Request

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean,Land,Air

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin,Shanghai,Qingdao

Product Description

Standing seam roof panel roll forming machine

Standing seam roof panel roll forming machine for the ones who start profile forming or additional device for a professional. Continuously variable width from 230 to 750 mm. The cut sheet metals are profile formed in parallel during single operation. Bevelled, fitted and conical plates can be prepared during one cycle. The smallest distance between axes in one cycle is 50 mm. you can adjust its height!

1.easy to operate and handle 2.excellent back-up service 3.competitive price and best quality

Working Flow:

Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Raw material Pre-painted coils, Galvanized coils, Aluminum coils
Material thickness range 0.2-1mm
Rollers 12-20 rows
Material of rollers 45# steel with chromed
Shaft diameter and material 70mm, material is 40 Cr
Forming speed 10-15m/min
Material of cutter blade Cr12 mould steel with quenched treatment 58-62℃
Main motor power 4KW
Hydraulic motor power 3KW
Voltage 380V/3Phase/5Hz
Total weight about 3 tons
Controlling system Omron PLC

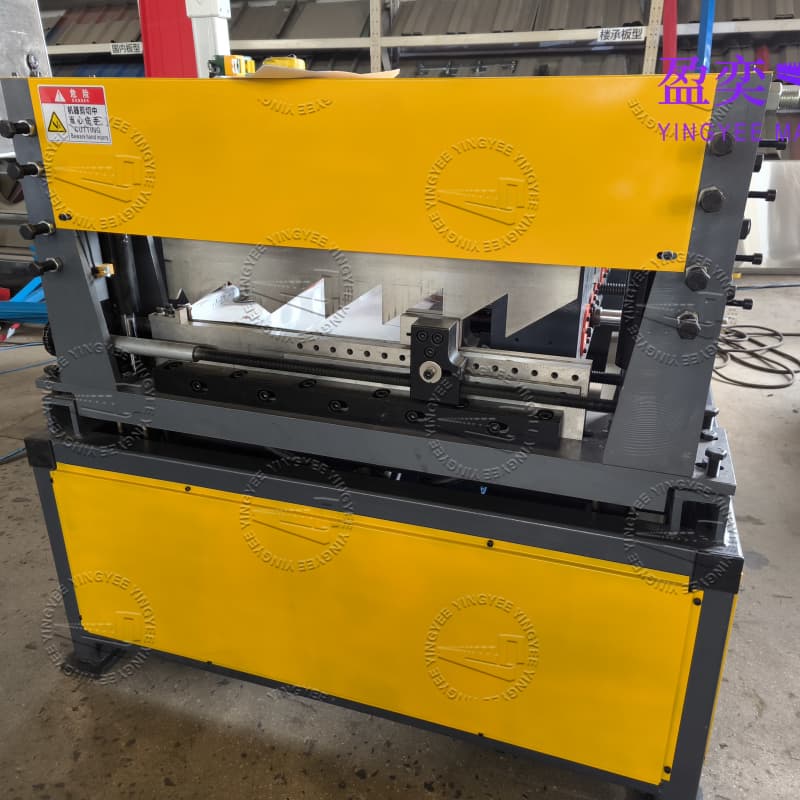

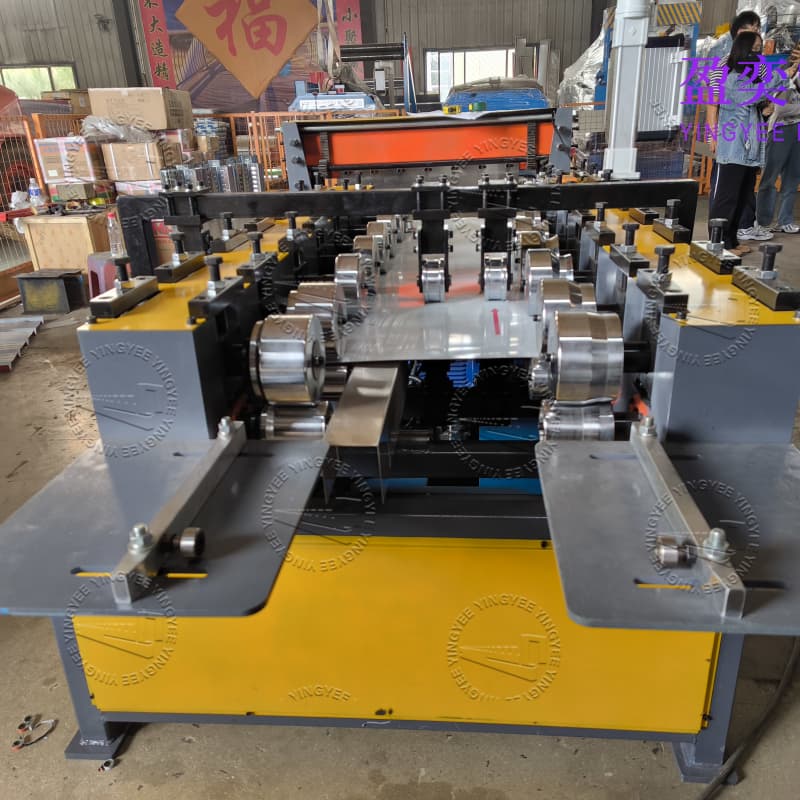

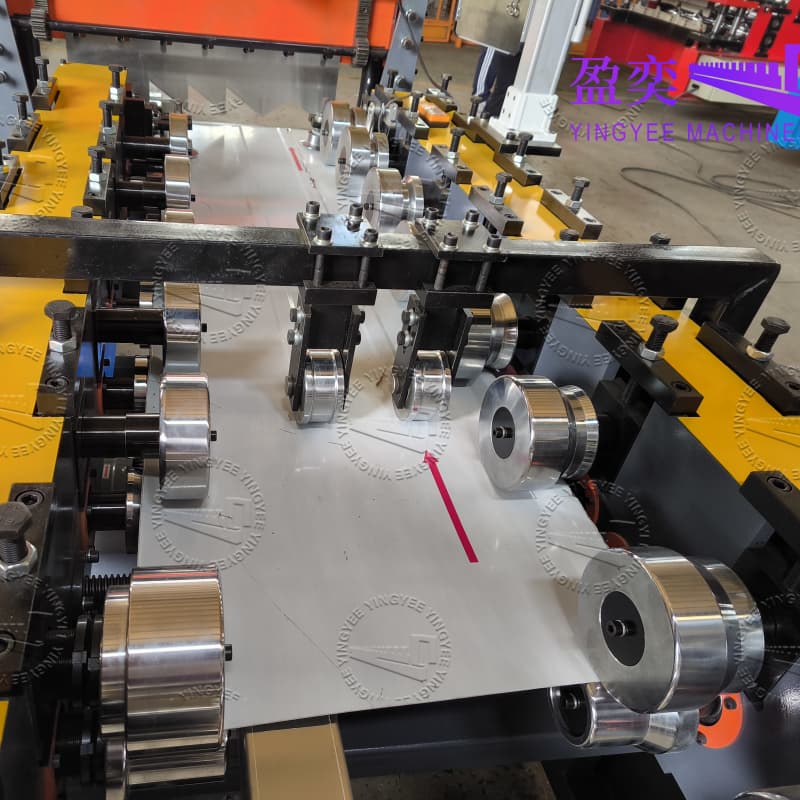

Pictures of machine:

Standing seam



Standing seamStanding seam

Standing seamStanding seam

Standing seamStanding seam





Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.

2. QT test is welcome and professional.

3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification

2. CE certification

3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period

2. Effective communication

3. Interface customized.

Looking for ideal Ese Standing Seam Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Ese Roll Forming Machine are quality guaranteed. We are China Origin Factory of Roll Forming Machine Exhibition. If you have any question, please feel free to contact us.
