Metal Shutter Door Roll Forming Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

    Type:Steel Frame & Purlin Machine

    Control System:PLC

    Delivery Time:30 Days

    Warranty:12 Months

    Material Of Cutting Blade:Cr12

    Cutting Mode:Hydraulic

    After Service:Engineers Available To Service Machinery Overseas

    Forming Speed:25-30m/min(excluding Punching)

    Voltage:380V/3Phase/50Hz Or At Your Request

    Way Of Driven:Chain Or Gear Box

Additional Info

    Packaging:NUDE

    Productivity:200 sets/year

    Brand:YY

    Transportation:Ocean

    Place of Origin:Hebei

    Supply Ability:200 sets/year

    Certificate:CE/ISO9001

Product Description

Metal Shutter Door Roll Forming Machine

Roller shutter door forming machine, can produce the shutter door according to customer’s drawing. The roller shutter door slide machine can produce the slide which is used with the roller shutter door

Working Flow:

Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:


Raw material Pre-painted coils, Galvanized coils, Aluminum coils
Material thickness range 0.3-1.0mm
Rollers 10+5 groups
Material of rollers 45# steel with chromed
Shaft material and diameter 40mm, material is 40Cr
Forming speed 10-15m/min
Main motor power 5.5KW
Hydraulic power 3.0KW
Cutting type Hydraulic flying saw
Controlling system PLC
Voltage 380V/3Phase/50Hz
Way of driven 1.0 inch single chain transmission
Total weight 2 tons
Size of the machine L*W*H 6*0.8*1m

Pictures of machine:

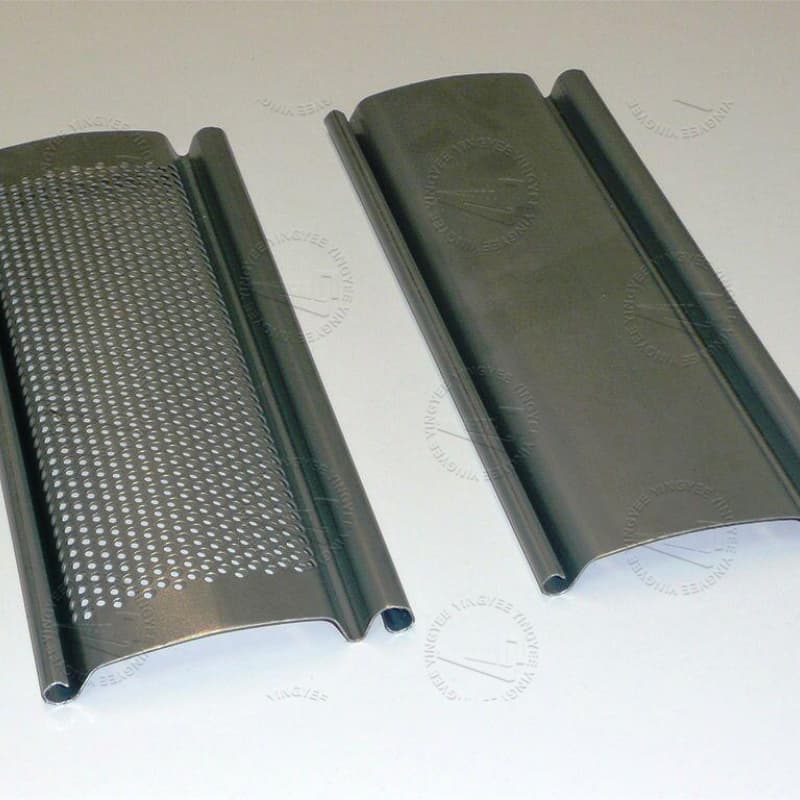

Shutter door Roller shutter

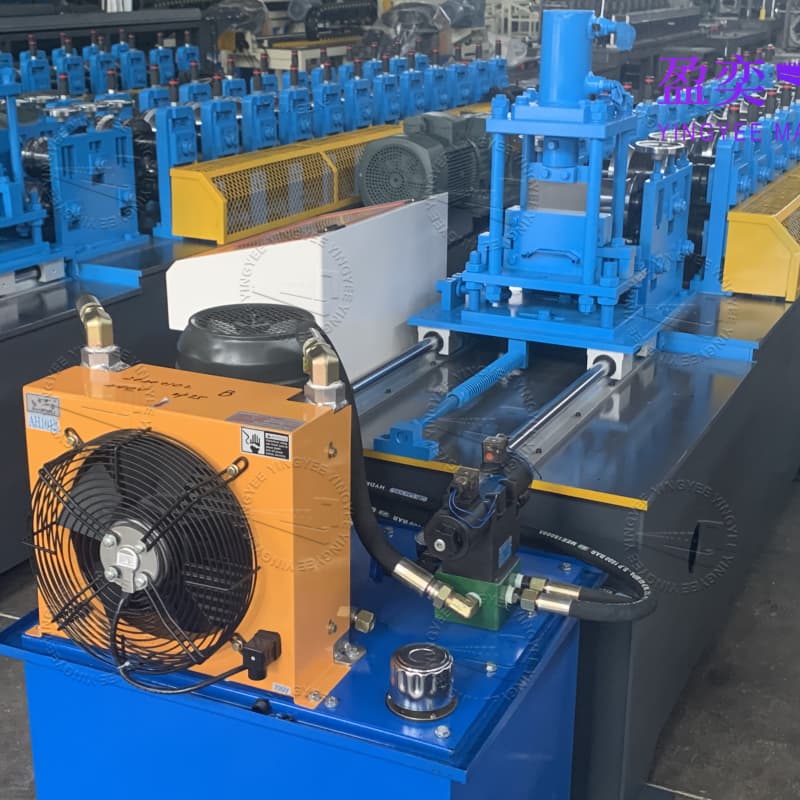

Roller shutter door roll forming machine Roller shutter door

shutter door

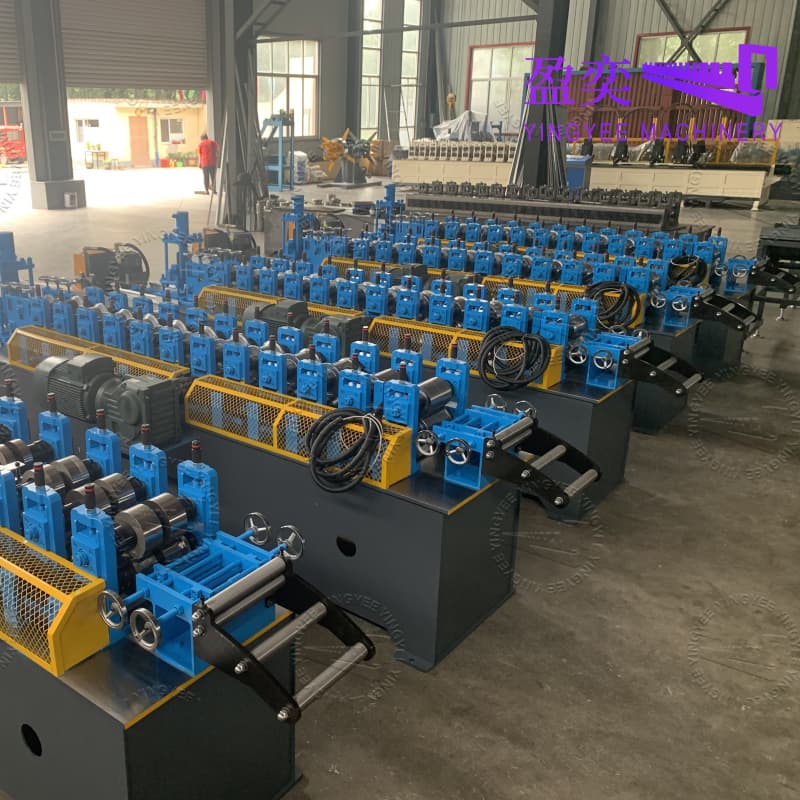

roller shutter door roll forming machine

roll-up door

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period.

2. Effective communication

3. Interface customized.

Looking for ideal Roll Forming Machine Manufacturers in Europe Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roll Forming Machine Expo are quality guaranteed. We are China Origin Factory of Roll-up Door Forming Machine. If you have any question, please feel free to contact us.
