Metal Roof sheet Roll Froming Machine price

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Model No.:YY –HSR-002

Type:Metal Tile Forming Machine

Voltage:38oV/3Phase/50Hz Or At Customer’s Request

Control System:PLC

Warranty:12 Months

Forming Speed:25-30m/min

Material:GI, PPGI, Aluminum Coils

Thickness:0.35-0.8mm

Delivery:50 Days

Cutting Mode:Mechanical Cutting

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552200

Port:TIANJIN PORT

Product Description

Automatic High Speed Metal Roof Sheet Roll Froming Machine

Our Automatic High Speed Metal Roof Sheet Roll Froming Machine .Speed 25-30m/min ,the speed double than normal machine.

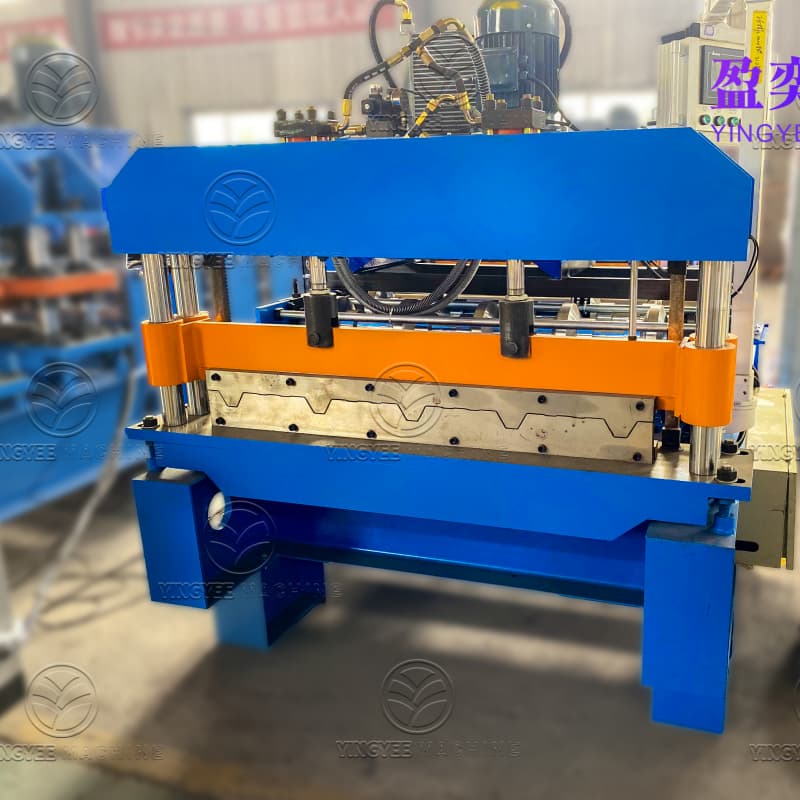

The machine with Mechanical cutting to suits the high speed require.cut only 1 second.

All the electric part are Mitsubishi brand ,include: PLC , Touch screen,Frequency converter.

Roll forming machines metal roofing , Metal galvanized coils as raw material, PLC control, Chain transmission, has fast speed,feature of high stabilization

Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Raw materials Galvanized coils, Pre-painted coils, Aluminum coils
Material thickness range 0.35-0.8mm
Forming speed 25-30m/min

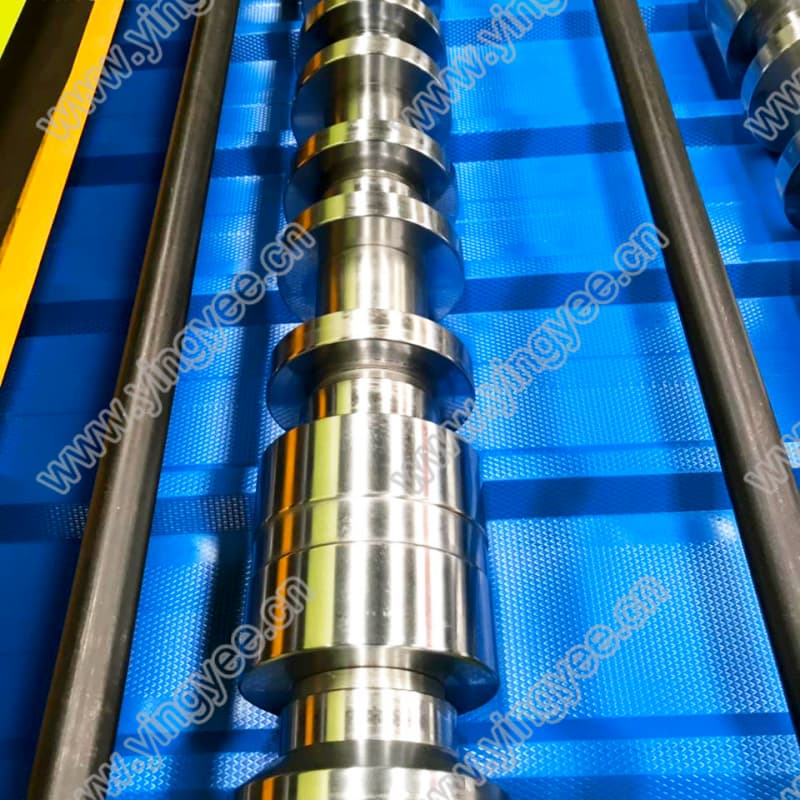

Rollers 21 rows(according to drawings)
Material of rollers 45# steel with chromed
Shaft material and diameter 75mm, material is 45#steel
Material of body 400H steel
Wall panel 20mm Q195 steel(all with electrostatic spraying)
Controlling system PLC
Main power 7.5KW
Material of cutting blade Cr12 mould steel with quenched treatment
Voltage 380V/3Phase/50Hz
Total weight about 4 tons

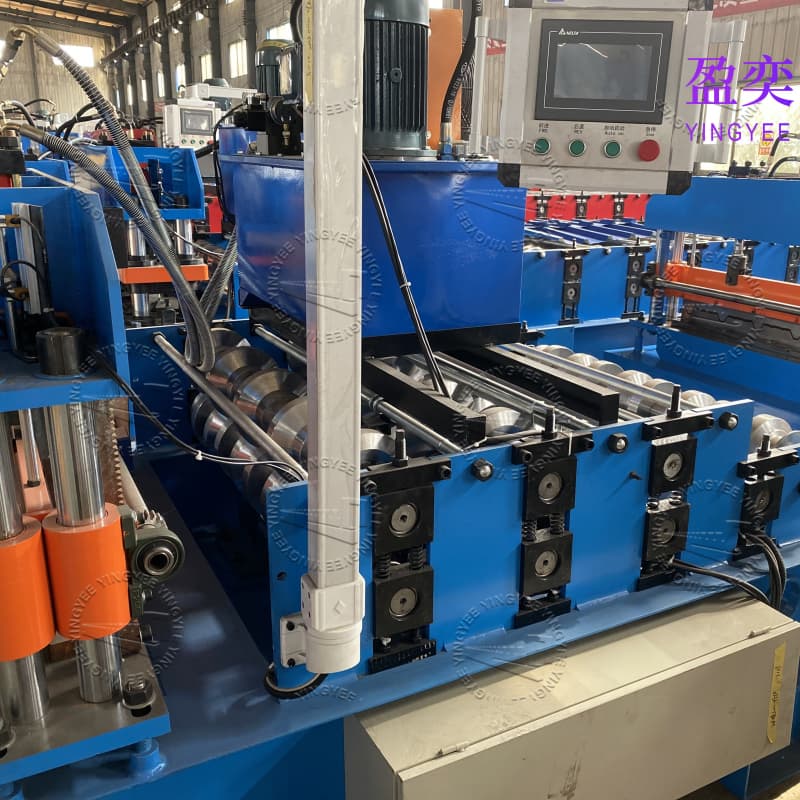

Pictures of machine:



High Speed Machine From Yingyee 008High Speed Machine From Yingyee 0003High Speed Machine From Yingyee 02

High Speed Machine From Yingyee 001High Speed Machine From Yingyee 005





Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service:

1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:

1. Short delivery period
2. Effective communication
3. Interface customized.

Looking for ideal Metal Roof Machine Price Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roll Forming Machine Price are quality guaranteed. We are China Origin Factory of Automatic Metal Roof Machine. If you have any question, please feel free to contact us.

Product Categories : Roof Sheet Roll Forming Machine > Trapezoid Roof Sheet Forming Machine
