Metal Solar PV Panel Forming Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Warranty:12 Months

Delivery Time:30 Days

Type:Steel Frame & Purlin Machine

Material:GI, PPGI, Aluminum Coils

Way Of Driven:Chain Or Gear Box

Cutting Mode:Hydraulic

Material Of Cutting Blade:Cr12

Forming Speed:25-30m/min(excluding Punching)

Voltage:380V/3Phase/50Hz Or At Your Request

After Service:Engineers Available To Service Machinery Overseas

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin Xingang

Product Description

Metal Solar PV Panel Forming Machine

Now our Hot Sale R panel roofing solar pv mounting bending machine have been exported to many countries, the most important is that all you need can be customized. Also Combined UC Light Keel Machine, T Grid Omega keel Roll Forming Machine, Cable Tray Roll Forming Machine, Roof Tile Metal Sheet Making Machine.



Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Matching material Galvanized, PPGI, Aluminum
Material thickness range 1.5-2.0mm
Feeding width 300mm(can change according to buyer’s request)
Roller 24 rollers
Material of roller Gcr15
Main motor power 30KW
Forming speed 8-15m/min
Shaft material and diameter 80mm, 45# steel with chromed
Way of driven Chain transmission or gear box
Material of blade Cr12 mould steel with quenched treatment 58-62℃
Voltage 380V/3Phase/50Hz
Controlling system PLC

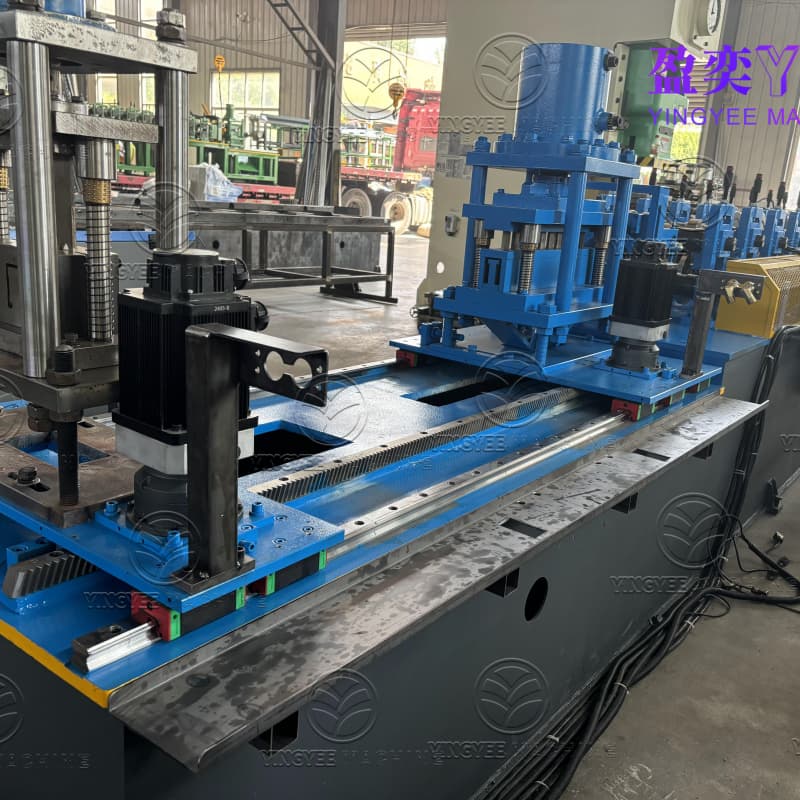

Pictures of machine:



solar PV bracket

solar PV bracket

solar PV bracket

solar PV bracket

solar PV bracket

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.

2. QT test is welcome and professional.

3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification

2. CE certification

3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period

2. Effective communication

3. Interface customized.

Looking for ideal Bracket Rack Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Solar Bracket Rolling Machine are quality guaranteed. We are China Origin Factory of Stone Solar PV Machine. If you have any question, please feel free to contact us.
