Highly polished downpipe roll forming machine
Short Description:
Basic Info
Delivery Time:30 Days
Warranty:12 Months
After Service:Engineers Available To Service Machinery Overseas
Type:Pipe Production Line
Cutting Mode:Flying Saw Cutting Or Mould Cutting
Material:GI, PPGI, Aluminum Coils
Material Of Cutting Blade:Cr12
Forming Speed:25-30m/min
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Round downpipe downspout roll forming machine
Highly polished downpipe downspout roll forming machine made for India, this machine is excellent appearance, easy to operate, and we are very glad to give technical support for machine and we also have skilled technicians available across the world
Working Flow: Decoiler – Feeding guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | PPGI or GI |
| Material thickness range | 0.2-0.8mm |
| Rollers | 18 rows |
| Material of forming rollers | 45# steel with chromed |
| Shaft diameter and mateiral | 76mm, material is 40Cr |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Forming speed | 12-15m/min(excluding cutting stoping time) |
| Main motor power | 4 KW |
| Hydraulic station power | 3KW |
| Mode of cutting | Hydraulic cutting or flying saw cutting or mould cutting |
| Control system | PLC Frequency Control System with touch screen |

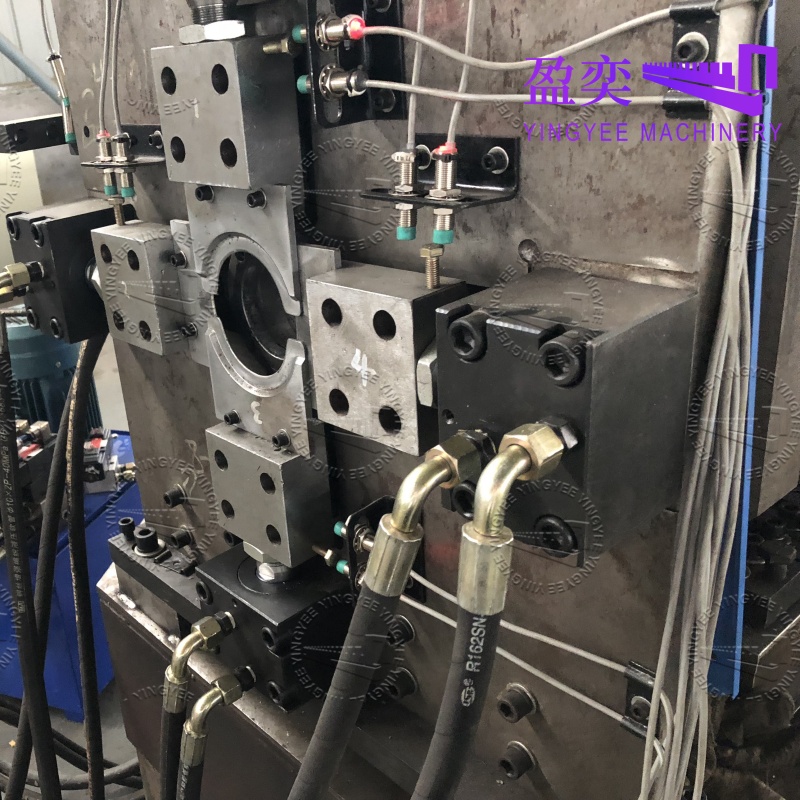

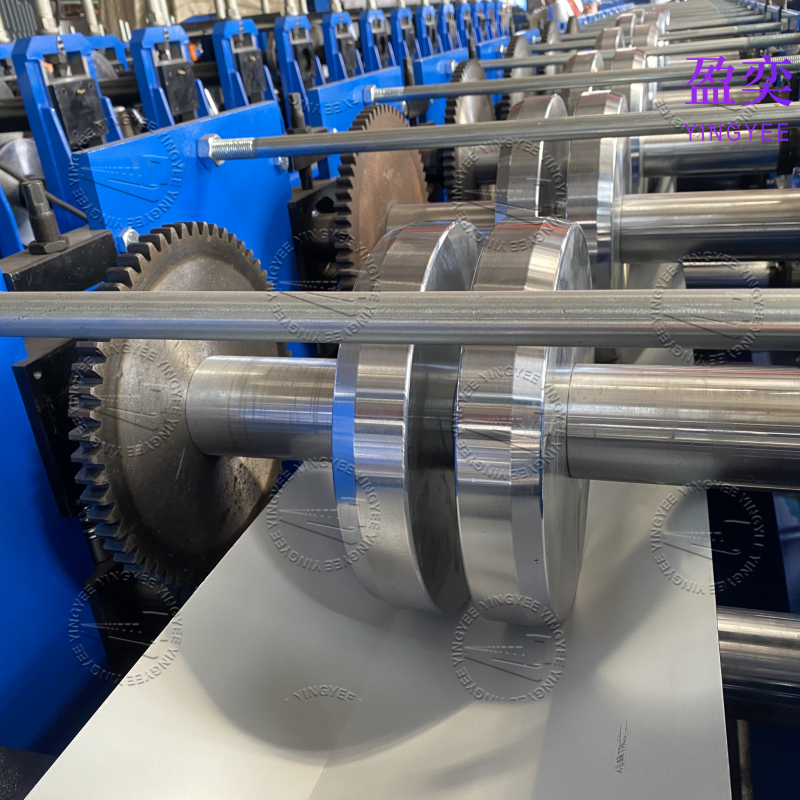

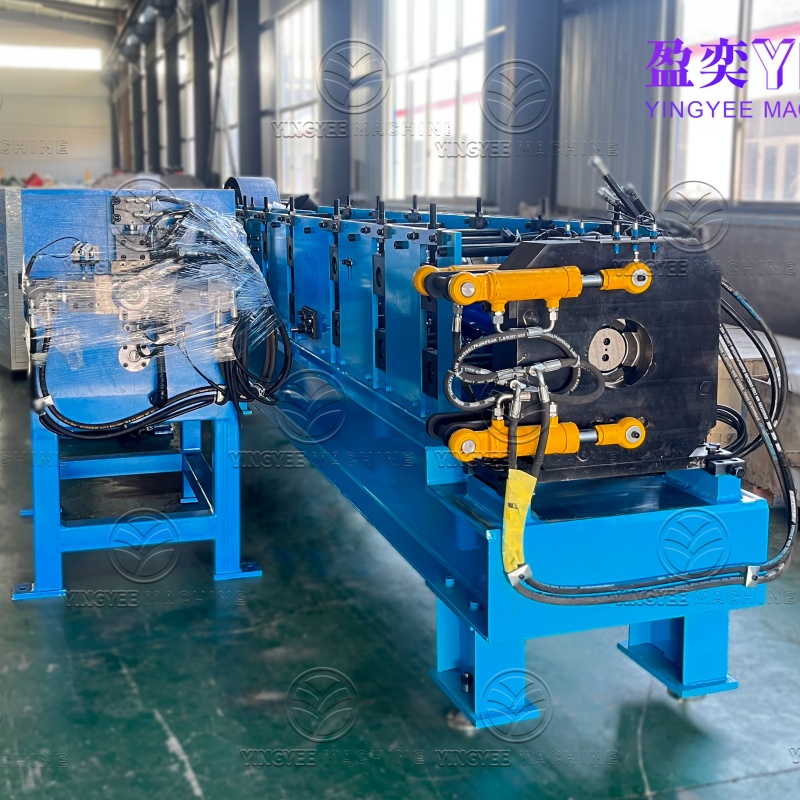

Pictures of machine:
Company information:
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal Highly Polished Downspout Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Round Downpipe Making Machine are quality guaranteed. We are China Origin Factory of Automatic Pipe Roll Forming Machine. If you have any question, please feel free to contact us.
Product Categories : Downpipe Roll Forming Machine > Round Downpipe Roll Forming Machine
