High Quality Warehouse Storage Rack
Short Description:
Basic Info
Type:Steel Frame & Purlin Machine
Warranty:12 Months
Delivery Time:30 Days
After Service:Engineers Available To Service Machinery Overseas
Forming Speed:25-30m/min(excluding Punching And Cutting Time)
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Control System:PLC
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Certificate:CE/ISO9001
Product Description

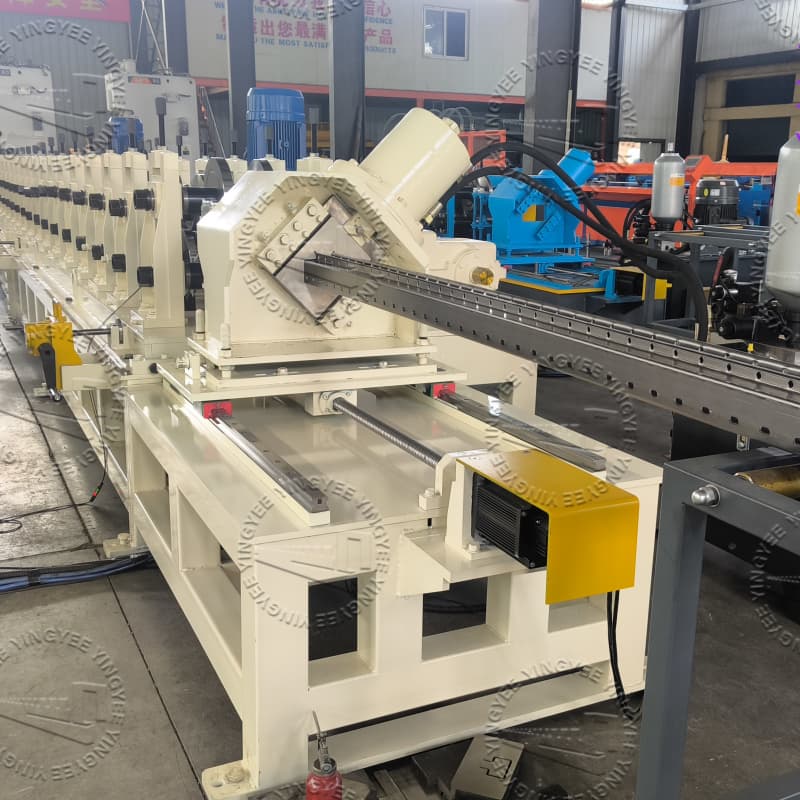

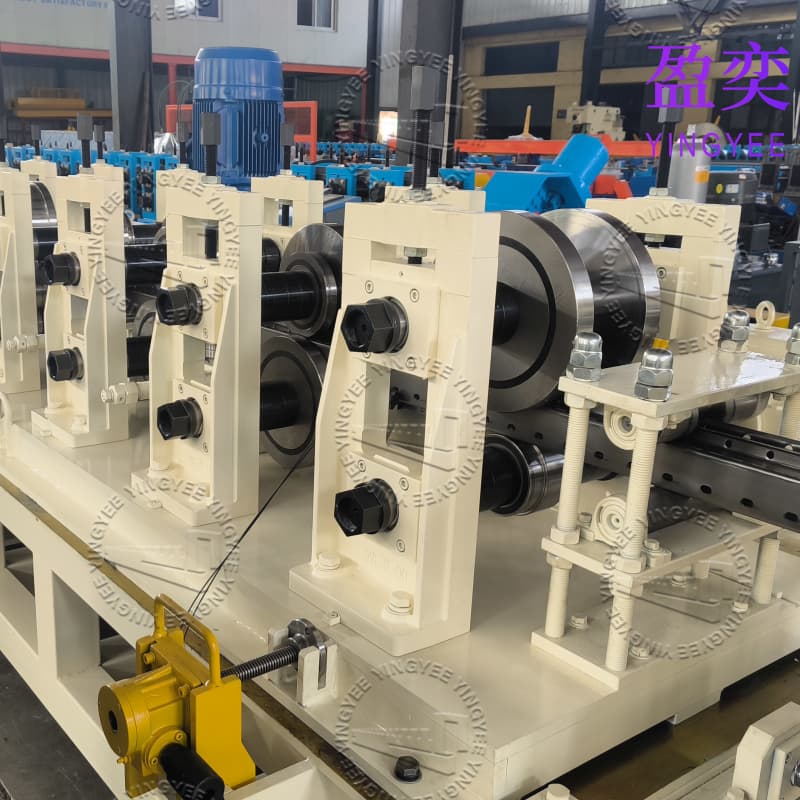

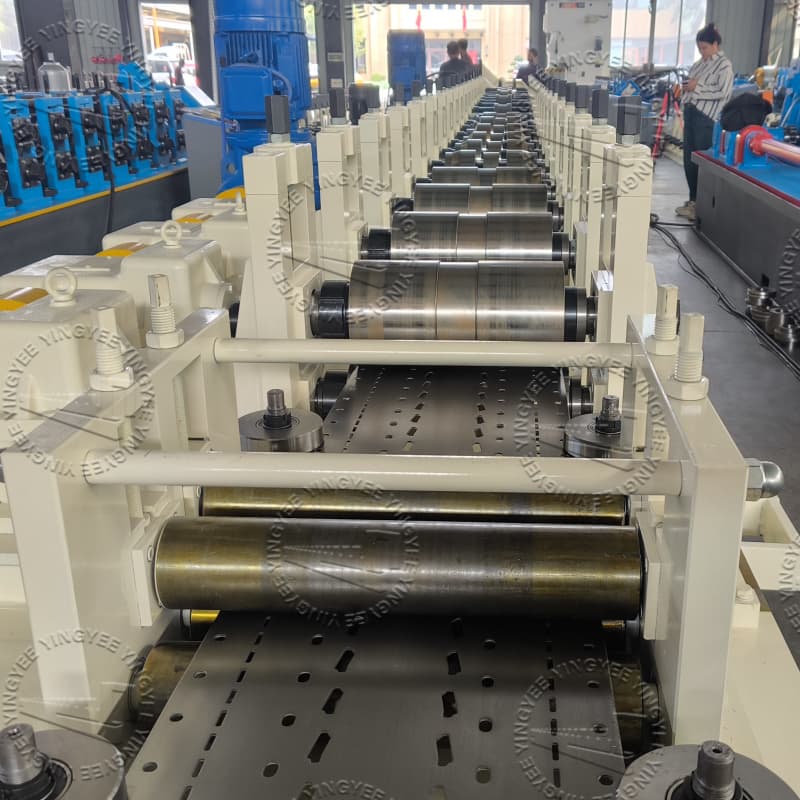

Storage Rack Roll Forming Machine
The design of this storage rack roll forming machinery enables the roll forming part to be changed quickly. That is why only one machine can produce several different profiles and the forming unit can be changed in a short time.
For different dimensions of racking products, users can adjust the product dimension by changing the spacer bush in the racking roll forming machine.
Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Matching material | Color steel plate, Galvanized, PPGI, Aluminum |
| Material thickness range | 1.5-3mm |
| Main motor power | 15KW |
| Hydraulic power | 11KW |
| Forming speed | 6-8m/min(include punching) |
| Rollers | 18-24 rows |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 80mm, material is 40Cr |
| Way of driven | Chain transmission or Gear box |
| Controlling system | Siemens PLC |
| Voltage | 380V/3Phase/50Hz |
| Material of blade | Cr12 mould steel with quenched treatment 58-62℃ |
| Total weight | about 15 tons |
| Size of the machine | L*W*H 12m*2.0m*1.6m |
