EPS Sandwich Roof Wall Panel Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Control System:PLC

Warranty:12 Months

Delivery Time:30 Days

Type:Roof Sheet Roll Forming Machine

Cutting Mode:Hydraulic

Material:Color Coated Steel, Galvanized Steel, Aluminum St

Way Of Driven:Chain Transmission

Voltage:As Customer’s Request

After Service:Engineers Available To Service Machinery Overseas

Forming Speed:4-6m/min

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

Product Description

EPS sandwich roof panel production line

The whole process is controlled by computer, and it is the indispensable equipment to the workshop and the factory which producing the roof board and wall board. The whole producing line adopt advanced technic which put air, electric, machinery into one device. It is a special machinery to produce the colored steel clip core. This machine adopts the CNC electrodeless to adjust the speed and make it runs stable. It is also very easy to operate. To meet customer`s requirment, this system controls length by computer. This system adopts a precise location and shows time on the touch screen. The time is account and revise automaticly. This machine suits for color steel board, aluminium sheet. It is a type of compound material and the inside is flame retardant EPS, mineral wool and exc. The design of the board can be adjusted by the customers` request.

Technical parameters:

Panel width 950, 970,1150mm
Panel thickness 50-200mm
Raw material Galvanized coils, Pre-painted coils, Aluminum coils
Material thickness range 0.3-0.7mm
width 1000mm, 1250mm
yield strength 235Mpa
Max coil weight 5000kgs
working speed 0-5m/min (adjustable)
Total length about 35m
Control mode PLC
Total power about 30kw
Electricty condition 380v/3phase/50hz (or depend on custmers requirement)

Working process:

Working process

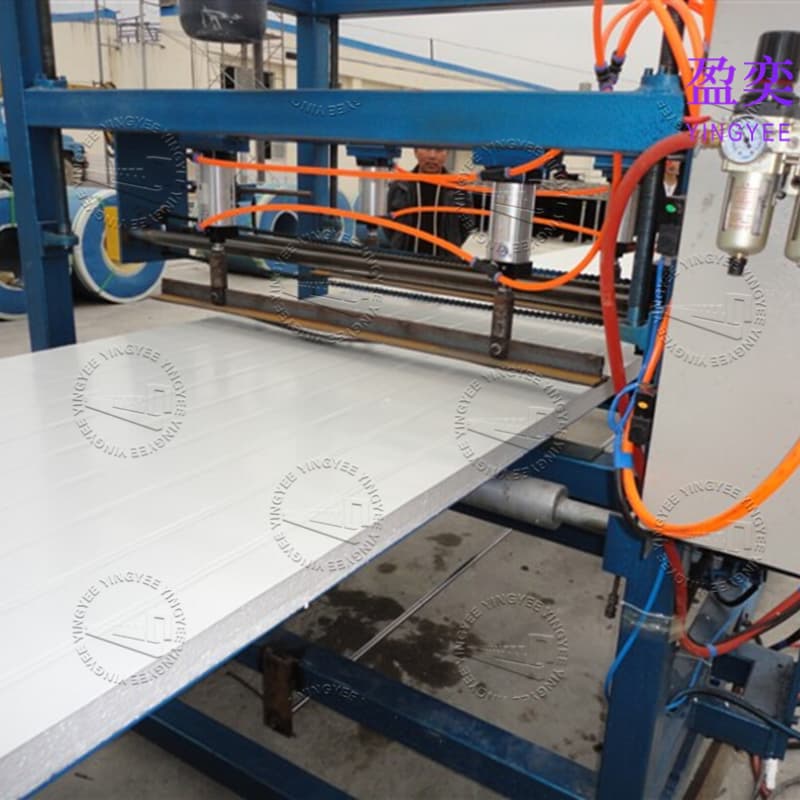

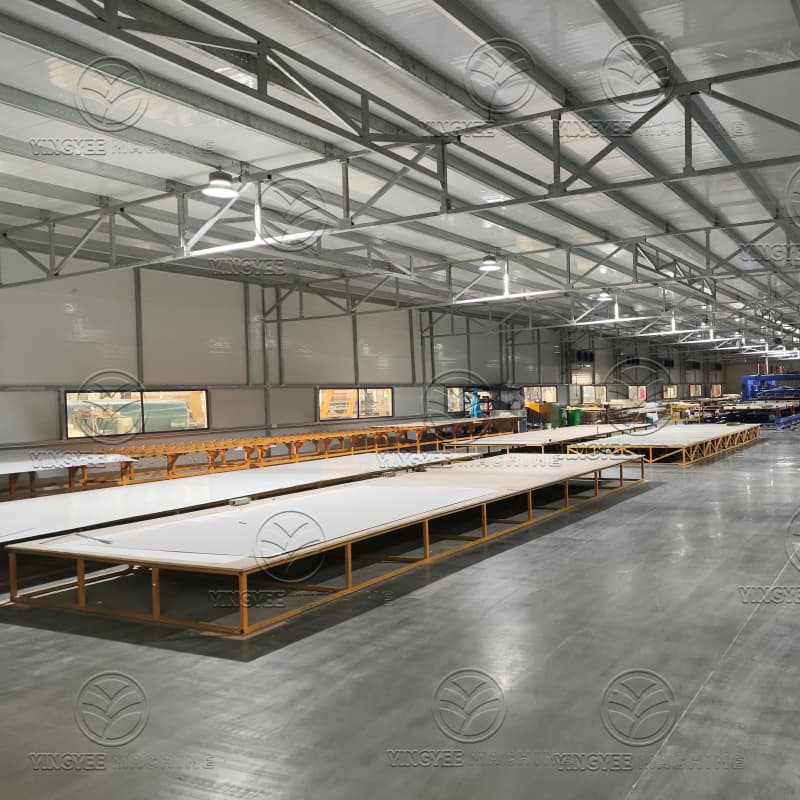

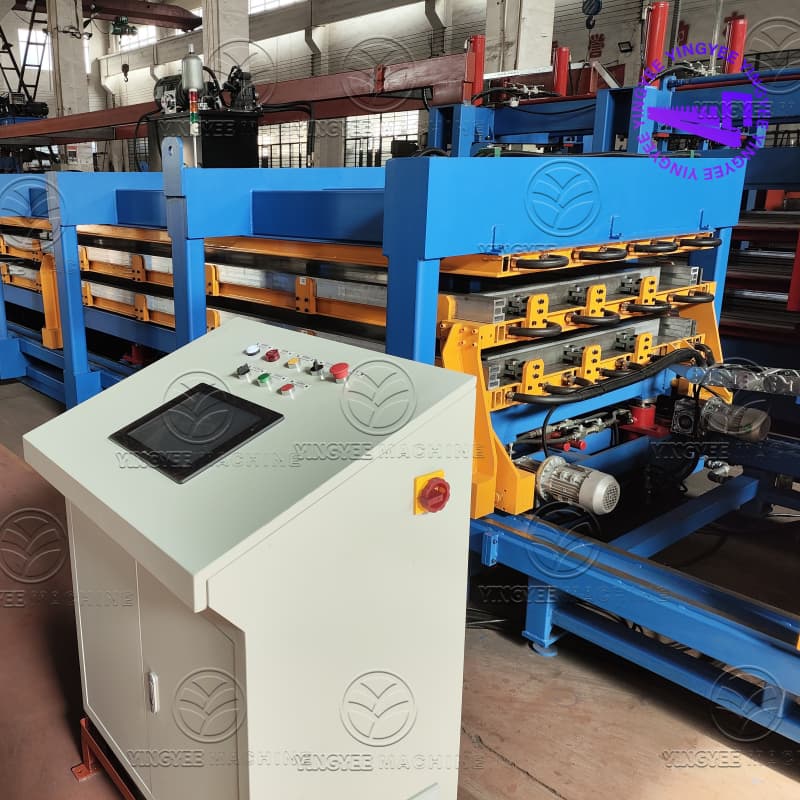

Pictures of machine:



EPS sandwich roof panel production line

EPS sandwich roof panel production line

EPS sandwich roof panel production line

EPS sandwich roof panel production line

EPS sandwich roof panel production line

EPS sandwich roof panel production line

EPS sandwich roof panel production line



Looking for ideal Rock Wool Sandwich Panel Production Line Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Sandwich Roof Wall Production Line are quality guaranteed. We are China Origin Factory of EPS Sandwich Production Line. If you have any question, please feel free to contact us.
