Corrugated sheet metal roof sheet roll forming machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Control System:PLC

Speed:10-25m/min

Delivery Time:30 Days

Warranty:12 Months

Cutting Mode:Hydraulic Cutting

Production Time:30 Days

Products:Roof Sheet Roll Forming Machine

Using:Roof

Voltage:As Customer’s Requirement

Material:Pre-printed Coil,galvanized Coil,Aluminum Co

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

Product Description

Corrugated Roof Sheet Roll Forming Machine

We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement. Heavy duty, anti-earthquake, fire, rain, long life.

Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Raw material GI, PPGI, Aluminum coils
Material thickness range 0.3-0.8mm
Rollers 18 rows
Material of rollers 45# steel with chromed
Forming speed 25-30m/min(excluding cutting time)
Shaft material and diameter 76mm, material is 40Cr
Material of cutting blade Cr12 mould steel with quenched treatment
Controlling system Delta PLC computer control system with Chrizi inverter to ensure precision Program is made by English, working mode: automatic and manual
Way of driven 1” chain transmission
Voltage 380V/3Phase/50Hz or at your request
Main motor power 3KW
Hydraulic station power 3KW

Pictures of machine:

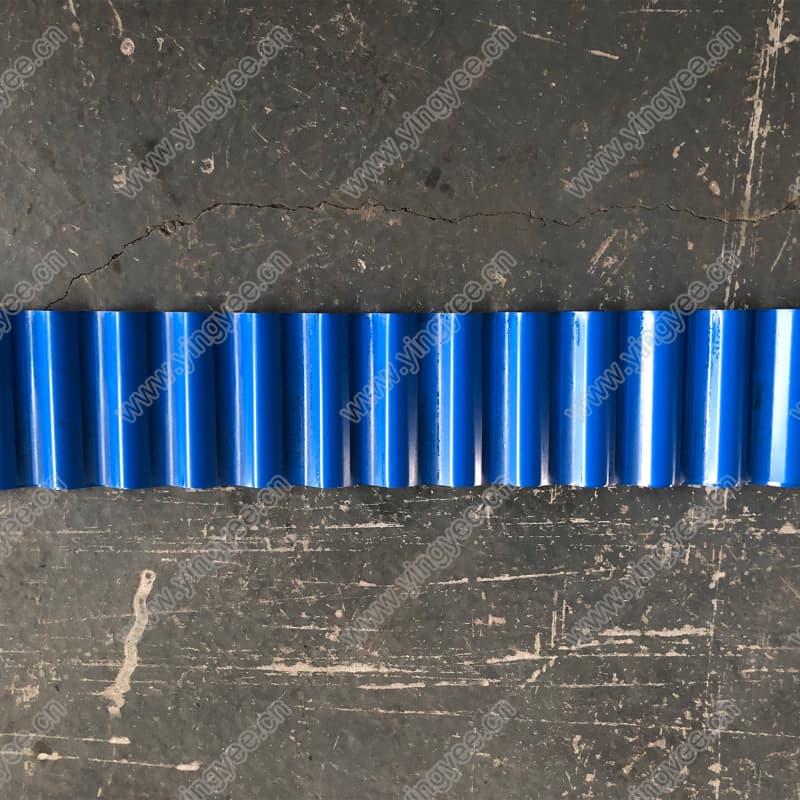

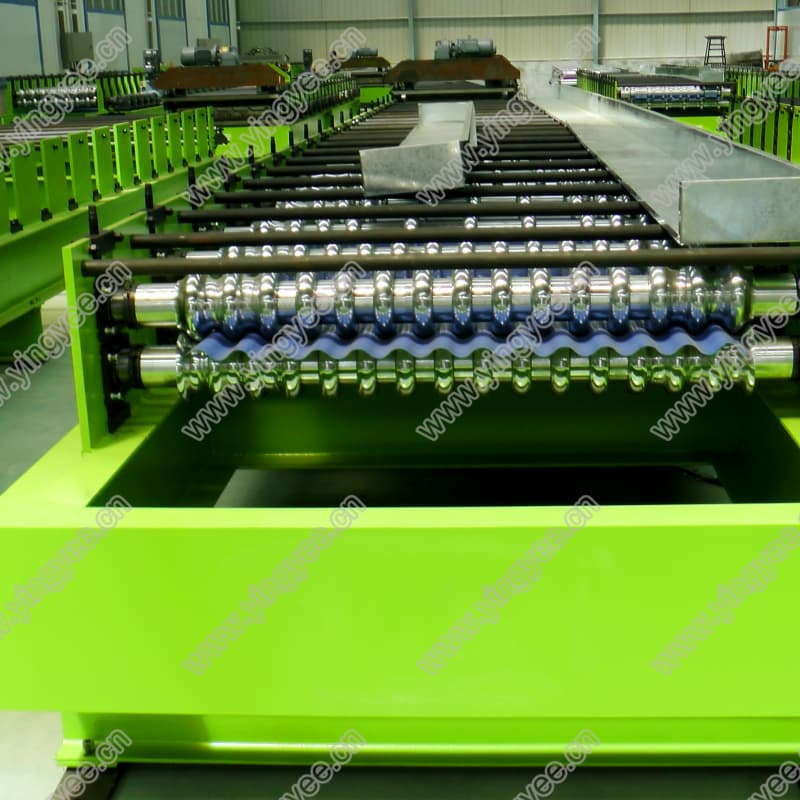

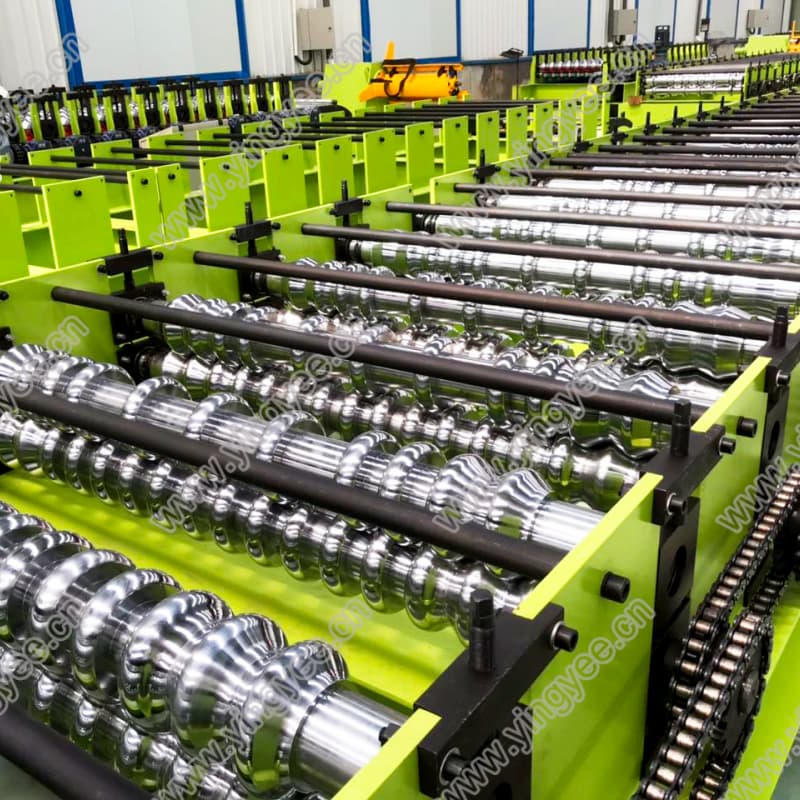

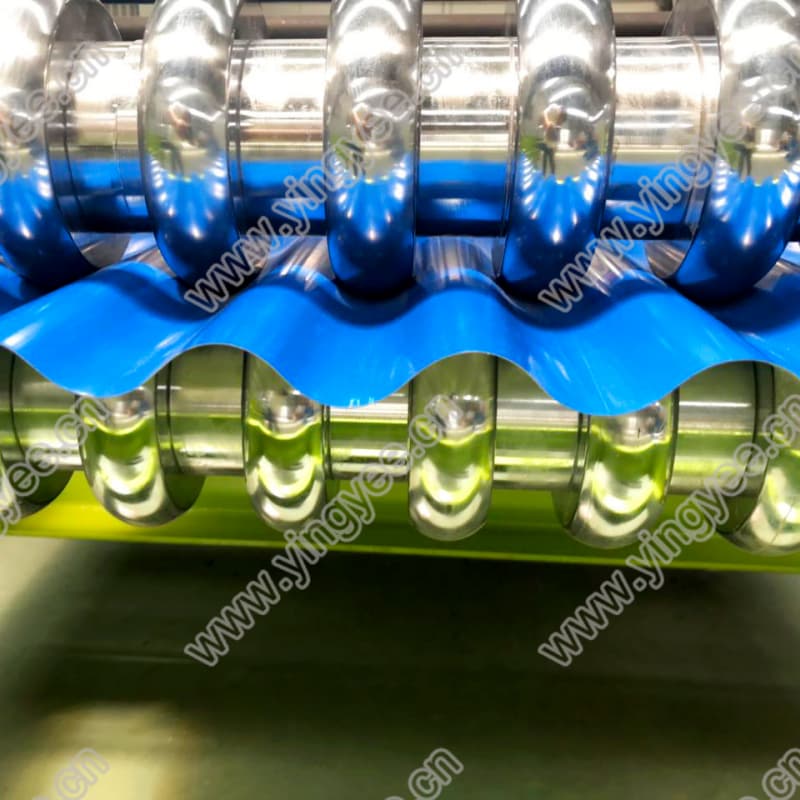

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine

Corrugated roof sheet roll forming machine



Looking for ideal New Roof Tile Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Corrugated Metal Roofing Making Machine are quality guaranteed. We are China Origin Factory of Wave Panel Roll Forming Machine. If you have any question, please feel free to contact us.
