30m/min No stop cutting C purlin roll forming machine high speed
Short Description:
No stop cutting C purlin roll forming machine
machine structure: torrist stand
shaft material: #45 steel
roller material: Cr12
main motor power: 11kw*2
hydraulic station power: 5.5kw*1
servo motor power: 2.2kw
|
NAME |
DESCRIPTION |
|
5 tons manual de-coiler
|
Inner dia: Ø440mm– Ø560mmMax input feeding: 600mmCapacity: 5Tons
coil outer diameter max 1500 mm |
|

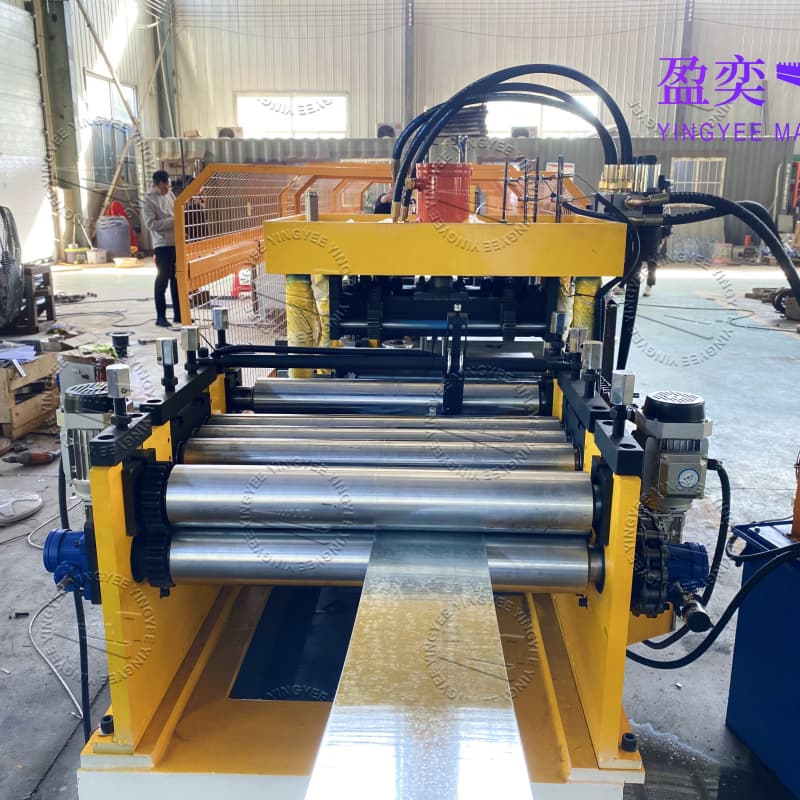

Straighten device |
11 rollers for straighten 5 up and 6 down. |
|

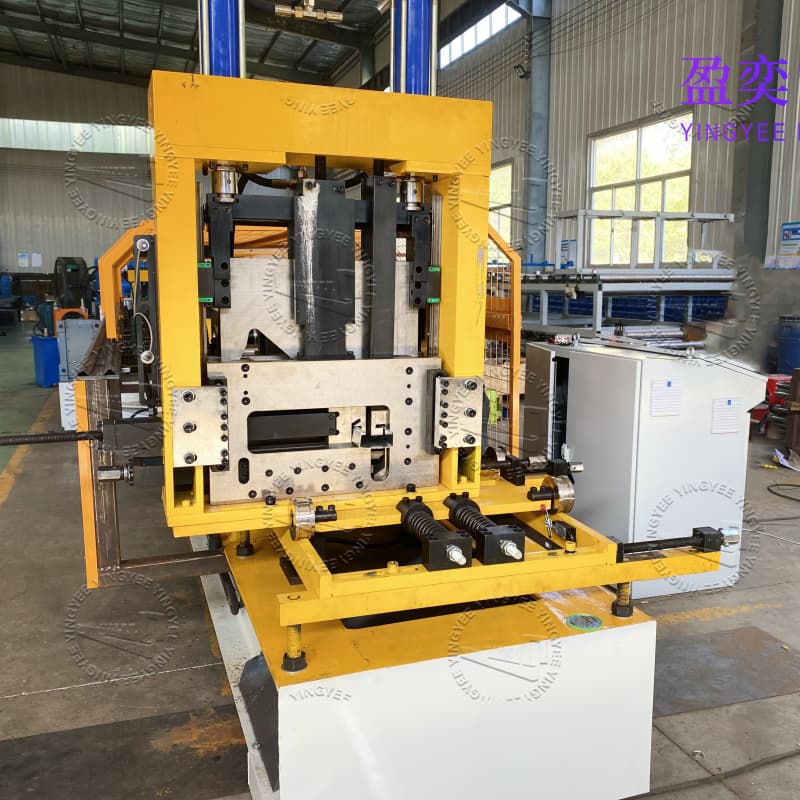

Hydraulic Holes device |
Standard holes: 2 double holes and 1 single holeEach punching cylinder control each 2 holes for sides or single hole in the middleDistance flexible: a channel for the holes, the distance can operate by manual
Hole size flexible: to change the punching dies to change the size. The width distance between holes adjustable manual .it can’t control by PLC. The length distance between holes ,it can adjust by PLC. |
| Hydraulic Pre-cut device | Hydraulic Power, driven with gear |
|
Main forming system
|
Main power: 22kw6 electronic motors auto adjust size.Frame： 500mm H frame steel
Forming speed: 18-20m/min Shaft material and diameters: #45 steel and fit side 65mm. Flexible side: 85mm Roller material: Gcr15. the hardness is HRC 52-55 Steps: 15-18 steps for forming All size change by PLC. All parameter set from the PLC control system C/Z change, by manual change the rollers discretion Machine size: L*W*H 11.5m*1.6m*1.4m (approx size. correct size will be known when machine ready) Machine weight about 12Tons Voltage: 380V/ 3phase/ 50 Hz(as customer require ) Driven way:Chain |
|
All-size-in-one cut system
|
Hydraulic cutting systemMaterial: Gcr12mov.All size in one blade |
|
Control system PLC |
Control the quality&punching length &cutting length automaticallyIn English languageThe machine will be stopped while it is punching and cutting
PLC must be able to keep in memory which profiles are inside machine even after the machine stopped Automatic length measures and quantity counting. Program batches with different profile lengths with no waste Size of PLC about 700(L)*1000(H)*300(W) Encode: OMRON PLC : KAUTO (now auto adjust size only this brand) Solenoid valve: YUKEN (TAIWAN) Frequency converter: DELTA Touch screen :WEINVIEW (TAIWAN) All connections to the machine and to PLC control Board are strong |
