Z28-250 Thread Rolling Machine

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Warranty:12 Months

Delivery Time:30 Days

After Service:Engineers Available To Service Machinery Overseas

Voltage:380V/3Phase/50Hz Or At Your Request

Cutting Mode:Hydraulic

Material Of Cutting Blade:Cr12

Control System:PLC

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

HS Code:84552210

Port:Tianjin Xingang

Product Description

Thread Rolling Machine Model Z28-250

Z28-250 thread rolling machine is primarily used for manufacture various types of precision external roll thread,high strength standard parts.Thread rolling machine including the general pass thread,T-screw roll thread and modulus.

Technical parameters:

Pressure of Roller max. 250KN

Dip Angle of Main Shaft

±15°

Working Dia 16~90mm

Rotary speed of Main shaft

16.26.38.55.90(r/min)

Thread Distance max

8mm Thread Length (no limits)

Roller Dia max

210mm Rolling Power 15kw

BD of Roller

75mm

Hydraulic Power 5.5kw

Roller Width max

120mm Weight 3000kg±50kg
Center Distance of Main shaft 150-300mm Size

1790×1780×1670mm

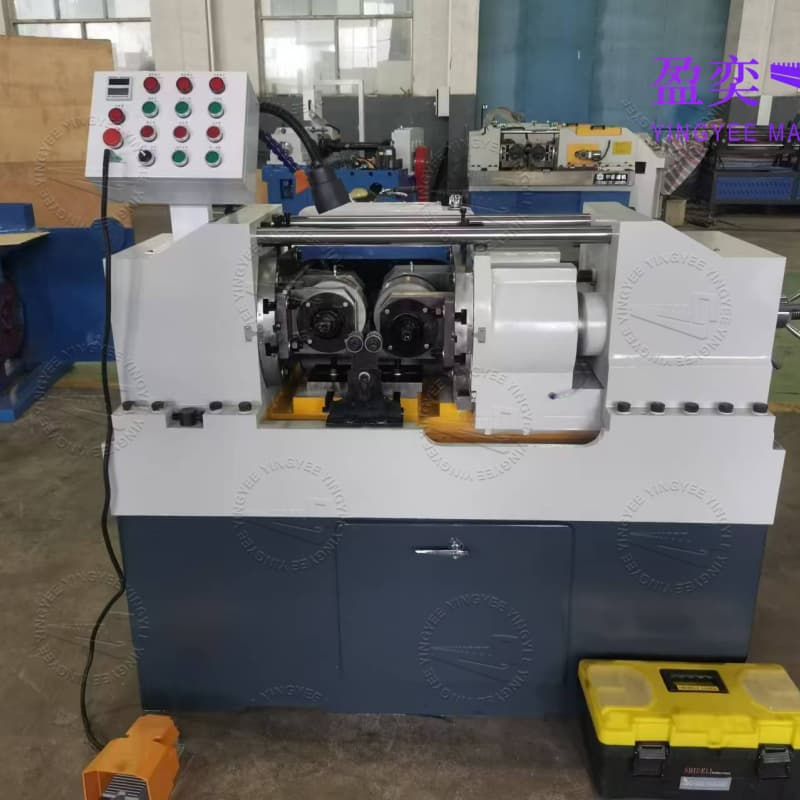

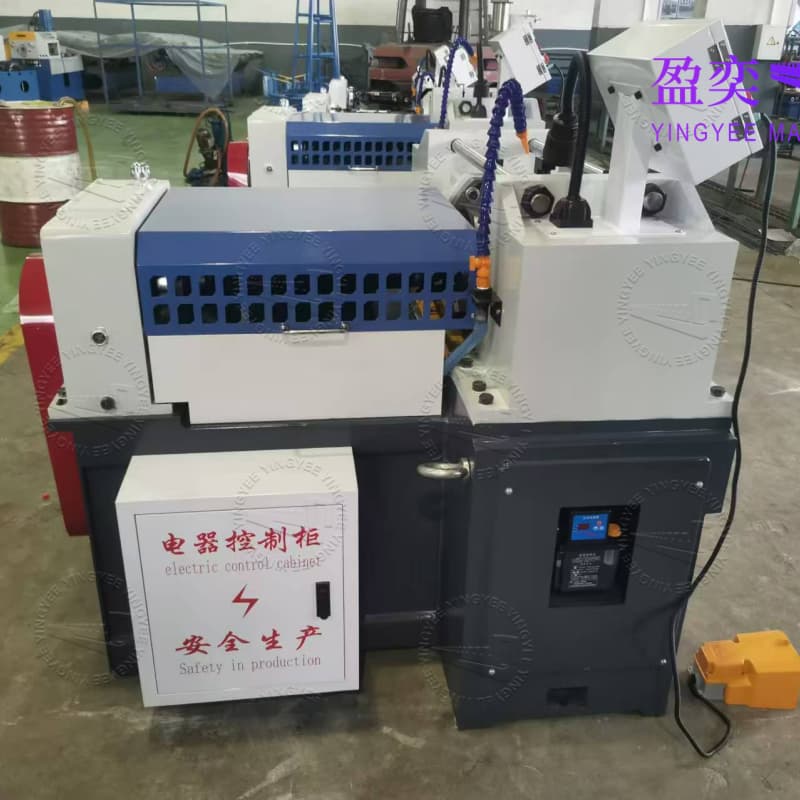

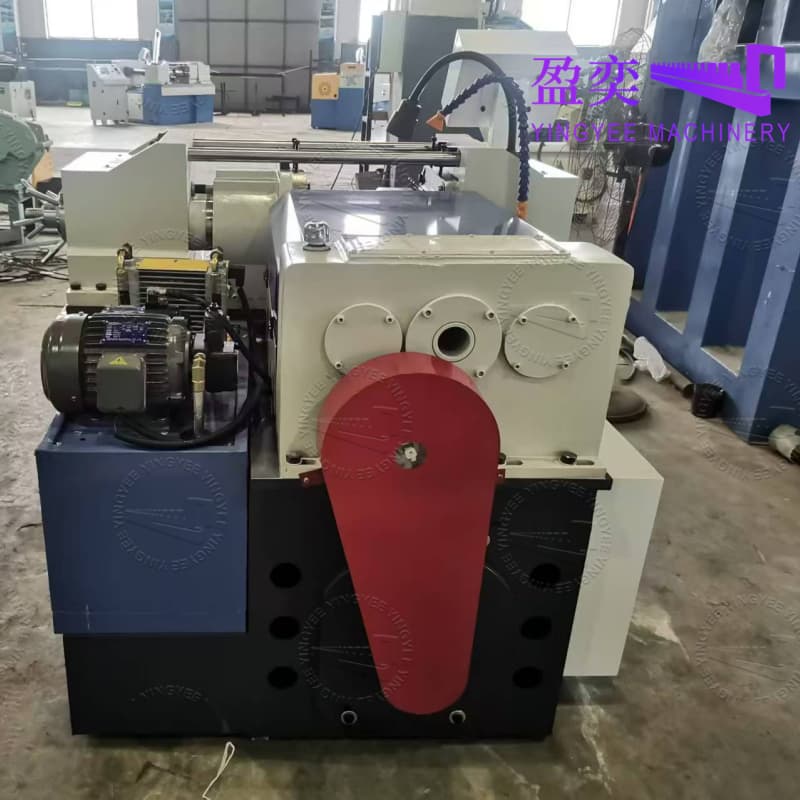

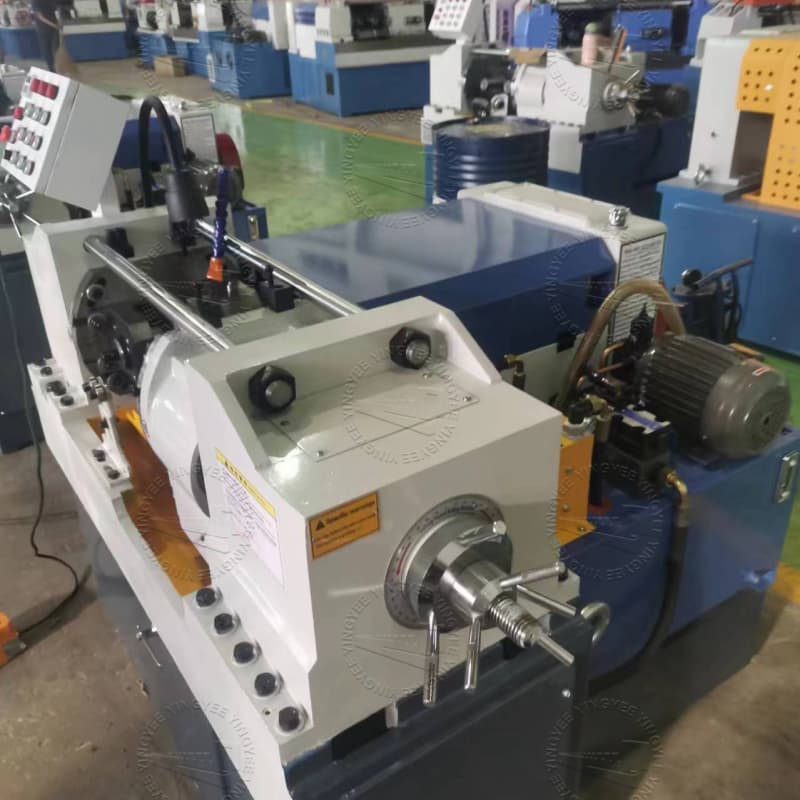

Pictures of machine:

Thread rolling machine

Thread rolling machine

thread rolling machine

thread rolling machine

thread rolling machine

Thread rolling machine

Thread rolling machine

Thread rolling machine

Thread rolling machine

Company information:

YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD

YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :

  • Roof roll forming machine
  • Roller Shutter Door Roll Forming Machine
  • C and Z purlin roll forming machine
  • Downpipe Roll Forming Machine
  • Light Keel Roll Forming Machine
  • Shearing Machine
  • Hydraulic decoiler
  • Bending machine
  • Slitting machine

FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.

2. QT test is welcome and professional.

3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification

2. CE certification

3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period

2. Effective communication

3. Interface customized.

Looking for ideal Hydraulic Dies Thread Rolling Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Rolling Machine Specification are quality guaranteed. We are China Origin Factory of Bar Rolling Machine for Sale. If you have any question, please feel free to contact us.
