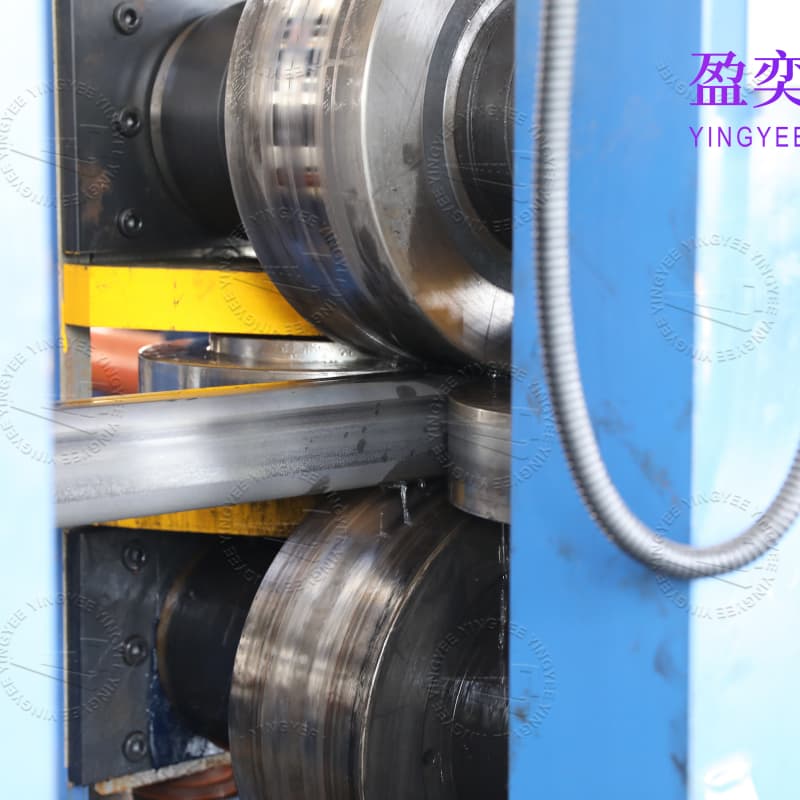

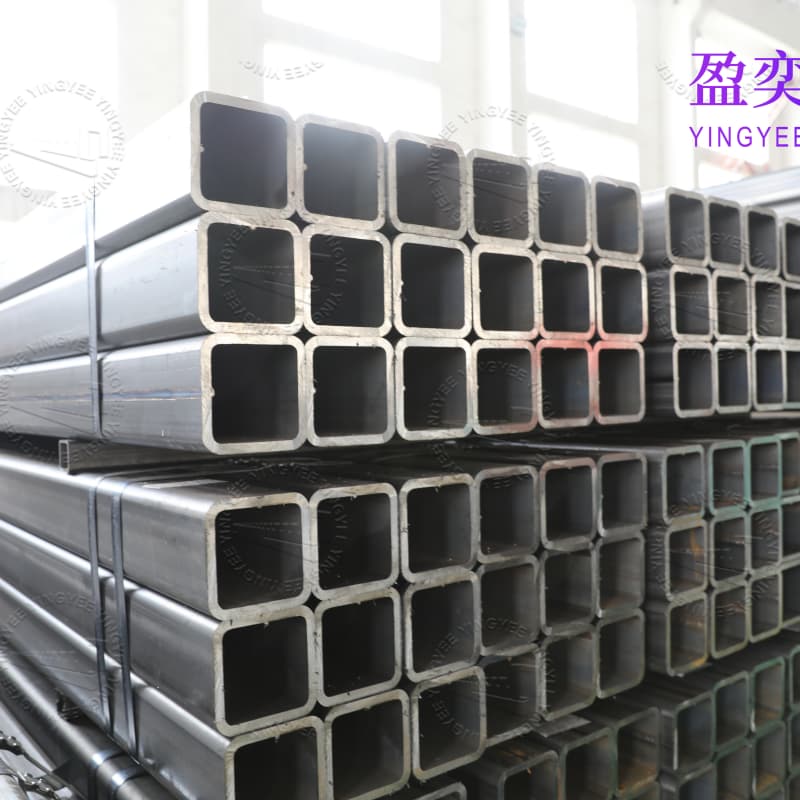

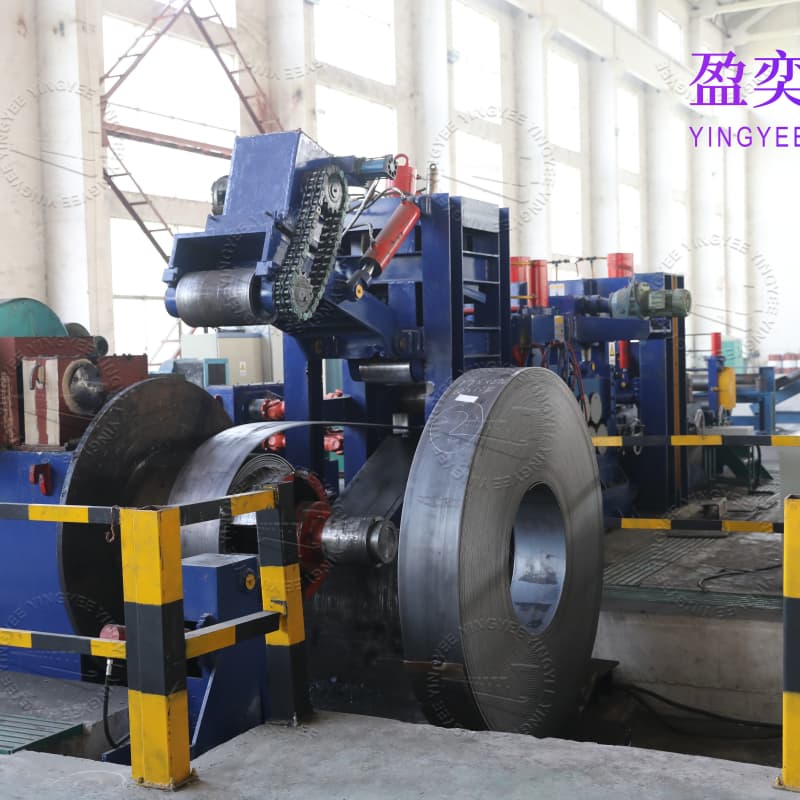

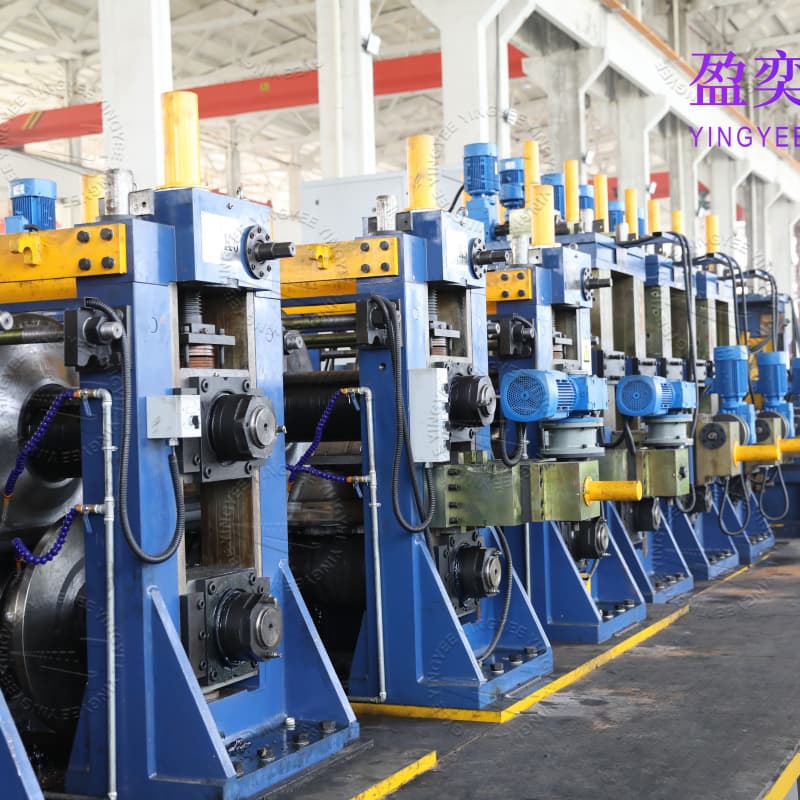

Tube mill line square and round hollow section high speed
Short Description:
Basic Info
Model No.:YY–APC—003
Control System:PLC
Pipe Material:METAL TYPE
Feeder Type:Servo Motor Type
Oil Working Pressure:10-50KG
Cutting Type:Sawing Cutting System
Material:Galvanized Iron Pipes
Standard:GB
Additional Info
Packaging:NAKED
Productivity:500 SETS/YEAR
Brand:YINGYEE
Transportation:Ocean
Place of Origin:CHINA
Supply Ability:500 SETS/YEAR
Certificate:ISO9001
Port:SHANGHAI
Product Description
Metal Round Pipe Cutting Machine
Our company is reckoned as a well coordinated manufacturer, supplier and exporter of Metal Tube Cutting Machine. Made of premium quality raw materials and components, these products have flawless functioning and operation. These products are generally used for cutting tubes and bars. Our clients appreciate these machines owing to their ability to increase production and optimize outputs. Metal Tube Cutting Machine can be availed from us in varied different models and specifications as per the requirements of our patrons.
OUR MACHINE FEATURES
1. Automatic PLC control .easy operating.
2. One machine can cut different round pipe or square pipe with different size.
3.Vertical slide feeding , strong structure , concentrate on processing of cutting chip, automatic lubrication, blade cooling , oil cooling.
4.The machine has three sets of clamping device, the pressure size were adjustable, effectively solve the material when the clamping is not strong or deformation of the problem.
5.The machine adopts servo drive feed, greatly improve the sawing accuracy.
6.The system have no material sutdown,fault deteciton and display function, easy maintenance ,maintenance.
7.The machine has a function of cutting out a variety of lengths.
TECHNICAL SPECICATION
| main specifications | 350 FA-A | 350FA-B | 425FA-A | 425FA-B | |
| Blade drive motor | 3.0/4.0kw | 3.0/4.0kw | 3.0/4.0kw | 3.0/4.0kw | |
| Blade rotational speed | 60/120RPM | 60/120RPM | 60/120RPM | 60/120RPM | |
| Feed stroke | 1500mm/time | 1500mm/time | 1500mm/time | 1500mm/time | |
| Servo motor power | 1000w | 1000w | 1000w | 1000w | |
| Pull tail strok | 150mm | 150mm | 150mm | 150mm | |
| Clamp type | up and down | left and right | up and down | left and right | |
| Cooling pump motor | 90w | 90w | 90w | 90w | |
| Hydraulic pump motor | 2.2kw | 2.2kw | 2.2kw | 2.2kw | |
| Oil working pressure | 10-50kg | 10-50kg | 10-50kg | 10-50kg | |
| Dimension | 3500*1100*1700 | 3500*1100*1700 | 3500*1100*1700 | 3500*1100*1700 | |
| Weight | 1350kg | 1350kg | 1350kg | 1350kg |
