Thread rolling dies bolt screw rolling machine
Short Description:
Basic Info
Model No.:YY–TRM—001
Warranty:12 Months
Delivery Time:30 Days
After Service:Engineers Available To Service Machinery Overseas
Voltage:380V/3Phase/50Hz Or At Your Request
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Control System:PLC
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
Thread Rolling Machine Model Z28-200
This model mainly is used for pressing precision standard parts of external thread and high strength, including regular thread, trapezoid thread and modulax thread. The objective material to be processed inchcde carbon steel, alloy steel and nonferrous metal with elongation over 10% and tensile strength less than 100kgf/mm2.
Technical parameters:
| Pressure of Roller max. | 200KN |
Dip Angle of Main Shaft |
±15° |
| Working Dia | 16~80mm |
Rotary speed of Main shaft |
20.25.41.51.64(r/min) |
|
Thread Distance max |
8mmThread Length(no limits)
Roller Dia max
220mmRolling Power11kw
BD of Roller
75mm
Hydraulic Power5.5kw
Roller Width max
180mmWeight3000kgCenter Distance of Main shaft150-300mmSize
1790×1730×1430mm

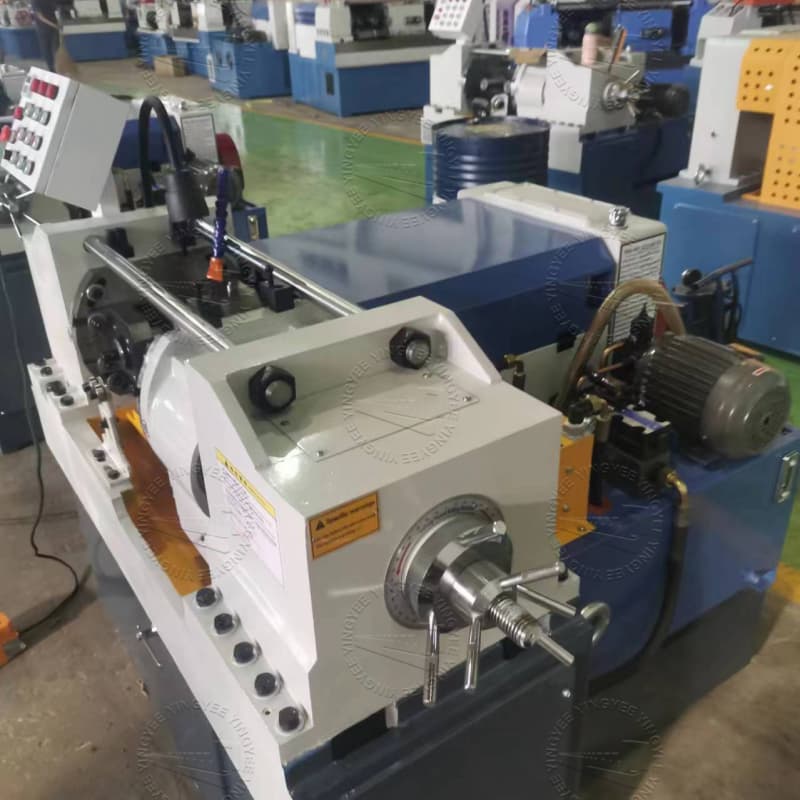

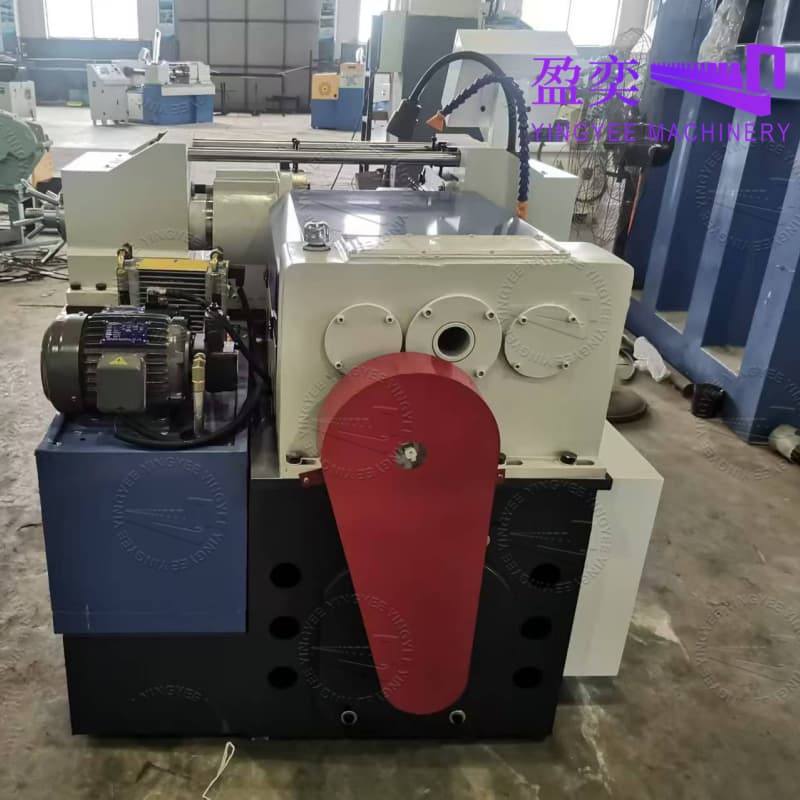

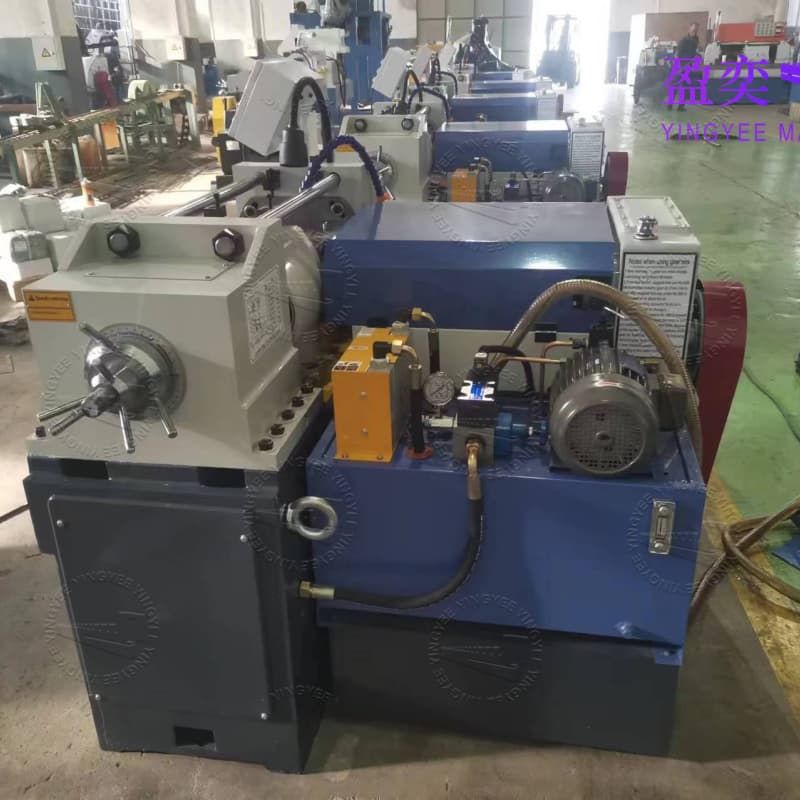

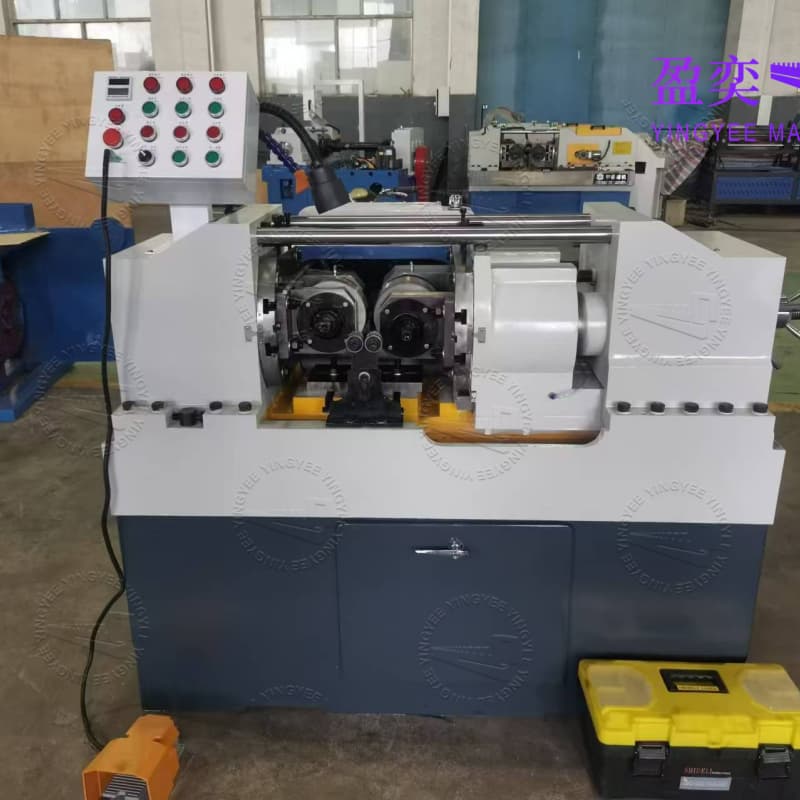

Pictures of machine:
