Solar PV Roll Forming Machine Definition

Short Description:


Product Detail

FAQ

Product Tags

Basic Info

Warranty:12 Months

Delivery Time:30 Days

Type:Steel Frame & Purlin Machine

Material:GI, PPGI, Aluminum Coils

Way Of Driven:Chain Or Gear Box

Cutting Mode:Hydraulic

Material Of Cutting Blade:Cr12

Forming Speed:25-30m/min(excluding Punching)

Voltage:380V/3Phase/50Hz Or At Your Request

After Service:Engineers Available To Service Machinery Overseas

Additional Info

Packaging:NUDE

Productivity:200 sets/year

Brand:YY

Transportation:Ocean

Place of Origin:Hebei

Supply Ability:200 sets/year

Certificate:CE/ISO9001

Product Description

solar panel pv aluminum roll forming machine

Product Application

Solar photovoltaic stent system

The board can also be moved flexibly according to the sun’s rays and seasons. Just as in the case of the installation, the slope of each solar panel can be moved by moving the fastener, adjust the slope to adapt to different angles of light, by re-fastening the solar panels accurately fixed in the specified location



Working Flow: Decoiler – Feeding Guide – Servo feeding system – Hydraulic punching – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table

Working process

Technical parameters:



Matching material Galvanized, PPGI, Aluminum
Material thickness range 1.5-2.0mm
Feeding width 300mm(can change according to buyer’s request)
Roller 24 rollers
Material of roller Gcr15
Main motor power 30KW
Forming speed 8-15m/min
Shaft material and diameter 80mm, 45# steel with chromed
Way of driven Chain transmission or gear box
Material of blade Cr12 mould steel with quenched treatment 58-62℃
Voltage 380V/3Phase/50Hz
Controlling system PLC

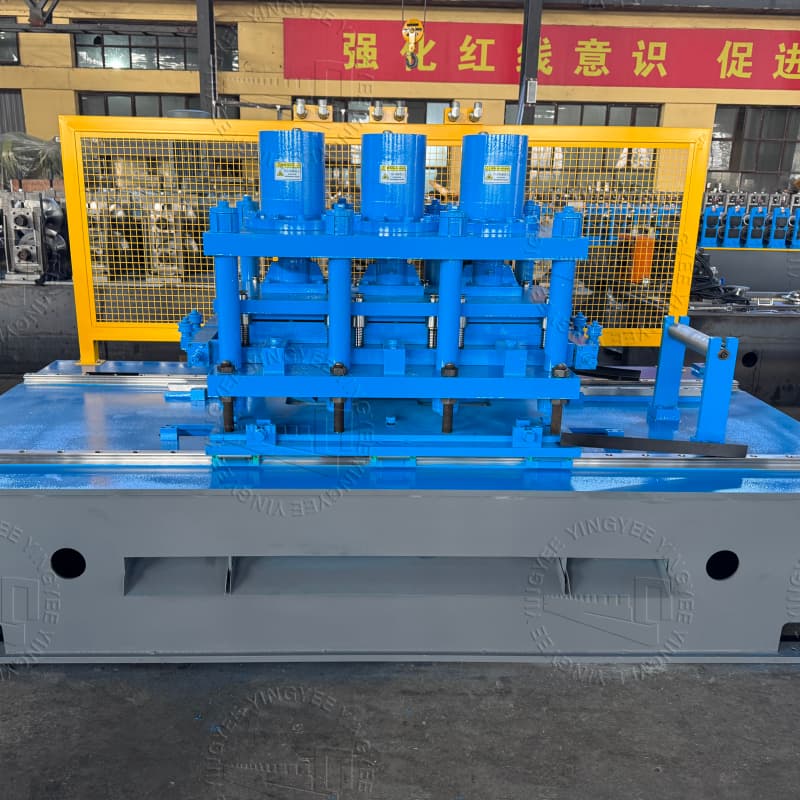

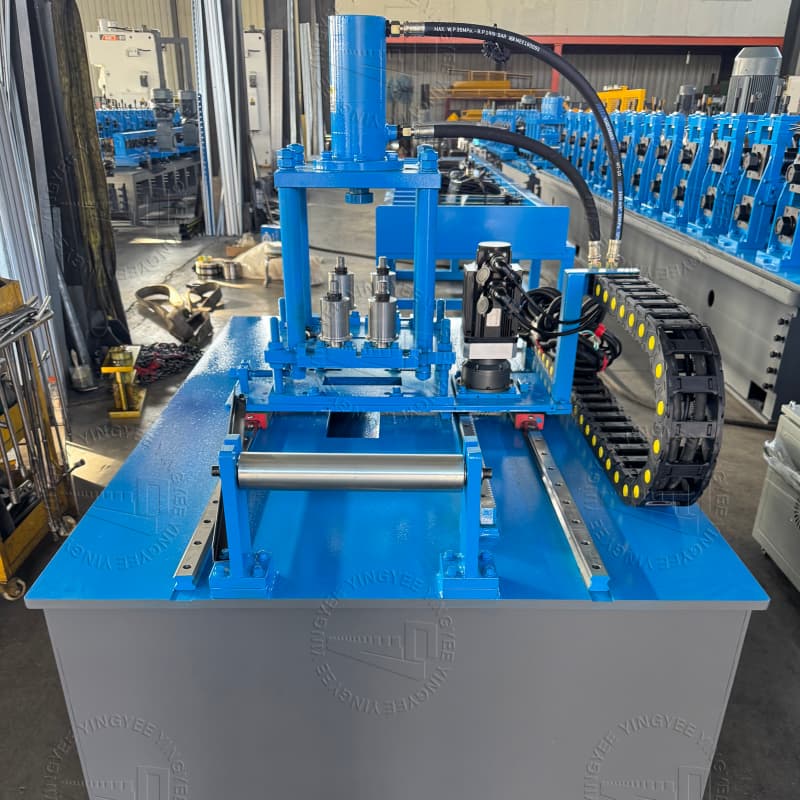

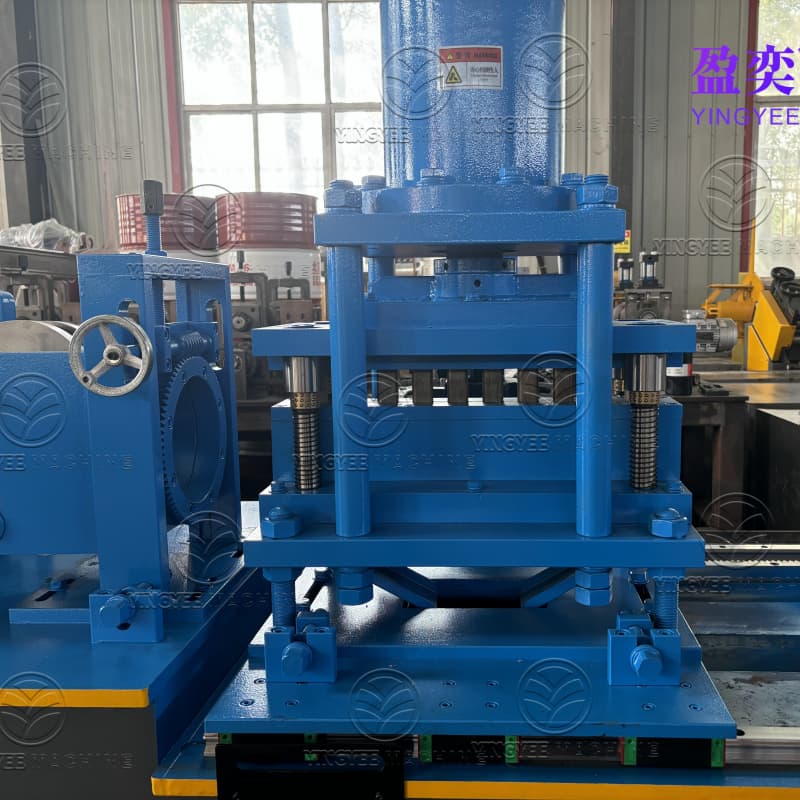

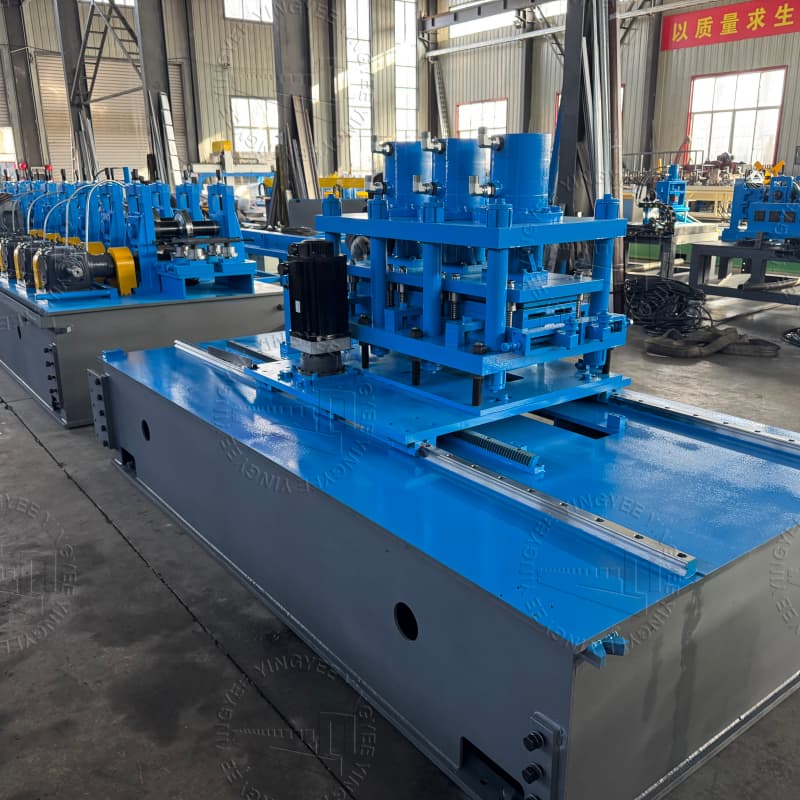

Pictures of machine:



solar PV bracket

solar PV bracket

solar PV bracket

solar PV bracket

solar PV bracket



FAQ:

Training and Installation :
1. We offer installation service local in paid, reasonable charge.

2. QT test is welcome and professional.

3. manual and using guide is optional if no visiting and no installation.


Certification and after service:

1. Match the technology standard, ISO producing certification

2. CE certification

3. 12 months warranty since the delivery. Board.


Our advantage:

1. Short delivery period

2. Effective communication

3. Interface customized.

Looking for ideal Roll Forming Machine Process Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the PV Panel Making Machine are quality guaranteed. We are China Origin Factory of Hot Sale Soler Pv Machine. If you have any question, please feel free to contact us.
