Metal standing seam roll forming machine
Short Description:
Basic Info
Control System:PLC
Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Using:Roof
Type:Roof Sheet Roll Forming Machine
Cutting Mode:Hydraulic
Material:Colored Steel, Galvanized Steel, Aluminum Steel
Forming Speed:15-20m/min
Voltage:At Customer’s Request
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
Metal Standing Seam Roll Forming Machine
1.Provide technical support for the whole life of the roof panel steel working machine.
2. Controlled by PLC computer controlling system, easy to set and to operate.
3. Reliable quality, reasonable price, and a great variety of models. 4.Trapezoidal Panel is ideal for warehouses, shopping malls, stadiums, and other commercial developments.
Working Flow:
Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | Pre-painted coils, Galvanized coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Rollers | 12-20 rows |
| Material of rollers | 45# steel with chromed |
| Shaft diameter and material | 70mm, material is 40 Cr |
| Forming speed | 10-15m/min |
| Material of cutter blade | Cr12 mould steel with quenched treatment 58-62℃ |
| Main motor power | 4KW |
| Hydraulic motor power | 3KW |
| Voltage | 380V/3Phase/5Hz |
| Total weight | about 3 tons |
| Controlling system | Omron PLC |

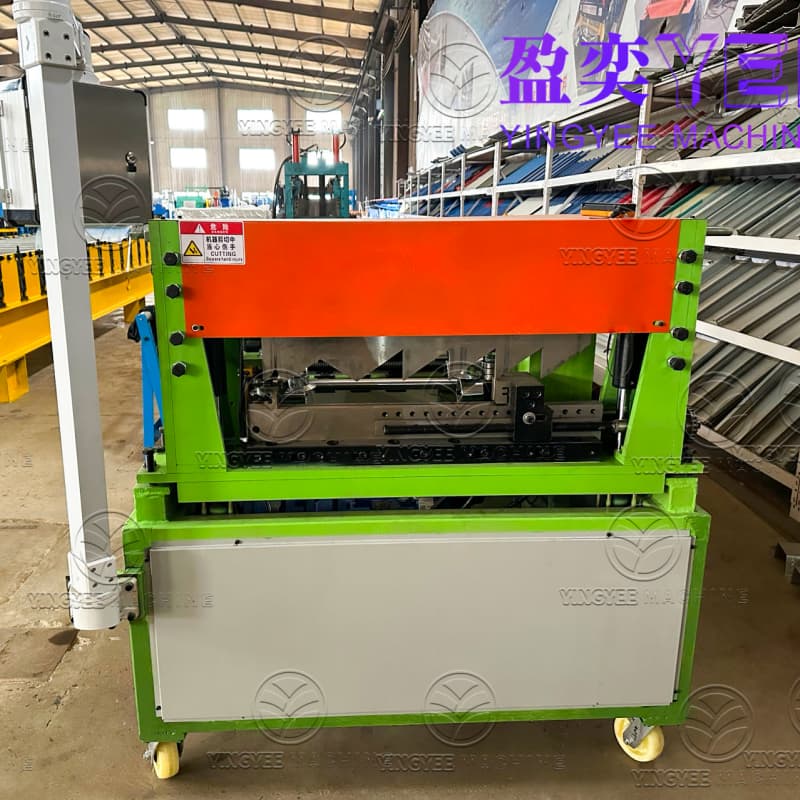

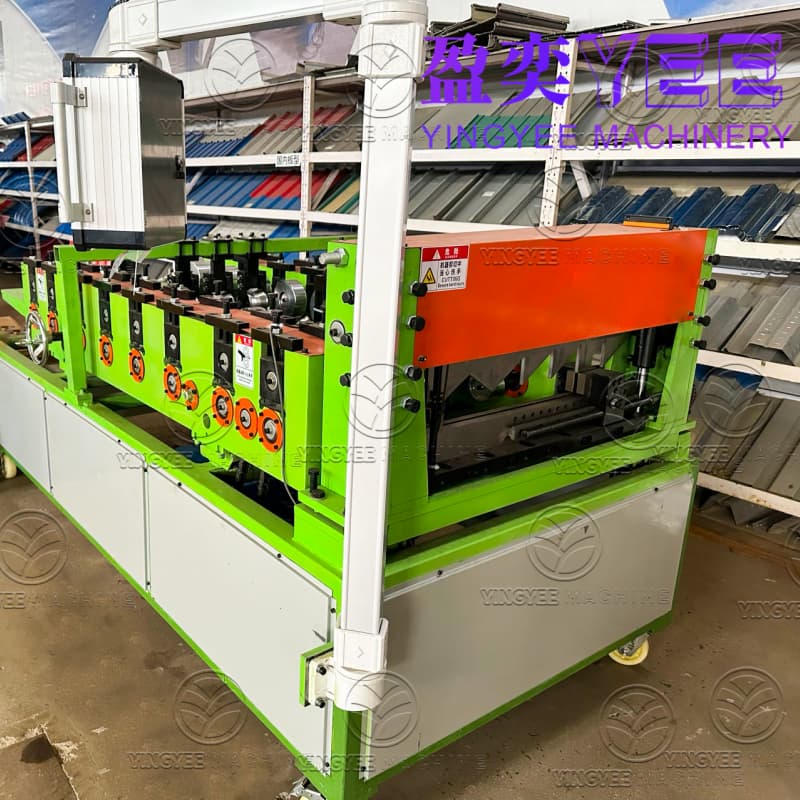

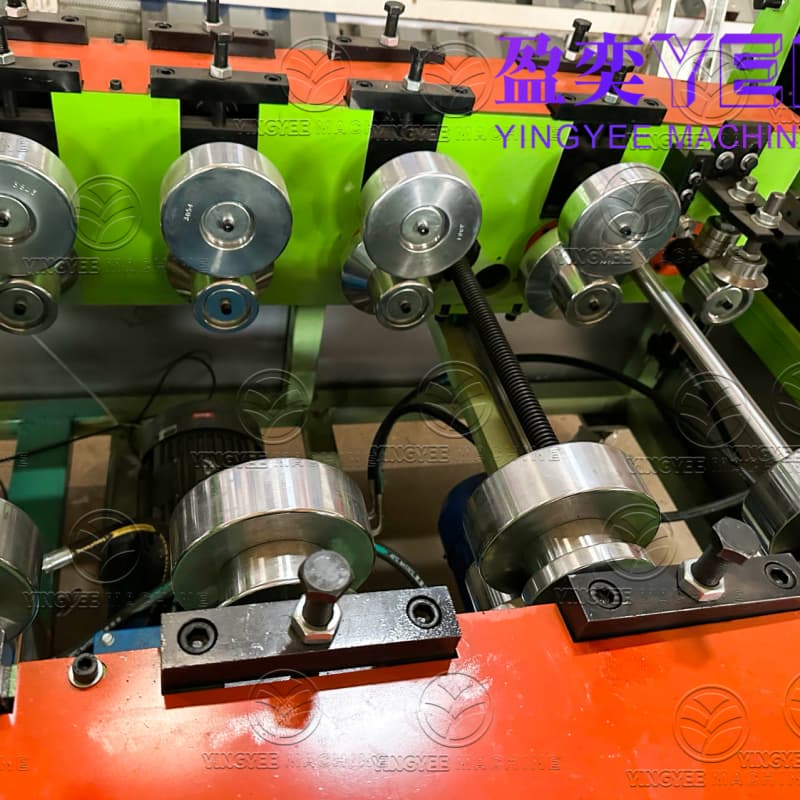

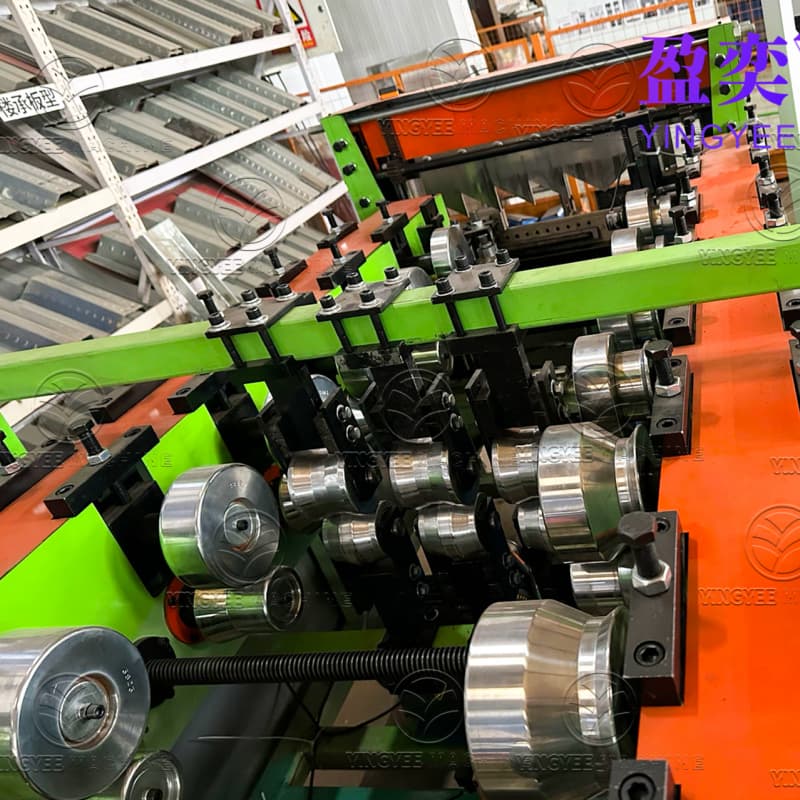

Pictures of machine:
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
