Metal IBR Roof Tile roll forming machine
Short Description:
Basic Info
Model No.:YINGYEE
Condition:New
Tile Type:Colored Steel
Control System:PLC
Warranty:12 Months
Using:Roof
Weight:3-6 Tons
Effective Width:600-1250mm
Type:Roof Sheet Roll Forming Machine
Forming Speed:25-30m/min
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Trapezoid Poof Sheet forming machine
Metal IBR Roof Tile Roll Forming Machine is different from other productions.IBR color type roofing tile machine use new technology. IBR Steel Metal Roofing Tile Machine are widely used in building. What’s more,0our IBR roll forming machine Steel Metal Roofing Tile machine equipment can be designed and manufactured as customers’ requests.
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw materials | Galvanized coils, Pre-painted coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Forming speed | 10-15m/min |
| Rollers | 15 rows(according to drawings) |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 76mm, material is 40Cr |
| Material of body | 400H steel |
| Wall panel | 20mm Q195 steel(all with electrostatic spraying) |
| Controlling system | PLC |
| Main power | 5.5KW |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz |
| Total weight | about 4 tons |

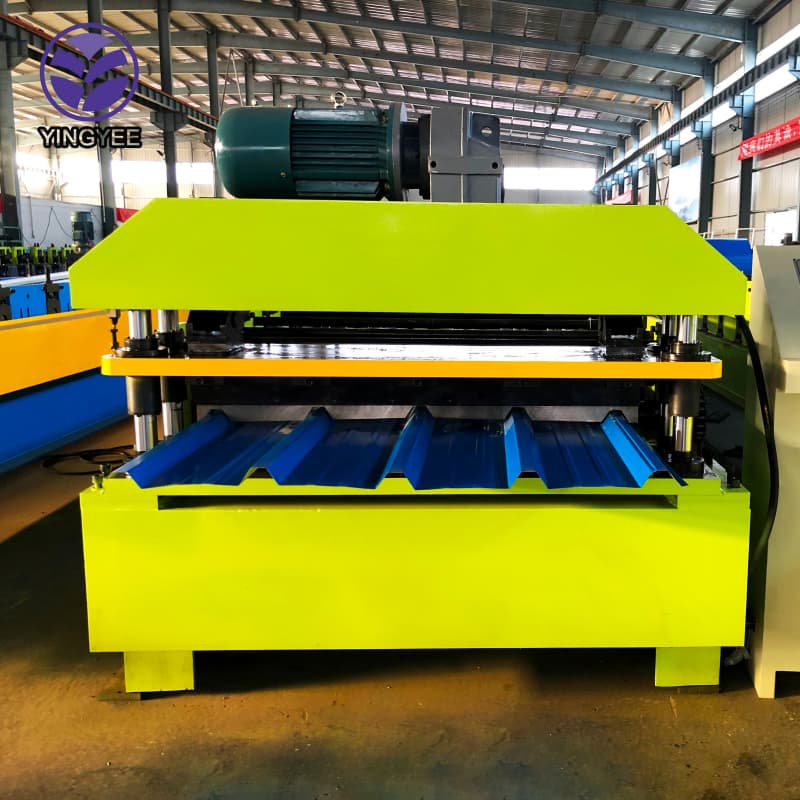

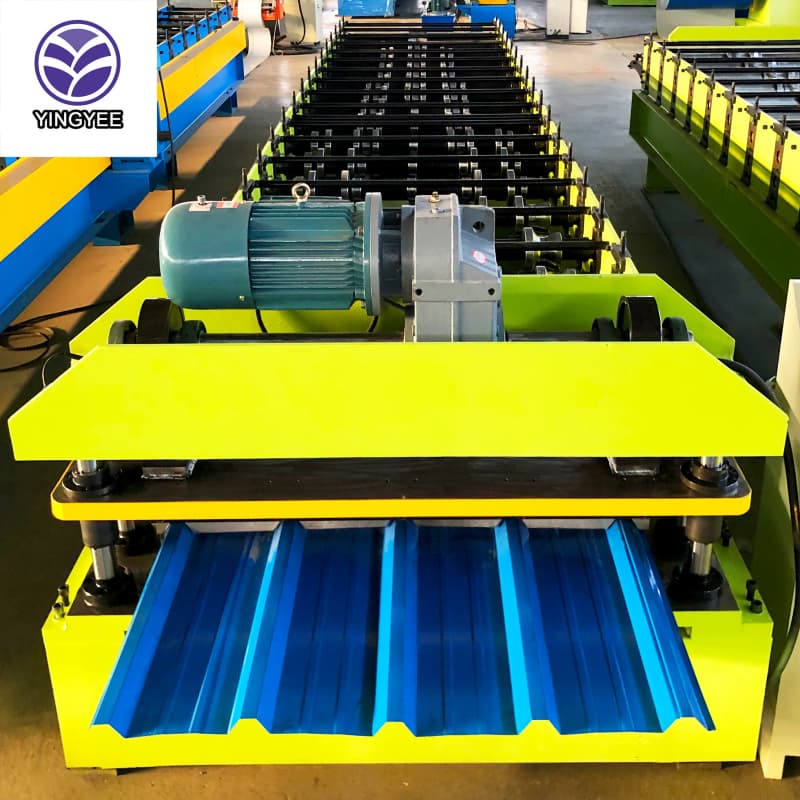

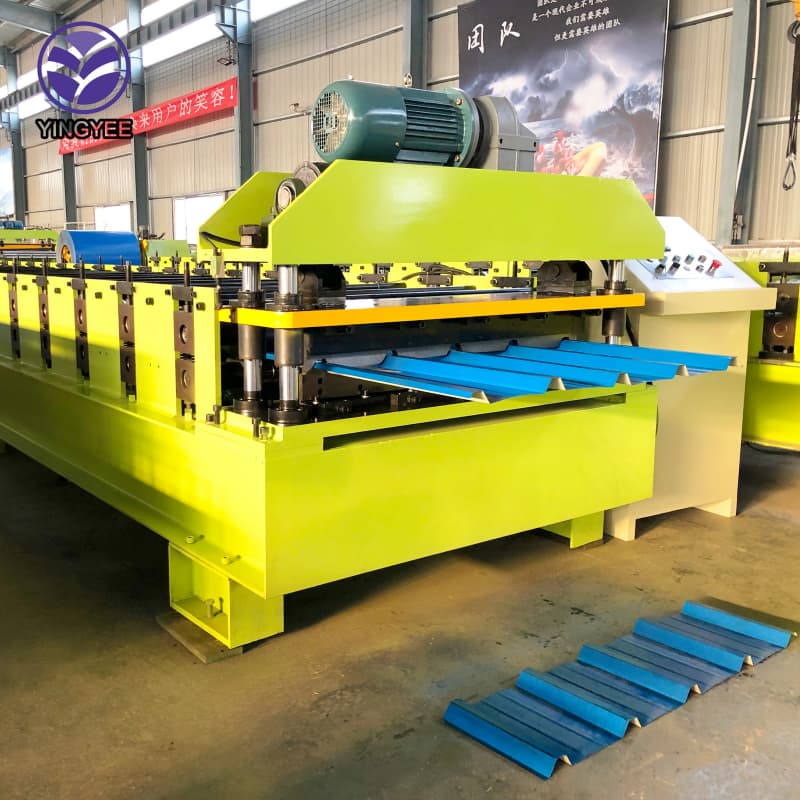

Pictures of machine:
