Industrial-Grade Roll Former for High-Volume Shelf Panel Production
Short Description:
The back panel of supermarket shelves is one of the main equipment for displaying goods in supermarkets, especially in large supermarkets of more than 500 square meters, the back and hanging shelves can provide a luxurious visual effect and make full use of the space to display goods.
Design features:
The back-plate shelves feature an all-in-one design in which the shelves and backplate are made in a single molding process, which not only speeds up molding but also improves accuracy. This design concept breaks through the limitations of traditional craftsmanship, making the shelf structure more stable and able to withstand large weights.
Processing:
Coil loading (manual) → uncoiling → leveling → feeding (servo) → angle punching / logo punching → cold roll forming → cutting forming → discharging
Equipment component
| No | Component name | Models and specifications | Set | Remark |

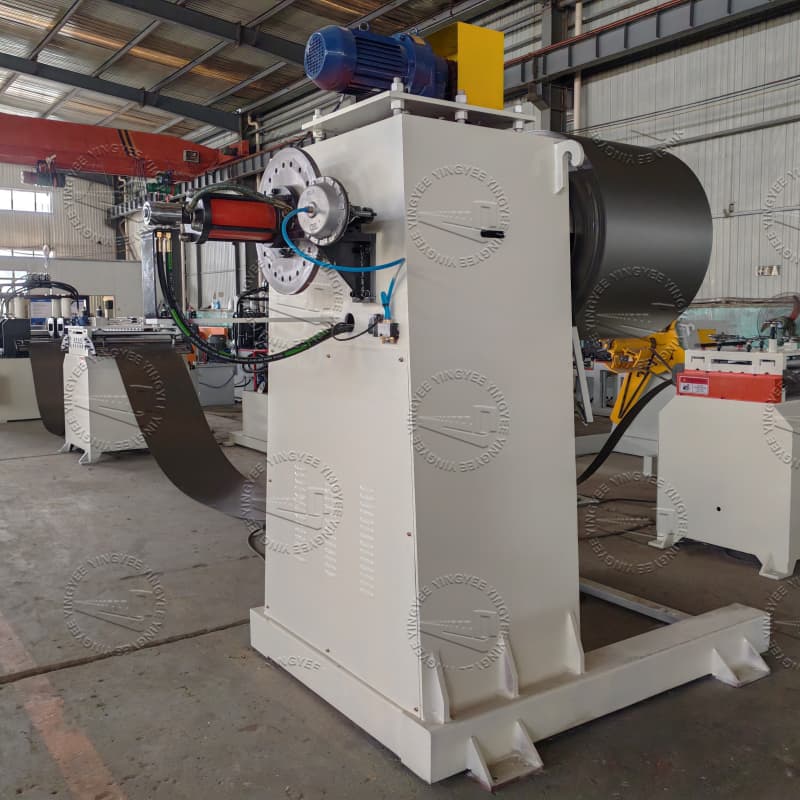

| 1 | Decoiler | T-500 | 1 | |
| 2 | Leveling machine | HCF-500 | 1 | Active |
| 3 | Servo feeder machine | NCF-500 | 1 | Dual-use |

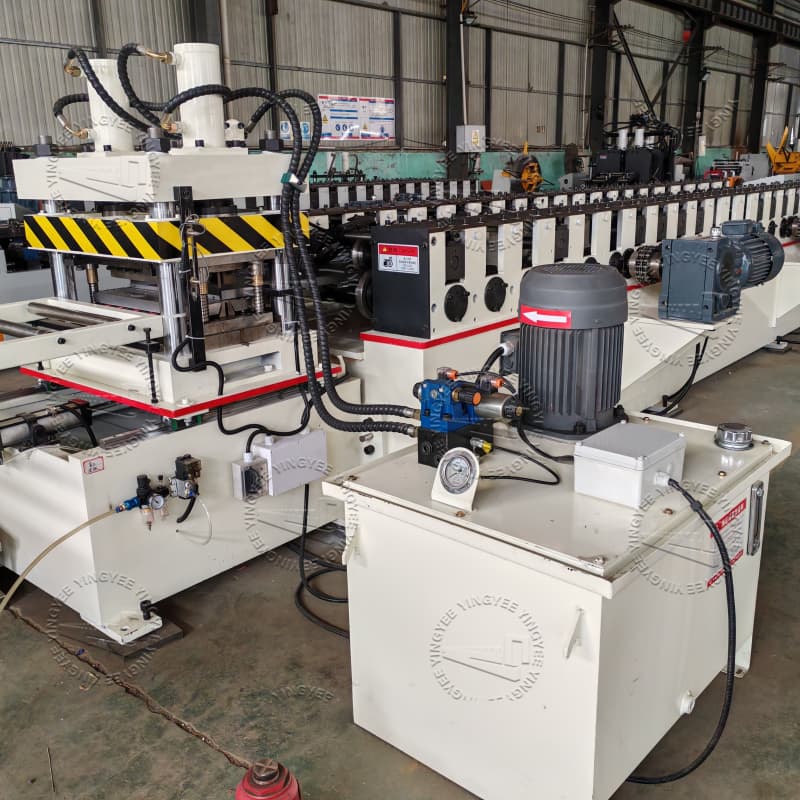

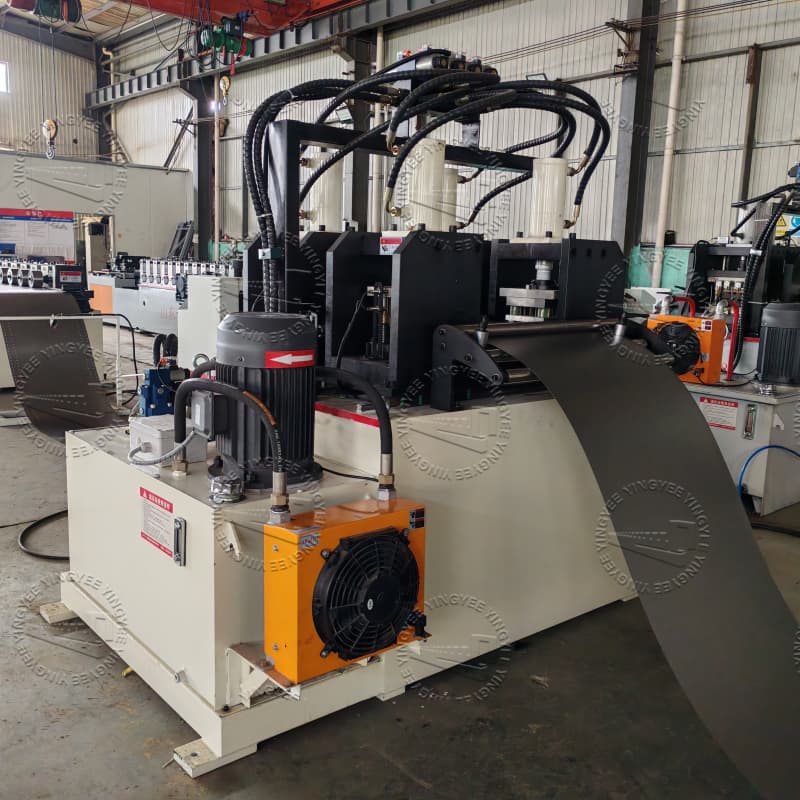

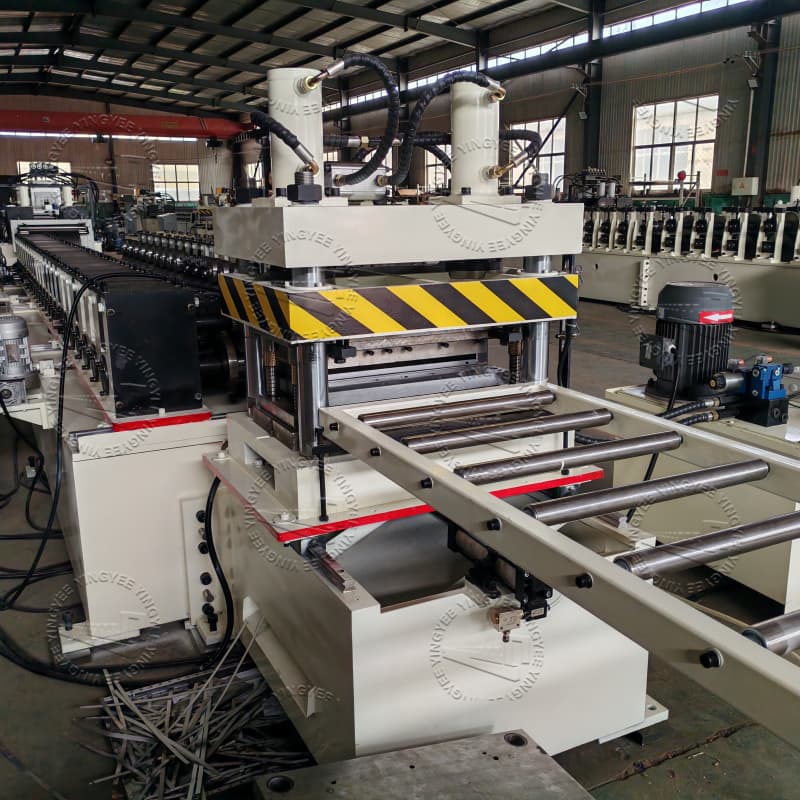

| 4 | Punching system | Multi-station four-post type | 1 | Hydraulic |
| 5 | Roll forming machine | Cantilever quick adjustment type | 2 | Frequency Control |
| 6 | Cutting and folding machine | Tracking type | 1 | Combination |
| 7 | Receiving table | Roll type | 1 | |
| 8 | Hydraulic system | High speed | 2 | |
| 9 | Electrical control system | PLC | 2 | |
| 10 | Convery system | For Fundo 1 | 1 |
Basic specification
| No. | Items | Spec: |
| 1 | Material | 1. Thickness: 0.6mm2. Input width: max. 462mm
3. material: Cold rolled steel strip; yield limit σs≤260Mpa |
| 2 | Power supply | 380V, 60Hz, 3 phase |
| 3 | Capacity of power | 1. Total power: about 20kW2. Punchine system power: 7.5kw
3. Roll forming machine power: 5.5kw 4. Track cutting machine power: 5kw |
| 4 | Speed | Line speed: 0-9m/min(includ punching)Forming speed: 0-12m/min |
| 5 | Hydraulic oil | 46# |
| 6 | Gear Oil | 18# Hyperbolic gear oil |
| 7 | Dimension | Approx.(L*W*H) 20m×2m(*2)×2m |
| 8 | Stands of rollers | Roll forming machine for Fundo 2F: 17 rollersRoll forming machine for Fundo 1F: 12 rollers |
| 9 | Material of rollers | Cr12, quenched HRC56°-60° |
| 10 | Length of rolled workpiece | User free setting |
| 11 | Cut style | Hydraulic Tracking cut |
