Industrial Box Beam Forming System – Built for High-Capacity Storage Racks

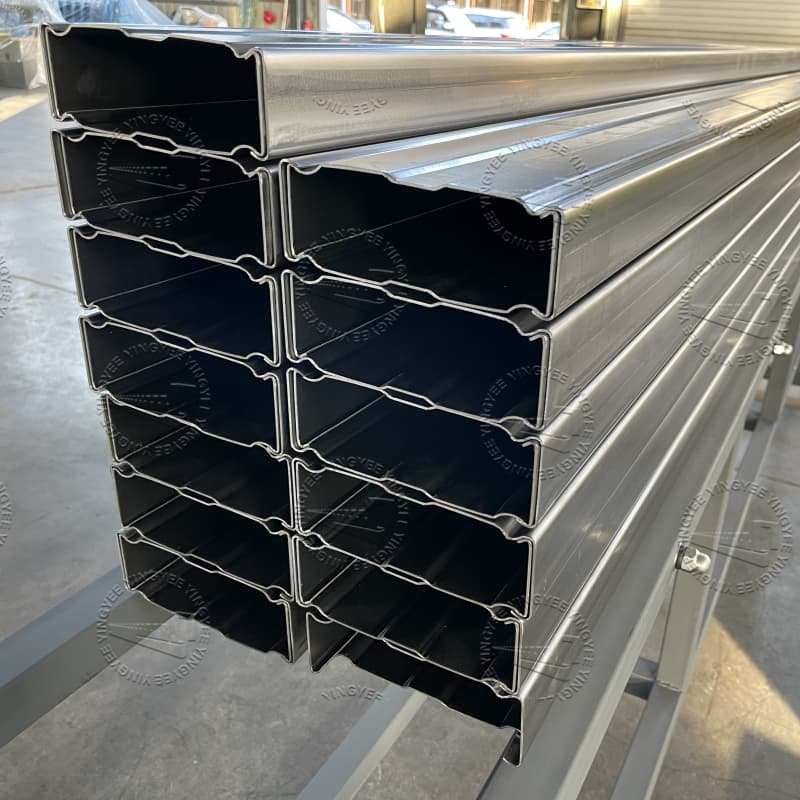

What does the front warehouse do? What does it have to do with box beam?

Front-end warehouses are generally rented from community shops or small warehouses (200 to 500 square meters). They are densely built around the community where residents live (usually within 3 kilometers), and fresh food and fast-moving consumer goods are directly stored on the shelves/refrigerated storage. In the warehouse, riders are ultimately responsible for delivering to consumers, mainly meeting the needs of consumers in mid- to high-city cities for convenient (fast) and healthy (good) fresh food and daily necessities. The box beams and other steel shelf columns are the main products for placing their supply and sales products, and are an indispensable product in the peer-to-peer production chain.

Equipment component

• 3 ton Decoiler(hydraulic)                     x1set
• Feeding guide system                       x1set

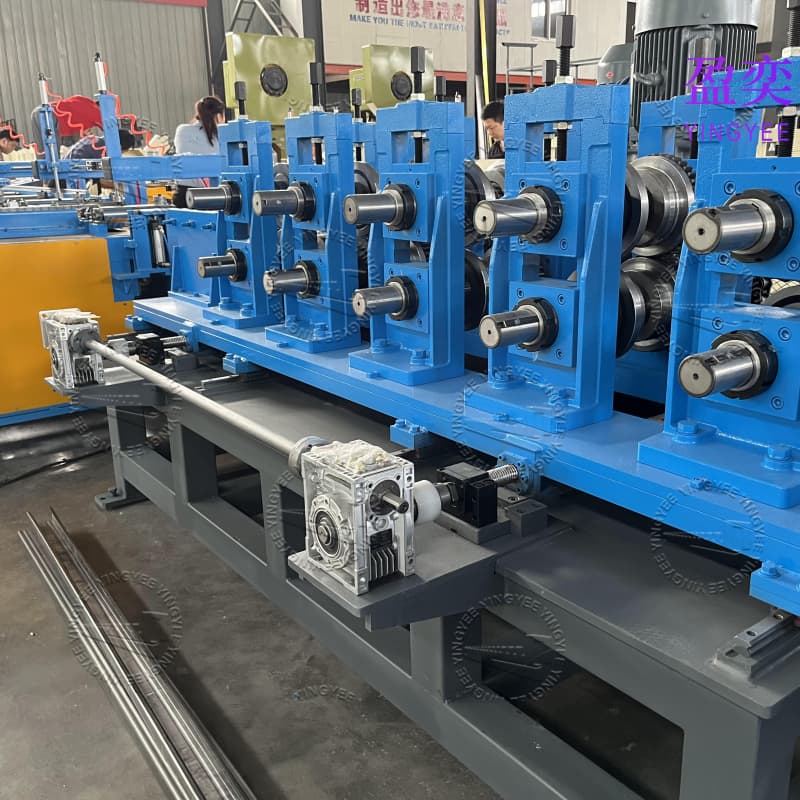

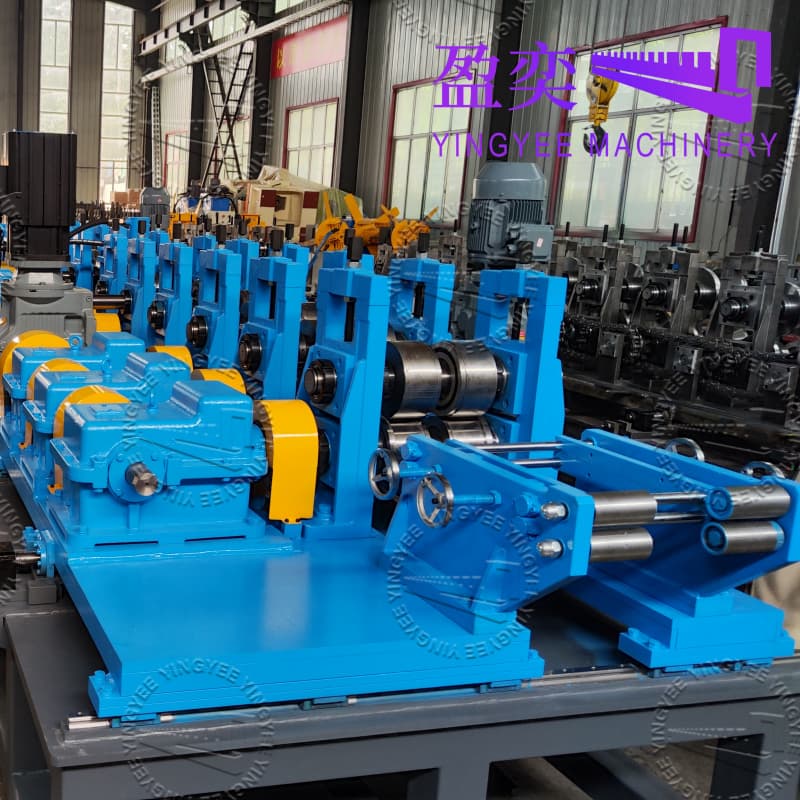

• Main roll forming machine(Automatic size change)x1set
• Automatic Punching system        x1set
• Hydraulic cutting system                         x1set
• Hydraulic station                                x1set
• PLC Control system                             x1set

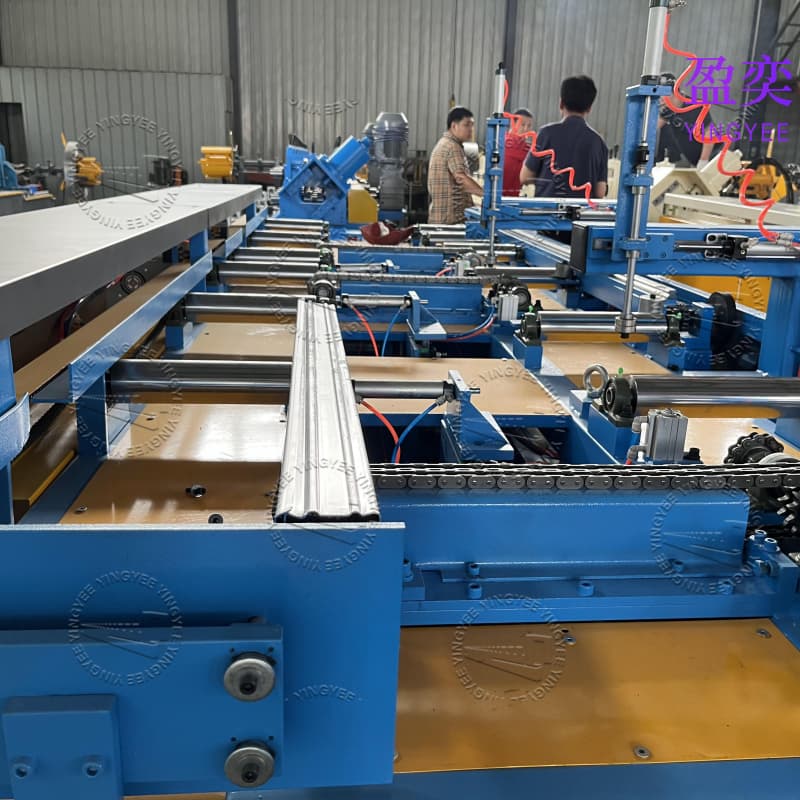

• Automatic transfer and folding systemx1 set

Main roll forming machine parameters

• Matching material: CRC, Galvanized Strips.
• Thickness: Max 1.5mm
• Main power: High precision servo motor*3.
• Forming speed: less than 10m/min
• Roller Steps: 13steps;
• Shaft material: 45 #steel;
• Shaft diameter: 70mm;
• Rollers material: CR12;
• Machine structure: TorristStructure
• Way Of Drive: Gearbox
• Size adjustment method: Automatic, PLC control;
• Automatic punching system;
• Cutter: Hydraulic cut
• Material of cutter blade: Cr12 mould steel with quenched treatment 58-62℃
• Tolerance: 3m+-1.5mm

Combined machine

• Stands of rollers: 5stands（Torrist structure）
• Gear box driven
• Main motor power:11 KW
• Material of the rollers:Cr12
• The diameter of the main rollers:75mm
• Working method: manually feeding

Control: controlled by manual

PLC control and touching screen(zoncn)

• Voltage, Frequency, Phase: 380V/ 3phase/ 60 Hz(or customized)
• Automatic length measurement:
• Automatic quantity measurement
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
• Length inaccuracy can be amended easily
• Control panel: Button-type switch and touch screen
