Electrical cabinet din rail roll forming machine
Short Description:
Electrical Din Rail Roll Forming Machine.
Electrical box rail roll forming machine.
Punching and cutting integrated mold.
Automatic oiling system to prevent znic loss.
Servo main motor,ensure the precision

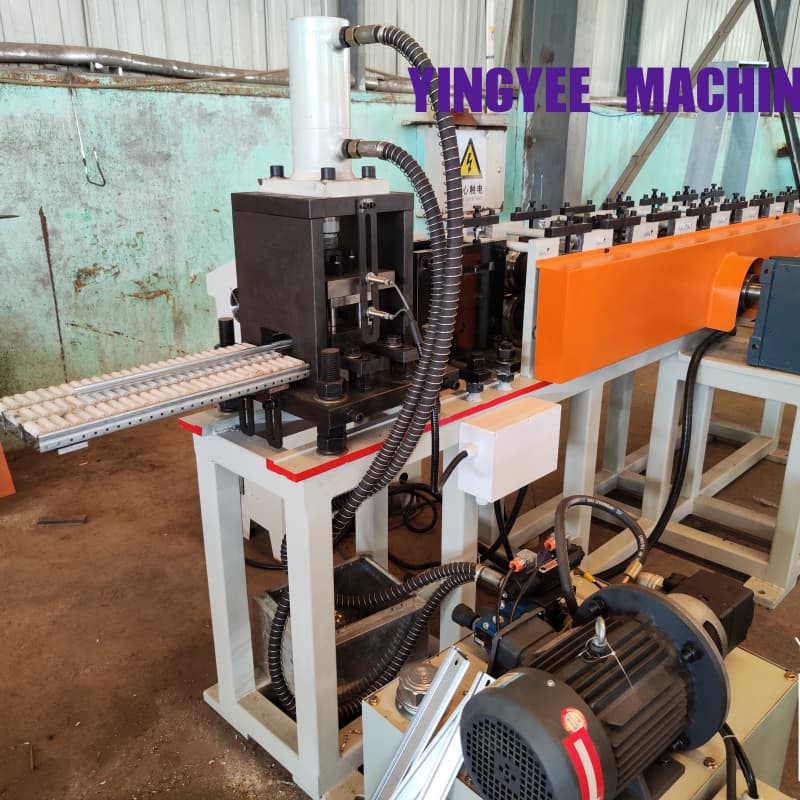

Electrical cabinet din rail roll forming machine

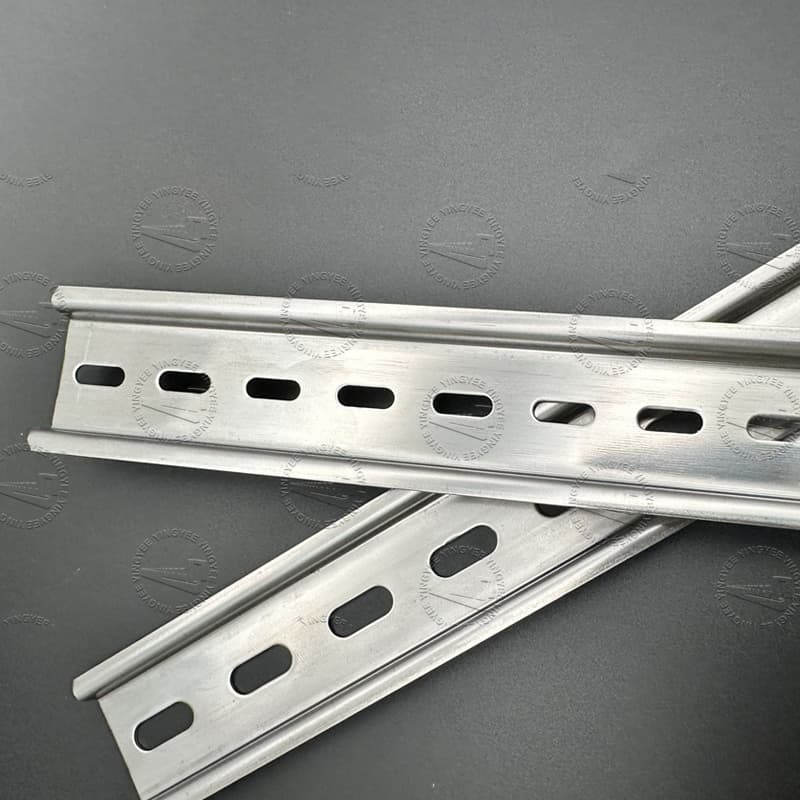

Din rail for circuit breaker switch, which widely using in electric industry such as electric cabinet. welcome contact!
|
Electrical DIN Rail Roll Forming Machine |
||
|
Item |
Specifications |
Optional performance |
| Machinable Material : | A) Zinc-plated steel | Thickness(MM): 0.8-1.5mm |
| B) Aluminum | ||
| C) Stainless steel | ||
| Yield strength : | 250 – 550 Mpa | |
| Tensil stress : | G250 Mpa-G550 Mpa | |
| Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
| Punching system : | Hydraulic punching station | * Punching press (Optional) |

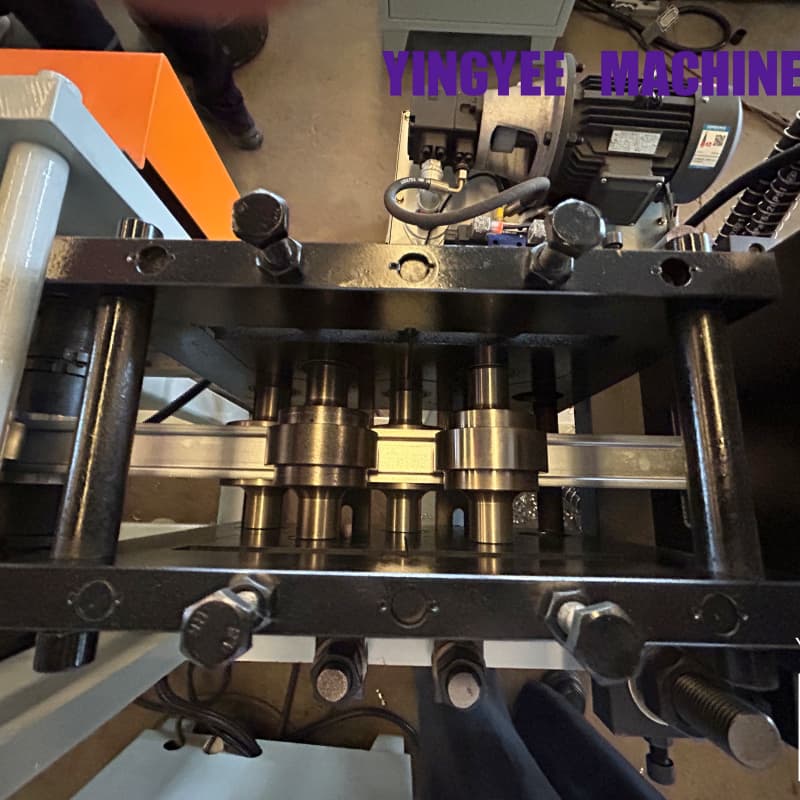

| Forming station : | 10 stands | * According to your profile drawings |
| Main machine motor brand : | Shanghai Dedong (Sino-Germany Brand) | * Siemens (Optional) |
| Driving system : | Chain drive | * Gearbox drive (Optional) |
| Machine structure: | Wall panel station | * Cast Iron (Optional) |
| Forming speed: | 10-20 (M/MIN) | * Or according to your profile drawings |
| Rollers’ material : | Steel #45 | * GCr 15 (Optional) |
| Cutting system : | Post-cutting | * Pre-cutting (Optional) |
| Frequency changer brand : | Yaskawa | * Siemens (Optional) |
| PLC brand : | Panasonic | * Siemens (Optional) |
| Power supply : | 380V 50Hz 3ph | * Or according to your requirment |
| Machine color : | Industrial blue | * Or according to your requirment |
