Dual Workplace Side Hook Welding Machine
Short Description:
Dual Workplace Side Hook Welding Machine – High-Efficiency Automatic Welding Equipment for Double-Side Hook Production
The Dual Workplace Side Hook Welding Machine is an advanced automated welding system designed for the efficient and precise production of side hooks used in industrial shelving, storage racks, and structural support systems.
Technical parameters
- The auto welding machine outline dimension: 6300mmx1500mmx800mm（Lx HxW）
- The machine weight about : 1200 kgs
- The machine suits welding frame size :
- Fame length:600-4500 mm. Fame height:50-160 mm. Frame width:40-50 mm

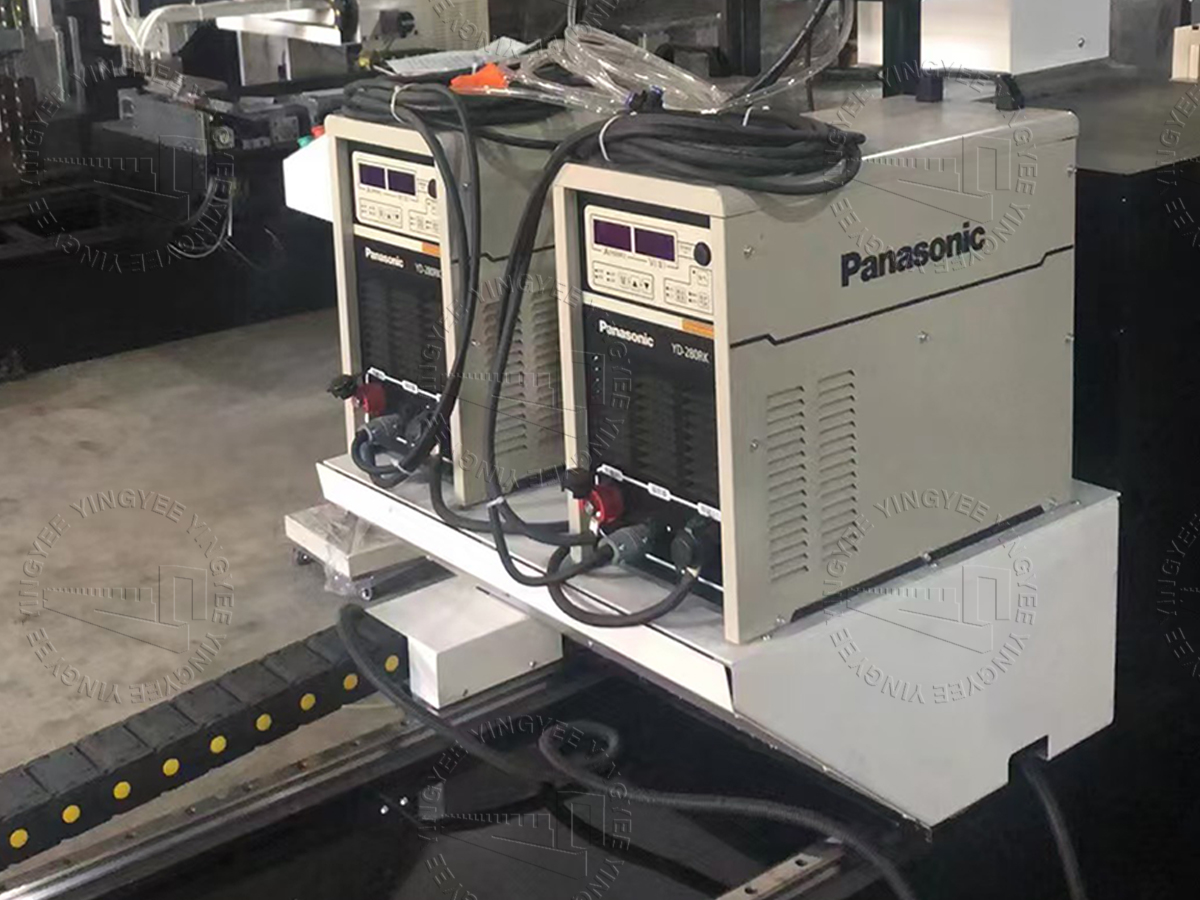

- The machine include 4sets KD315 welding machine with PLC and touchscreen and stepper motor *4 sets,
- Four side welding total. Each time welding two side.
- Stepper motor tracking welding , it can suits non-flat material face welding .
- The PLC brand Panasonic. Touchscreen brand Mitsubishi . up and down motor brand Mitsubishi. Stepper brand SHANGHAI SIHONG
- Different length Fame adjust by guide.
- Auto frame gripping holder and auto tipping gear and Connection gripping holder.
- Welding speed about 30 pc/sec
- Welding seam width 3-4mm.
- welding stick diameter 0.8mm
- rate of final products more than 95%.
Equipment production process
- Adjust the welding platform and welding part according to the size of the frame .
- Put the two connect part on machine gripping holder part
- Then put the frame on the machine.
- Frame gripping holder catch the frame.
- Auto welding part start work. First two side welding .
- Frame gripping holder rise up.
- After two side welding finish then machine auto flip 90 degrees
- Auto welding start again welding the other two side.
- After welding finish .the frame flip back.
- Then frame holder back . worker take out the finish product.
