Color Steel Sheet Shutter Door Forming Machine
Short Description:
Basic Info
Type:Steel Frame & Purlin Machine
Control System:PLC
Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Cutting Mode:Hydraulic
After Service:Engineers Available To Service Machinery Overseas
Forming Speed:25-30m/min(excluding Punching)
Voltage:380V/3Phase/50Hz Or At Your Request
Way Of Driven:Chain Or Gear Box
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
Color Steel Sheet Shutter Door Forming Machine

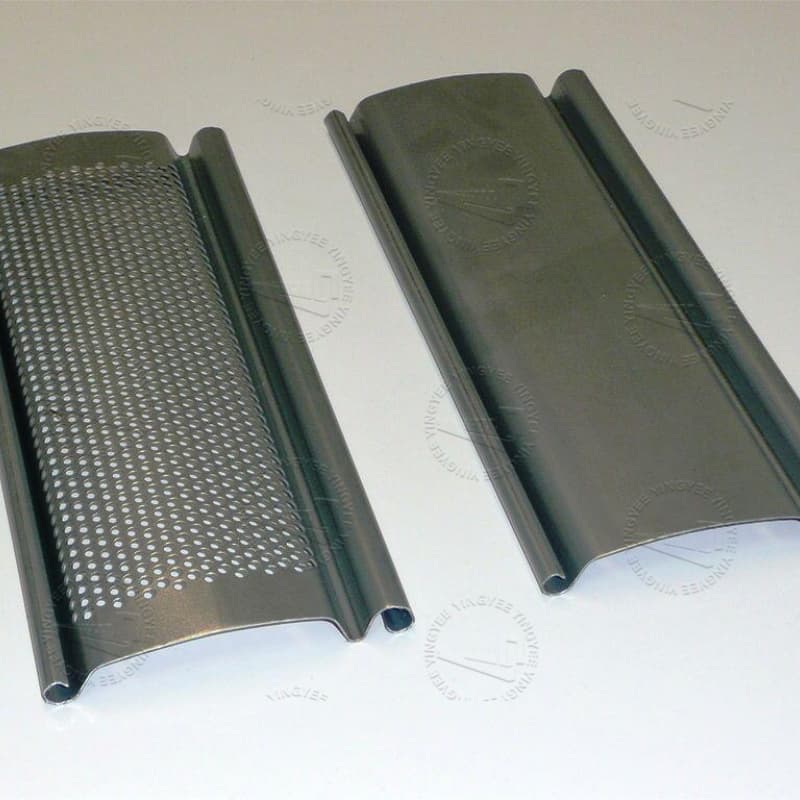

The roller shutter door forming machine, can produce the shutter door according to customer’s drawing. The roller shutter door slide machine can produce the slide which is used with the roller shutter door.
Working Flow:
Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | Pre-painted coils, Galvanized coils, Aluminum coils |
| Material thickness range | 0.3-1.0mm |

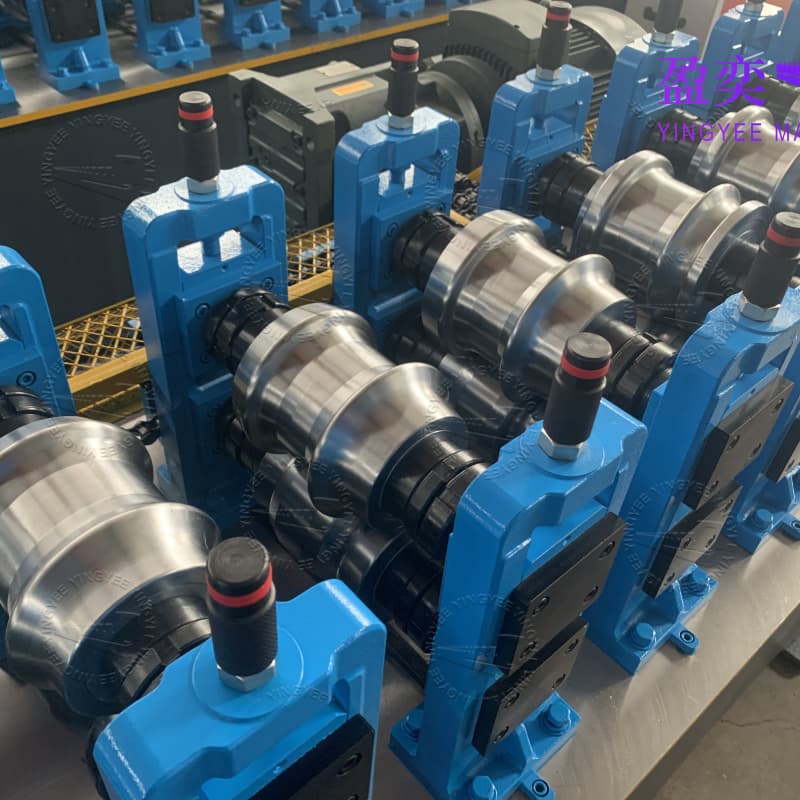

| Rollers | 10+5 groups |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 40mm, material is 40Cr |
| Forming speed | 10-15m/min |
| Main motor power | 5.5KW |
| Hydraulic power | 3.0KW |
| Cutting type | Hydraulic flying saw |
| Controlling system | PLC |
| Voltage | 380V/3Phase/50Hz |
| Way of driven | 1.0 inch single chain transmission |
| Total weight | 2 tons |
| Size of the machine | L*W*H 6*0.8*1m |

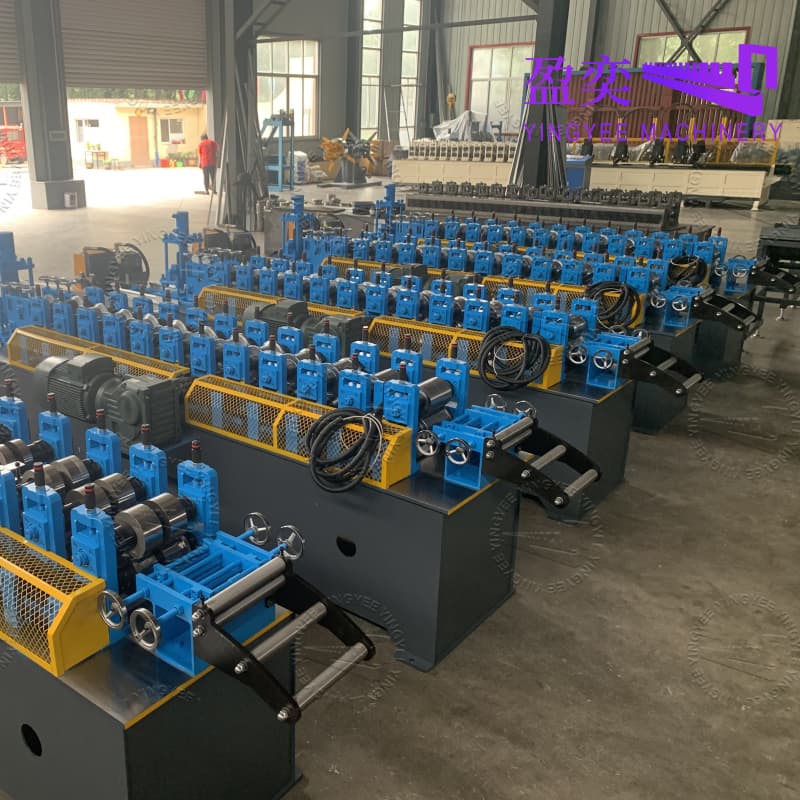

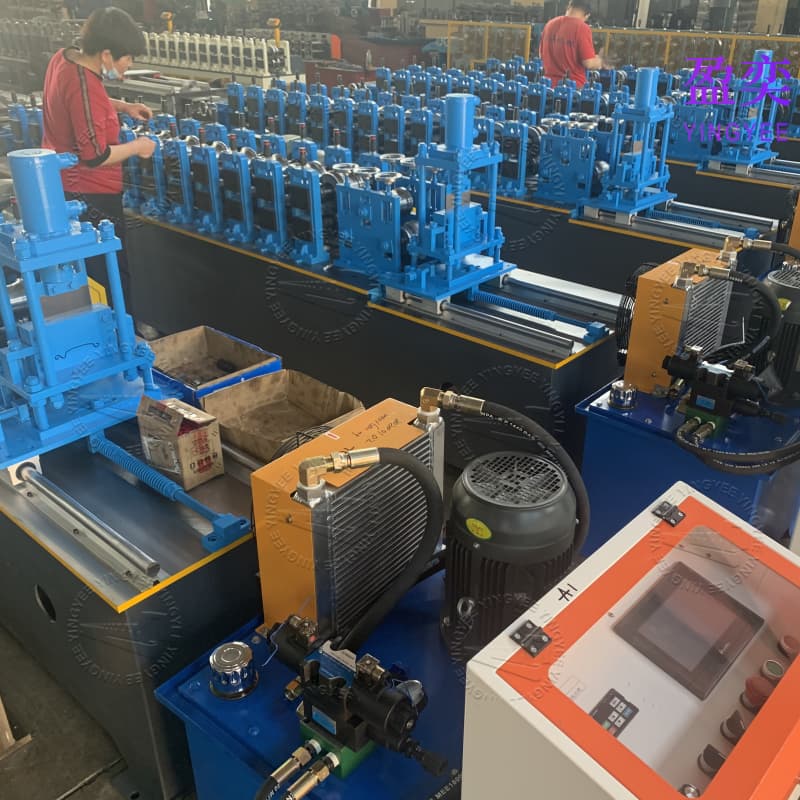

Pictures of machine:
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
