China Transverse Thin Corrugated Sheet Forming Machine
Short Description:
China Transverse Thin Corrugated Sheet Forming Machine,
making 0.12-0.3mm full hard steel plates into sheets, produce speed can reached about 40m/min.,
Basic Info
Control System:PLC
Speed:9-12 Piece/min
Delivery Time:30 Days
Warranty:12 Months
Cutting Mode:Hydraulic Cutting
Production Time:30 Days
Products:Roof Sheet Roll Forming Machine
Using:Roof
Voltage:As Customer’s Requirement
Material Thickness:0.13-0.45mm
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Transverse Thin Corrugated Sheet Forming Machine
Transverse Thin Corrugated Sheet Forming Machine for 0.13mm-0.45mm thin plate, Speed:9-12piece/min, High capacity, Low cost, Good discount, Short delivery.
machine technical parameter:
| 1.machine type | Barrel corrugating type |
| 2.material | steel/Aluminum |
| 3.working speed | 9-12piece/min |
| 4.sheet thickness | 0.13-0.45mm |
| 5.pinch | 75mm |
| 6.guider for sheet input | welded steel structure with stopper for setting width |
| 7.corrugating roll | barrel length 4500 mm |
| 8.pinch adjust roll | barrel length 4500 mm |
| 9.screw | adjusted by manual |
| 10.guider for output products | welded steel plate |
| 11.Up&down device for corrugating and pitch adjusting rolls | |

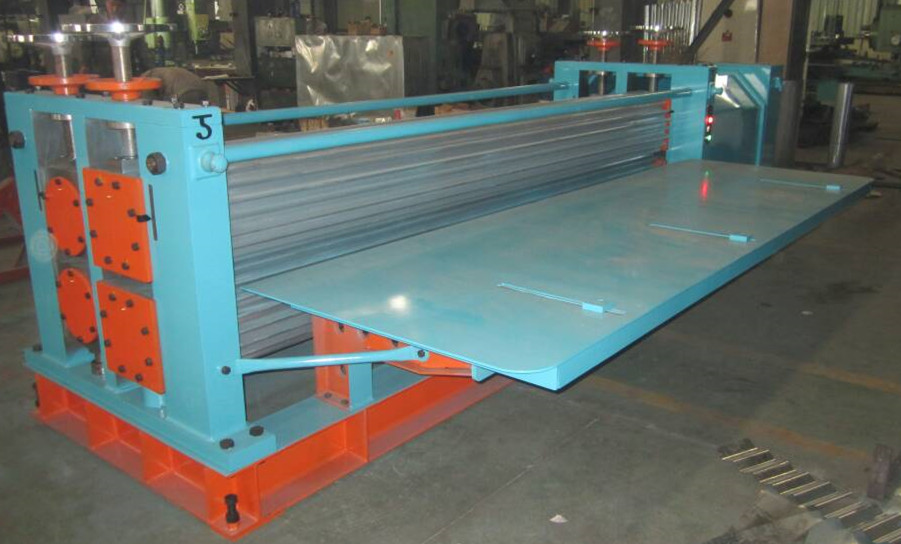

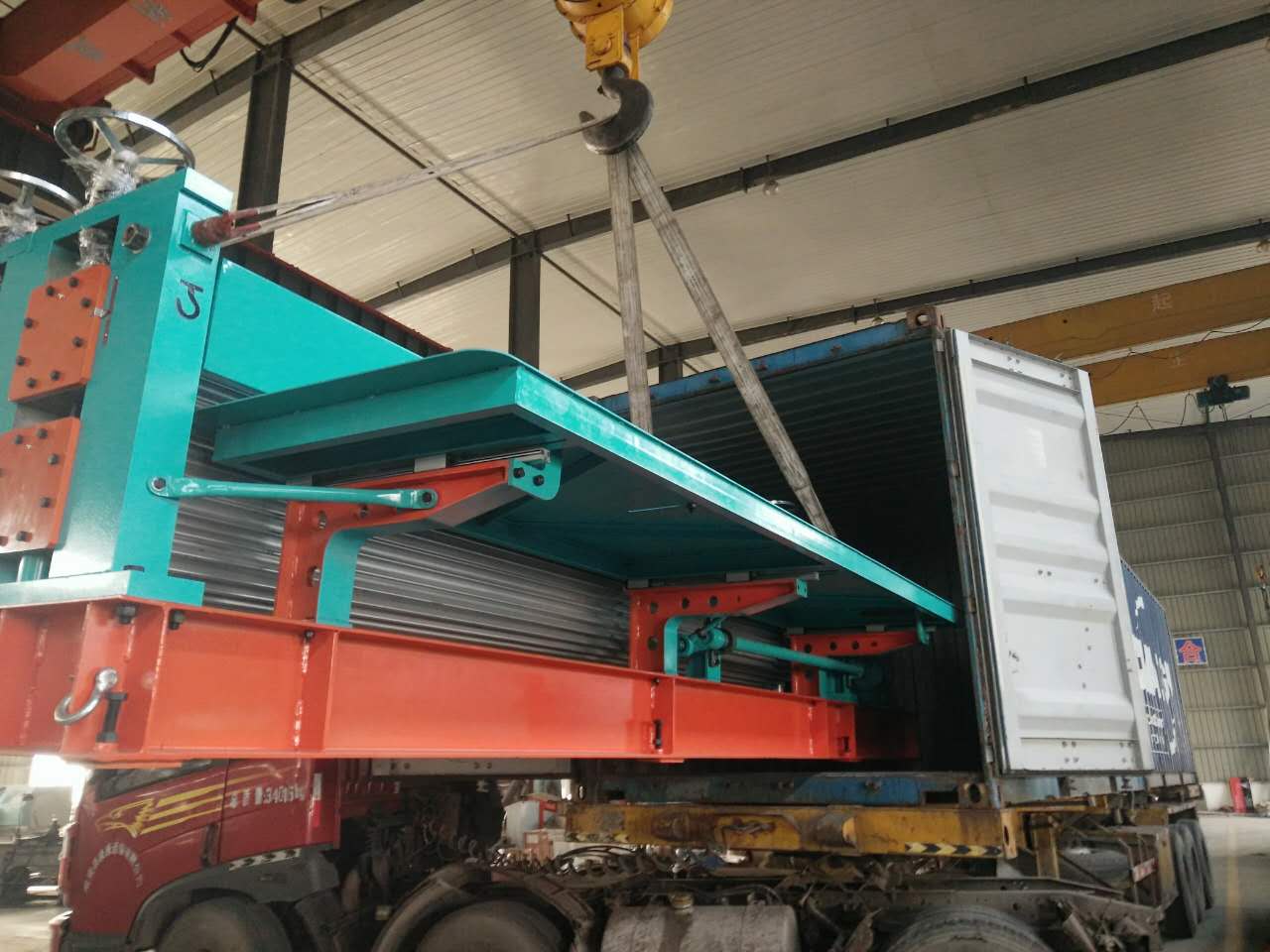

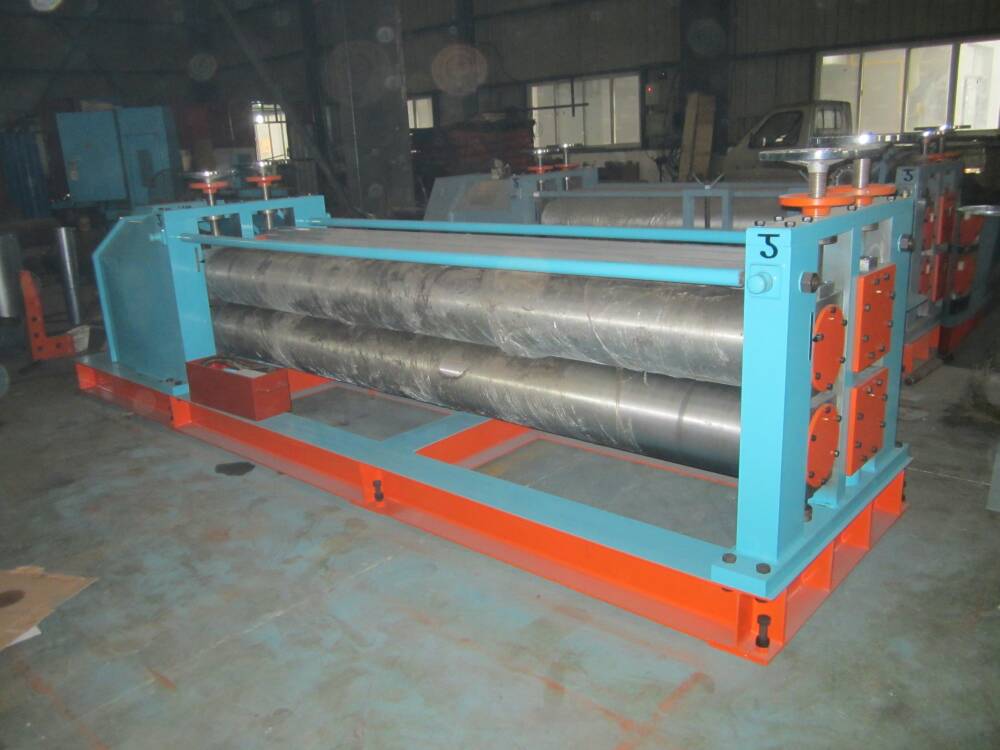

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment. Our products were sold to more than 20 countries already. Also included US and Germany. Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Looking for ideal Metal Corrugated Rolling Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Thin Aluminium Sheet Corrugated Transverse Machine are quality guaranteed. We are China Origin Factory of Galvanized Transverse Thin Corrugated Machine. If you have any question, please feel free to contact us.
Product Categories : Roof Sheet Roll Forming Machine > Corrugated Roof Sheet Roll Forming Machine
This is China barrel corrugated forming machine,making 0.12-0.3mm full hard steel plates into sheets.high speed,produce speed can reached about 40m/min,different sizes of proflie is available.
