China courraged roof sheet roll fomring machine
Short Description:
This is courraged roof sheet roll forming machine,making coils into sheets,with high speed and high precision.produce speed can reached 30m per minute,if one finished sheet length is 3m,so that can produce 10 pieces per minute.
Basic Info
Type:Tile Forming Machine
Voltage:38oV/3Phase/50Hz Or At Customer’s Request
Control System:PLC
Warranty:12 Months
Thickness:0.3-1mm
Forming Speed:25-30m/min
Material:GI, PPGI, Aluminum Coils
Cutting Mode:Hydraulic
Delivery:30 Days
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Technical parameters:
| Raw materials | Galvanized coils, Pre-painted coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Forming speed | 10-15m/min |
| Rollers | 15 rows(according to drawings) |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 76mm, material is 40Cr |
| Material of body | 400H steel |
| Wall panel | 20mm Q195 steel(all with electrostatic spraying) |
| Controlling system | PLC |
| Main power | 5.5KW |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz |
| Total weight | about 4 tons |

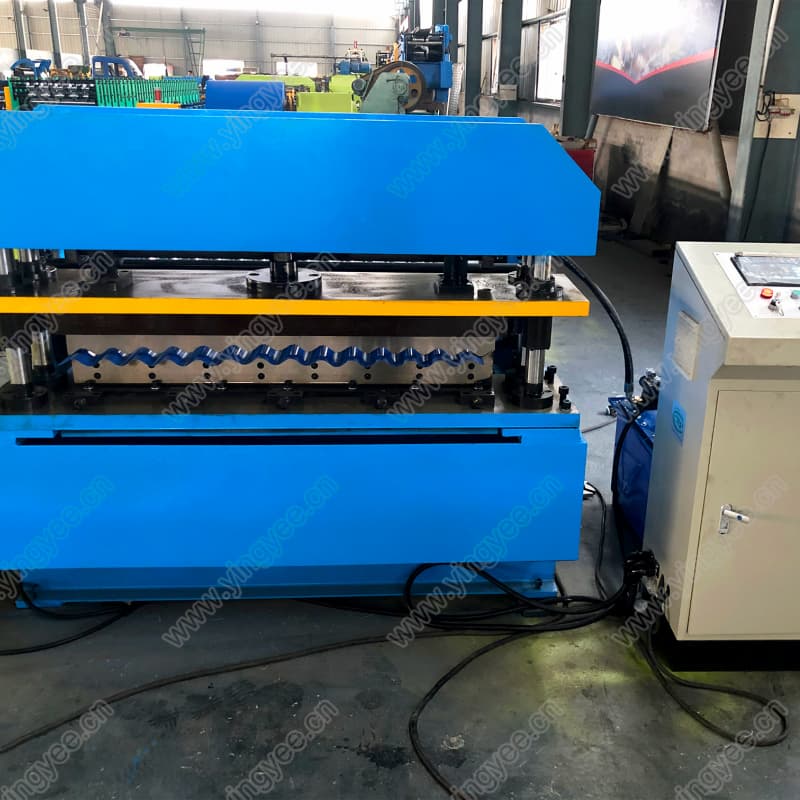

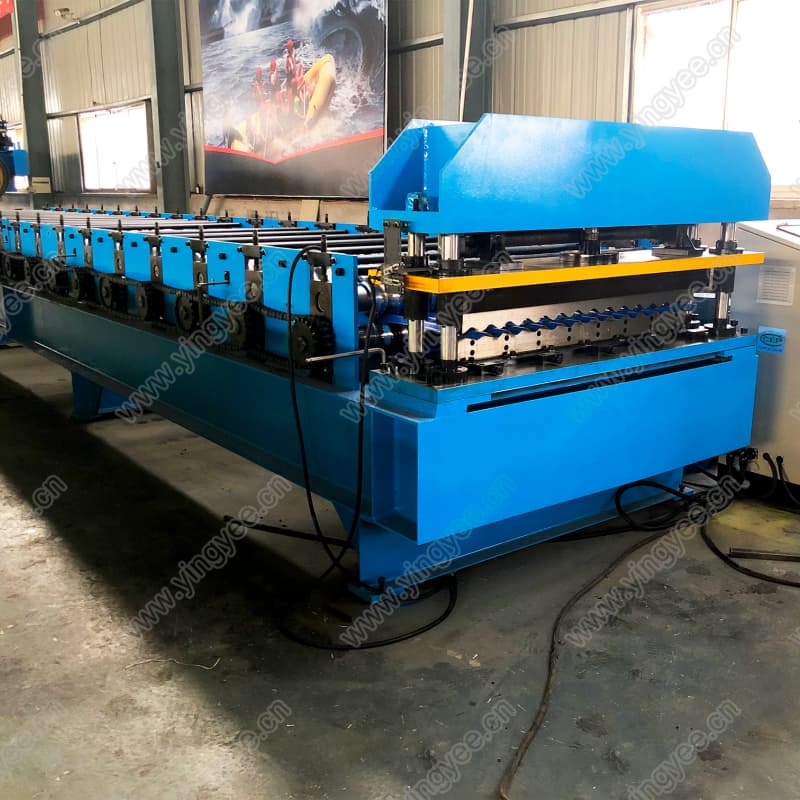

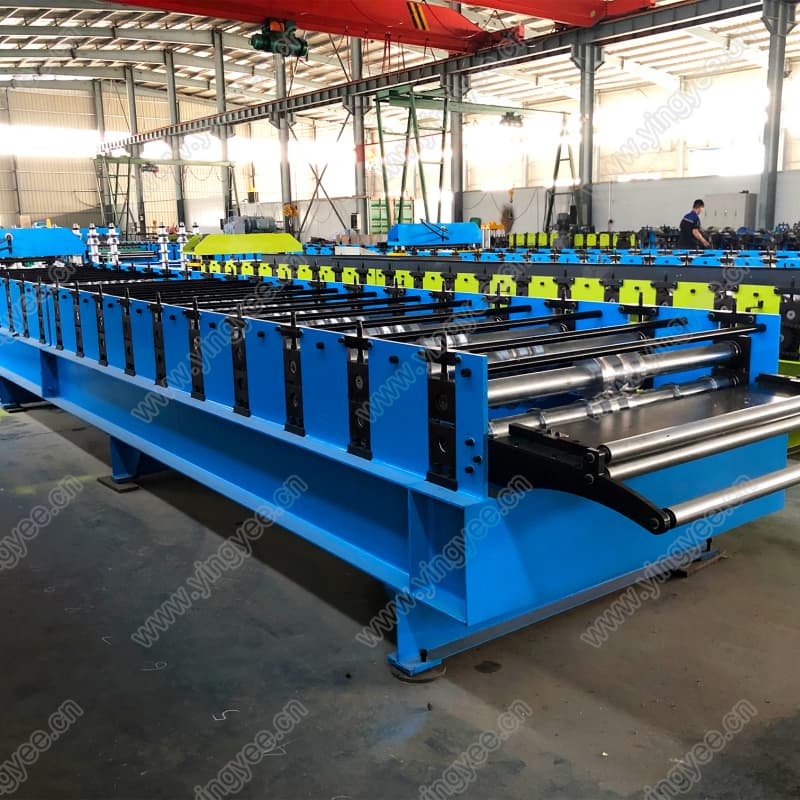

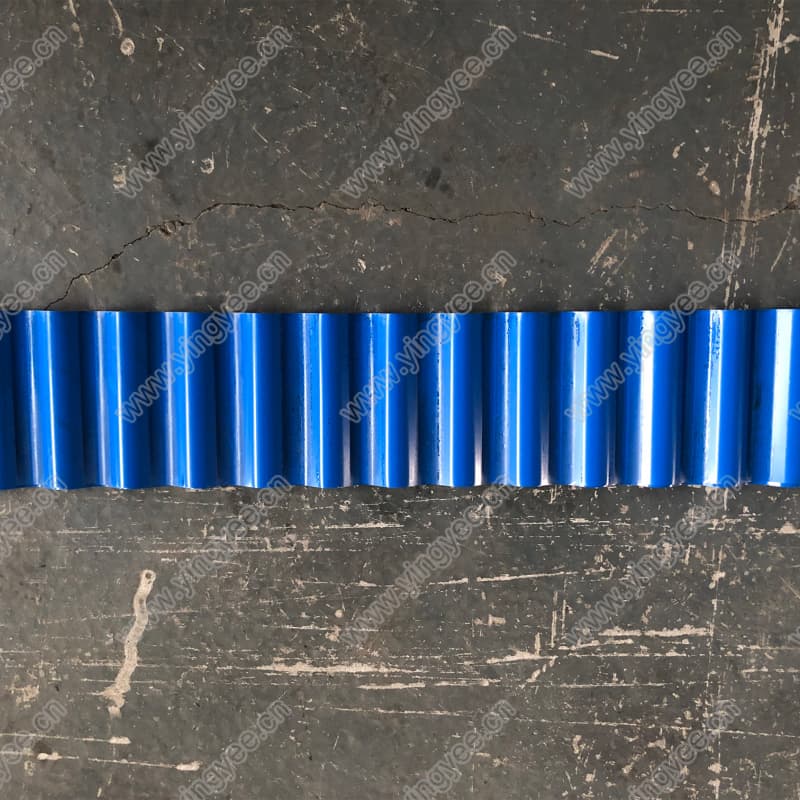

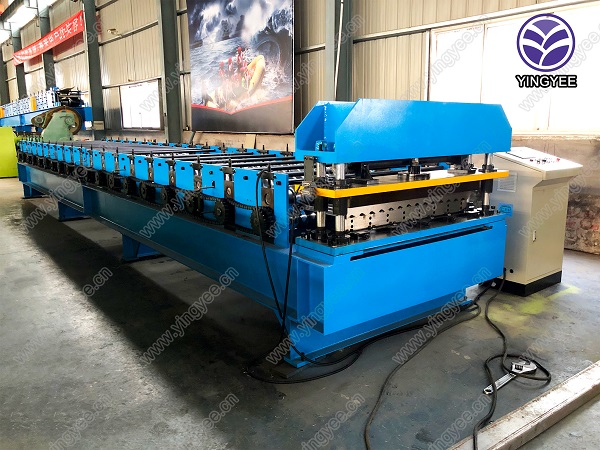

Pictures of machine:
