Automatic C/Z Purlin roll forming machine Wall Purlin Steel Structure Building Material
Short Description:
Shaft diameter: #45 steel
main motor power:18.5kw*1
driven: chain and gear
cutting: stop cutting
cutter material: Cr12
Basic Info
Model No.:yingyee004
Type:Roof Sheet Roll Forming Machine
Warranty:12 Months
Delivery Time:30 Days
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:6-8m/min(including Punching And Cutting Time)

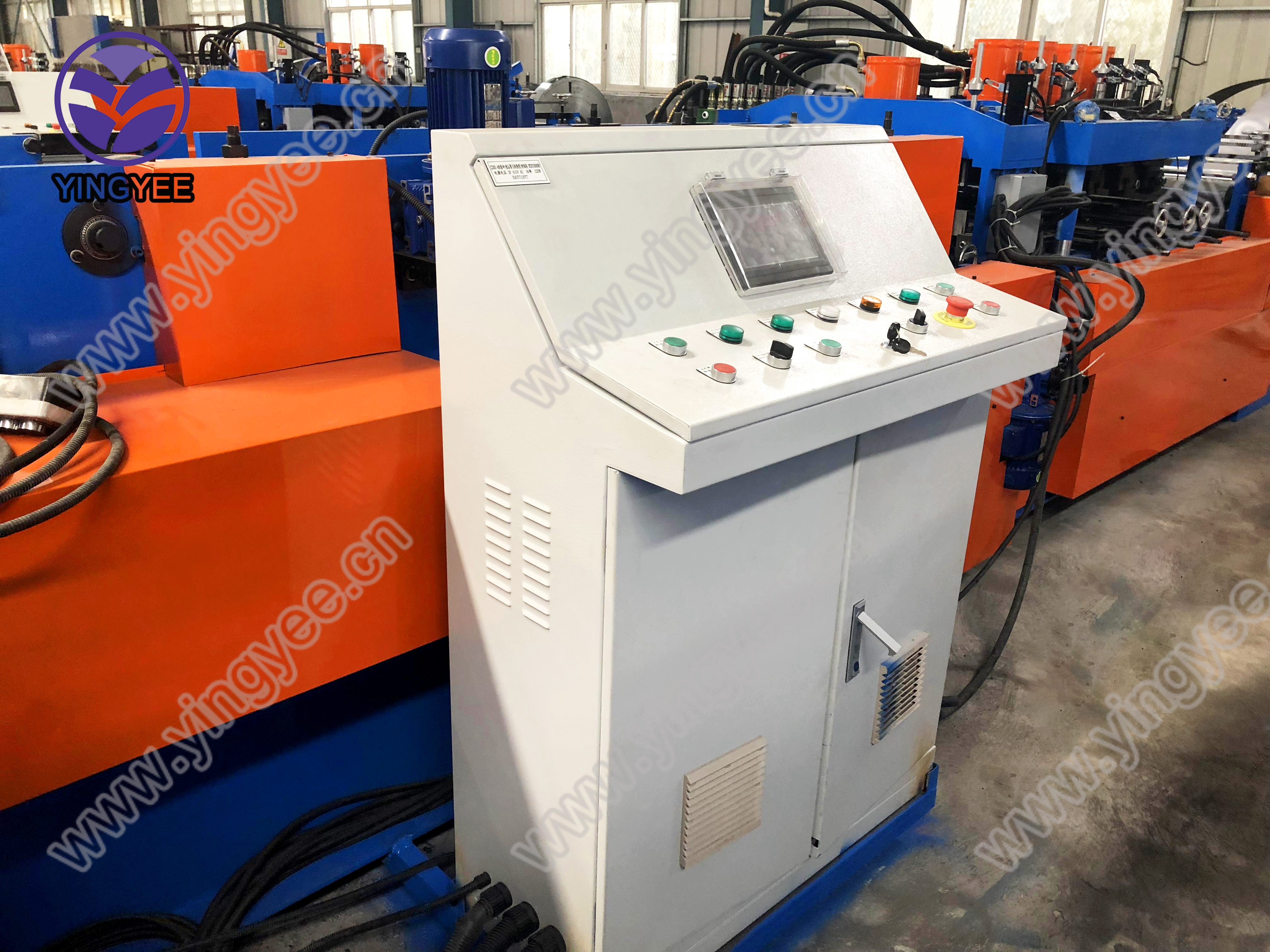

Control System:Panasonic/Mitsubishi PLC
Way Of Driven:Chain Transmission
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Additional Info
Packaging:PLASTIC FILM, WOODEN CASE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean,Land,Air
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:TIANJIN,XIAMEN,SHANGHAI
Product Description

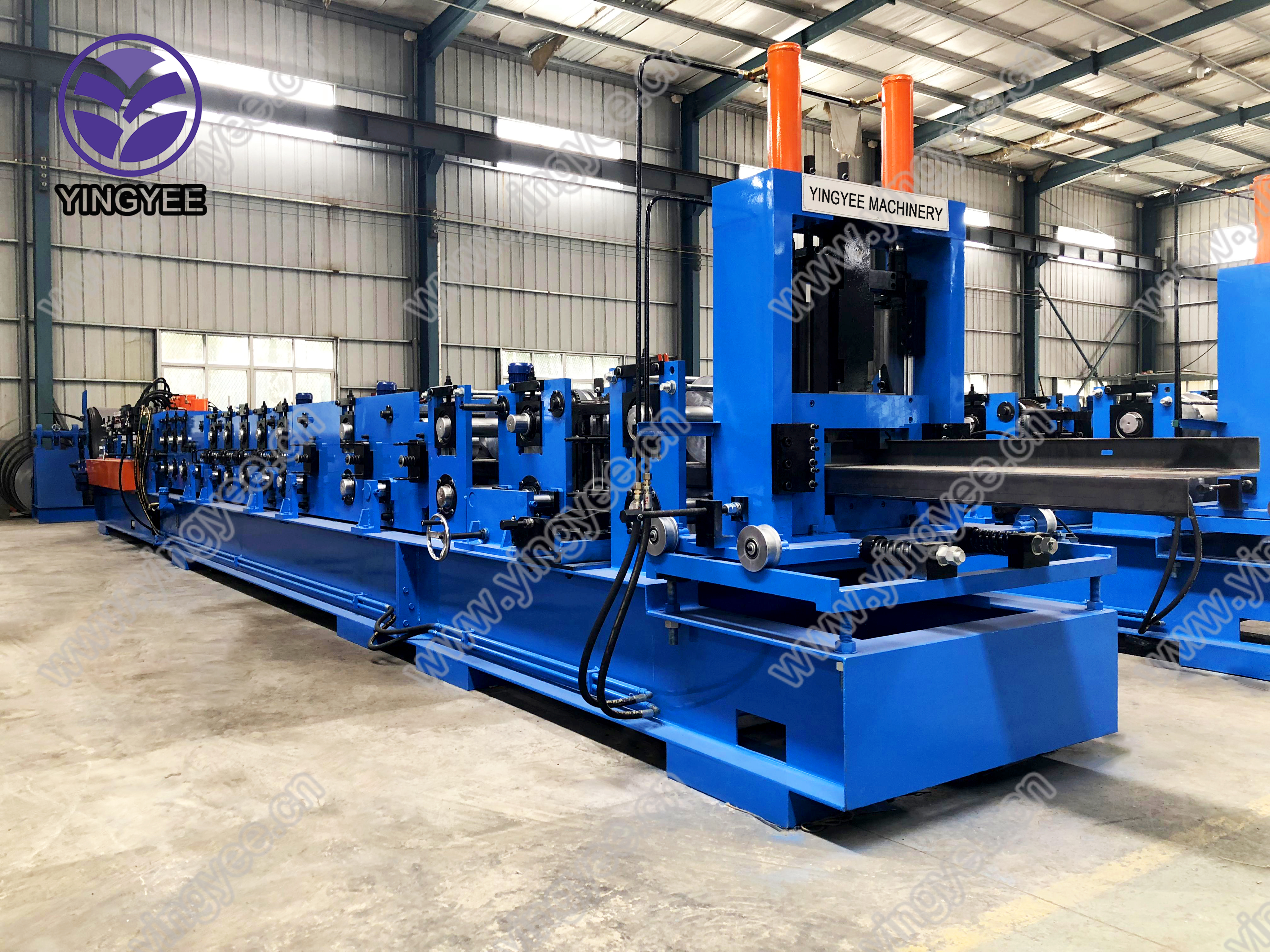

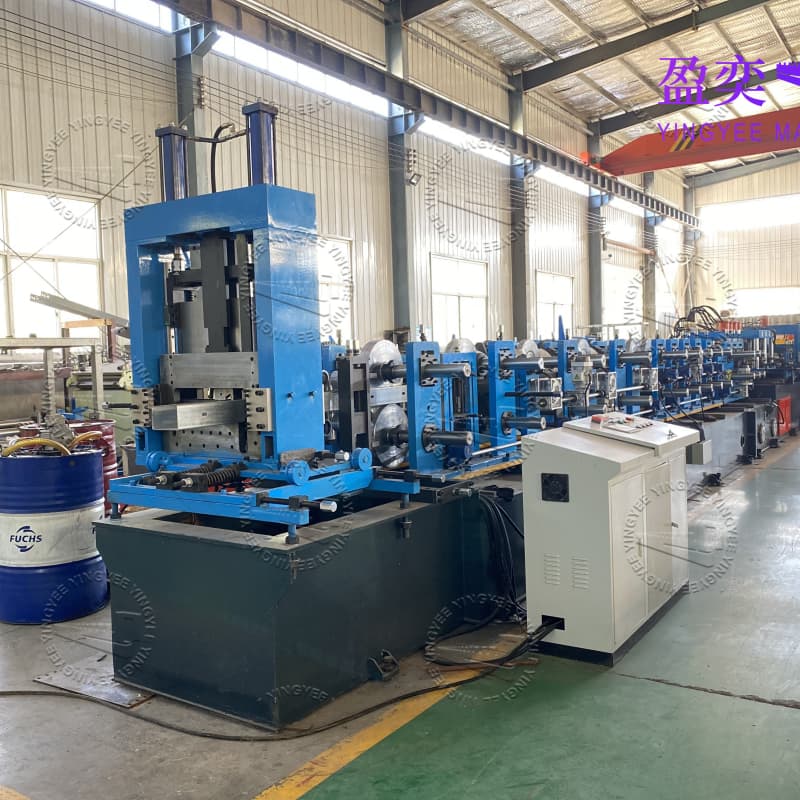

Purlin roll forming machine can produce different sizes of steel C or Z purlins in various thicknesses. There are manual adjustable steel profile metal purlin machines and automatic steel profile metal purlin machines . The complete purlin roll forming machine line includes decoiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the purlin rollforming machine produces it automatically. The machines are easy to operate and running stable.
