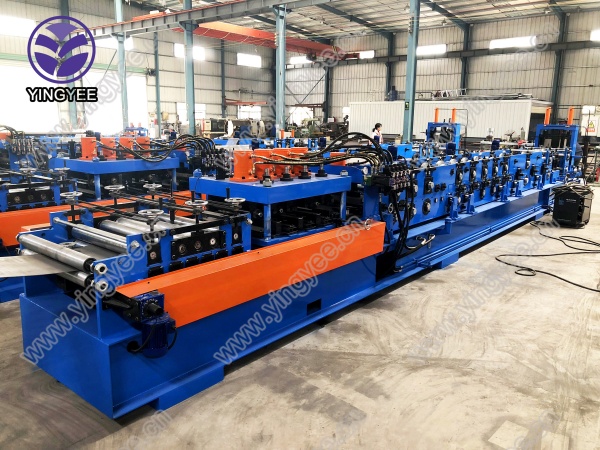

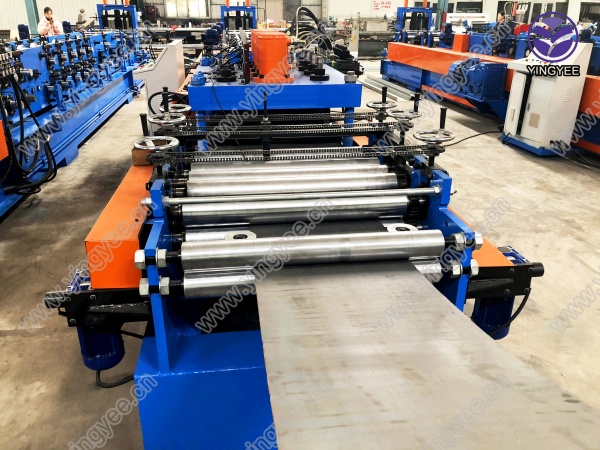

Automatic C/Z purlin roll forming machine
Short Description:
This is automatic C/Z purlin roll forming machine.
It can produce :
C Purlin :
a: 80-300mmb: 35-80mm c: 10-25mm T: max 3mm
Z Purlin :
a: 120-300mm b: 35-80mm c:10-25mm T: max 3mm
All sizes can adjust automatically,C/Z adjust by manual
Main power:18.5kw
6 electronic motors auto adjust size.
Frame： 500mm H frame steel
Forming speed: 18-20m/min
Shaft material and diameters: #45 steel and fit side 65mm. flexibleside: 85mm

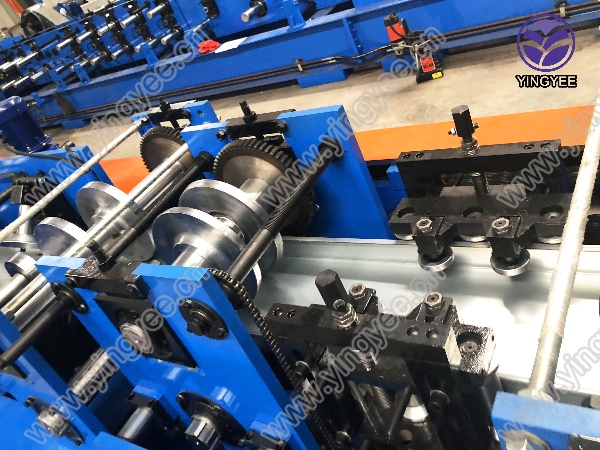

Roller material: Gcr15. the hardness is HRC 52-55
Steps: 15-18 steps for forming
All size change by PLC. All parameter set from the PLC control system

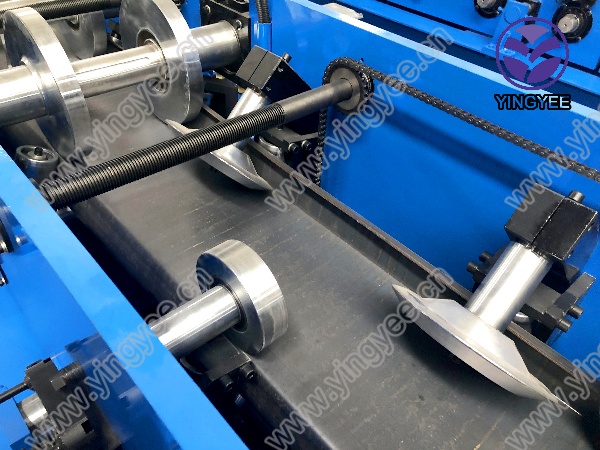

C/Z change, by manual change the rollers discretion
Machine size: L*W*H 11.5m*1.6m*1.4m (approx size. correct size will be known when machine ready)
Machine weight about 12Tons
Voltage: 380V/ 3phase/ 50 Hz
