Corrugated roof sheet forming mahcine
Short Description:
This is China hot sale courrgated roof sheet forming machine.High produce speed ,High precision.It speed can reached 30m/min,if one piece length is 3m,it can produce 10 pieces per minute.
Technical parameters:
| Raw materials | Galvanized coils, Pre-painted coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Forming speed | 10-15m/min |
| Rollers | 15 rows(according to drawings) |
| Material of rollers | 45# steel with chromed |
| Shaft material and diameter | 76mm, material is 40Cr |
| Material of body | 400H steel |
| Wall panel | 20mm Q195 steel(all with electrostatic spraying) |
| Controlling system | PLC |
| Main power | 5.5KW |
| Material of cutting blade | Cr12 mould steel with quenched treatment |
| Voltage | 380V/3Phase/50Hz |
| Total weight | about 4 tons |

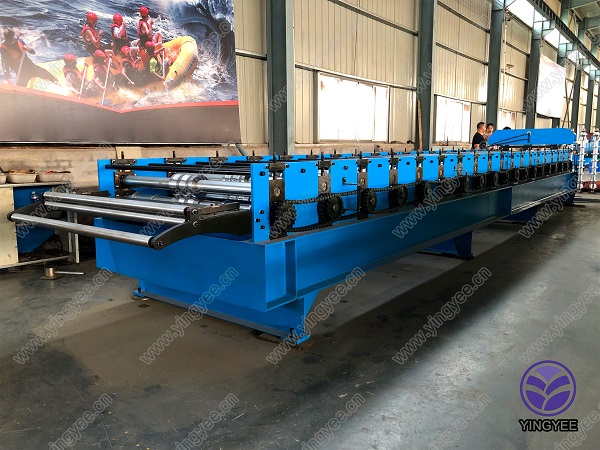

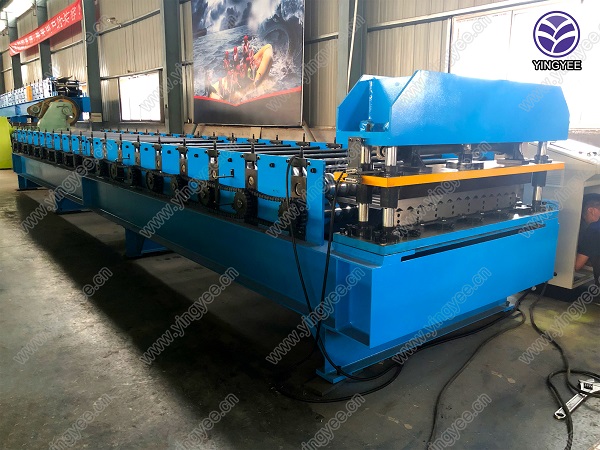

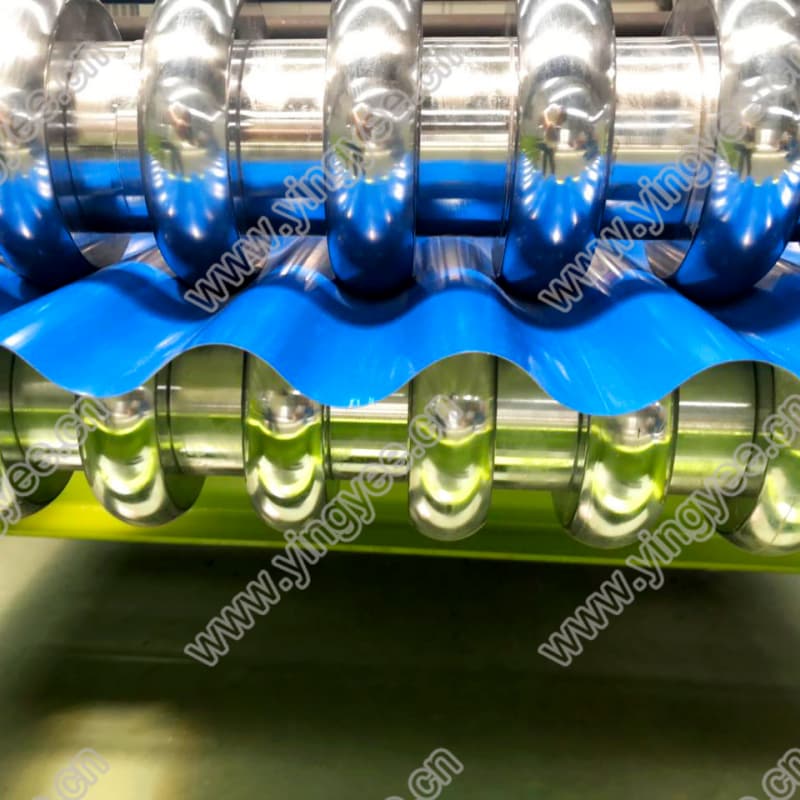

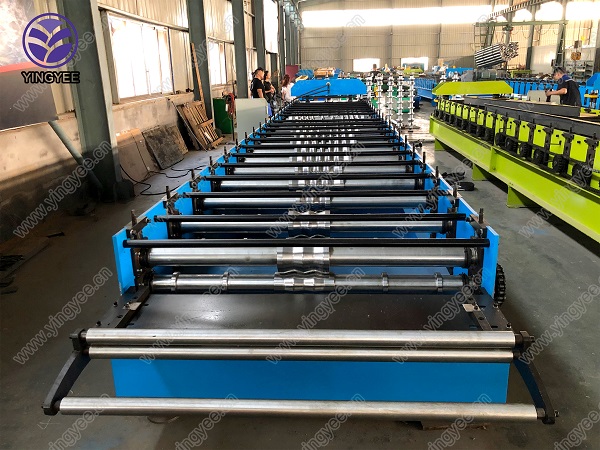

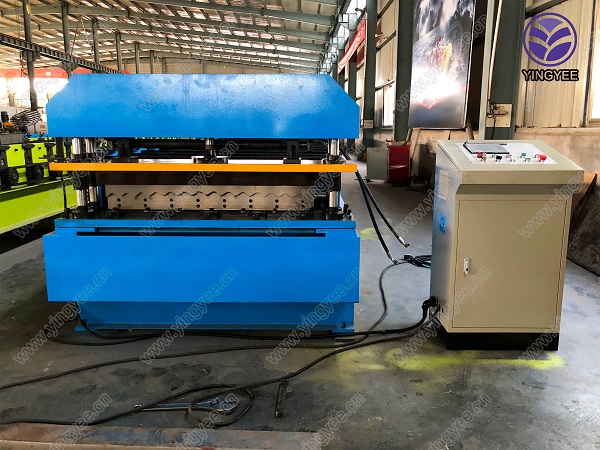

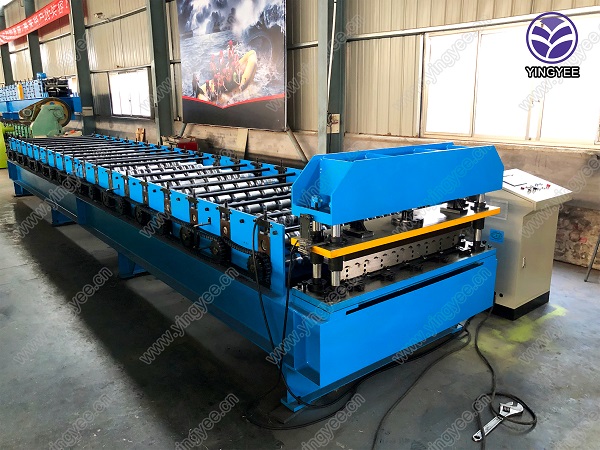

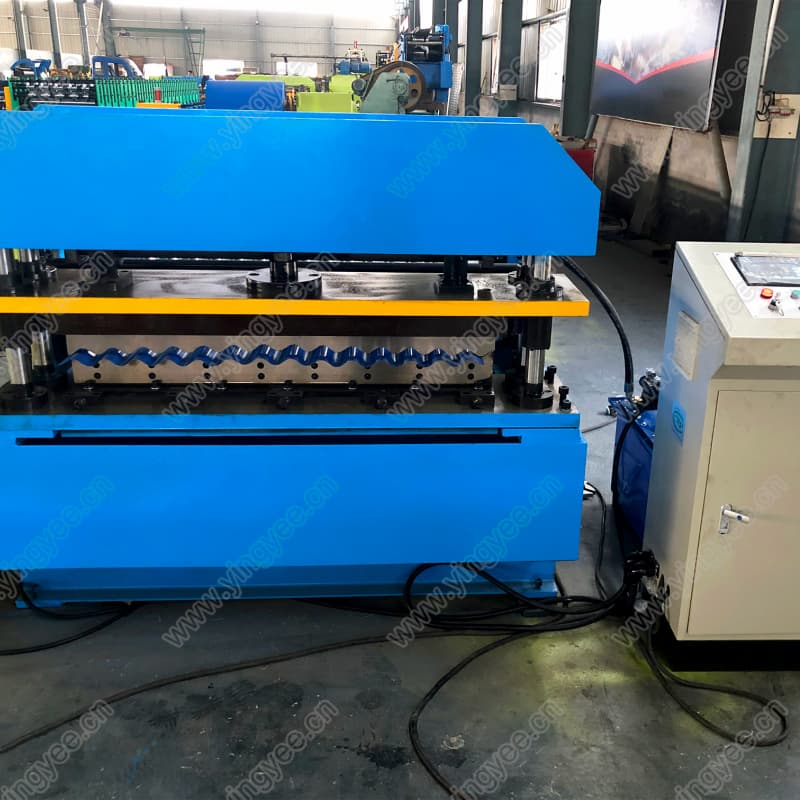

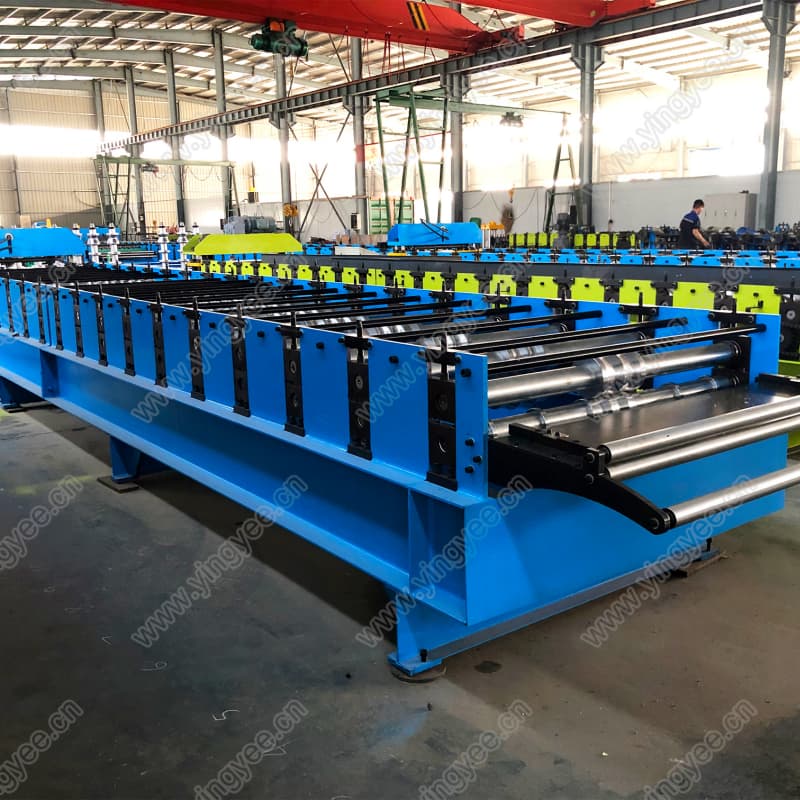

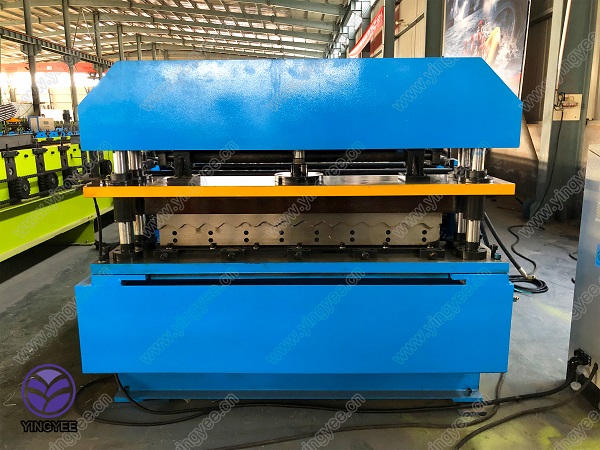

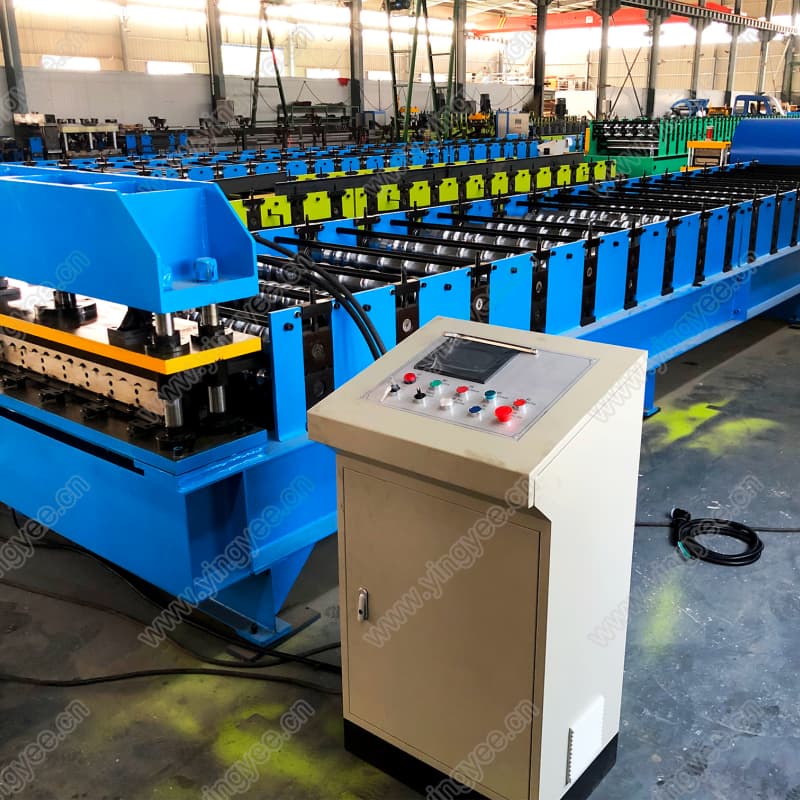

Pictures of machine:
